| Citation: | WU Zhenyun，DENG Hanxiao，WANG Li，et al. Extraction of hydrocarbon microleakage alteration information and interpretation analysis of shallow faults: a case study of the Quele area, Kuqa depression[J]. Bulletin of Geological Science and Technology，2025，44（6）：1-15 doi: 10.19509/j.cnki.dzkq.tb20250007
|
The Quele area of the Kuqa Depression features favorable geological conditions, abundant oil and gas resources, well-developed salt structures, and complex fault systems, collectively creating ideal conditions for upward hydrocarbon migration and the resulting surface hydrocarbon microseepage alteration anomalies. This study investigates the characteristics of hydrocarbon microseepage during upward migration in the area and examines its relationship with shallow faults, providing a theoretical basis for further structural analysis of oil and gas reservoirs.

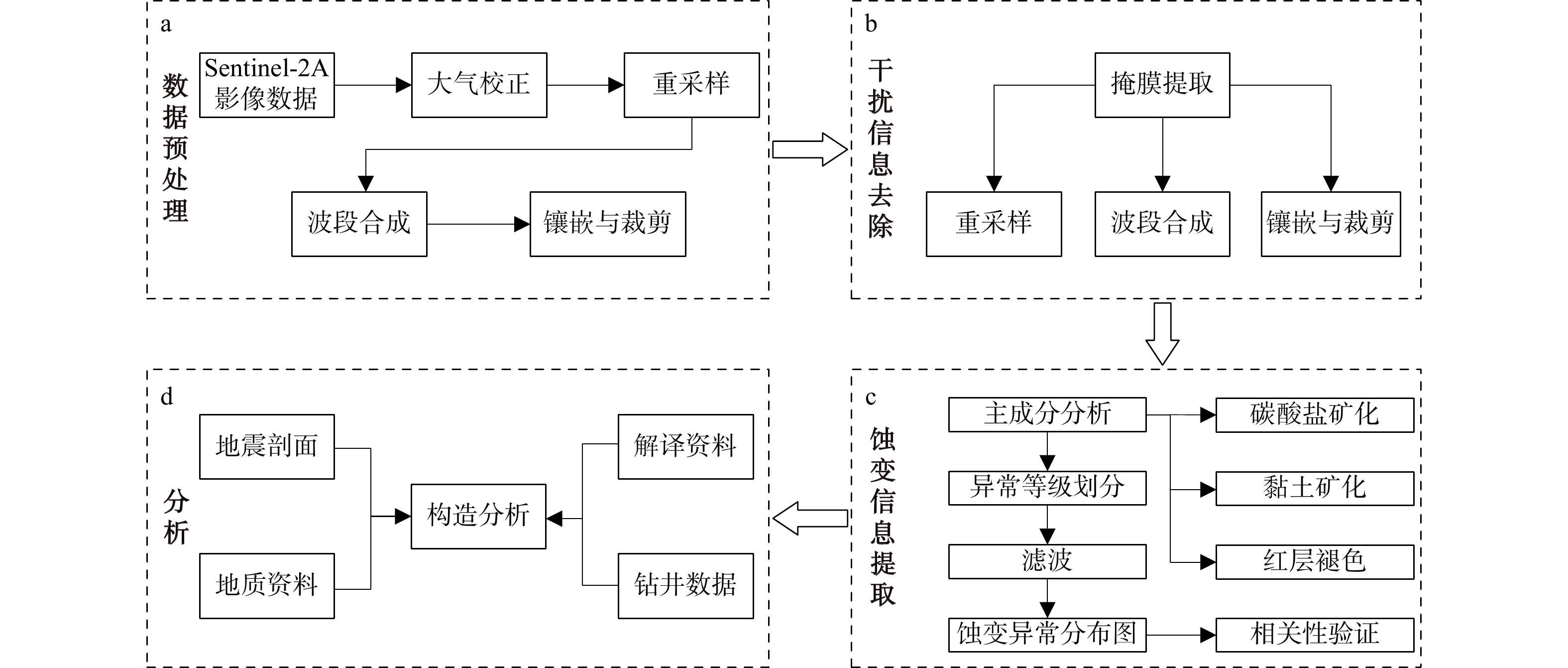

This study primarily utilized Sentinel-2A satellite imagery as the main data source. Principal Component Analysis (PCA) was applied to identify the spatial distribution patterns of hydrocarbon microseepage. By combining seismic profile interpretation and field investigations, we comprehensively analyzed the hydrocarbon microseepage characteristics in the Quele area.
The results reveal significant spatial variability in hydrocarbon microseepage across the Quele area. In regions such as the eastern Awate fold belt, Kalayuergun slip fault zone, and the Quele salt nappe (Quele fault), hydrocarbon microseepage anomalies are more pronounced, with observable surface manifestations. In contrast, the Miskantage anticline area exhibits relatively weak hydrocarbon microseepage, with nearly no discernible surface alteration signs.
The study demonstrates a strong correlation between hydrocarbon microseepage alteration and surface-exposed faults in the Quele area. Field investigations and seismic profile analysis further indicate that the fault on the southern flank of the Miskantage anticline is a hidden fault, not extending through the strata to the surface, and therefore not inducing surface hydrocarbon microseepage alteration.
| [1] |
CHANG F N, DONG S C, YIN H W, et al. Kinematic response of subaerial salt diapirs to geomorphic, tectonic and climatic regimes: Insights from space-based observations in the western Kuqa fold-thrust belt, NW China[J]. Tectonics, 2023, 42(4): e2022TC007670. doi: 10.1029/2022TC007670
|
| [2] |
周子勇. 高光谱遥感油气勘探进展[J]. 遥感技术与应用, 2014, 29(2): 352-361.
ZHOU Z Y. Progress in hyperspectral remote sensing for petroleum prospecting[J]. Remote Sensing Technology and Application, 2014, 29(2): 352-361. (in Chinese with English abstract
|
| [3] |
TANG J H, XU Y, WANG G J, et al. Microseepage of methane to the atmosphere from the Dawanqi oil-gas field, Tarim Basin, China[J]. Journal of Geophysical Research (Atmospheres), 2017, 122(8): 4353-4363.
|
| [4] |
祝民强, 刘德长, 赵英俊. 鄂尔多斯盆地伊盟隆起区东部微烃渗漏区的遥感识别及其意义[J]. 遥感学报, 2007, 11(6): 882-890.
ZHU M Q, LIU D C, ZHAO Y J. Remote sensing detecting for the hydrocarbon microseepage and its implication on the east Yimeng Uplift, Ordos Basin, China[J]. Journal of Remote Sensing, 2007, 11(6): 882-890. (in Chinese with English abstract
|
| [5] |
武鼎, 周觅, 王俊虎, 等. 基于哨兵-2数据的白岗岩型铀矿构造蚀变特征研究: 以纳米比亚罗辛矿区为例[J]. 铀矿地质, 2024, 40(2): 285-293.
WU D, ZHOU M, WANG J H, et al. Structural and alteration characteristics of alaskite type uranium deposit based on sentinel-2 data: An example from the Rossing mine, Namibia[J]. Uranium Geology, 2024, 40(2): 285-293. (in Chinese with English abstract
|
| [6] |
NGASSAM MBIANYA G, NGNOTUE T, TAKODJOU WAMBO J D, et al. Remote sensing satellite-based structural/alteration mapping for gold exploration in the Ketté goldfield, eastern Cameroon[J]. Journal of African Earth Sciences, 2021, 184: 104386. doi: 10.1016/j.jafrearsci.2021.104386
|
| [7] |
HOSSEINPOUR M. Relationship between hydrocarbon micro-seepages and structures by detection of altered minerals using ASTER remote sensing data in the west of Coastal Fars, Zagros, Iran[J]. Arabian Journal of Geosciences, 2020, 13(13): 511. doi: 10.1007/s12517-020-05568-4
|
| [8] |
SHI P L, FU B H, NINOMIYA Y, et al. Multispectral remote sensing mapping for hydrocarbon seepage-induced lithologic anomalies in the Kuqa Foreland Basin, South Tianshan[J]. Journal of Asian Earth Sciences, 2012, 46: 70-77. doi: 10.1016/j.jseaes.2011.10.019
|
| [9] |
YIN A, NIE S, CRAIG P, et al. Late Cenozoic tectonic evolution of the southern Chinese Tianshan[J]. Tectonics, 1998, 17(1): 1-27. doi: 10.1029/97TC03140
|
| [10] |
张冠杰, 张滨鑫, 徐珂, 等. 塔里木盆地库车坳陷博孜区块超深层致密砂岩储层裂缝特征及其对油气产能的影响[J]. 地质科技通报, 2024, 43(2): 75-86.
ZHANG G J, ZHANG B X, XU K, et al. Fracture characteristics of ultra-deep tight sandstone reservoirs in the Bozi Block, Kuqa Depression of Tarim Basin, and effects on oil-gas production[J]. Bulletin of Geological Science and Technology, 2024, 43(2): 75-86. (in Chinese with English abstract
|
| [11] |
卢华复, 贾东, 陈楚铭, 等. 库车新生代构造性质和变形时间[J]. 地学前缘, 1999, 6(4): 215-221.
LU H F, JIA D, CHEN C M, et al. Nature and timing of the Kuqa Cenozoic structures[J]. Earth Science Frontiers, 1999, 6(4): 215-221. (in Chinese with English abstract
|
| [12] |
汤良杰, 贾承造, 金之钧, 等. 塔里木盆地库车前陆褶皱带中段盐相关构造特征与油气聚集[J]. 地质论评, 2003, 49(5): 501-506.
TANG L J, JIA C Z, JIN Z J, et al. Salt-related structural characteristics and hydrocarbon accumulation in the middle segment of the Kuqa foreland fold belt in the northern Tarim Basin, NW China[J]. Geological Review, 2003, 49(5): 501-506. (in Chinese with English abstract
|
| [13] |
WU Z Y, YIN H W, WANG X, et al. Characteristics and deformation mechanism of salt-related structures in the western Kuqa Depression, Tarim Basin: Insights from scaled sandbox modeling[J]. Tectonophysics, 2014, 612/613: 81-96.
|
| [14] |
WANG W, YIN H W, JIA D, et al. Along-strike structural variation in a salt-influenced fold and thrust belt: Analysis of the Kuqa Depression[J]. Tectonophysics, 2020, 786: 228456. doi: 10.1016/j.tecto.2020.228456
|
| [15] |
田军, 王清华, 杨海军, 等. 塔里木盆地油气勘探历程与启示[J]. 新疆石油地质, 2021, 42(3): 272-282.
TIAN J, WANG Q H, YANG H J, et al. Petroleum exploration history and enlightenment in Tarim Basin[J]. Xinjiang Petroleum Geology, 2021, 42(3): 272-282. (in Chinese with English abstract
|
| [16] |
余一欣, 黄太柱, 汤良杰, 等. 塔里木盆地塔中隆起盐相关断裂发育特征[J]. 地质学报, 2011, 85(2): 179-184.
YU Y X, HUANG T Z, TANG L J, et al. Salt-related faults in the Tazhong uplift, Tarim Basin[J]. Acta Geologica Sinica, 2011, 85(2): 179-184. (in Chinese with English abstract
|
| [17] |
吴珍云. 含盐沉积盆地盐构造分析和物理模拟: 以库车坳陷、滨里海盆地和苏丹红海盆地为例[D]. 南京: 南京大学, 2014.
WU Z Y. Salt tectonics analysis and physical simulation in salt-bearing sedimentary basins: A case study of the Kuqa Depression, the Caspian Sea Basin, and the Red Sea Basin of Sudan [D]. Nanjing: Nanjing University, 2014. (in Chinese with English abstract
|
| [18] |
JIA K, YUAN W F, LIU J L, et al. Hydrocarbon generation and accumulation in the eastern Kuqa Depression, northwestern China: Insights from basin and petroleum system modeling[J]. Applied Sciences, 2024, 14(3): 1217. doi: 10.3390/app14031217
|
| [19] |
赵亚汶, 谢会文, 严德天, 等. 库车坳陷侏罗系克孜勒努尔组深部煤层特征及启示[J]. 地质科技通报, 2025, 44(5): 53-64.
ZHAO Y W, XIE H W, YAN D T, et al. Characteristics and enlightenment of deep coal rocks in the Jurassic Kizilnur Formation of Kuqa Depression[J]. Bulletin of Geological Science and Technology, 2025, 44(5): 53-64. (in Chinese with English abstract
|
| [20] |
蒋俊, 平宏伟, 吴少军, 等. 塔里木盆地库车坳陷南斜坡海陆相来源油识别与混源油贡献定量评价: 以牙哈构造带为例[J]. 地质科技通报, 2025, 44(4): 201-216.
JIANG J, PING H W, WU S J, et al. Identification of oil sources from marine-continental faces source rooks and quantitative evaluation of mixed-source oil contributions in the southern slope of Kuqa Depression, Tarim Basin: A case study of the Yaha structure zone[J]. Bulletin of Geological Science and Technology, 2025, 44(4): 201-216. (in Chinese with English abstract
|
| [21] |
杨秀磊, 吴珍云, 尹宏伟, 等. 基底坡折带对盐上覆褶皱冲断构造形成演化影响的实验模拟: 以库车坳陷西段米斯坎塔克背斜为例[J]. 大地构造与成矿学, 2025, 49(1): 57-69.
YANG X L, WU Z Y, YIN H W, et al. Physical modeling of the influence of basement slope on the formation and evolution of salt-related fold-and-thrust structures in the overburden: Taking the Misikantake anticline in the western Kuqa Depression as an example[J]. Geotectonica et Metallogenia, 2025, 49(1): 57-69. (in Chinese with English abstract
|
| [22] |
HE W H, WANG W, XIE H W, et al. The effects of salt flow on the cross-section restoration of salt-bearing fold-and-thrust belts: An example from the Kuqa Depression[J]. Journal of Structural Geology, 2023, 167: 104795. doi: 10.1016/j.jsg.2023.104795
|
| [23] |
唐鹏程, 饶刚, 李世琴, 等. 库车褶皱−冲断带前缘盐层厚度对滑脱褶皱构造特征及演化的影响[J]. 地学前缘, 2015, 22(1): 312-327.
TANG P C, RAO G, LI S Q, et al. The impact of salt layer thickness on the structural characteristics and evolution of detachment folds in the leading edge of Kuqa fold and thrust belt[J]. Earth Science Frontiers, 2015, 22(1): 312-327. (in Chinese with English abstract
|
| [24] |
LI S Q, WANG X, SUPPE J. Compressional salt tectonics and synkinematic strata of the western Kuqa Foreland Basin, southern Tianshan, China[J]. Basin Research, 2012, 24(4): 475-497. doi: 10.1111/j.1365-2117.2011.00531.x
|
| [25] |
吴珍云, 杨秀磊, 尹宏伟, 等. 库车坳陷西段阿瓦特构造转换带盐构造演化特征及影响因素[J]. 地球科学, 2023, 48(4): 1271-1287.
WU Z Y, YANG X L, YIN H W, et al. Characteristics and influencing factors of salt structure evolution in Awate transfer zone, western Kuqa Depression[J]. Earth Science, 2023, 48(4): 1271-1287. (in Chinese with English abstract
|
| [26] |
唐鹏程, 汪新, 谢会文, 等. 库车坳陷却勒地区新生代盐构造特征、演化及变形控制因素[J]. 地质学报, 2010, 84(12): 1735-1745.
TANG P C, WANG X, XIE H W, et al. The Quele area of the Kuqa Depression, Tarim Basin, NW China: Cenozoic salt structures, evolution and controlling factors[J]. Acta Geologica Sinica, 2010, 84(12): 1735-1745. (in Chinese with English abstract
|
| [27] |
于璇, 侯贵廷, 能源, 等. 库车坳陷构造裂缝发育特征及分布规律[J]. 高校地质学报, 2016, 22(4): 644-656.
YU X, HOU G T, NENG Y, et al. Development and distribution characteristics of tectonic fractures in Kuqa Depression[J]. Geological Journal of China Universities, 2016, 22(4): 644-656. (in Chinese with English abstract
|
| [28] |
YANG K J, QI J F, XU L W, et al. Influence of preexisting structures on salt structures in the Kuqa Depression, Tarim Basin, Western China: Insights from seismic data and numerical simulations[J]. Basin Research, 2024, 36(1): e12850. doi: 10.1111/bre.12850
|
| [29] |
彭俊文. 塔里木盆地库车坳陷深部和浅部油气成藏特征与分布规律[D]. 北京: 中国石油大学(北京), 2016.
PENG J W. Characteristics and distribution of deep and shallow oil and gas accumulation in Kuqa Depression, Tarim Basin[D]. Beijing: China University of Petroleum (Beijing), 2016. (in Chinese with English abstract
|
| [30] |
汪瑞. 库车南斜坡西段油气运移与成藏模式研究[D]. 北京: 中国石油大学(北京), 2023.
WANG R. Study on hydrocarbon migration and accumulation model in the western segment of the southern slope of Kuqa[D]. Beijing: China University of Petroleum (Beijing), 2023. (in Chinese with English abstract
|
| [31] |
TANG P C, RAO G, LI S Q, et al. Lateral structural variations and drainage response along the Misikantage anticline in the western Kuqa fold-and-thrust belt, southern Tianshan, NW China[J]. Tectonophysics, 2017, 721: 196-210. doi: 10.1016/j.tecto.2017.10.007
|
| [32] |
ZHAO B, WANG X. Evidence of early passive diapirism and tectonic evolution of salt structures in the western Kuqa Depression (Quele area), southern Tianshan (NW China)[J]. Journal of Asian Earth Sciences, 2016, 125: 138-151. doi: 10.1016/j.jseaes.2016.05.021
|
| [33] |
管树巍, 陈宁华, 徐峰, 等. 库车坳陷秋里塔格褶皱带几何学和运动学特征与油气圈闭[J]. 石油学报, 2003, 24(6): 30-34.
GUAN S W, CHEN N H, XU F, et al. Properties of geometry and kinematics related to hydrocarbon traps in Qiulitag anticline zone of Kuqa Depression[J]. Acta Petrolei Sinica, 2003, 24(6): 30-34. (in Chinese with English abstract
|
| [34] |
肖中尧, 黄光辉, 卢玉红, 等. 库车坳陷却勒1井原油的重排藿烷系列及油源对比[J]. 石油勘探与开发, 2004, 31(2): 35-37.
XIAO Z Y, HUANG G H, LU Y H, et al. Rearranged hopanes in oils from the Quele 1 well, Tarim Basin, and the significance for oil correlation[J]. Petroleum Exploration and Development, 2004, 31(2): 35-37. (in Chinese with English abstract
|
| [35] |
梁狄刚, 陈建平, 张宝民, 等. 塔里木盆地库车坳陷陆相油气的生成[M]. 北京: 石油工业出版社, 2004.
LIANG D G, CHEN J P, ZHANG B M, et al. Generation of terrestrial oil and gas in the Kuqa Depression, Tarim Basin[M]. Beijing: Petroleum Industry Press, 2004. (in Chinese)
|
| [36] |
王招明, 田军, 王清华, 等. 塔里木盆地油气勘探与实践[M]. 北京: 石油工业出版社, 2004.
WANG Z M, TIAN J, WANG Q H, et al. Oil and gas exploration and practice in the Tarim Basin [M]. Beijing: Petroleum Industry Press, 2004. (in Chinese)
|
| [37] |
蔚远江, 杨涛, 郭彬程, 等. 前陆冲断带油气资源潜力、勘探领域分析与有利区带优选[J]. 中国石油勘探, 2019, 24(1): 46-59.
YU Y J, YANG T, GUO B C, et al. Oil and gas resources potentials, exploration fields and favorable zones in foreland thrust belts[J]. China Petroleum Exploration, 2019, 24(1): 46-59. (in Chinese with English abstract
|
| [38] |
LI J, YANG X Z, DONG C Y, et al. Characteristics of orderly hydrocarbon accumulation of deep reservoirs in Kuqa Depression and its exploration implications[J]. Geological Journal, 2023, 58(11): 4103-4120. doi: 10.1002/gj.4701
|
| [39] |
杜金虎, 田军, 李国欣, 等. 库车坳陷秋里塔格构造带的战略突破与前景展望[J]. 中国石油勘探, 2019, 24(1): 16-23.
DU J H, TIAN J, LI G X, et al. Strategic breakthrough and prospect of Qiulitag structural belt in Kuqa Depression[J]. China Petroleum Exploration, 2019, 24(1): 16-23. (in Chinese with English abstract
|
| [40] |
王清华, 张亮, 吕修祥, 等. 库车前陆盆地前缘隆起西段油气成藏类型及分布预测[J]. 石油学报, 2023, 44(5): 730-747.
WANG Q H, ZHANG L, LÜ X X, et al. Hydrocarbon accumulation types and distribution prediction of western section of frontal uplift of Kuqa Foreland Basin[J]. Acta Petrolei Sinica, 2023, 44(5): 730-747. (in Chinese with English abstract
|
| [41] |
刘翔, 樊海龙, 郭建明, 等. 基于ASTER数据对中非裂谷系东部地表构造解释及油气信息提取[J]. 遥感技术与应用, 2021, 36(3): 649-662.
LIU X, FAN H L, GUO J M, et al. Surface structure interpretation and oil and gas information extraction from ASTER on East Central African Rift system[J]. Remote Sensing Technology and Application, 2021, 36(3): 649-662. (in Chinese with English abstract
|
| [42] |
浦蔡鑫. 微渗漏甲烷通量监测及仿真研究: 以新疆塔里木盆地库车坳陷为例[D]. 杭州: 杭州电子科技大学, 2023.
PU C X. Monitoring and numerical simulation of methane microseepage: Take the Kuqa Depression in Tarim Basin of Xinjian as an exanple[D]. Hangzhou: Hangzhou Dianzi University, 2023. (in Chinese with English abstract
|
| [43] |
关颖, 朱翊. 基于空间分析的区域地质灾害点的分布特征研究: 以新疆为例[J]. 测绘工程, 2016, 25(9): 15-19.
GUAN Y, ZHU Y. A study of the distribution characteristics of regional geological hazards based on spatial analysis: A case of Xinjiang[J]. Engineering of Surveying and Mapping, 2016, 25(9): 15-19. (in Chinese with English abstract
|
| [44] |
周超凡, 宫辉力, 陈蓓蓓, 等. 北京地面沉降时空分布特征研究[J]. 地球信息科学学报, 2017, 19(2): 205-215.
ZHOU C F, GONG H L, CHEN B B, et al. Study of temporal and spatial characteristics of land subsidence in Beijing[J]. Journal of Geo-Information Science, 2017, 19(2): 205-215. (in Chinese with English abstract
|
| [45] |
王晓鹏, 谢志清, 伍跃中. ETM图像数据中矿化蚀变信息的提取: 以西昆仑塔什库尔干地区为例[J]. 地质与资源, 2002, 11(2): 119-122.
WANG X P, XIE Z Q, WU Y Z. Information extraction of minerali zing alteration from etm space image: Taking Taxkorgan area of West Kunlun Mountain as an example[J]. Journal of Precious Metallic Geology, 2002, 11(2): 119-122. (in Chinese with English abstract
|
| [46] |
康高峰. 柴达木盆地北缘成矿带遥感信息提取及有利成矿区预测研究[D]. 西安: 西北大学, 2009.
KANG G F. Remote sensing information extraction and favorable mineralization area prediction in the northern metallogenic belt of the Qaidam Basin [D]. Xi'an: Northwestern University, 2009. (in Chinese with English abstract
|
| [47] |
赵芝玲, 王萍, 荆林海, 等. 用ASTER数据提取植被覆盖区遥感铁矿化蚀变信息[J]. 金属矿山, 2016(10): 109-115.
ZHAO Z L, WANG P, JING L H, et al. Extraction method of iron mineralized alteration information in vegetation covered areas based on remote sensing ASTER data[J]. Metal Mine, 2016(10): 109-115. (in Chinese with English abstract
|
| [48] |
韩耀祖, 谷永兴, 刘军, 等. 塔里木盆地克拉苏构造带西段构造成因及油气远景展望: 以阿瓦特地区为例[J]. 天然气地球科学, 2016, 27(12): 2160-2168.
HAN Y Z, GU Y X, LIU J, et al. Tectonic origin and the prospect of oil gas in West Kelasu structural belt: A case study of Awat segment[J]. Natural Gas Geoscience, 2016, 27(12): 2160-2168. (in Chinese with English abstract
|
