| Citation: | SHENG Mingqiang，GUAN Ziyi，JIANG Chuanzhi，et al. Indicators and multi-factor interaction analysis of flocculation efficiency for ultra-fine tailings with flocculant addition[J]. Bulletin of Geological Science and Technology，2026，45（6）：1-10 doi: 10.19509/j.cnki.dzkq.tb20250421
|
This study aims to enhance flocculation-sedimentation performance by optimizing parameters such as slurry mass concentration, specific flocculant consumption, and agitation rate, thereby solving problems such as slow sedimentation speed and low dewatering efficiency during the filling of geotextile tubes with ultra-fine tailings. The ultimate goal is to improve the mechanical strength and storage stability of dewatered tailings.
Cylinder sedimentation tests were conducted, with "flocculation efficiency" introduced as the core evaluation indicator. Single-factor analysis was employed to investigate the effects of slurry mass concentration, specific flocculant consumption, and agitation rate on flocculation performance. A three-factor, three-level Box-Behnken design (BBD) was utilized for response surface methodology (RSM) experiments. Design-Expert software was applied to establish a quantitative model between flocculation efficiency and various factors to analyze multi-factor interactions and their underlying mechanisms.

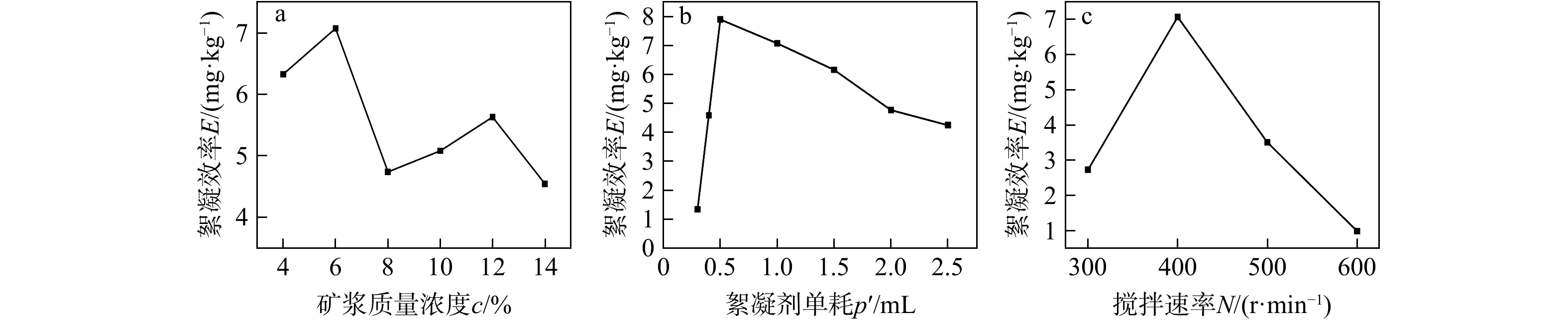

Single-factor tests indicated that higher flocculation efficiency was achieved within the following ranges: slurry mass concentration of 4%-8%, specific flocculant consumption of 0.5-1.5 mL, and agitation rate of 300-500 r/min. Analysis of variance of the response surface optimization model showed that the significance of factors affecting flocculation efficiency followed the order: square of agitation rate > square of slurry mass concentration > specific flocculant consumption > interaction between slurry mass concentration and specific flocculant consumption > slurry mass concentration > square of specific flocculant consumption > agitation rate > interaction between specific flocculant consumption and agitation rate > interaction between slurry mass concentration and agitation rate. The optimal parameter combination was identified as slurry mass concentration of 5.45%, specific flocculant consumption of 0.5 mL, and agitation rate of 415 r/min, yielding a predicted flocculation efficiency of 8.086 %/(mg·kg−1). The error between measured and predicted values was less than 5%.

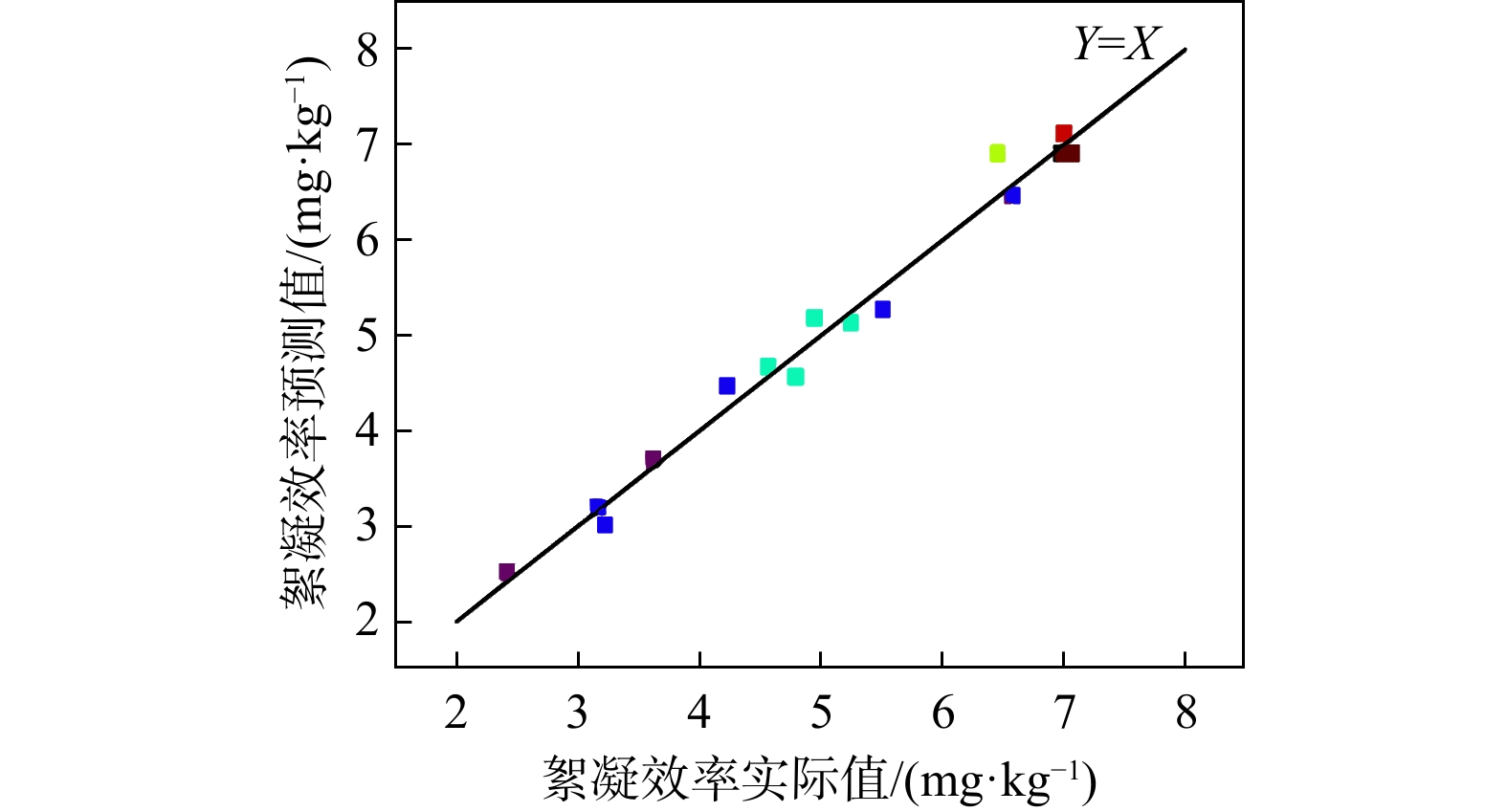

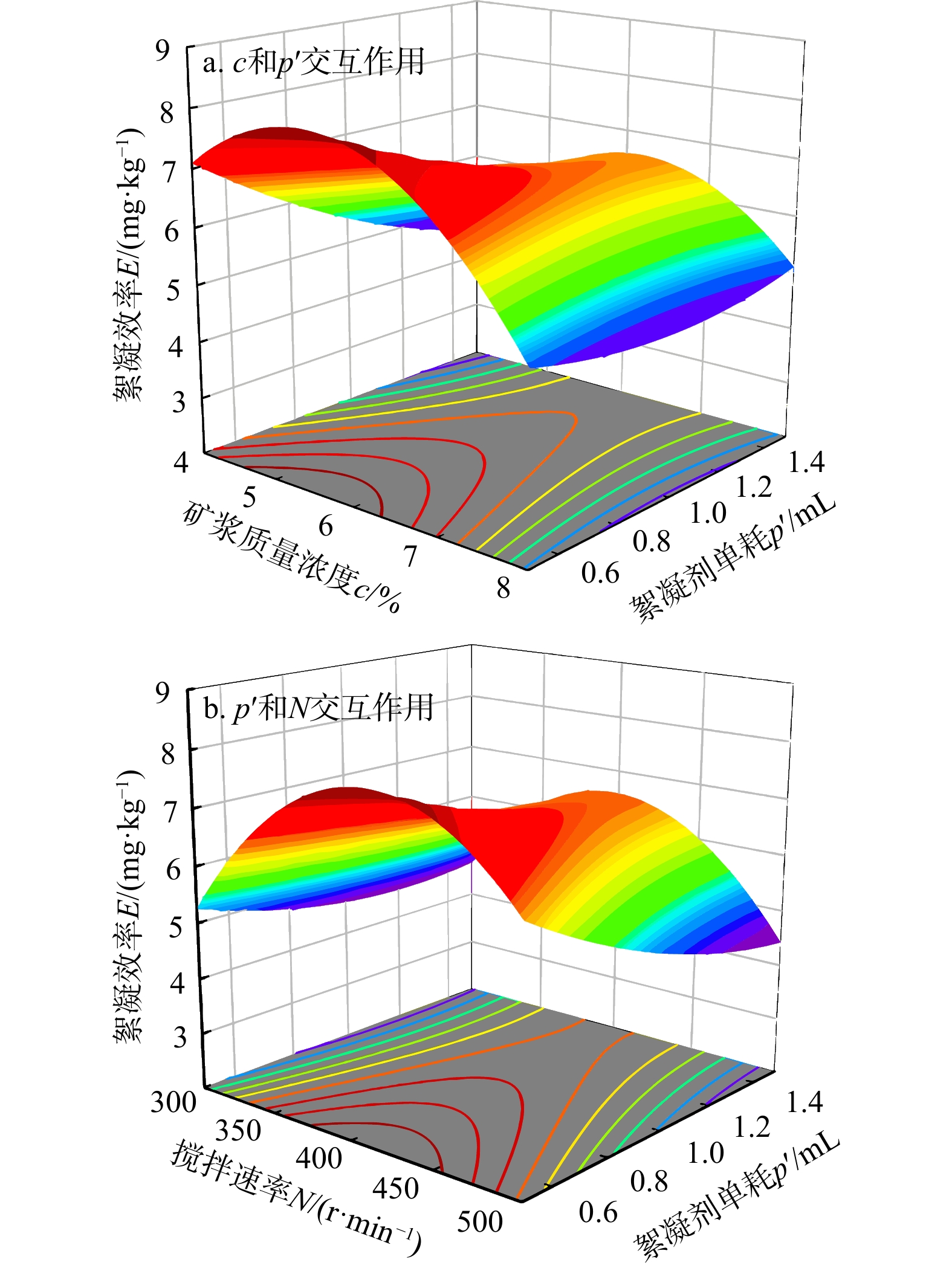

The established flocculation efficiency model can effectively predict the flocculation-sedimentation performance of ultra-fine tailings. The response surface methodology can reveal the mechanisms of multi-factor interactions, and the optimized parameter combination significantly enhances flocculation efficiency. This study provides a theoretical foundation and technical support for the dewatering process of geotextile tubes.
| [1] |
蔡路, 唐龙, 周东东, 等. 贵州省清镇市小院铝土矿地质特征、古地貌及其与铝土矿分布的关系[J]. 地质科技通报, 2025, 44(6): 50-60. doi: 10.19509/j.cnki.dzkq.tb20240016
CAI L, TANG L, ZHOU D D, et al. Geological characteristics, paleolandforms, and their relationship with bauxite distribution in the Xiaoyuan bauxite mine, Qingzhen City, Guizhou Province[J]. Bulletin of Geological Science and Technology, 2025, 44(6): 50-60. (in Chinese with English abstract) doi: 10.19509/j.cnki.dzkq.tb20240016
|
| [2] |
傅渊慧, 张丹, 肖晓, 等. 尾矿库在线监测与安全管理研究与应用[J]. 中国设备工程, 2025(18): 191-193. doi: 10.3969/j.issn.1671-0711.2025.18.081
FU Y H, ZHANG D, XIAO X, et al. Research and application of online monitoring and safety management for tailings ponds[J]. China Plant Engineering, 2025(18): 191-193. (in Chinese with English abstract) doi: 10.3969/j.issn.1671-0711.2025.18.081
|
| [3] |
吴爱祥, 杨盛凯, 王洪江, 等. 超细全尾膏体处置技术现状与趋势[J]. 采矿技术, 2011, 11(3): 4-8. doi: 10.3969/j.issn.1671-2900.2011.03.002
WU A X, YANG S K, WANG H J, et al. Current situation and trend of ultrafine full-tail paste treatment technology[J]. Mining Technology, 2011, 11(3): 4-8. (in Chinese with English abstract) doi: 10.3969/j.issn.1671-2900.2011.03.002
|
| [4] |
XU G Z, QIU C C, SONG M M, et al. Flocculant effects on fluidity and strength behavior of cemented dredged clay with high water content[J]. Marine Georesources & Geotechnology, 2021, 39(8): 951-961. doi: 10.1080/1064119X.2020.1786198
|
| [5] |
张锦峰, 宋志飞, 耿闻泽. 我国尾矿库数量事故统计分析和防范[J]. 现代矿业, 2023, 39(3): 6-9. doi: 10.3969/j.issn.1674-6082.2023.03.002
ZHANG J F, SONG Z F, GENG W Z. Statistical analysis and prevention of the tailings pond quantity accidents in China[J]. Modern Mining, 2023, 39(3): 6-9. (in Chinese with English abstract) doi: 10.3969/j.issn.1674-6082.2023.03.002
|
| [6] |
常广品, 束一鸣, 尹家春, 等. 管袋充填高含粘量泥浆的高效脱水方法[J]. 水电能源科学, 2014, 32(3): 129-133. doi: 10.20040/j.cnki.1000-7709.2014.03.031
CHANG G P, SHU Y M, YIN J C, et al. Efficient dehydration method of geotube filled high adhesive content mud[J]. Water Resources and Power, 2014, 32(3): 129-133. (in Chinese with English abstract) doi: 10.20040/j.cnki.1000-7709.2014.03.031
|
| [7] |
范海文, 杨晓松, 张金刚, 等. 土工合成材料在昌邑匡围工程建设中的应用[J]. 中国水运(下半月), 2022, 22(3): 130-132.
FAN H W, YANG X S, ZHANG J G, et al. Application of geosynthetic materials in the construction of Changyi enclosure project[J]. China Water Transport (Second Half of the Month), 2022, 22(3): 130-132. (in Chinese with English abstract)
|
| [8] |
韩亚兵, 崔旋, 郄永波. 基于不同模袋材质的细粒分级尾矿模袋堆坝工业试验研究[J]. 有色金属(矿山部分), 2019, 71(4): 41-46. doi: 10.3969/j.issn.1671-4172.2019.04.009
HAN Y B, CUI X, XIE Y B. Industrial experimental research on fine-grained graded tailings bagged dam based on different bagged materials[J]. Nonferrous Metals (Mining Section), 2019, 71(4): 41-46. (in Chinese with English abstract) doi: 10.3969/j.issn.1671-4172.2019.04.009
|
| [9] |
LEE C S, ROBINSON J, CHONG M F. A review on application of flocculants in wastewater treatment[J]. Process Safety and Environmental Protection, 2014, 92(6): 489-508. doi: 10.1016/j.psep.2014.04.010
|
| [10] |
胡智锋, 彭振华, 徐灏龙. 新型有机高分子絮凝剂的合成及在造纸废水处理中的应用[J]. 中国造纸, 2009, 28(8): 36-38. doi: 10.3969/j.issn.0254-508X.2011.z1.010
HU Z F, PENG Z H, XU H L. Synthesis of new organic polymer flocculant and its application in papermaking wastewater treatment[J]. China Pulp & Paper, 2009, 28(8): 36-38. (in Chinese with English abstract) doi: 10.3969/j.issn.0254-508X.2011.z1.010
|
| [11] |
罗倩. 不同絮凝剂对长江疏浚淤泥的絮凝试验研究[J]. 中国水运, 2023(9): 94-96. doi: 10.13646/j.cnki.42-1395/u.2023.05.033
LUO Q. Experimental study on flocculation of dredged silt from the Yangtze River using different flocculants[J]. China Water Transport, 2023(9): 94-96. (in Chinese with English abstract) doi: 10.13646/j.cnki.42-1395/u.2023.05.033
|
| [12] |
王东星, 唐弈锴, 伍林峰. 疏浚淤泥化学絮凝−真空预压深度脱水效果评价[J]. 岩土力学, 2020, 41(12): 3929-3938. doi: 10.16285/j.rsm.2020.0391
WANG D X, TANG Y K, WU L F. Evaluation of deep dewatering effect of dredged sludge by chemical flocculation combined with vacuum preloading[J]. Rock and Soil Mechanics, 2020, 41(12): 3929-3938. (in Chinese with English abstract) doi: 10.16285/j.rsm.2020.0391
|
| [13] |
吴敏, 黄英豪, 董仕骏, 等. 高分子絮凝剂对淤泥板框压滤脱水效果及影响机理[J]. 岩土工程学报, 2025, 47(3): 470-476. (in Chinese with English abstract doi: 10.11779/CJGE20231212
WU M, HUANG Y H, DONG S J, et al. Effects of polymer flocculant on dredged sediment by plate and frame filter press dewatering technology and its influence mechanism[J]. Chinese Journal of Geotechnical Engineering, 2025, 47(3): 470-476. (in Chinese with English abstract) doi: 10.11779/CJGE20231212
|
| [14] |
赵森, 曾芳金, 王军, 等. 絮凝−真空预压加固吹填淤泥试验研究[J]. 岩石力学与工程学报, 2016, 35(6): 1291-1296.
ZHAO S, ZENG F J, WANG J, et al. Experimental study on reinforcement of dredged fill sludge by flocculation-vacuum preloading[J]. Chinese Journal of Rock Mechanics and Engineering, 2016, 35(6): 1291-1296. (in Chinese with English abstract)
|
| [15] |
邹建. 复合絮凝剂对真空预压加固吹填淤泥土影响研究[D]. 江西赣州: 江西理工大学, 2016.
ZOU J. Experimental study on composite flocculants combined with vaccum preloading to reinforce dredged fill[D]. Ganzhou Jiaangxi: Jiangxi University of Science and Technology, 2016. (in Chinese with English abstract)
|
| [16] |
孙军波, 朱建文, 胡惠宁, 等. CPAM对河道泥水混合物的絮凝效果研究[J]. 中国给水排水, 2021, 37(11): 84-88. doi: 10.19853/j.zgjsps.1000-4602.2021.11.014
SUN J B, ZHU J W, HU H N, et al. Study on the flocculation effect of CPAM on river sludge-water mixture[J]. China Water & Wastewater, 2021, 37(11): 84-88. (in Chinese with English abstract) doi: 10.19853/j.zgjsps.1000-4602.2021.11.014
|
| [17] |
吴敏, 黄英豪, 尹洪斌, 等. 典型无机絮凝剂对疏浚淤泥絮凝效果及出水水质影响研究[J]. 岩土工程学报, 2023, 45(增刊1): 79-83. doi: 10.11779/CJGE2023S10021
WU M, HUANG Y H, YIN H B, et al. Influences of typical inorganic flocculants on flocculation effects of dredging materials and quality of effluent water[J]. Chinese Journal of Geotechnical Engineering, 2023, 45(S1): 79-83. (in Chinese with English abstract) doi: 10.11779/CJGE2023S10021
|
| [18] |
张伟. 絮凝剂提高疏浚泥浆泥水分离性能研究[D]. 合肥: 合肥工业大学, 2018.
ZHANG W. Research on improving the separation property of dredged sludge by flocculants[D]. Hefei: Hefei University of Technology, 2018. (in Chinese with English abstract)
|
| [19] |
YIN S H, HOU Y Q, YANG S X, et al. Study on static and dynamic flocculation settlement characteristics of fine tailings slurry and influence of flocculant on strength of fine tailings backfill[J]. Case Studies in Construction Materials, 2022, 17: e01525. doi: 10.1016/j.cscm.2022.e01525
|
| [20] |
卞继伟, 王新民, 肖崇春. 全尾砂动态絮凝沉降试验研究[J]. 中南大学学报(自然科学版), 2017, 48(12): 3278-3283. doi: 10.11817/j.issn.1672-7207.2017.12.019
BIAN J W, WANG X M, XIAO C C. Experimental study on dynamic flocculating sedimentation of unclassified tailings[J]. Journal of Central South University (Science and Technology), 2017, 48(12): 3278-3283. (in Chinese with English abstract) doi: 10.11817/j.issn.1672-7207.2017.12.019
|
| [21] |
SADANGI J K, SAHOO A K, SUSHOBHAN B R, et al. Effect of anionic flocculant on settling rate of iron ore ultra-fines[J]. Materials Today: Proceedings, 2020, 30: 316-321.
|
| [22] |
KARADOĞAN Ü, KORKUT S, ÇEVIKBILEN G, et al. Evaluation of beneficial of polyacrylamide use dewatering of dredged sludge obtained from golden horn[J]. Marine Georesources & Geotechnology, 2021, 39(8): 919-928. doi: 10.1080/1064119X.2020.1780526
|
| [23] |
程昊, 陈辉, 张抒, 等. 基于响应面试验设计的深基坑降水开挖地表沉降特性[J]. 地质科技通报, 2024, 43(5): 181-196. doi: 10.19509/j.cnki.dzkq.tb20230294
CHENG H, CHEN H, ZHANG S, et al. Investigations into ground surface settlement characteristics of excavation under dewatering and excavating conditions using the response surface ex-perimental design method[J]. Bulletin of Geological Science and Technology, 2024, 43(5): 181-196. (in Chinese with English abstract) doi: 10.19509/j.cnki.dzkq.tb20230294
|
| [24] |
温震江, 杨晓炳, 李立涛, 等. 基于RSM-BBD的全尾砂浆絮凝沉降参数选择及优化[J]. 中国有色金属学报, 2020, 30(6): 1437-1445. doi: 10.11817/j.ysxb.1004.0609.2020-36421
WEN Z J, YANG X B, LI L T, et al. Selection and optimization of flocculation sedimentation parameters of unclassified tailings slurry based on RSM-BBD[J]. The Chinese Journal of Nonferrous Metals, 2020, 30(6): 1437-1445. (in Chinese with English abstract) doi: 10.11817/j.ysxb.1004.0609.2020-36421
|
| [25] |
牛福生, 武佳慧, 于晓东, 等. 响应曲面法优化细粒铁尾矿浆絮凝沉降试验研究[J]. 矿冶工程, 2023, 43(3): 47-51. doi: 10.3969/j.issn.0253-6099.2023.03.011
NIU F S, WU J H, YU X D, et al. Optimization of flocculation settlement parameters of fine iron tailings slurry by response surface methodology[J]. Mining and Metallurgical Engineering, 2023, 43(3): 47-51. (in Chinese with English abstract) doi: 10.3969/j.issn.0253-6099.2023.03.011
|
| [26] |
LI S, WANG X M, ZHANG Q L. Dynamic experiments on flocculation and sedimentation of argillized ultrafine tailings using fly-ash-based magnetic coagulant[J]. Transactions of Nonferrous Metals Society of China, 2016, 26(7): 1975-1984. doi: 10.1016/S1003-6326(16)64308-X
|
| [27] |
冯冶, 张兴华, 常丹. 离子剂−无机材料固化盐渍土的直剪力学特性与离散元数值模拟[J]. 地质科技通报, 2026, 45(5): 182-194. doi: 10.19509/j.cnki.dzkq.tb20250256
FENG Y, ZHANG X H, CHANG D. Direct shear mechanical properties and discrete element numerical simulation of saline soil stabilized with ionic additives and inorganic materials[J]. Bulletin of Geological Science and Technology, 2026, 45(5): 182-194. (in Chinese with English abstract) doi: 10.19509/j.cnki.dzkq.tb20250256
|
| [28] |
朱世彬, 王晓东, 武博强, 等. 煤矸石地质聚合物骨料浆液力学与输送特性分析[J]. 水文地质工程地质, 2025, 52(4): 62-74. doi: 10.16030/j.cnki.issn.1000-3665.202502037
ZHU S B, WANG X D, WU B Q, et al. Mechanical and transportation characteristics of gangue geopolymer aggregate slurry[J]. Hydrogeology & Engineering Geology, 2025, 52(4): 62-74. (in Chinese with English abstract) doi: 10.16030/j.cnki.issn.1000-3665.202502037
|
| [29] |
HAN M M, DONG Y H, DONG L H, et al. Characteristics and functionality of high efficiency composite microbial flocculant (EPC-7) for the treatment of black smelly river wastewater[J]. Journal of Water Process Engineering, 2023, 54: 103952. doi: 10.1016/j.jwpe.2023.103952
|
| [30] |
LEE K E, NORHASHIMAH M, TOW T T. Development, characterization and the application of hybrid materials in coagulation/flocculation of wastewater: A review[J]. Chemical Engineering Journal, 2012, 203(01): 370-386. doi: 10.1016/j.cej.2012.06.109
|
| [31] |
RAN F Y, WU S Q, ZHENG X Y, et al. Impact of flocculant compounding on dewatering of river sludge with high water content via flocculation, filter-pressing, and electro-osmotic coupled process[J]. Journal of Environmental Chemical Engineering, 2025, 13(1): 115390. doi: 10.1016/j.jece.2025.115390
|
| [32] |
XIE Y, YIN W Z, YAO J, et al. Application and mechanism of an efficient hydrophobic flocculant CPAM in the flocculation reverse flotation of hematite and microfine-grained chlorite[J]. Journal of Environmental Chemical Engineering, 2024, 12(3): 112608. doi: 10.1016/j.jece.2024.112608
|
| [33] |
ZHA X, YU Y R, HUANG Y. Structure-activity relationships of a novel coarse flocculant for organic carbon capture in municipal wastewater[J]. Environmental Technology & Innovation, 2025, 37: 104007. doi: 10.1016/j.eti.2024.104007
|
| [34] |
李海霞, 田玥, 解静静, 等. 污水处理中常用絮凝剂综述[J]. 化工设计通讯, 2023, 49(9): 38-40. doi: 10.3969/j.issn.1003-6490.2023.09.014
LI H X, TIAN Y, XIE J J, et al. Overview of commonly used flocculants in sewage treatment[J]. Chemical Engineering Design Communications, 2023, 49(9): 38-40. (in Chinese with English abstract) doi: 10.3969/j.issn.1003-6490.2023.09.014
|
| [35] |
朱进. 浅谈絮凝剂在污水处理中的应用[J]. 山西化工, 2019, 39(6): 161-163. doi: 10.16525/j.cnki.cn14-1109/tq.2019.06.60
ZHU J. Application of flocculant in sewage treatment[J]. Shanxi Chemical Industry, 2019, 39(6): 161-163. (in Chinese with English abstract) doi: 10.16525/j.cnki.cn14-1109/tq.2019.06.60
|
| [36] |
李晓旭, 段冲. 有机高分子絮凝剂在处理炼油废水中的应用[J]. 当代化工研究, 2018(4): 30-31. doi: 10.3969/j.issn.1672-8114.2018.04.020
LI X X, DUAN C. The application of organic polymer flocculant in the treatment of refinery wastewater[J]. Modern Chemical Research, 2018(4): 30-31. (in Chinese with English abstract) doi: 10.3969/j.issn.1672-8114.2018.04.020
|
| [37] |
王瑞, 许婷婷, 张逸飞. 絮凝剂在水处理中的应用与研究进展[J]. 节能与环保, 2020(4): 91-92. doi: 10.3969/j.issn.1009-539X.2020.04.039
WANG R, XU T T, ZHANG Y F. Application and research progress of flocculant in water treatment[J]. Energy Conservation and Environmental Protection, 2020(4): 91-92. (in Chinese with English abstract) doi: 10.3969/j.issn.1009-539X.2020.04.039
|
| [38] |
姜金国. 高效有机絮凝剂合成机理及其水处理中的应用研究[J]. 山东化工, 2023, 52(14): 253-255. doi: 10.3969/j.issn.1008-021X.2023.14.069
JIANG J G. Study on synthesis mechanism of high-efficiency organic flocculants and their application in water treatment[J]. Shandong Chemical Industry, 2023, 52(14): 253-255. (in Chinese with English abstract) doi: 10.3969/j.issn.1008-021X.2023.14.069
|
| [39] |
CHENG Y C, WANG C P, LIU K Y, et al. Towards sustainable management of polyacrylamide in soil-water environment: Occurrence, degradation, and risk[J]. Science of the Total Environment, 2024, 926: 171587. doi: 10.1016/j.scitotenv.2024.171587
|
| [40] |
刘丰畅, 龚文静, 吉晓鹏, 等. 不同絮凝剂对污水中无机砂的去除效能研究[J]. 应用化工, 2024, 53(11): 2684-2689. doi: 10.3969/j.issn.1671-3206.2024.11.030
LIU F C, GONG W J, JI X P, et al. Study on the removal efficiency of different flocculants on sand-containing wastewater[J]. Applied Chemical Industry, 2024, 53(11): 2684-2689. (in Chinese with English abstract) doi: 10.3969/j.issn.1671-3206.2024.11.030
|
| [41] |
LIU R Y, YUAN J L, HUANG L, et al. Synergistic enhancement of coal slurry water sedimentation and dehydration process using PDMDAAC/PAM[J]. Journal of Cleaner Production, 2024, 434: 140160. doi: 10.1016/j.jclepro.2023.140160
|
| [42] |
LI L, PENG C, DENG L, et al. Understanding the synergistic mechanism of PAM-FeCl3 for improved sludge dewaterability[J]. Journal of Environmental Management, 2022, 301: 113926.
|
| [43] |
KYNCH G J. A theory of sedimentation[J]. Transactions of the Faraday Society, 1952, 48: 166-176.
|
| [44] |
JENSEN W A. Response surface methodology: Process and product optimization using designed experiments 4th edition[J]. Journal of Quality Technology, 2017, 49(2): 186-188. doi: 10.1080/00224065.2017.11917988
|
