| Citation: | TIAN Yiping，WU Chonglong，ZHANG Xialin，et al. Three-dimensional modeling and visualization analysis of primary exhalative–sedimentary cycles of Gaodi–Daotuo manganese deposit, Guizhou Province[J]. Bulletin of Geological Science and Technology，2026，45（3）：1-11 doi: 10.19509/j.cnki.dzkq.tb20250008
|
To verify the new metallogenic model of "manganese-bearing gas-liquid diapir exhalative-sedimentation and quasi-syngenetic multiple charging composite mineralization" for the Datangpo-type manganese deposit, this study takes the Gaodi-Daotuo super-large rhodochrosite deposit in Guizhou Province as the research object to conduct fine modeling of exhalative-sedimentary cycles and three-dimensional (3D) visualization analysis, aiming to reveal the ore-forming laws of the deposit and provide direct support for the deep and peripheral metallogenic prediction of such deposits.

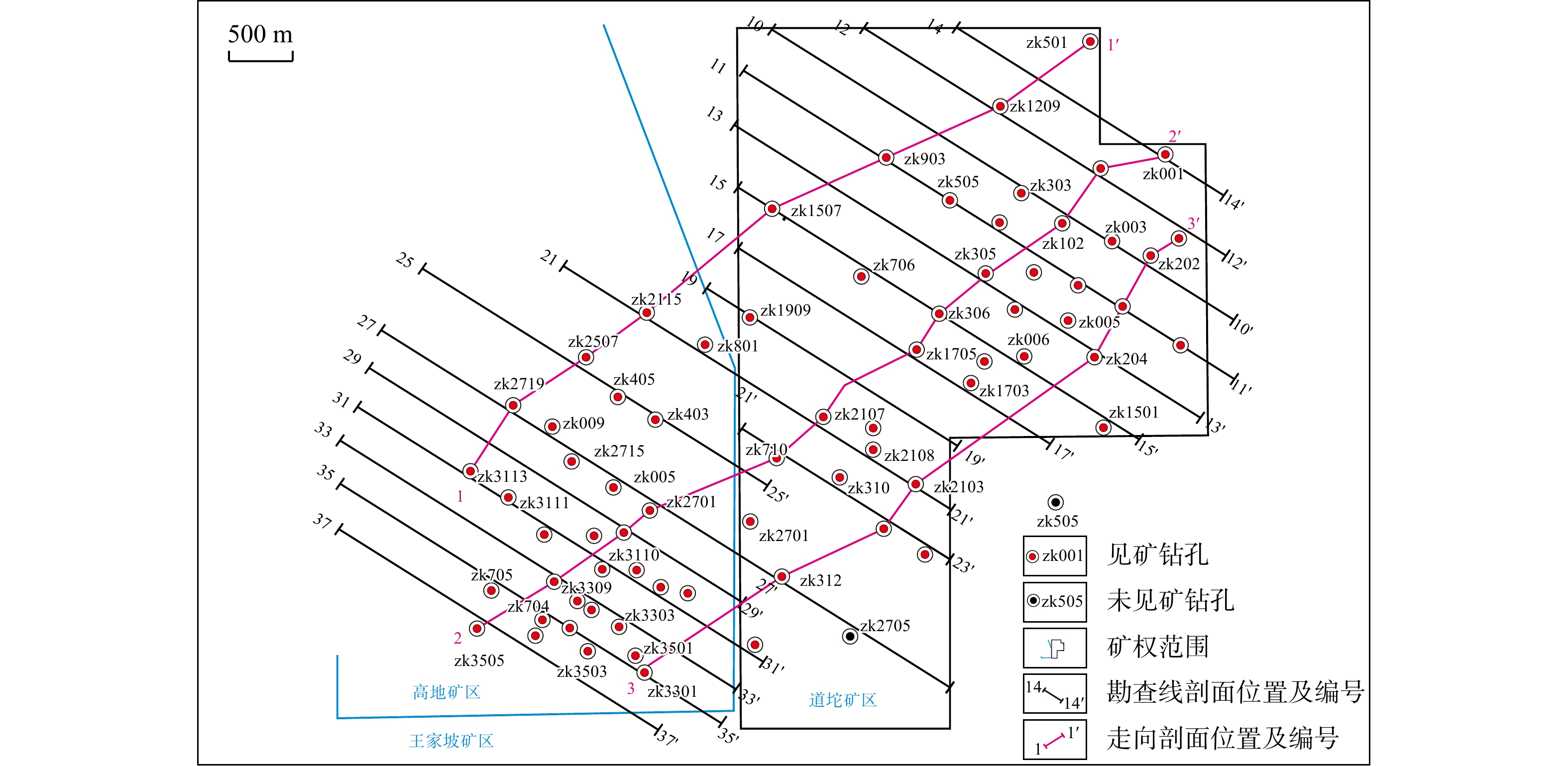

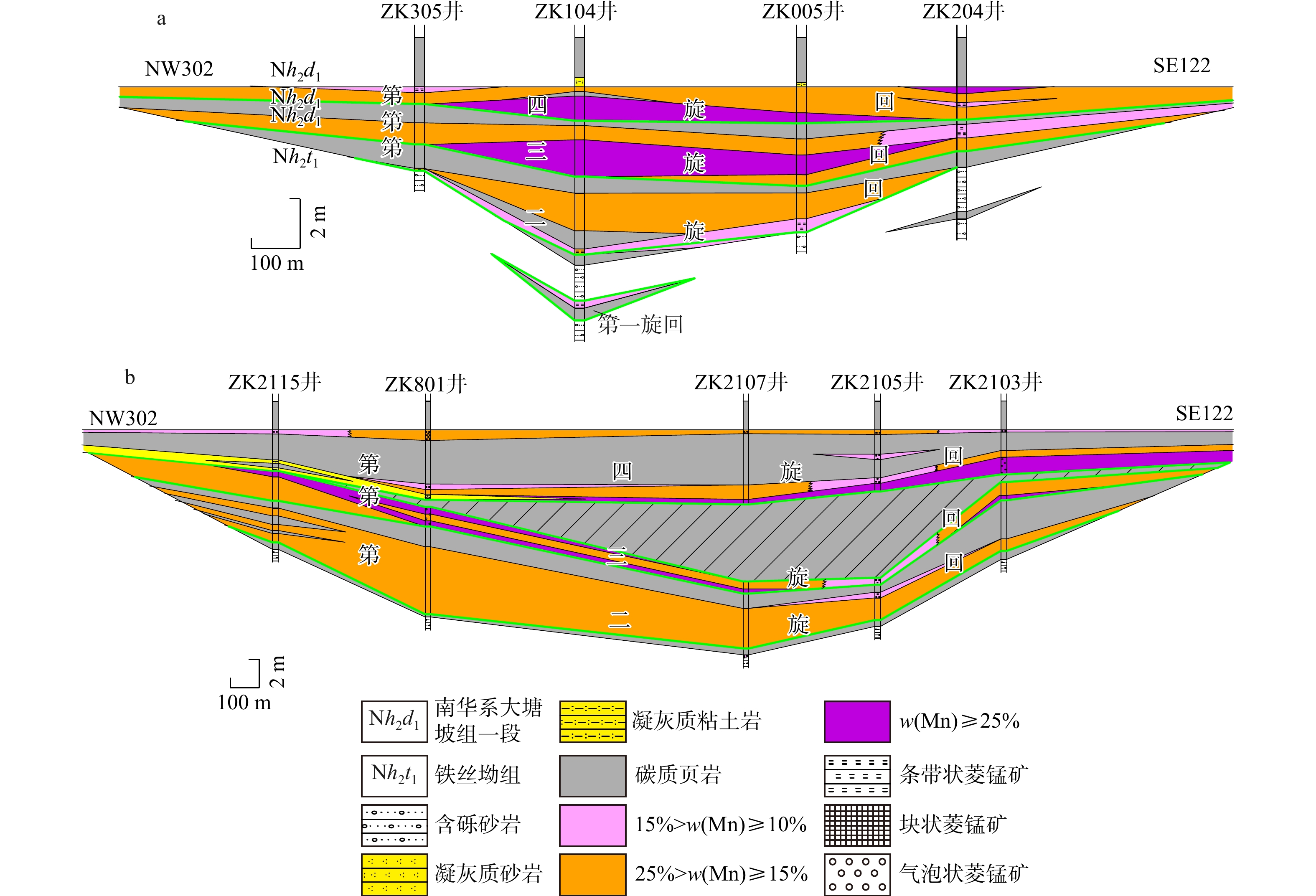

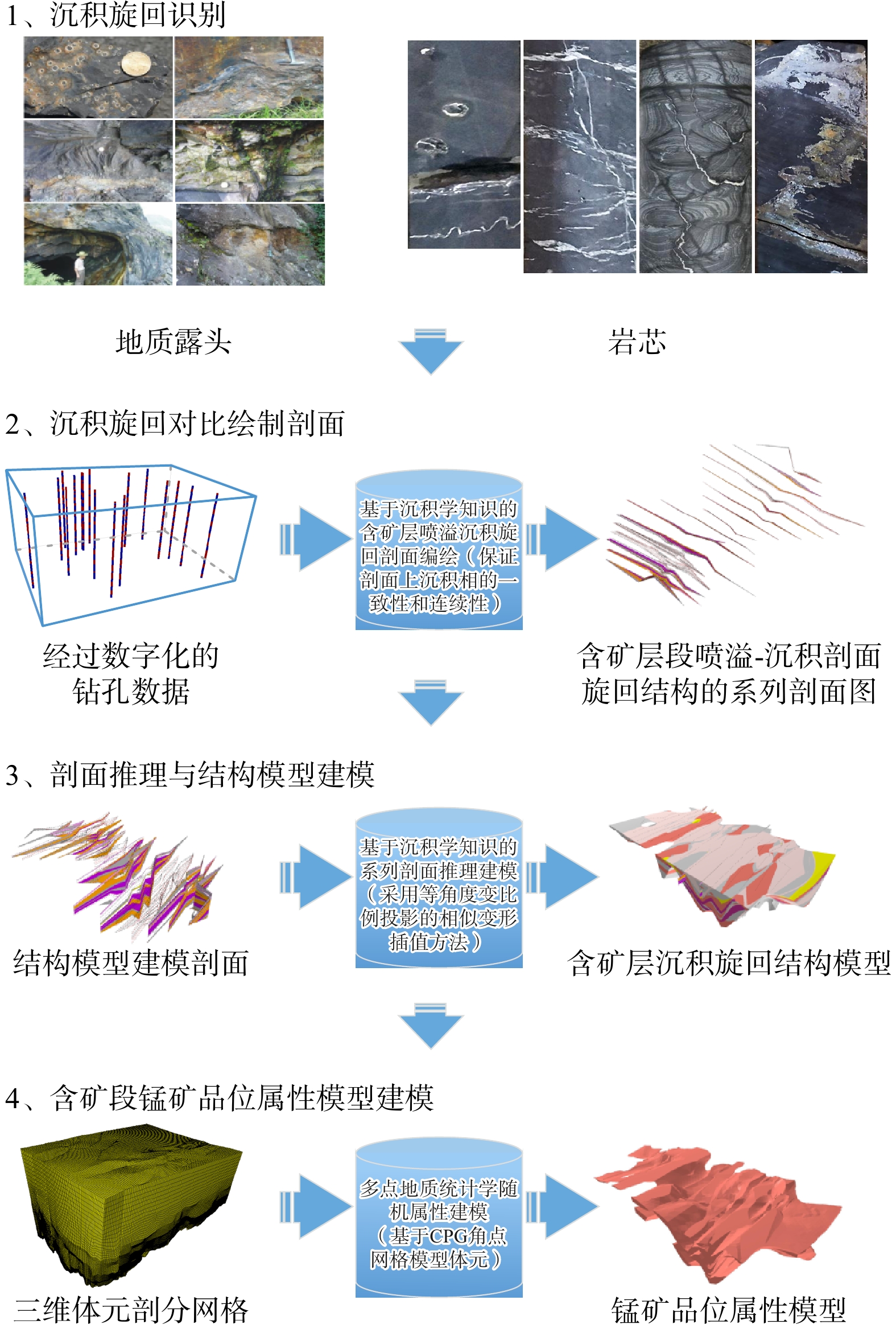

First, the drill cores (ore cores) in the ore-bearing segment of each exploration line of the deposit were divided and correlated for sedimentary cycles, and a series of profile maps of manganese-bearing fluid exhalative-sedimentary cycles were compiled. On this basis, a 3D structural model of sedimentary cycles was constructed by adopting the method combining sedimentology knowledge-driven serial profile topological reasoning and layer surface modeling. Meanwhile, combined with the Triangulated Irregular Network-Corner Point Grid (TIN-CPG) hybrid data model, a 3D attribute model of manganese content was established by using the multi-point geostatistical random attribute modeling method based on Corner Point Grid (CPG), and finally an integrated 3D geological model with coupled structure and attribute was formed.

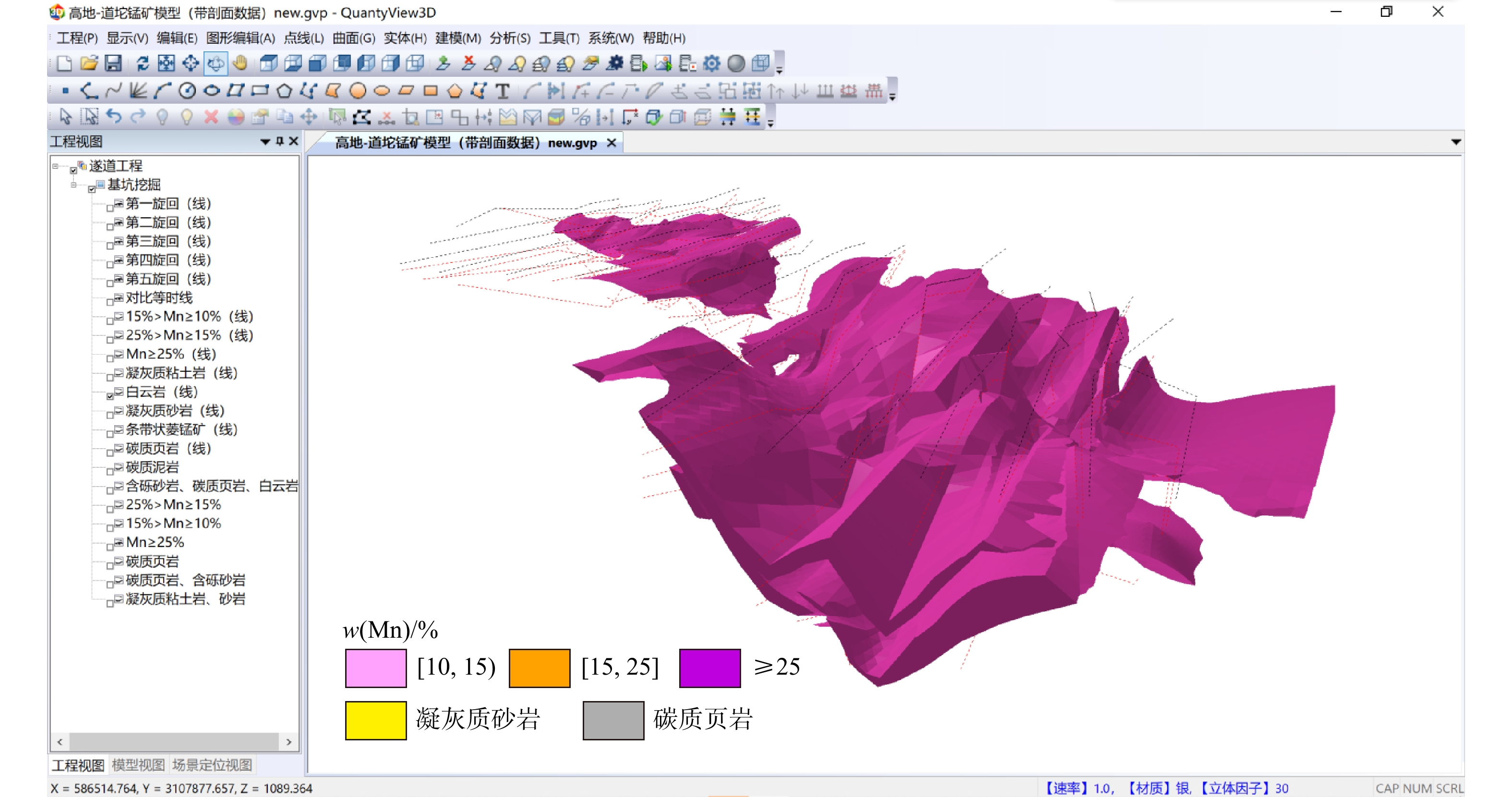

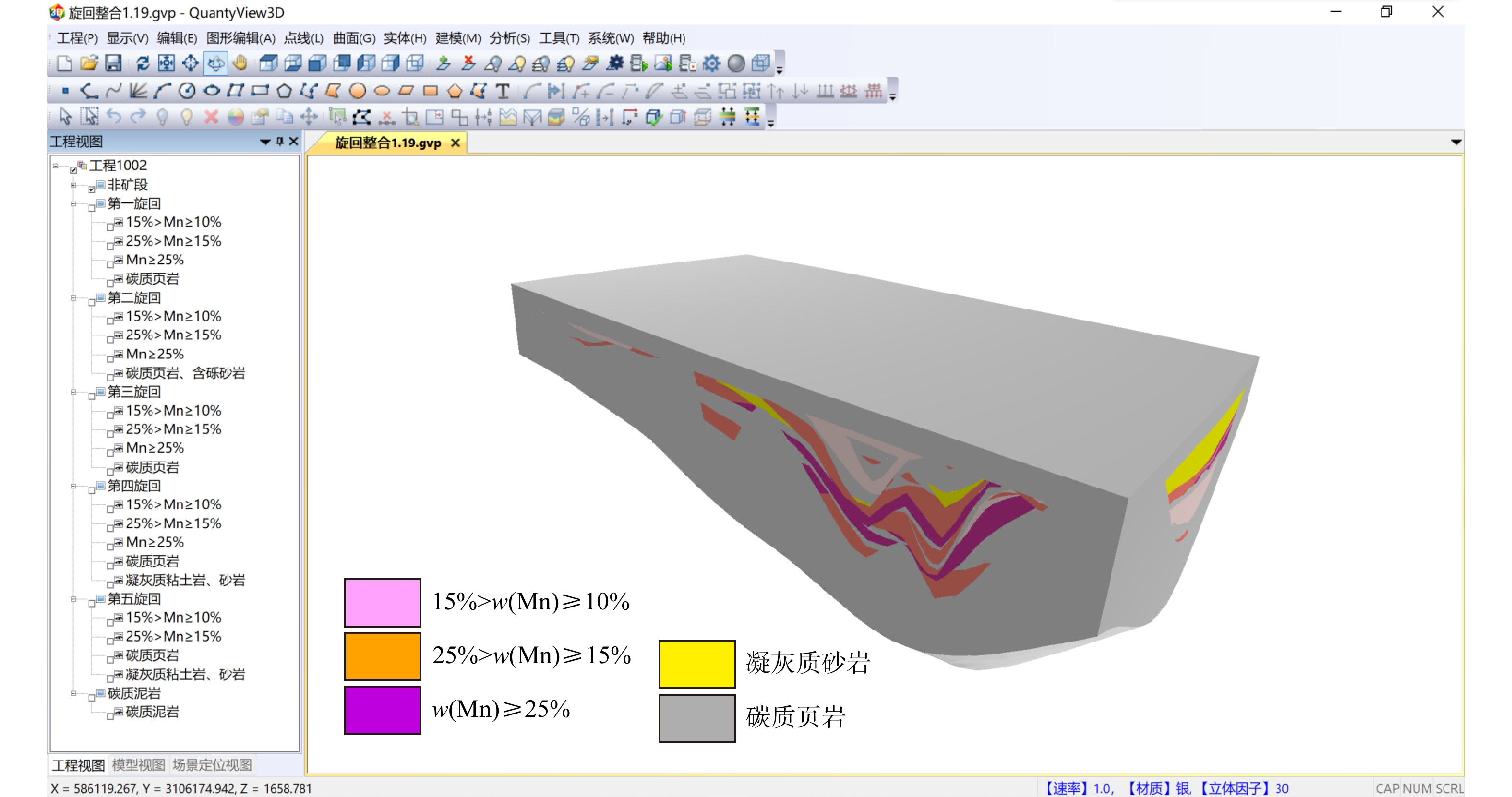

This study successfully constructed an integrated 3D model of five stages of exhalative-sedimentary cycles in the study area. Through 3D visualization analysis including layered visualization, vector clipping and geological statistical analysis, the stages, intensity variation and mineralization process of manganese-bearing fluid exhalative-sedimentation in the deposit were directly and vividly revealed: the exhalative activity was relatively weak in the first cycle, while the third and fourth cycles had the strongest exhalative intensity, where the high-grade manganese ore bodies (Mn≥25%) were mainly concentrated. The multi-level verification results show that the fine modeling method of exhalative-sedimentary metallogenic cycles is scientifically feasible. The distinctive features of this study lie in the proposed 3D structural reasoning modeling method for multi-stage sedimentary cycles driven by sedimentology knowledge, as well as the constructed 3D geological model that reflects multi-stage fine exhalative-sedimentary cycles.
The research results not only provide intuitive visual evidence for the new metallogenic model of Datangpo-type manganese deposit, but also reveal the unique exhalative-sedimentary metallogenic environment, spatial characteristics and ore-forming process of this super-large manganese deposit from the 3D visualization perspective, which is helpful for understanding the ore-forming mechanism, occurrence and distribution characteristics of the deposit, and provides a structural-attribute integrated 3D geological model for the subsequent deep and peripheral metallogenic prediction of such deposits.
| [1] |
周琦, 杜远生, 覃英. 古天然气渗漏沉积型锰矿床成矿系统与成矿模式: 以黔湘渝毗邻区南华纪“大塘坡式”锰矿为例[J]. 矿床地质, 2013, 32(3): 457-466. doi: 10.3969/j.issn.0258-7106.2013.03.001
ZHOU Q, DU Y S, QIN Y. Ancient natural gas seepage sedimentary-type manganese metallogenic system and ore-forming model: A case study of ‘Datangpo type’ manganese deposits formed in rift basin of Nanhua Period along Guizhou-Hunan-Chongqing border area[J]. Mineral Deposits, 2013, 32(3): 457-466. (in Chinese with English abstract doi: 10.3969/j.issn.0258-7106.2013.03.001
|
| [2] |
周琦, 杜远生, 袁良军, 等. 黔湘渝毗邻区南华纪武陵裂谷盆地结构及其对锰矿的控制作用[J]. 地球科学, 2016, 41(2): 177-188.
ZHOU Q, DU Y S, YUAN L J, et al. The structure of the Wuling Rift Basin and its control on the manganese deposit during the Nanhua period in Guizhou-Hunan-Chongqing border area, South China[J]. Earth Science, 2016, 41(2): 177-188. (in Chinese with English abstract
|
| [3] |
ZHOU Q, WU C L, HU X Y, et al. A new metallogenic model for the giant manganese deposits in northeastern Guizhou, China[J]. Ore Geology Reviews, 2022, 149: 105070. doi: 10.1016/j.oregeorev.2022.105070
|
| [4] |
Wu C L, Tian Y P, Mao X P. Theory and Approach of Three Dimensional Visualization Modeling of Structure Stratigraphic Framework of Basins[C]. Annual Conference of the International Association for Mathematical Geology, GIS and Spatial Analysis. Canada: [S. n.], 2005, 279-284.
|
| [5] |
张志庭. 盆地断块构造三维建模与过程可视化技术研究[D]. 武汉: 中国地质大学(武汉), 2010.
ZHANG Z T. Research on 3D Geological Modeling and three-dimensional Process Visualization Technology of Basin Fault Block Structure[D] . Wuhan: China University of Geosciences (Wuhan), 2010. (in Chinese with English abstract
|
| [6] |
张村, 贾胜, 华埜, 等. 矿山三维地质建模研究进展: 原理、方法与应用[J]. 煤炭科学技术, 2025, 53(2): 222-238. doi: 10.12438/cst.2024-1743
ZHANG C, JIA S, HUA Y, et al. Research progress of mine 3D geological modeling: Principle, method and application[J]. Coal Science and Technology, 2025, 53(2): 222-238. (in Chinese with English abstract doi: 10.12438/cst.2024-1743
|
| [7] |
吴冲龙, 张洪年, 周江羽. 盆地模拟的系统观与方法论[J]. 地球科学, 1993(6): 741-747.
WU C L, ZHANG H N, ZHOU J Y. On theoretical problems in basin modelling[J]. Earth Science, 1993(6): 741-747. (in Chinese with English abstract
|
| [8] |
XU K, ZHAO S Y, WU C L, et al. Manganese mineral prospectivity based on deep convolutional neural networks in Songtao of northeastern Guizhou[J]. Earth Science Informatics, 2024, 17(2): 1681-1697. doi: 10.1007/s12145-024-01224-7
|
| [9] |
彭彬, 田宜平, 曾斌, 等. 基于XLNET模型的开阳磷矿成矿条件相关地质实体识别与应用[J]. 地质科技通报, 2024, 43(4): 224-234.
PENG B, TIAN Y P, ZENG B, et al. Recognition and application of geological entities related to ore-forming conditions in the Kaiyang phosphate mine based on the XLNET model[J]. Bulletin of Geological Science and Technology, 2024, 43(4): 224-234. (in Chinese with English abstract
|
| [10] |
吴冲龙, 刘刚, 张夏林, 等. 地质科学大数据及其利用的若干问题探讨[J]. 科学通报, 2016, 61(16): 1797-1807.
WU C L, LIU G, ZHANG X L, et al. Discussion on geological science big data and its applications[J]. Chinese Science Bulletin, 2016, 61(16): 1797-1807. (in Chinese with English abstract
|
| [11] |
吴冲龙. 大数据和地质信息学能促进地质学定量化进入新阶段吗?[J]. 地球科学, 2022, 47(10): 3913-3914.
WU C L. Can big data and geo-informatics promote the quantification of geology into a new stage?[J]. Earth Science, 2022, 47(10): 3913-3914. (in Chinese with English abstract
|
| [12] |
谭永杰, 刘荣梅, 朱月琴, 等. 论地质大数据的特点与发展方向[J]. 时空信息学报, 2023, 30(3): 313-320. doi: 10.20117/j.jsti.202303003
TAN Y J, LIU R M, ZHU Y Q, et al. On the characteristics and development directions of geological big data[J]. Journal of Spatio-Temporal Information, 2023, 30(3): 313-320. (in Chinese with English abstract doi: 10.20117/j.jsti.202303003
|
| [13] |
李宏达, 吴志春, 柏瑞, 等. 复杂脉状矿体精细化三维建模方法探讨[J]. 地质科技通报, 2025, 44(4): 379-390. doi: 10.19509/j.cnki.dzkq.tb20240050
LI H D, WU Z C, BAI R, et al. Discussion on fine 3D modeling method of complex vein-type ore body[J]. Bulletin of Geological Science and Technology, 2025, 44(4): 379-390. (in Chinese with English abstract doi: 10.19509/j.cnki.dzkq.tb20240050
|
| [14] |
LI S, LIU C, CHEN J P. Mineral prospecting prediction via transfer learning based on geological big data: A case study of Huayuan, Hunan, China[J]. Minerals, 2023, 13(4): 504. doi: 10.3390/min13040504
|
| [15] |
田宜平, 刘维安, 张夏林. 基于等角度变比例投影的矿体轮廓线自动匹配方法研究[J]. 地质科技通报, 2020, 39(1): 175-180. doi: 10.19509/j.cnki.dzkq.2020.0119
TIAN Y P, LIU W A, ZHANG X L. Automatic matching of ore body contour line based on equal-angle and variable proportion projection[J]. Bulletin of Geological Science and Technology, 2020, 39(1): 175-180. (in Chinese with English abstract doi: 10.19509/j.cnki.dzkq.2020.0119
|
| [16] |
刘彦锋, 段太忠, 黄渊, 等. 沉积过程模拟驱动下的深度学习地质建模方法[J]. 石油与天然气地质, 2023, 44(1): 226-237. doi: 10.11743/ogg20230119
LIU Y F, DUAN T Z, HUANG Y, et al. Deep learning-based geological modeling driven by sedimentary process simulation[J]. Oil & Gas Geology, 2023, 44(1): 226-237. (in Chinese with English abstract doi: 10.11743/ogg20230119
|
| [17] |
ZHANG Z T, WU C L, MAO X P, et al. Method and technique of 3-D dynamic structural evolution modelling of fault basin[J]. International Journal of Oil, Gas and Coal Technology, 2013, 6(1/2): 40. doi: 10.1504/ijogct.2013.050775
|
| [18] |
唐丙寅, 吴冲龙, 李新川. 一种基于TIN-CPG混合空间数据模型的精细三维地质模型构建方法[J]. 岩土力学, 2017, 38(4): 1218-1225.
TANG B Y, WU C L, LI X C. A fine 3D geological modeling method based on TIN-CPG hybrid spatial data model[J]. Rock and Soil Mechanics, 2017, 38(4): 1218-1225. (in Chinese with English abstract
|
| [19] |
陈麒玉, 荀磊, 崔哲思, 等. 三维地质建模技术的最新进展和发展趋势[J]. 地质科技通报, 2025, 44(3): 373-387. doi: 10.19509/j.cnki.dzkq.tb20240284
CHEN Q Y, XUN L, CUI Z S, et al. Recent progress and development trends of three-dimensional geological modeling[J]. Bulletin of Geological Science and Technology, 2025, 44(3): 373-387. (in Chinese with English abstract doi: 10.19509/j.cnki.dzkq.tb20240284
|
| [20] |
娄渝明, 康旭, 赖渊平, 等. 隐式建模和机器学习算法在西藏巨龙斑岩型铜钼矿床三维成矿预测中的应用研究[J]. 地学前缘, 2025, 32(5): 440-455. doi: 10.13745/j.esf.sf.2024.12.82
LOU Y M, KANG X, LAI Y P, et al. Application of implicit modeling and machine learning algorithm to 3D metallogenic prediction of the Julong porphyry copper-molybdenum deposit, Xizang[J]. Earth Science Frontiers, 2025, 32(5): 440-455. (in Chinese with English abstract doi: 10.13745/j.esf.sf.2024.12.82
|
| [21] |
王晓辉, 刘再斌, 张东亮, 等. 基于TIN-GTP算法的煤矿三维地质建模技术研究[J]. 煤田地质与勘探, 2024, 52(9): 41-48. doi: 10.12363/issn.1001-1986.24.04.0222
WANG X H, LIU Z B, ZHANG D L, et al. A TIN-GTP algorithm-based technique for 3D geological modeling of coal mines[J]. Coal Geology & Exploration, 2024, 52(9): 41-48. (in Chinese with English abstract doi: 10.12363/issn.1001-1986.24.04.0222
|
| [22] |
宫红良, 王春宇, 刘辉. 三维地质建模在资源量估算中的应用: 以南非莫得东—格鲁图雷金矿床为例[J]. 矿产勘查, 2024, 15(增刊2): 562-569. doi: 10.20008/j.kckc.2024s2073
GONG H L, WANG C Y, LIU H. Application of 3D geological modeling in resource estimation: A case study of the ModderEast-Grootvlei gold deposit in South Africa[J]. Mineral Exploration, 2024, 15(S2): 562-569. (in Chinese with English abstract doi: 10.20008/j.kckc.2024s2073
|
| [23] |
丁自伟, 刘江, 王小勇, 等. 基于PSO-Kriging算法的三维地质建模技术研究[J]. 煤炭工程, 2024, 56(10): 82-89. doi: 10.11799/ce202410009
DING Z W, LIU J, WANG X Y, et al. Three-dimensional geological modeling technology based on PSO-Kriging algorithm[J]. Coal Engineering, 2024, 56(10): 82-89. (in Chinese with English abstract doi: 10.11799/ce202410009
|
| [24] |
柴文举, 田丰, 付勇, 等. 黔西南戈塘金矿三维地质建模与矿床成因研究[J]. 贵州大学学报(自然科学版), 2024, 41(4): 34-45. doi: 10.15958/j.cnki.gdxbzrb.2024.04.05
CHAI W J, TIAN F, FU Y, et al. Study on three-dimensional geological modeling and genesis of getang gold deposit in southwestern Guizhou[J]. Journal of Guizhou University (Natural Sciences), 2024, 41(4): 34-45. (in Chinese with English abstract doi: 10.15958/j.cnki.gdxbzrb.2024.04.05
|
| [25] |
CHEN Y X, MA H R, ZHU Z, et al. Error analysis and visualization of 3D geological models of mineral deposits[J]. Ore Geology Reviews, 2024, 175: 106366. doi: 10.1016/j.oregeorev.2024.106366
|
| [26] |
JI G J, CAI Z Z, LU Y, et al. Study on exploring the extraction of geological elements from 3D geological models within the constraints of geological knowledge[J]. Computers & Geosciences, 2024, 193: 105726. doi: 10.1016/j.cageo.2024.105726
|
| [27] |
ZHENG Y, DENG H, WU J J, et al. Deep multimodal fusion for 3D mineral prospectivity modeling: Integration of geological models and simulation data via canonical-correlated joint fusion networks[J]. Computers & Geosciences, 2024, 188: 105618. doi: 10.1016/j.cageo.2024.105618
|
| [28] |
GIACOMELLI S, ZUCCARINI A, AMOROSI A, et al. 3D geological modelling of the Bologna urban area (Italy)[J]. Engineering Geology, 2023, 324: 107242. doi: 10.1016/j.enggeo.2023.107242
|
| [29] |
REN A J, WU L, XU J L, et al. A deep learning method for 3D geological modeling using ET4DD with offset-attention mechanism[J]. Computers & Geosciences, 2025, 200: 105929. doi: 10.1016/j.cageo.2025.105929
|
| [30] |
HANG Z Q, XUE T, CHEN J P, et al. A 3D geological modeling method using the transformer model: A solution for sparse borehole data[J]. Minerals, 2025, 15(3): 301. doi: 10.3390/min15030301
|
| [31] |
STAWIKOWSKI W. Geological objects and structures in 3D: Observation, interpretation and building of 3D Models[J]. Geologos, 2024, 30(3): 233-235. doi: 10.14746/logos.2024.30.3.21
|
| [32] |
YANG Y P, ZHOU J B, RUAN M, et al. GeoSAE: A 3D stratigraphic modeling method driven by geological constraint[J]. Applied Sciences, 2025, 15(3): 1185. doi: 10.3390/app15031185
|
| [33] |
ZHUANG C, LIU C H, ZHU H H, et al. Constraint information extraction for 3D geological modelling using a span-based joint entity and relation extraction model[J]. Earth Science Informatics, 2024, 17(2): 985-998. doi: 10.1007/s12145-024-01245-2
|
| [34] |
DENG Y F, ZHANG J Q, SUN Y Z, et al. Key technology for section analysis of 3D geological models based on the online virtual earth environment[J]. Earth Science Informatics, 2024, 17(1): 441-453. doi: 10.1007/s12145-023-01180-8
|
| [35] |
HE L, LI X Q, LEI S H, et al. A front advancing adaptive triangular mesh dynamic generation algorithm and its application in 3D geological modeling[J]. Sustainability, 2023, 15(9): 7214. doi: 10.3390/su15097214
|
| [36] |
HAMDI M, GOÏTA K. Estimation of aquifer storativity using 3D geological modeling and the spatial random bagging simulation method: The Saskatchewan River Basin case study (central Canada)[J]. Water, 2023, 15(6): 1156. doi: 10.3390/w15061156
|
| [37] |
LI B, PENG Y M, ZHAO X Y, et al. Combining 3D geological modeling and 3D spectral modeling for deep mineral exploration in the Zhaoxian gold deposit, Shandong Province, China[J]. Minerals, 2022, 12(10): 1272. doi: 10.3390/min12101272
|
| [38] |
TIAN Y P, WU J Q, CHEN G S, et al. Big data-driven 3D visualization analysis system for promoting regional-scale digital geological exploration[J]. Applied Sciences, 2025, 15(7): 4003. doi: 10.3390/app15074003
|
| [39] |
陈根深, 刘刚, 董洋, 等. 基于 Inverted-B+树的海量三维地质块体模型高效索引方法[J]. 计算机科学, 2025, 52(8): 146-153. https://link.cnki.net/urlid/50.1075.TP.20240925.1429.021.
CHEN G S, LIU G, DONG Y, et al. An Efficient Indexing Method for Massive 3D Geological BlockModels Based on Inverted-B+ Tree[J]. Computer Science, 2025, 52(8): 146-153. https://link.cnki.net/urlid/50.1075.TP.20240925.1429.021 (in Chinese with English abstract
|
| [40] |
陈根深, 刘刚, 陈麒玉, 等. 基于多源数据集成与WebGIS的三维矿山空间数据管理系统关键技术及应用[J]. 软件导刊, 2023, 22(11): 18-28.
CHEN G S, LIU G, CHEN Q Y, et al. Key technologies and applications of 3D spatial data management system for mining based on multi-source data integration and WebGIS[J]. Software Guide, 2023, 22(11): 18-28. (in Chinese with English abstract
|
