Semi-physical model tests of collapses induced by leakage from fractured underground pipelines in red clay areas under different flow rate conditions
-
摘要:
红黏土地区由地下管道断裂渗漏诱发的地面塌陷灾害频发，严重威胁城市公共安全，造成生命与财产损失。现有管道渗漏致塌模型试验多针对砂土、粉土开展，针对红黏土介质，不同管道流量控制下的塌陷演化机理仍有待深入。以贵州红黏土为研究对象，开展 6 组不同管道流量的半结构化物理模型试验，固定管道全断面断裂模式与覆盖层厚度；综合采用高速相机、土压力传感器、孔隙水压力传感器、激光位移计开展全过程监测，获取土体宏观变形破坏、湿润锋运移、土压力−孔隙水压力响应以及地表位移演化特征。在管道断裂条件保持一致时，管道流量减小会削弱渗漏水流对土体的掏蚀搬运能力，土体侵蚀速率降低，湿润锋运移机制发生转变，土洞优势发育方向由水平转向竖向，发生塌陷的临界覆盖层厚度随之降低；当流量低于临界值时，仅发育土洞而不会发生地面塌陷。管道流量较高工况无明显土拱效应，小管道流量工况土洞发育过程可形成显著土拱效应；塌陷发生前地表位移微弱，灾害表现出较强隐蔽性；不同管道流量下发生塌陷的工况，致塌模式均为渗漏水流顶破上覆土层。同时，随管道流量改变，孔隙水压力优先响应的监测点位随湿润锋扩展方向发生转换。本研究揭示了红黏土介质中管道流量对土洞演化、应力渗流响应及致塌模式的控制机理，可为城市地下管道全生命周期安全监测、地面塌陷风险预警及工程防控方案制定提供理论依据。
Abstract:ObjectiveGround collapse triggered by leakage from fractured underground pipelines frequently occurs in red clay areas worldwide, posing severe threats to urban public safety and causing human casualties and property losses. Physical model tests investigating pipeline-leakage-induced ground collapse have mainly focused on sandy or silty soils in existing studies. Nevertheless, the collapse evolution mechanisms at different pipe flow rates under red clay geological conditions remain insufficiently understood. To fill this research gap, this study carries out targeted physical model experimental research.
MethodsSix groups of semi-structured physical model tests under different pipe flow rate conditions were performed using Guizhou red clay as the test material, with full-section pipeline fracture mode and constant overburden thickness kept unchanged throughout all groups. Multiple monitoring instruments, including high-speed cameras, soil pressure sensors, pore water pressure sensors, and laser displacement sensors, were deployed to continuously record multi-field information. The monitored items covered macroscopic soil deformation and failure patterns, wetting front migration behaviors, coupled responses of soil pressure and pore water pressure, and evolutionary characteristics of ground surface displacement.
ResultsUnder identical pipeline fracture boundary conditions, the increase or decrease of the pipe flow rate exerted prominent control over the erosion and transport capacity of seepage water. As pipe flow rate decreased, soil erosion rate dropped, the migration mechanism of the wetting front transformed, and the dominant development direction of subsurface soil cavities shifted from horizontal toward vertical. Meanwhile, the critical overburden thickness required for collapse occurrence decreased accordingly. When the pipe flow rate fell below a critical threshold, soil cavities still developed inside the stratum, whereas ground collapse did not take place. Distinct soil arching behaviors were observed among different pipe flow rate groups. No significant soil arching effect occurred under high-flow-rate conditions, while well-developed soil arches formed during cavity expansion in low-flow-rate tests. Surface displacement remained extremely weak before collapse occurred, demonstrating the high concealment and suddenness of this geohazard. For those test groups where collapse finally occurred, the failure mode was characterized by overburden breaching driven by continuous seepage water. In addition, the first response location of pore water pressure sensors varied with the changing direction of wetting front migration.
ConclusionThis study reveals the mechanisms by which pipe flow rate controls cavity evolution, hydro-mechanical coupling responses, and final collapse modes in red clay strata. The findings can provide theoretical support for full-life-cycle safety monitoring of urban underground pipelines, ground-collapse risk early warning, and the formulation of corresponding engineering prevention and control measures.
-
Key words:
- red clay /
- pipeline leakage /
- ground collapse /
- physical experiment /
- collapse mode /
- pipe flow rate
-

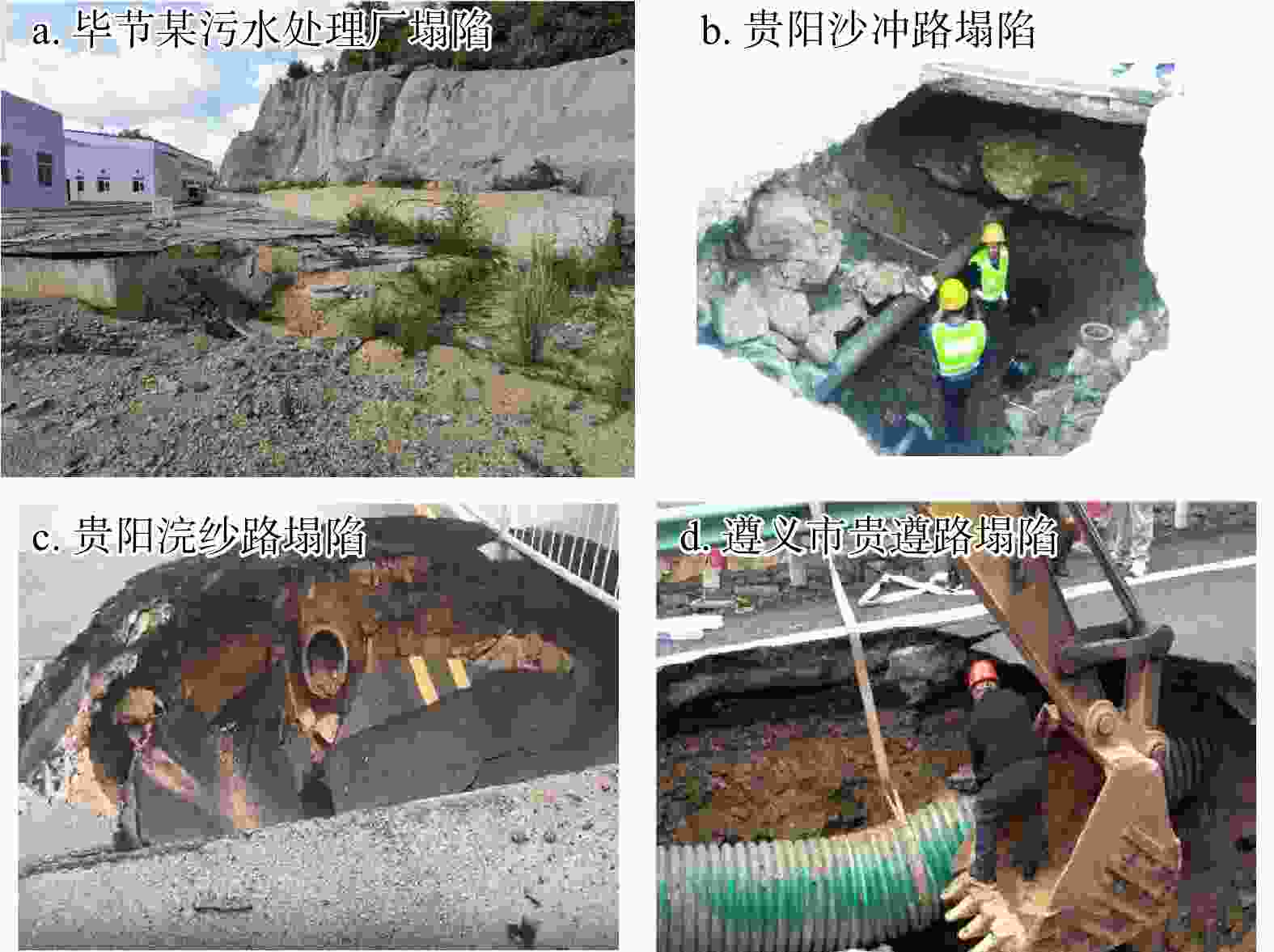

图 1 红黏土地区管道渗漏诱发地面塌陷示意图
Figure 1. Schematic diagram of ground collapse induced by pipeline leakage in red clay areas

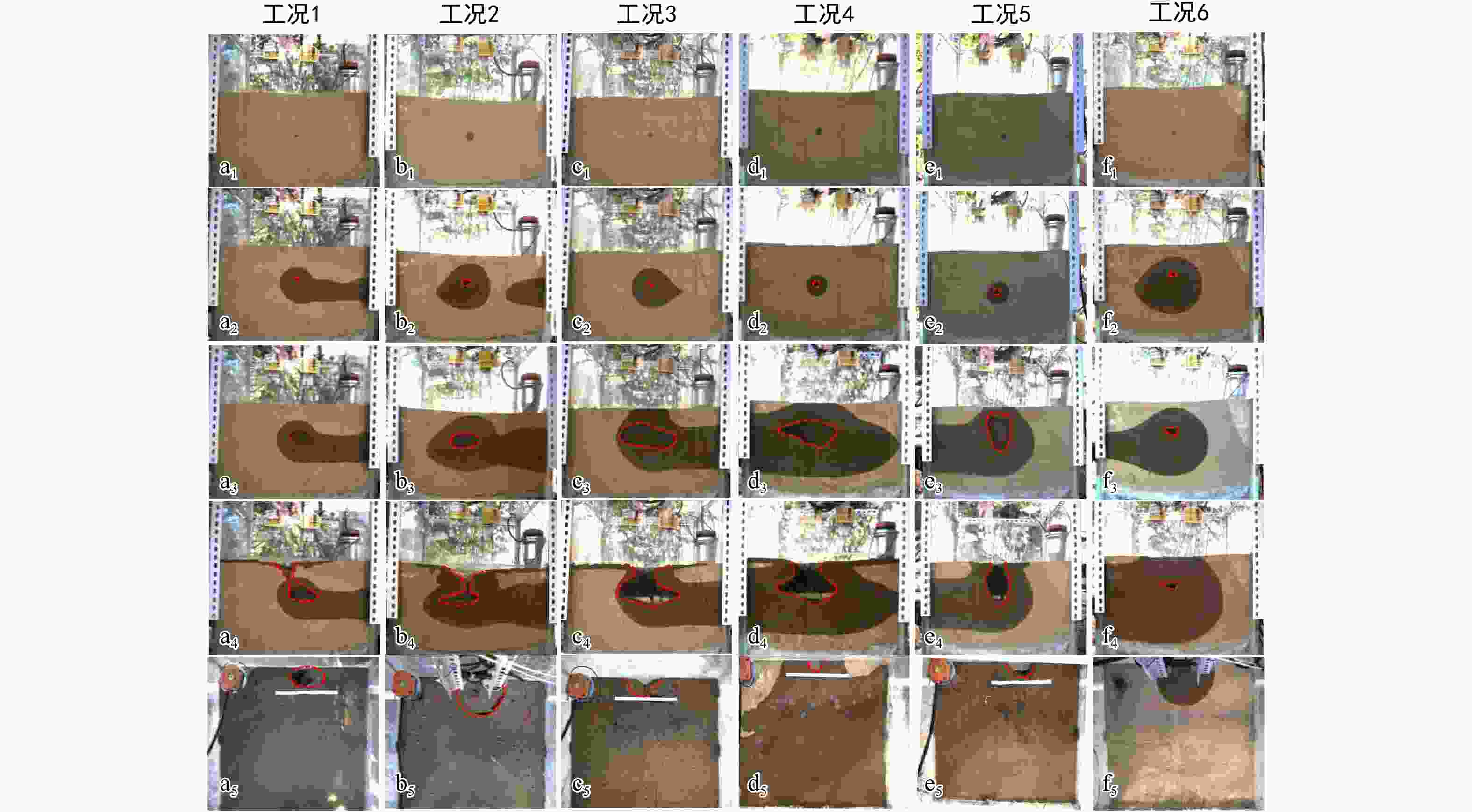

图 4 不同管道流量工况下半物理模型宏观变形破坏特征
a1～f1. 土体湿润；a2～f2. 土洞形成；a3～f3. 土洞发育；a4～e4，a5～e5. 塌陷发生；f4，f5. 土洞稳定。红色虚线为土洞边界；工况1～6管道流量见表2，下同
Figure 4. Macroscopic deformation and failure characteristics of semi-physical model under different pipe flow rate conditions

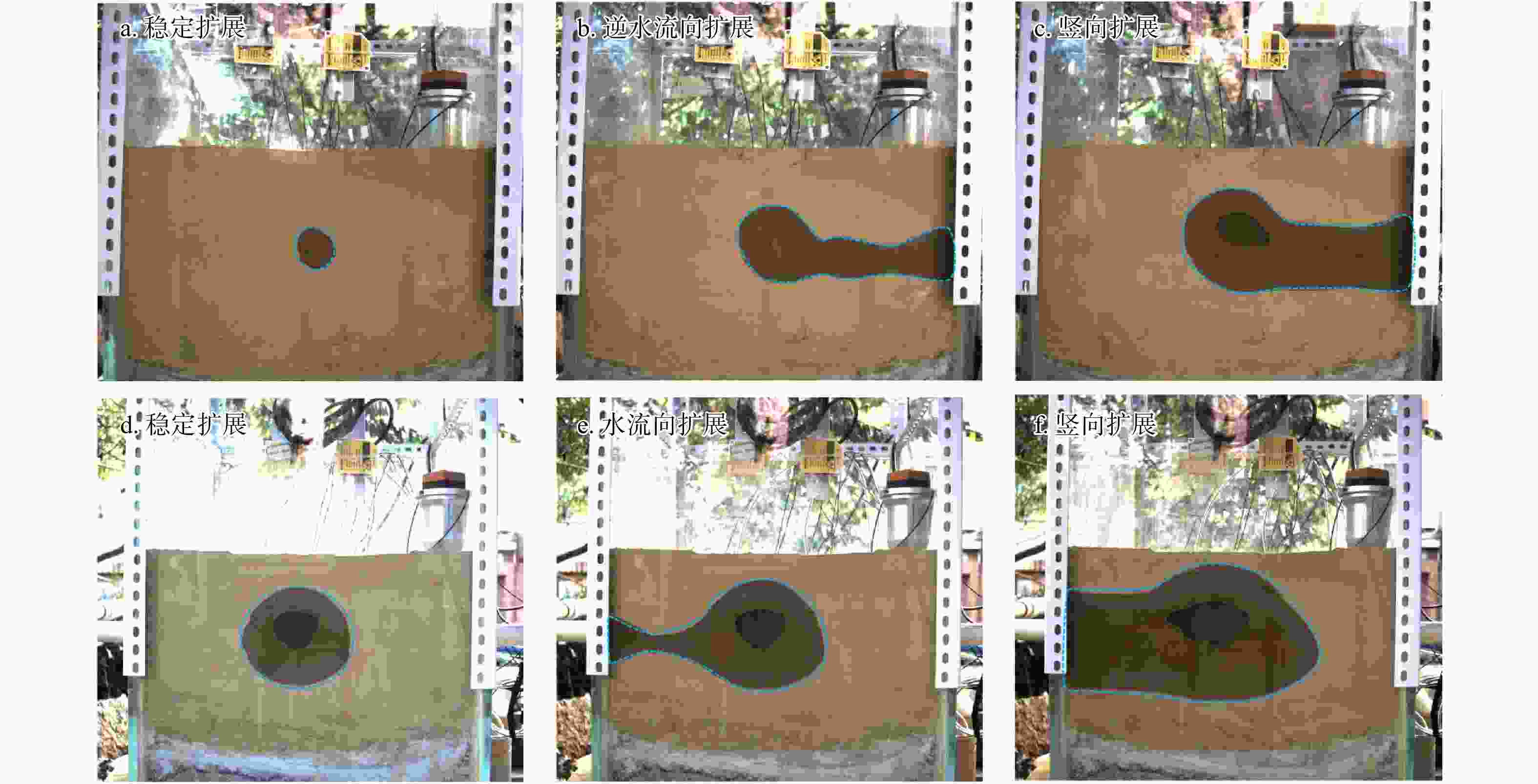

图 5 不同管道流量工况下土体湿润锋演化特征（a～c. 工况1～3；d～f. 工况4～6。蓝色虚线为土体湿润锋边界）
Figure 5. Evolution characteristics of soil mass wetting front under different pipe flow rate conditions

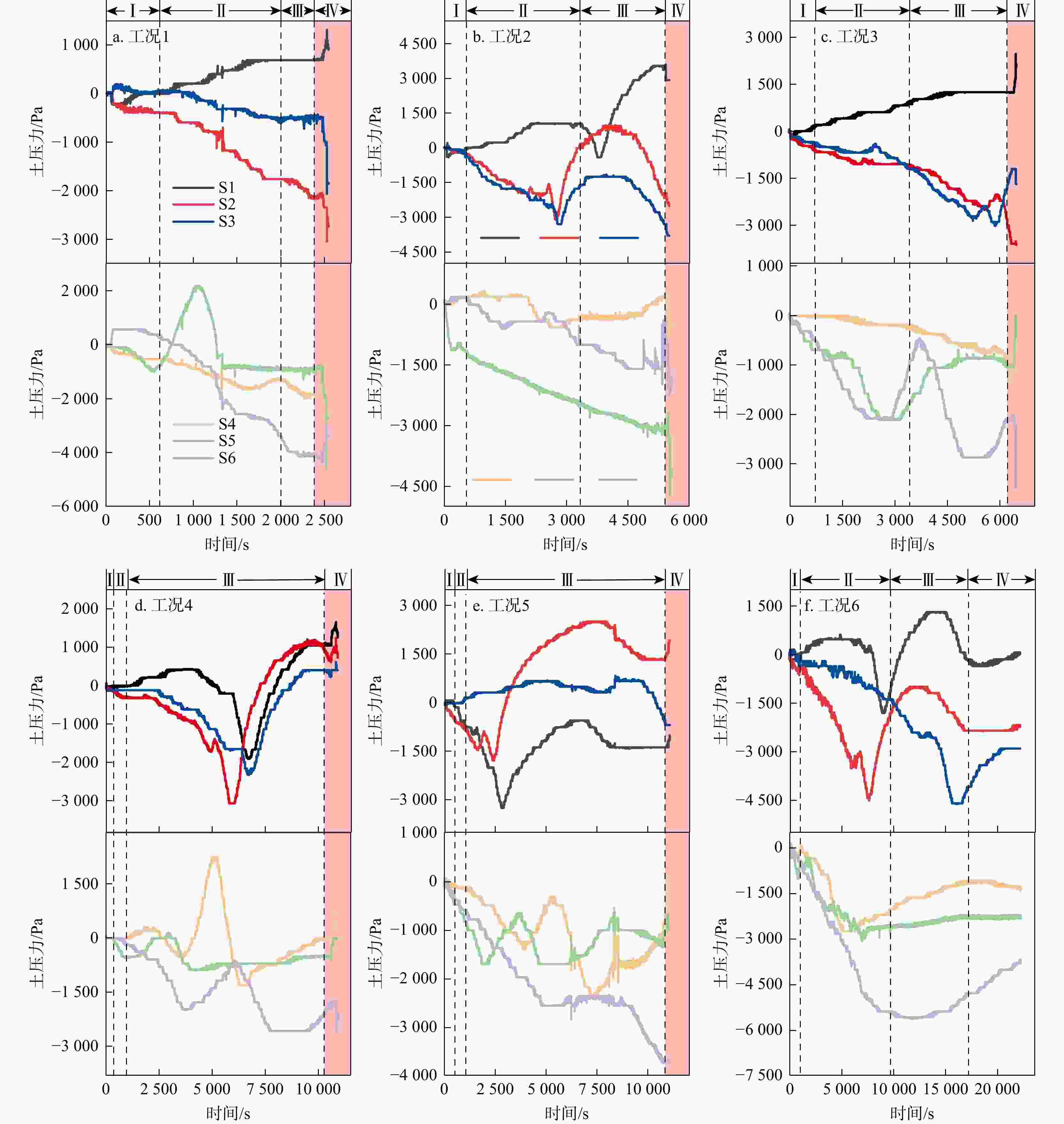

图 6 不同工况条件下土压力变化曲线
Ⅰ～Ⅳ代表物理模型宏观变形破坏4个阶段，分别为土体湿润、土洞形成、土洞发育和塌陷发生（土洞稳定），其中工况1～5第Ⅳ阶段为塌陷发生，工况6第Ⅳ阶段为土洞稳定，见图4；S1～S6为土压力传感器编号；下同
Figure 6. Variation curves of soil pressure under different working conditions

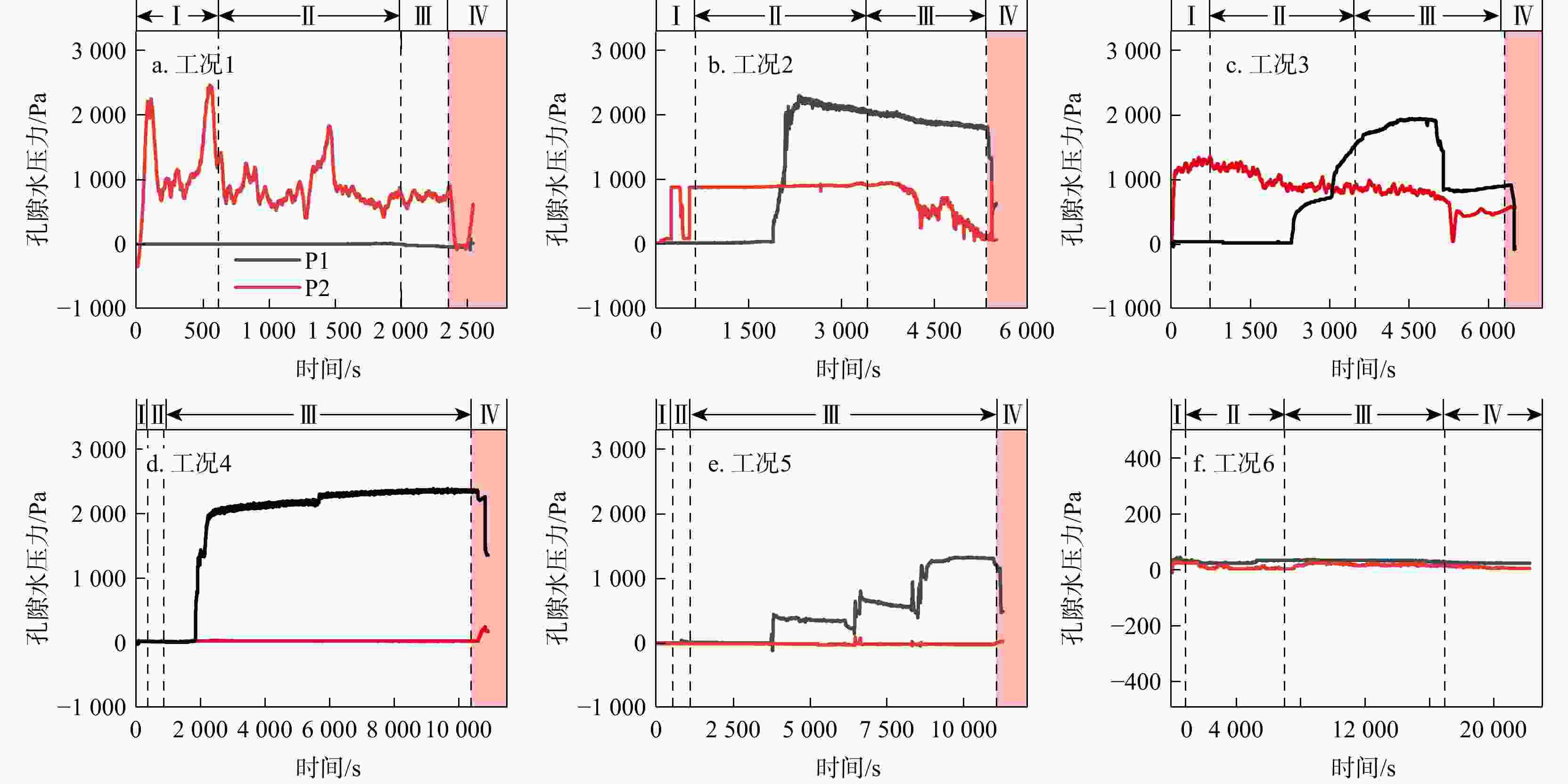

图 7 不同工况条件下孔隙水压力变化曲线（P1，P2为孔隙水压力传感器编号）
Figure 7. Variation curves of pore water pressure under different working conditions

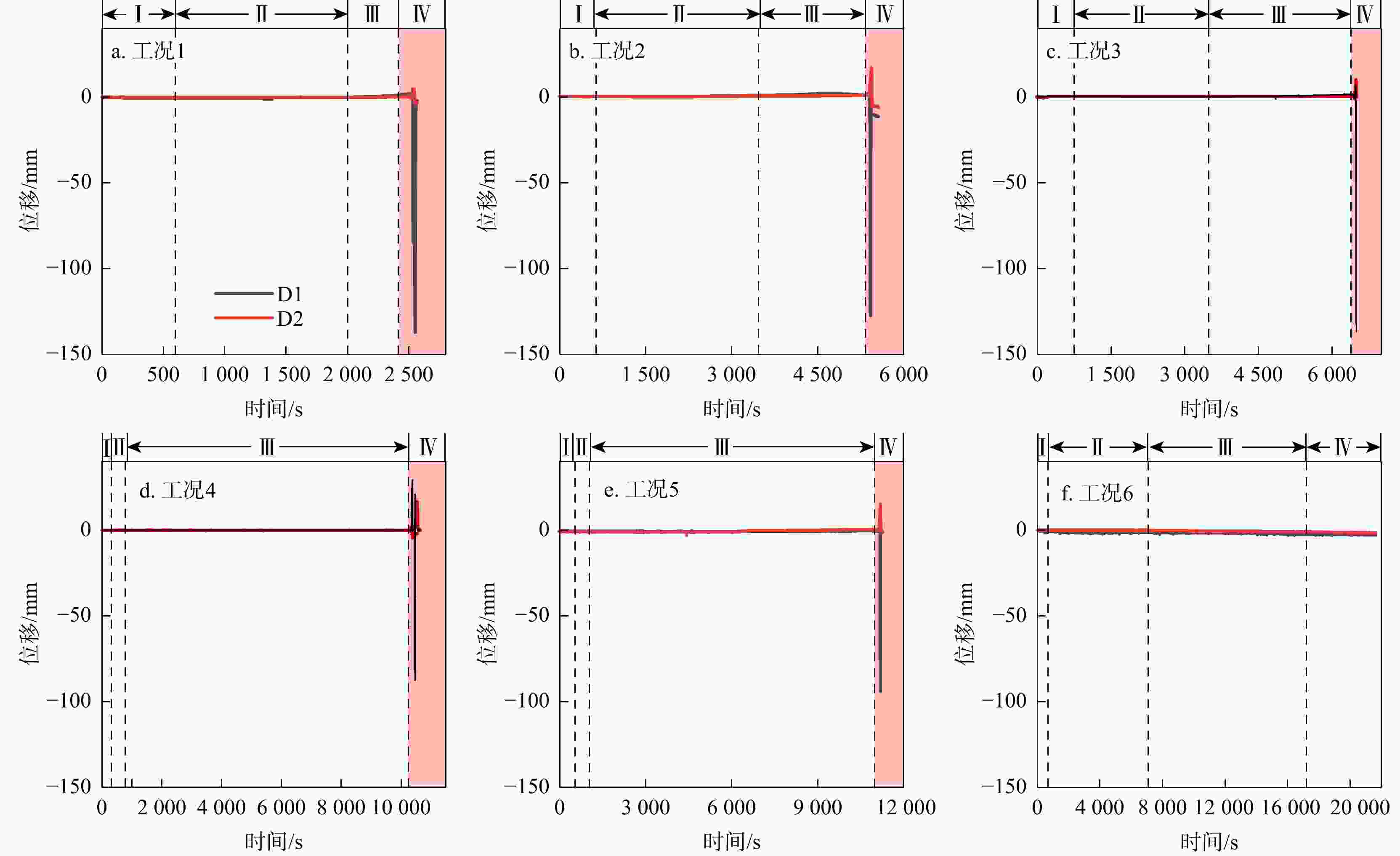

图 8 不同工况条件下地表位移变化曲线（D1，D2为激光位移传感器编号）
Figure 8. Variation curves of surface displacement under different working conditions

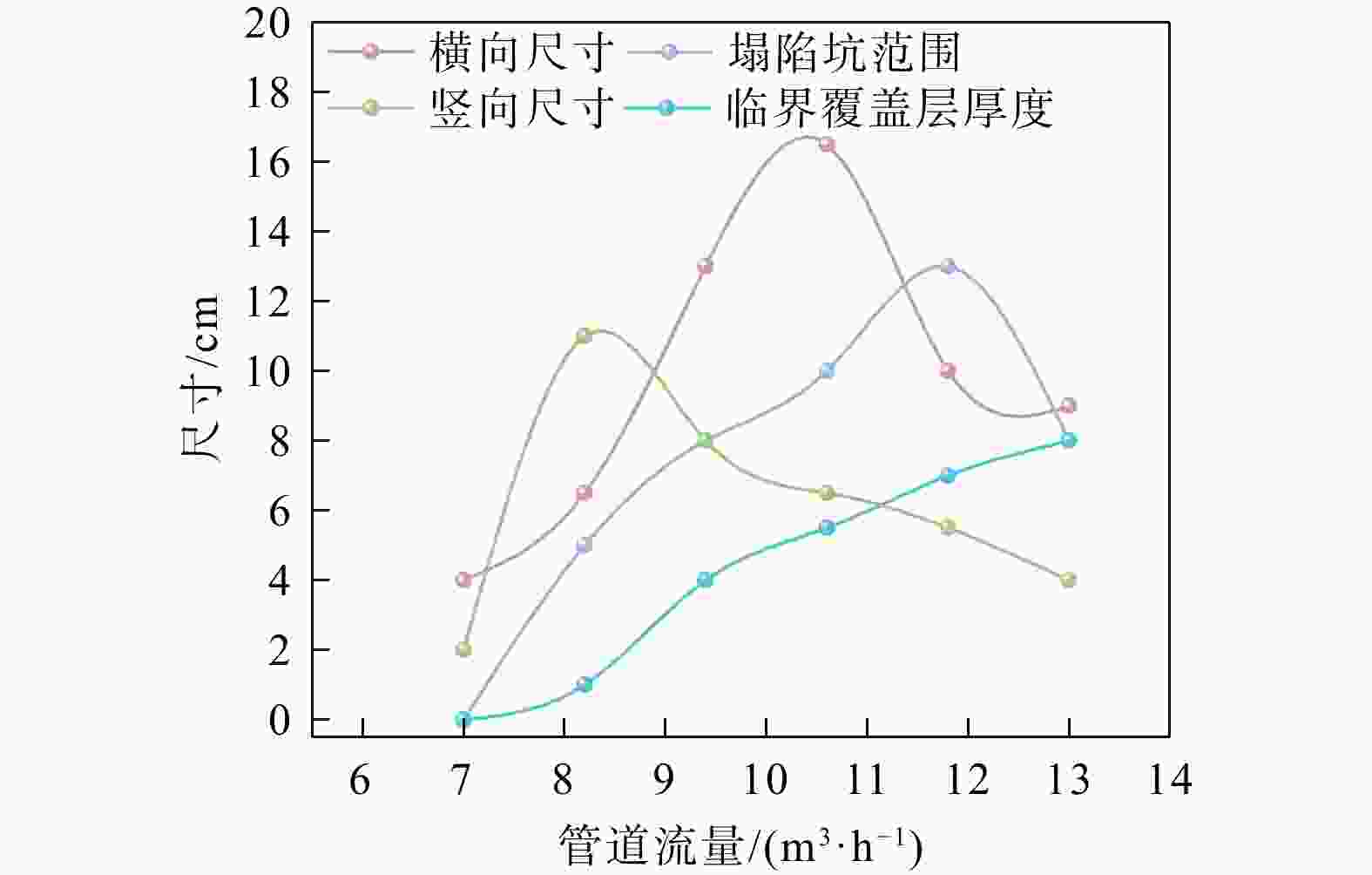

图 10 不同工况下土洞尺寸及塌陷坑范围
Figure 10. Soil cavity size and collapse pit extent under different working conditions
表 1 红黏土物理力学参数
Table 1. Physical and mechanical parameters of red clay
天然密度/
(g·cm−3)干密度/
(g·cm−3)含水
率/%液限/
%塑限/
%黏聚
力/kPa内摩擦
角/(°)渗透系数/
(10−6m·s−1)1.87 1.48 25.7 39.7 15.7 30.2 10.2 8.33
下载: 导出CSV
表 2 模型试验方案
Table 2. Model test schemes
试验工况
名称管道流量/
(m3·h−1)覆盖层
厚度/cm管道断裂
间距/cm管道破坏
方式工况1 13.0 12 1 全断面断裂 工况2 11.8 工况3 10.6 工况4 9.4 工况5 8.2 工况6 7.0
下载: 导出CSV
-
