基于常规测井曲线的火山岩裂缝预测：以渤海湾盆地渤南地区中生界为例

邵志远; 何杰; 廖远涛; 佟殿君; 任建业; 陈文强; 王华

doi:10.19509/j.cnki.dzkq.tb20250144

基于常规测井曲线的火山岩裂缝预测：以渤海湾盆地渤南地区中生界为例

doi: 10.19509/j.cnki.dzkq.tb20250144

a .
中国地质大学（武汉）：资源学院
b .
中国地质大学（武汉）：海洋学院，武汉 430074

基金项目: 中国石油（中国）有限公司天津分公司科技项目“渤南地区走滑断裂控缝机制与潜山优质储层发育规律”（CCL2024TJX0NST0044）

详细信息

作者简介:
邵志远：E-mail：2929749542@qq.com

通讯作者:
E-mail：jiehe19920402@163.com

中图分类号: P618.13；P631.8
计量
- 文章访问数: 42
- PDF下载量: 5
- 被引次数: 0
出版历程
- 收稿日期: 2025-03-31
- 录用日期: 2025-06-27
- 修回日期: 2025-05-28
- 网络出版日期: 2025-09-22

Prediction of volcanic rock fractures based on conventional logging curves: A case study of the Mesozoic in the Bonan area, Bohai Bay Basin

a .
School of Resources, China University of Geosciences (Wuhan)
b .
College of Marine Science and Technology, China University of Geosciences (Wuhan), Wuhan 430074, China

More Information

Author Bio:
E-mail：2929749542@qq.com

Corresponding author: E-mail：jiehe19920402@163.com

摘要

摘要:
构造成因裂缝对改善深层火山岩潜山储层物性和提高油气产能具有重要意义，由于其非均质性较强，需要对断裂带不同部位的裂缝发育密度进行精细刻画。实际生产中由于岩心和成像测井资料获取成本较高，因此引入基于常规测井曲线计算的综合裂缝指数，据此划分断裂带内部结构，定量识别裂缝发育密度，为火山岩裂缝型储层勘探提供依据。通过声波时差（AC）、中子孔隙度（CN）、密度（DEN）、井径（CAL）、深侧向电阻率（RD）、浅侧向电阻率（RS）和微侧向电阻率（RMLL）7种测井参数，构建了渤海湾盆地渤南地区中生界火山岩综合裂缝指数（CFI）模型；利用累计CFI曲线斜率变化定量划分了裂缝发育密集段边界，将断裂带内部分别划分为断核、损伤带和围岩，裂缝在损伤带内发育密度最大，其次为围岩，在断核内几乎不发育。研究区中生界火山岩中7种常见测井曲线在裂缝发育带中分别表现为AC、CN和CAL值增大，DEN、RD、RS和RMLL值减小的响应特征，CFI值在裂缝发育位置出现明显上升。结合成像测井和岩心资料表明，CFI曲线高值区与裂缝发育段呈对应关系。结合地震解释确定断核后，可以明确损伤带及围岩分布范围并进一步对渤南地区中生界火山岩中的裂缝进行有效预测。基于测井曲线计算的CFI模型能有效量化火山岩裂缝发育强度，定位裂缝发育密集带的井下空间位置，通过累计CFI曲线可实现断裂带内部结构的有效识别。
- 火山岩储层 /
- 渤海湾盆地 /
- 综合裂缝指数 /
- 测井曲线 /
- 裂缝带 /
- 损伤带 /
- 断核 /
- 围岩
Abstract: Objective
Tectonic fractures play a significant role in enhancing the physical properties and hydrocarbon productivity of deep volcanic buried-hill reservoirs. Due to their strong heterogeneity, precise characterization of fracture density across different parts of the fault zone is required. In practical production, the high cost of core acquisition and imaging logging data motivates the use of a comprehensive fracture index (CFI) calculated from conventional logging curves to delineate the internal structure of fault zones and quantitatively identify fracture density, providing a basis for exploring fractured volcanic reservoirs.
Methods
A CFI model was constructed for Mesozoic volcanic rocks in the Bonan area of the Bohai Bay Basin using seven logging parameters: Acoustic travel time (AC), neutron porosity (CN), bulk density (DEN), caliper (CAL), deep lateral resistivity (RD), shallow lateral resistivity (RS), and micro-lateral resistivity (RMLL). The cumulative CFI curve slope was used to define the boundaries of fracture-dense zones, partitioning the fault zone into the fault core, damage zone, and host rock. The damage zone exhibits the highest fracture density, followed by the host rock, while the fault core is nearly fracture-free.
Results
In the Mesozoic volcanic rocks of the study area, the seven conventional logging curves show distinct responses in fracture-developed zones: AC, CN, and CAL increase, whereas DEN, RD, RS, and RMLL decrease. The CFI curve shows a pronounced rise in fracture-rich intervals. Comparison with imaging logs and core data confirms that high CFI values correlate with fracture zones. By integrating seismic interpretation to identify the fault core, the distribution of the damage zone and host rock can be delineated, enabling effective fracture prediction in Mesozoic volcanic rocks in the Bonan area.
Conclusion
The CFI model, derived from logging curves, can effectively quantify the intensity of fracture development in volcanic rocks, locate the downhole spatial distribution of fracture-dense zones, and enable the reliable identification of internal-zone structures via cumulative CFI curve analysis.
- volcanic reservoir /
- Bohai Bay Basin /
- comprehensive fracture index /
- logging curve /
- fracture zone /
- damage zone /
- fault core /
- host rock

HTML全文

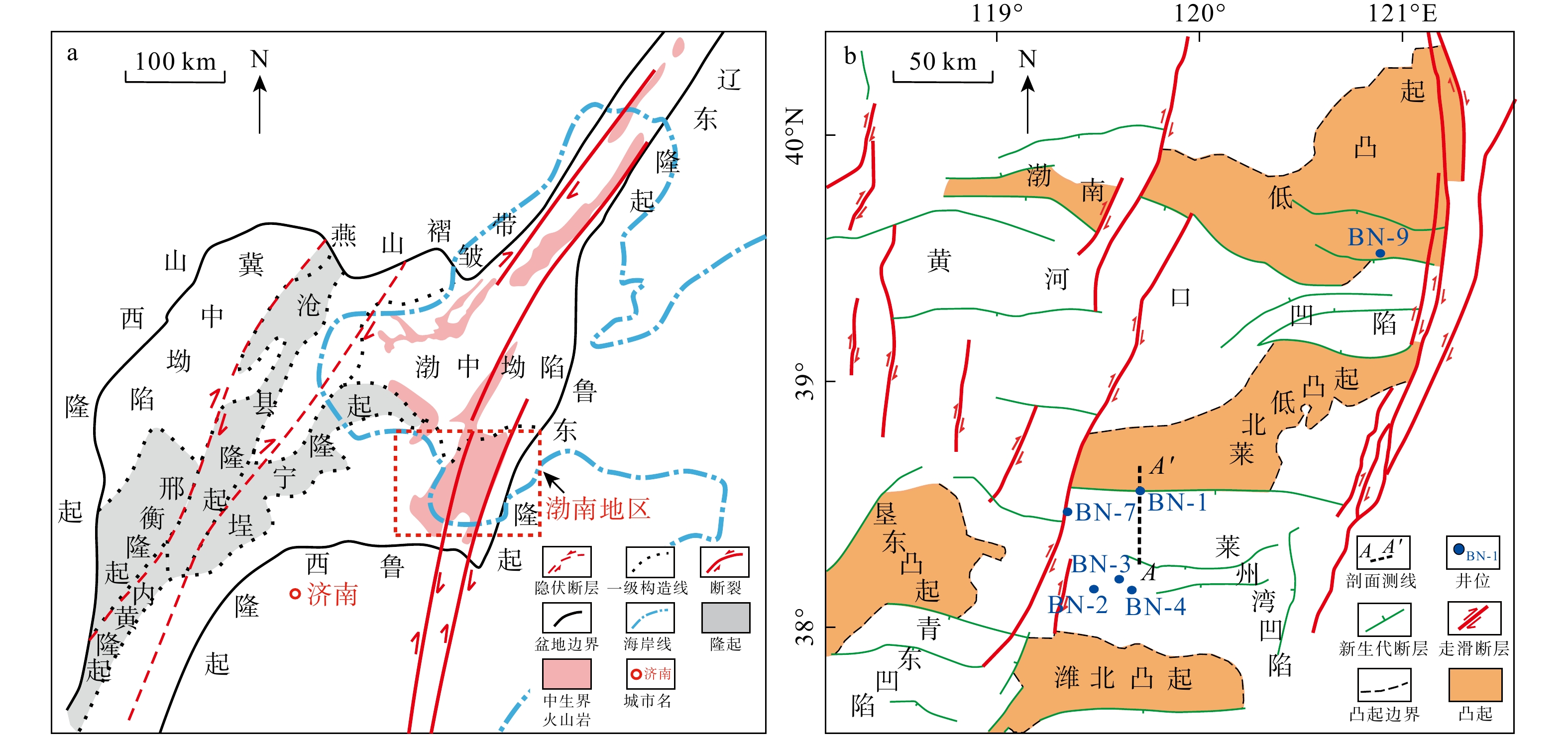

图 1 渤海湾盆地位置及中生界火山岩分布图（a）以及渤南地区构造地质图（b）^[6，17]

Figure 1. Location of the Bohai Bay Basin and distribution map of Mesozoic volcanic rocks (a) and structural geological map of the Bonan area (b)

下载: 全尺寸图片幻灯片

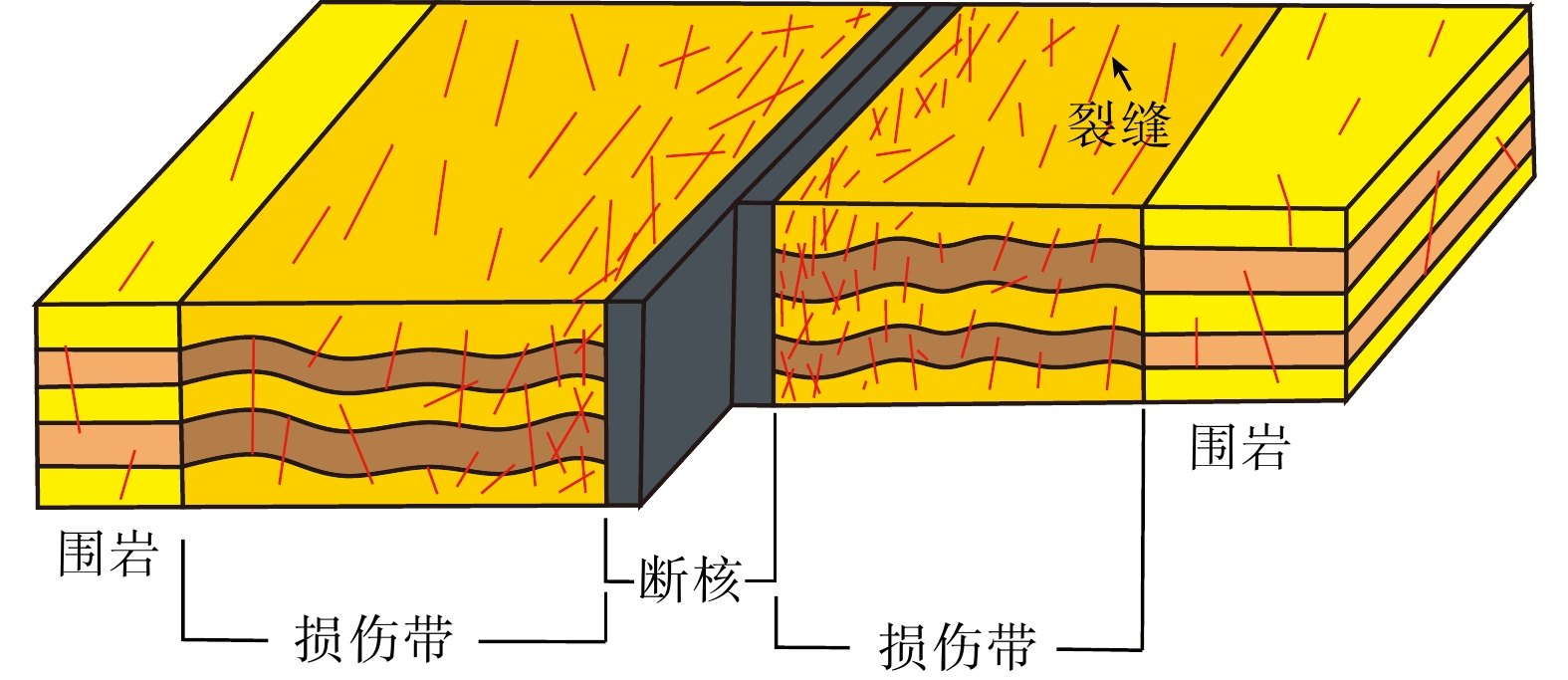

图 2 断裂带内部结构（断核、损伤带和围岩）划分示意图^[19]

Figure 2. Schematic illustrating of the internal structure of a fault zone (fault core, damage zone, and host rock)

下载: 全尺寸图片幻灯片

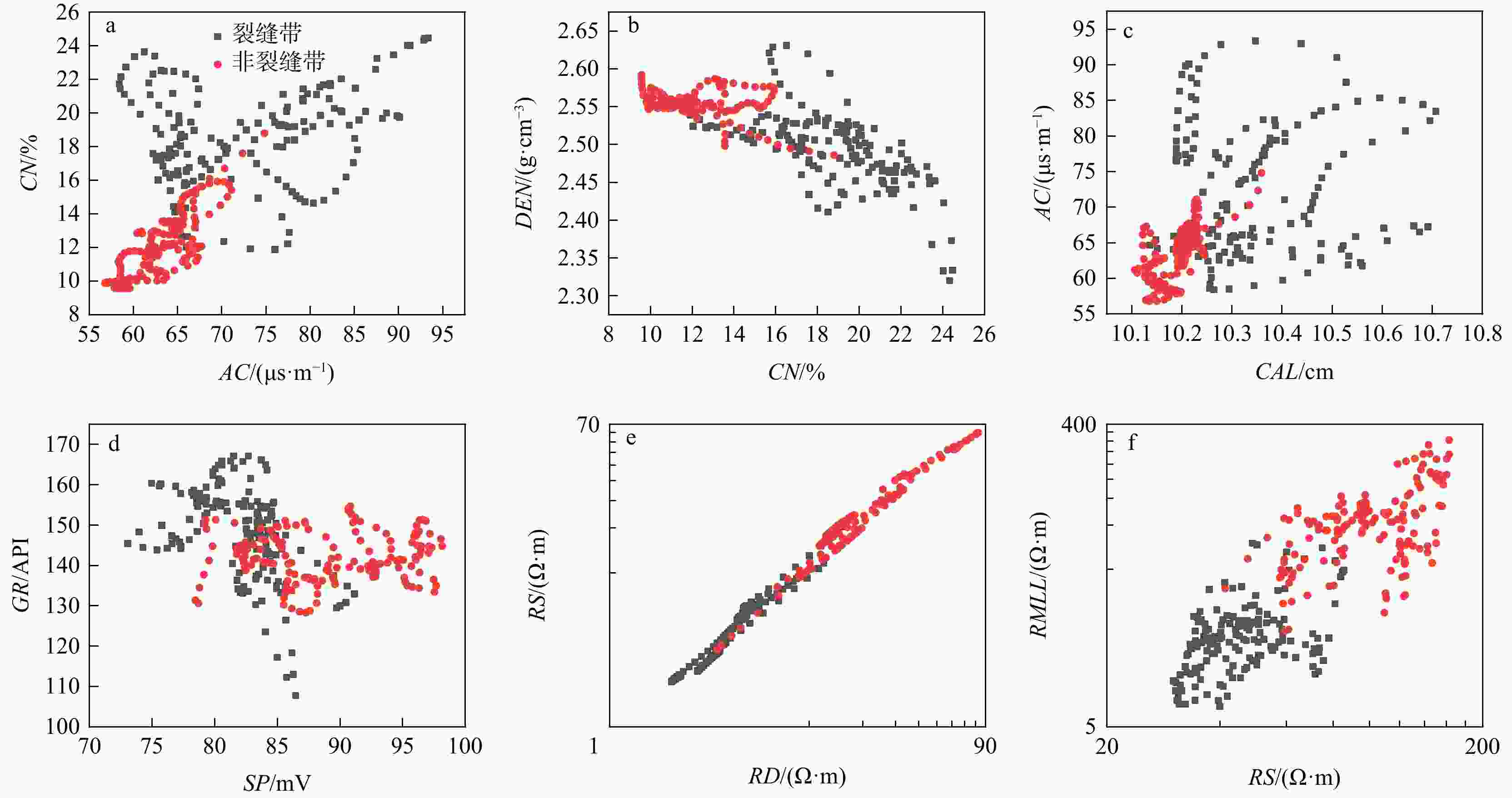

图 3 基于BN-2和BN-7井测井曲线在裂缝带与非裂缝带响应测井交会图

CN. 中子孔隙度；AC. 声波时差；DEN. 密度；CAL. 井径；GR. 自然伽马；SP. 自然电位；RS. 浅侧向电阻率；RD. 深侧向电阻率；RMLL. 微侧向电阻率；下同

Figure 3. Cross-plots of logging responses for fracture zones and non-fracture zones using logs from wells BN-2 and BN-7

下载: 全尺寸图片幻灯片

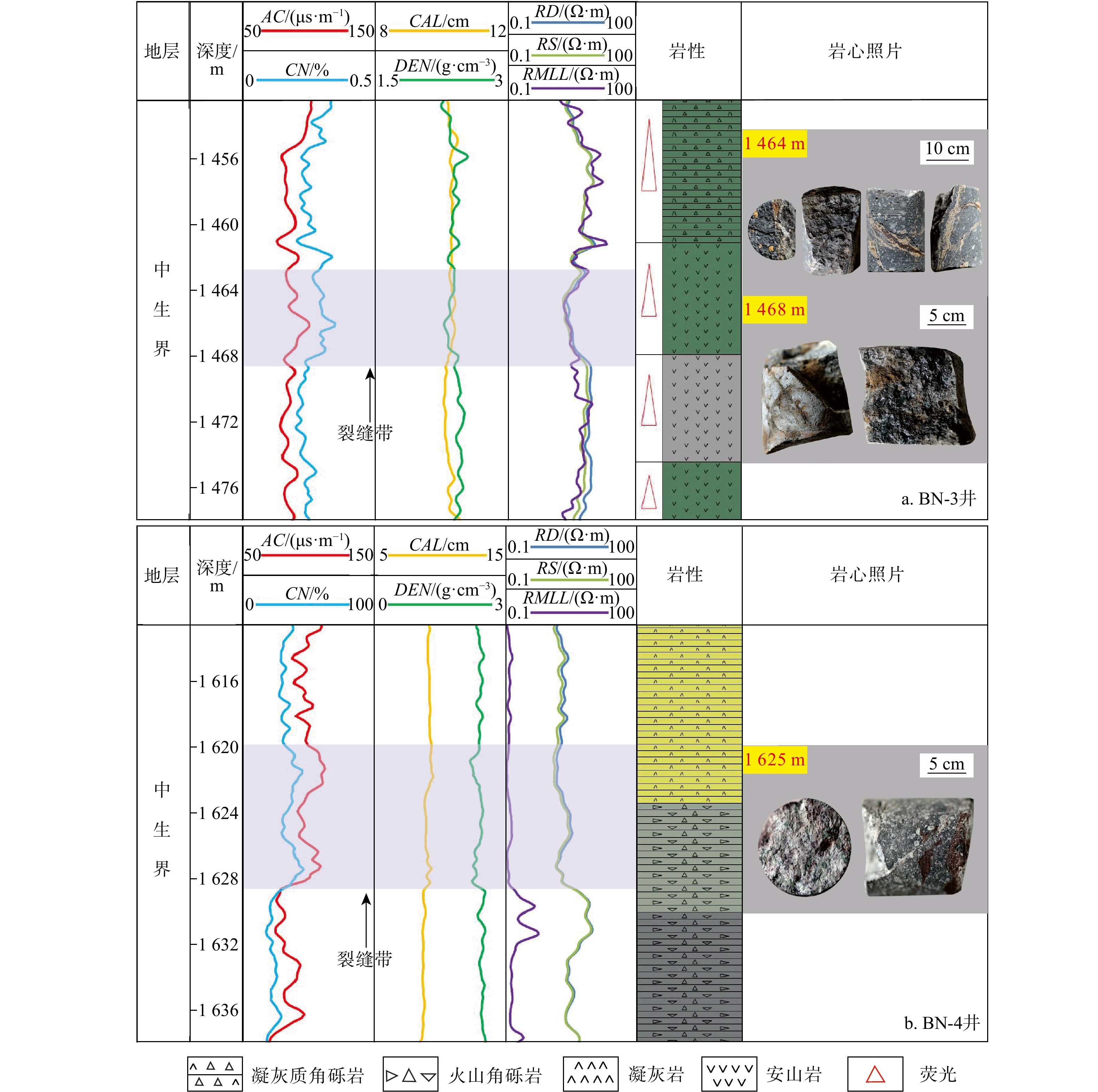

图 4 测井曲线在裂缝带的响应特征

Figure 4. Logging-response characteristics in fractured zones

下载: 全尺寸图片幻灯片

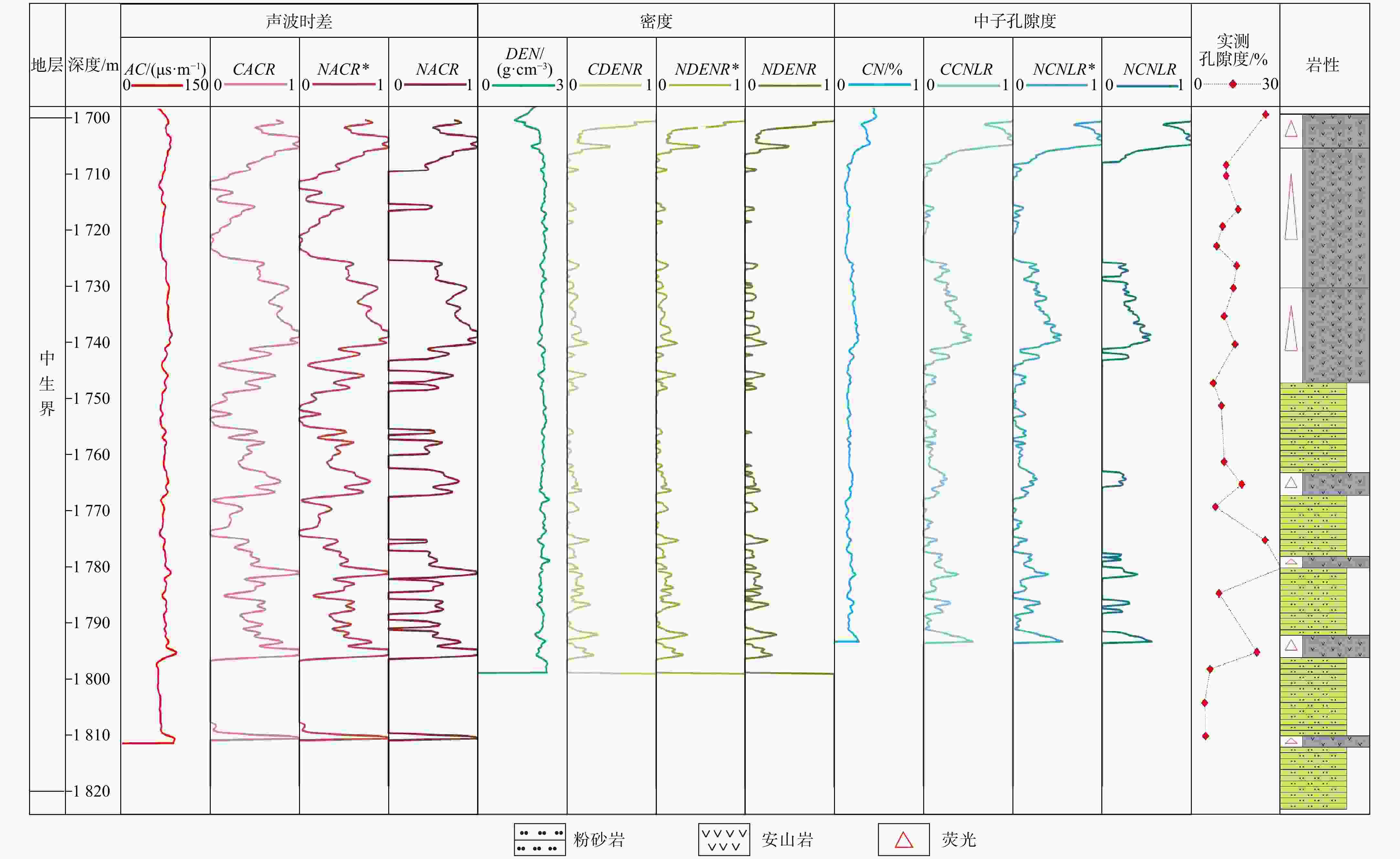

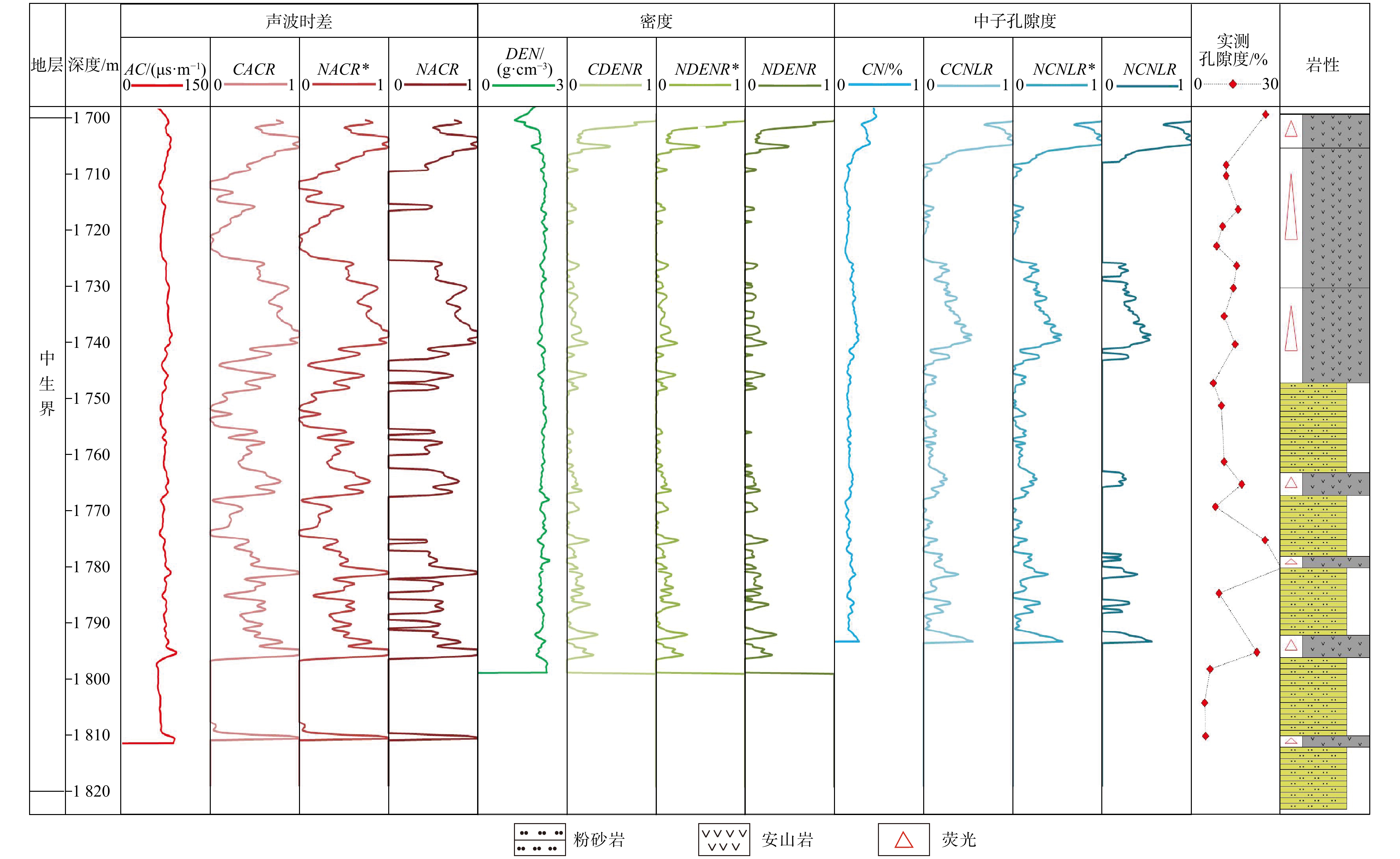

图 5 BN-9井声波时差、中子孔隙度和密度测井曲线处理与实测孔隙度曲线对比图

CACR. 声波时差差异比率；NACR*. 归一化声波时差差异比率；NACR. 声波时差裂缝指数；CCNLR. 中子孔隙度差异比率；NCNLR*. 归一化中子孔隙度差异比率；NCNLR. 中子孔隙度裂缝指数；CDENR. 密度差异比率；NDENR*. 归一化密度差异比率；NDENR. 密度裂缝指数；下同

Figure 5. Comparison of processed acoustic travel-time, neatron porosity, density logging curves with measured porosity curve in Well BN-9

下载: 全尺寸图片幻灯片

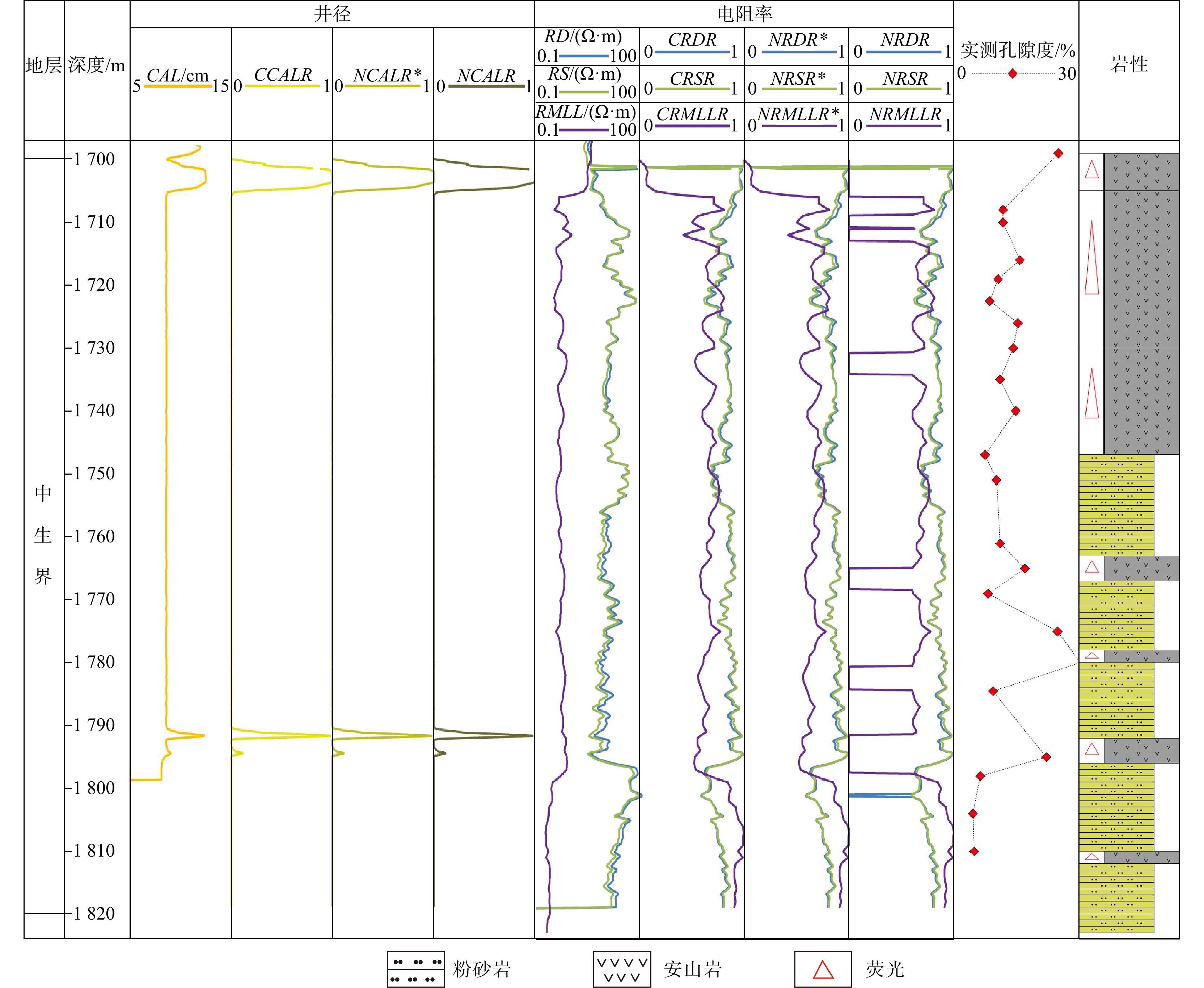

图 6 BN-9井井径和电阻率测井曲线处理与实测孔隙度曲线对比图

CCALR. 井径差异比率；NCALR*. 归一化井径差异比率；NCALR. 井径裂缝指数；CRDR. 深侧向电阻率差异比率；CRSR. 浅侧向电阻率差异比率；CRMLLR. 微侧向电阻率差异比率； NRDR*. 归一化深侧向电阻率差异比率；NRSR*. 归一化浅侧向电阻率差异比率；NRMLLR*. 归一化微侧向电阻率差异比率；NRDR. 深侧向电阻率裂缝指数；NRSR. 浅侧向电阻率裂缝指数；NRMLLR. 微侧向电阻率裂缝指数；下同

Figure 6. Comparison of processed caliper, and resistivity logging curves with measured porosity curve in Well BN-9

下载: 全尺寸图片幻灯片

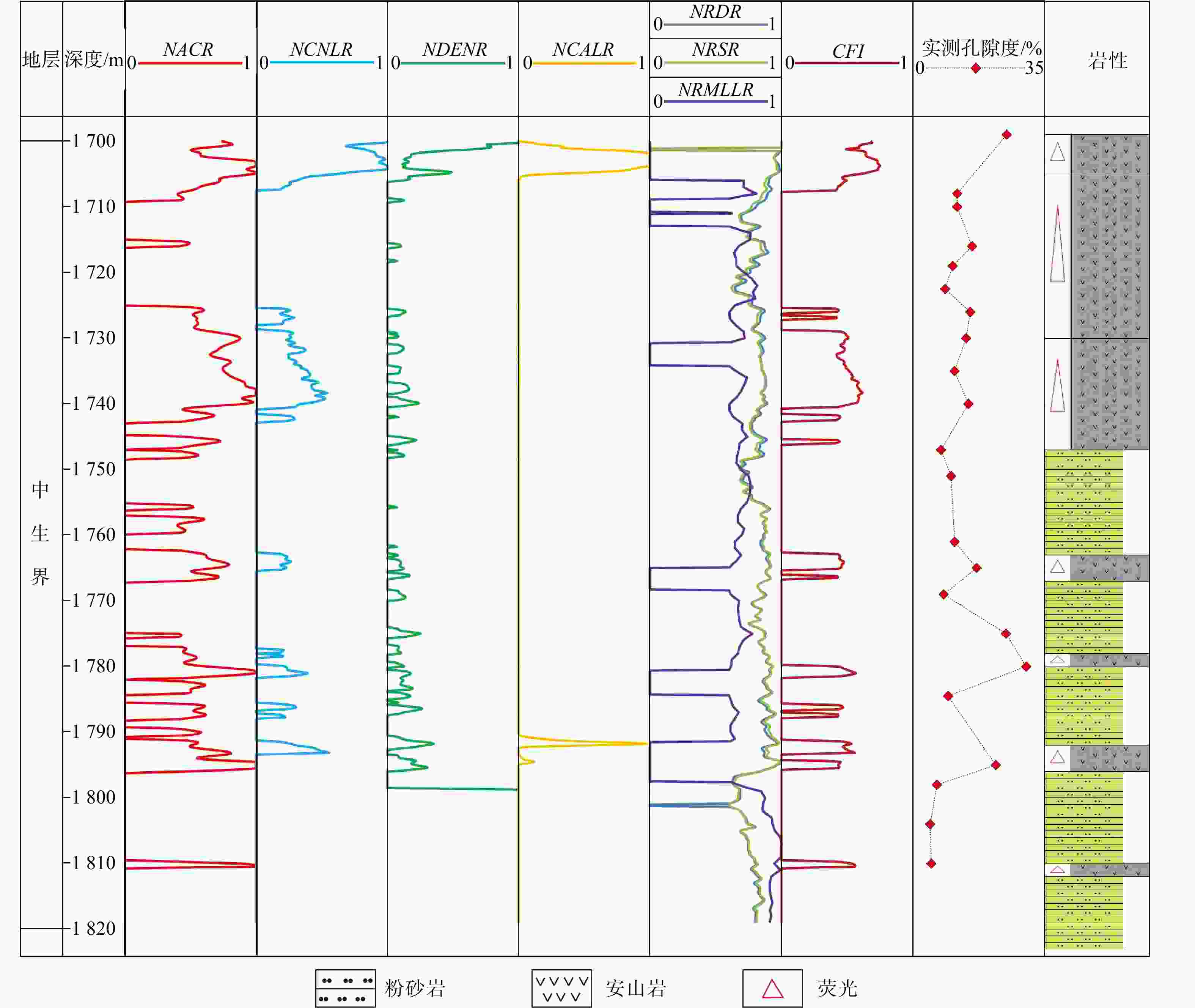

图 7 BN-9井综合裂缝指数（CFI）与实测孔隙度对比图

Figure 7. Comparison of the comprehensive fracture index (CFI) and measured porosity in Well BN-9

下载: 全尺寸图片幻灯片

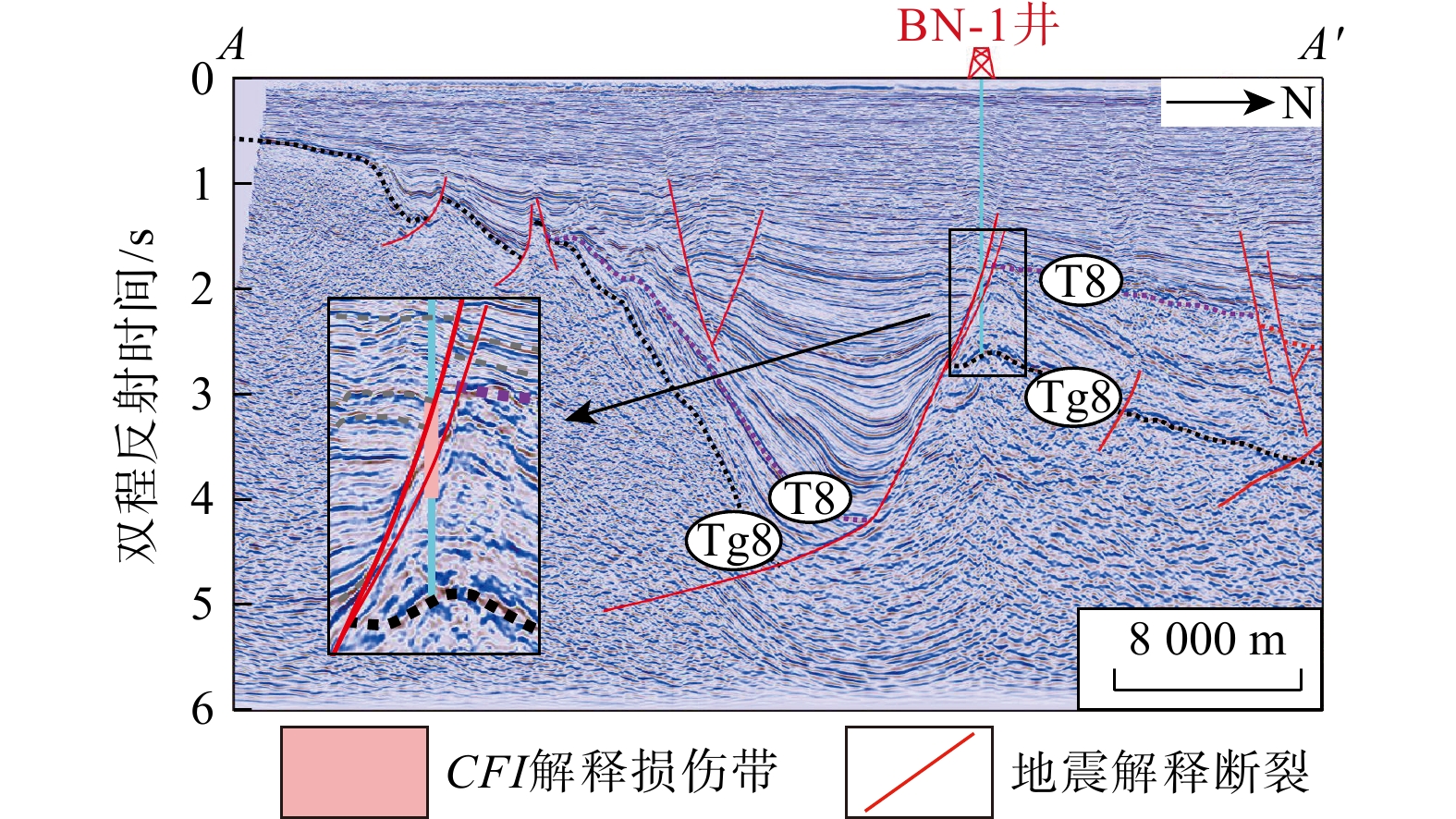

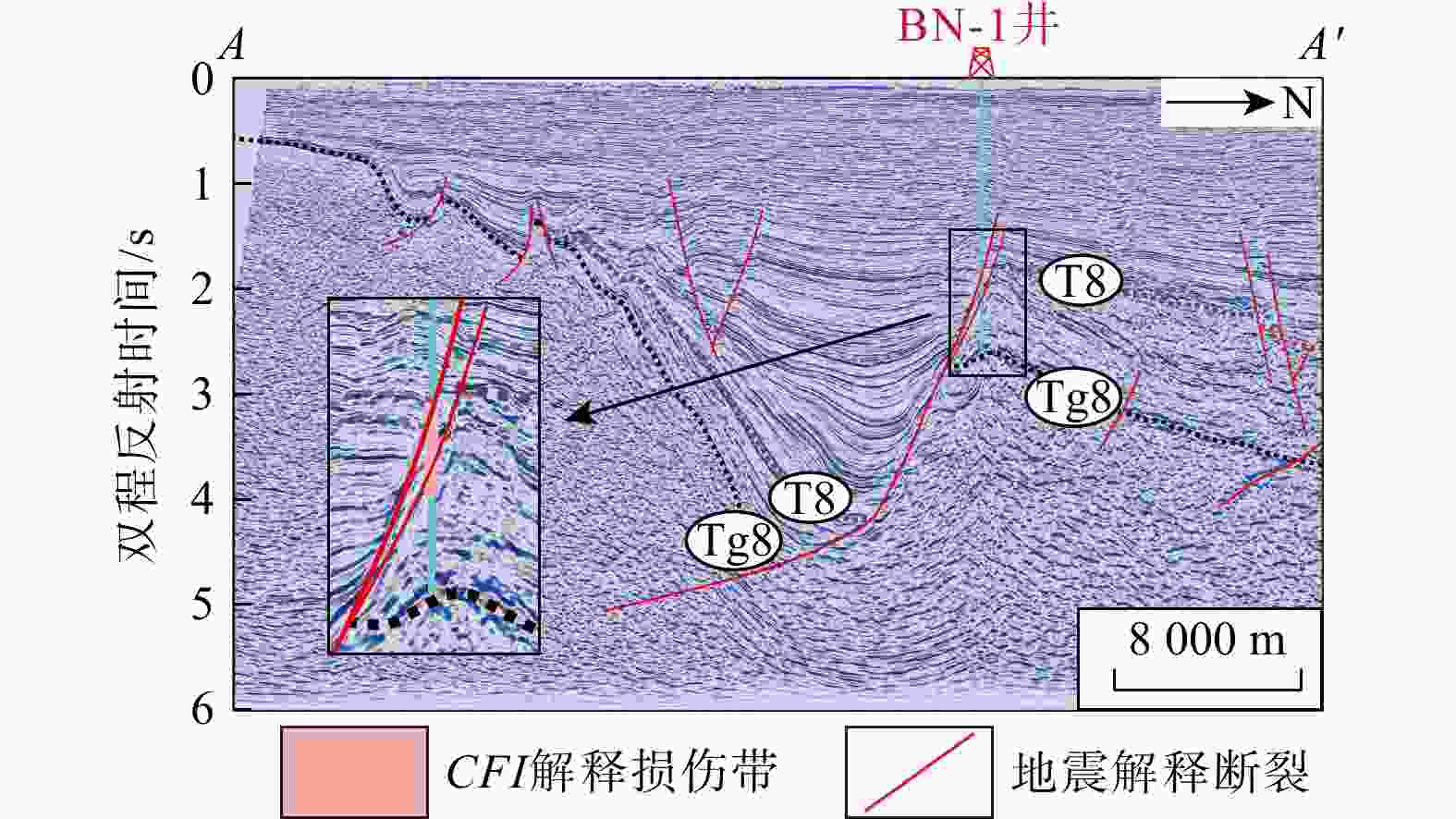

图 8 BN-1中生界断裂地震剖面解释图（T8，Tg8分别为中生界顶、底界面，剖面位置见图1b）

Figure 8. Seismic-profile interpretation of the Mesozoic fault in Well BN-1

下载: 全尺寸图片幻灯片

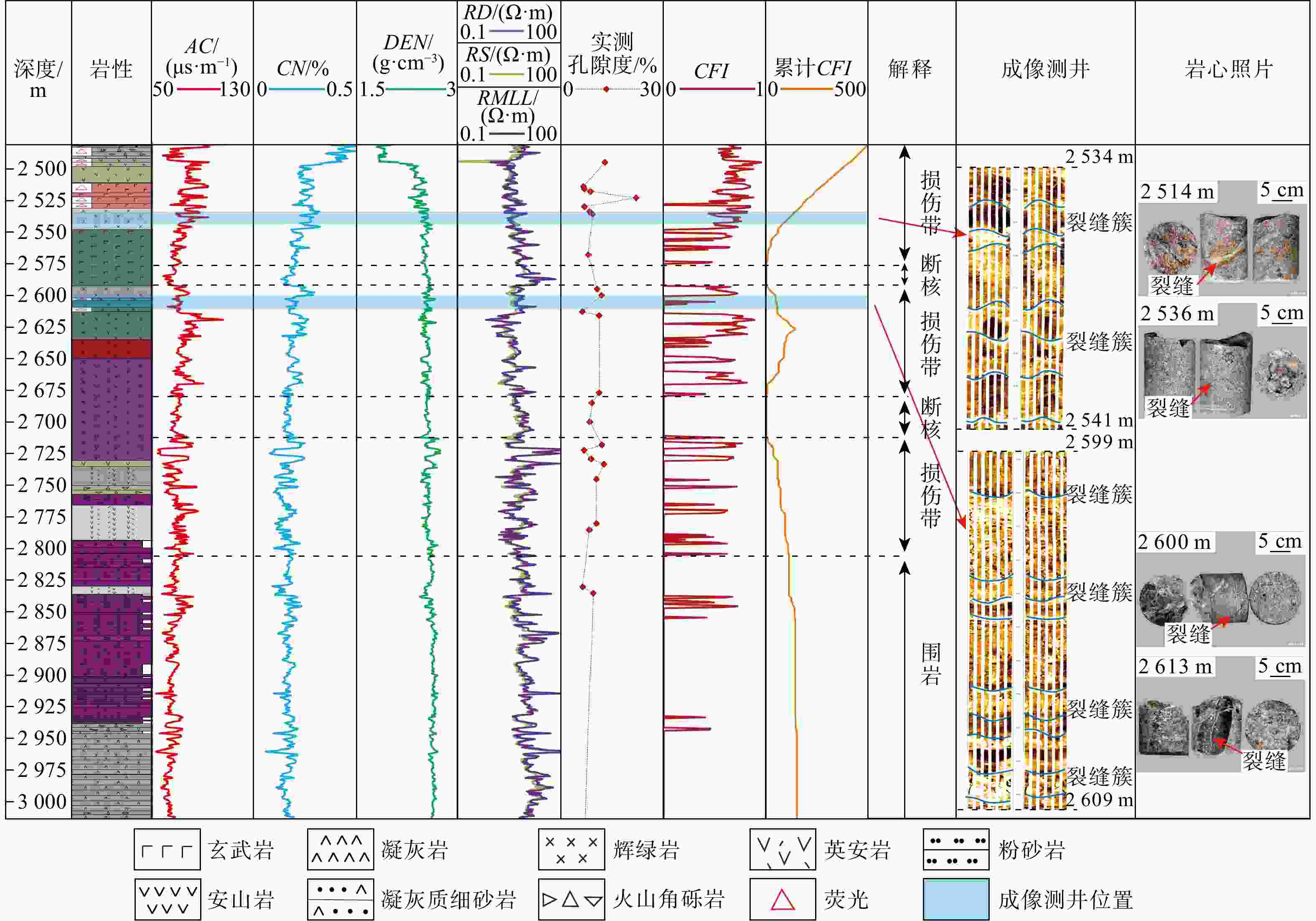

图 9 BN-1井中生界断裂内部结构划分

Figure 9. Internal-structure division of the Mesozoic fracture zone in Well BN-1

下载: 全尺寸图片幻灯片
