A Differential Study on Structure-Controlled Mineralization between the Zhaoyuan-Laizhou and Penglai-Qixia Metallogenic Districts, Jiaodong Peninsula
-
摘要:
胶东半岛的招远-莱州与蓬莱-栖霞成矿区虽同处中生代挤压-伸展转换背景，但其控矿构造特征有比较明显的差异，本研究旨在对比两区断裂构造的控矿规律及构造系统差异，探讨该差异的形成机制。通过对比2个金矿集中区的不同尺度的断裂构造产状、变形特征、以及构造系统，结合焦家、招平、虎路线3条主干断裂的控矿特征与矿体定位规律，分析两区断裂构造控矿规律及断裂构造系统的差异。结果表明：招莱地区的焦家断裂带、招平断裂带以低角度铲式伸展机制为主，表现出中缓产状的多阶段的伸展剪切变形过程，其矿化类型以蚀变岩型为主，矿体以小侧伏角产状产出于主干断裂带中。主干断裂带下盘发育系列陡产状次级控矿构造系统，此类断裂构造产状陡或近直立，矿化以石英脉型和蚀变岩型为主，矿体侧伏角较大，反映了次级构造变形机制以平移走滑为主导；以虎路线断裂为代表的蓬−栖矿区发育高角度脆性断裂。产出在两侧的次级断裂为产状陡倾的系列断层，控制了石英脉的矿化，矿体基本无侧伏现象，表现以走滑作用为主的机制。两区的构造差异体现了胶西北地区构造体制由西向东从伸展向走滑递变的特点，该差异可能受控于中生代胶西北地区挤压−伸展转换过程中区域应力场的改变。
Abstract:ObjectiveAlthough both the Zhaoyuan-Laizhou and Penglai-Qixia metallogenic districts in the Jiaodong Peninsula are located in a Mesozoic compressional-extensional transitional setting, their ore-controlling structural characteristics exhibit significant differences. This study aims to compare the ore-controlling patterns and structural system differences between the two districts and explore the formation mechanisms of these differences.
MethodsBy comparing the attitudes, deformation characteristics, and structural systems of faults at different scales in the two gold-concentrated districts, combined with an analysis of the ore-controlling features and orebody localization patterns along the Jiaojia, Zhaoping, and Huxianzhuang major fault zones, the differences in fault-controlled mineralization and structural systems between the two districts were systematically investigated.
ResultsPreliminary analysis indicates that the Jiaojia and Zhaoping fault zones in the Zhaoyuan-Laizhou district are dominated by low-angle listric extensional mechanisms, exhibiting multi-stage extensional shear deformation with moderate to gentle dips. The mineralization is primarily altered-rock type, with orebodies occurring in the main fault zones at small pitch angles. A series of steeply dipping secondary ore-controlling structures developed in the footwall of the main fault zones, characterized by near-vertical attitudes. These structures host quartz-vein and altered-rock type mineralization, with orebodies displaying larger pitch angles, reflecting a strike-slip-dominated deformation mechanism. In contrast, the Penglai-Qixia district, represented by the Huxianzhuang Fault, is characterized by high-angle brittle faults. The subsidiary faults on both sides are steeply dipping and control quartz-vein type mineralization, with orebodies showing negligible pitch angles, indicating a predominantly strike-slip mechanism.
ConclusionThe structural differences between the two districts reflect a transition in the tectonic regime from extension in the west to strike-slip in the east across the northwestern Jiaodong Peninsula. These variations may be controlled by changes in the regional stress field during the Mesozoic compressional-extensional transition.
-

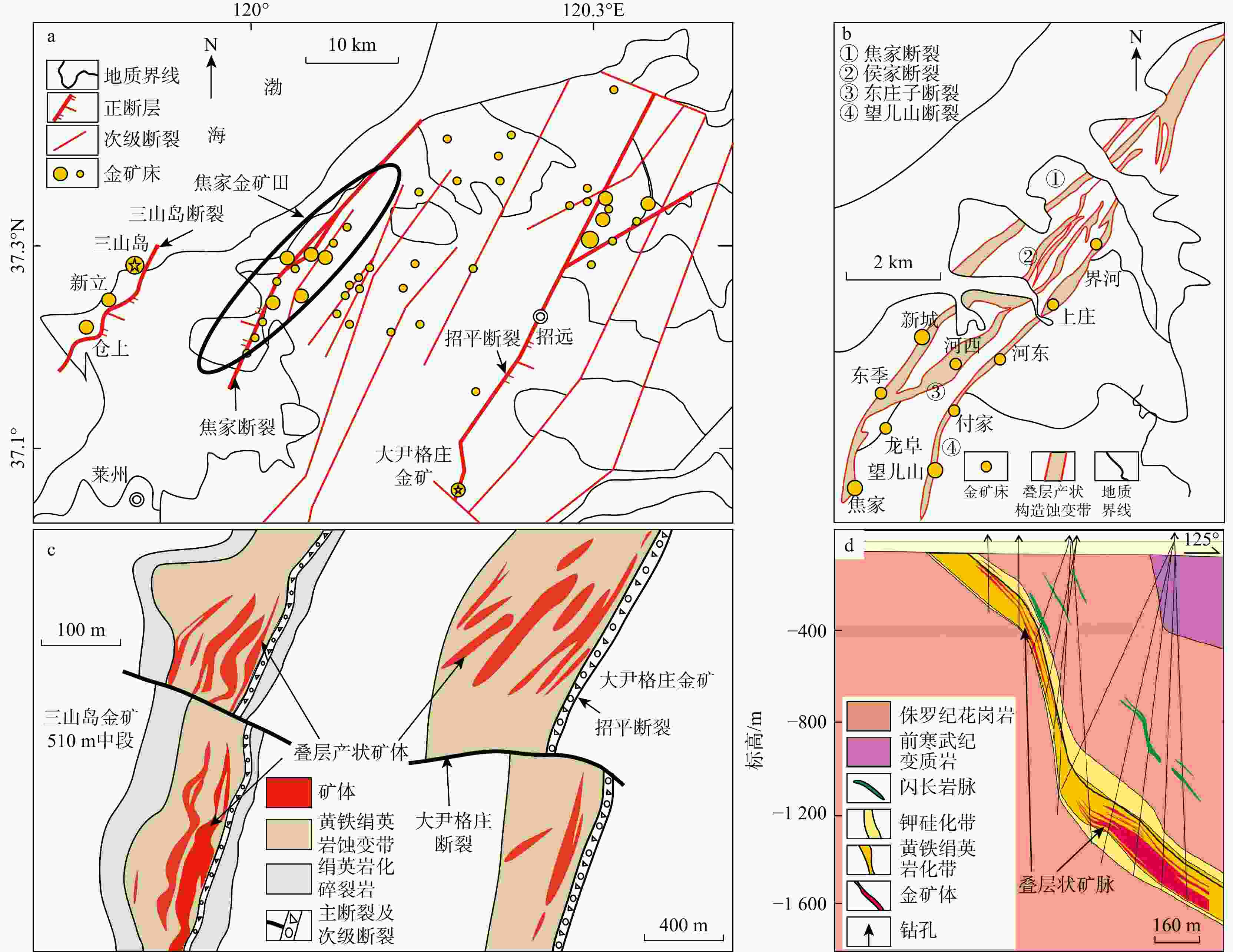

图 2 招—莱成矿区地质简图（a）、焦家金矿田构造蚀变简图（b）、三山岛金矿510 m中段、大尹格庄金矿平面简图（c）和 三山岛金矿30号勘探线剖面图（d）（据文献[19，32]修改）
Figure 2. Geological diagram of Zhao-Lai metallogenic area (a); Schematic diagram of tectonic alteration in Jiaojia gold field (b); Schematic plan of the 510m middle section of Sanshan Island Gold Mine and Dayingezhuang Gold Mine (c); Sanshan Island Gold Mine No. 30 Exploration Line Section (d)

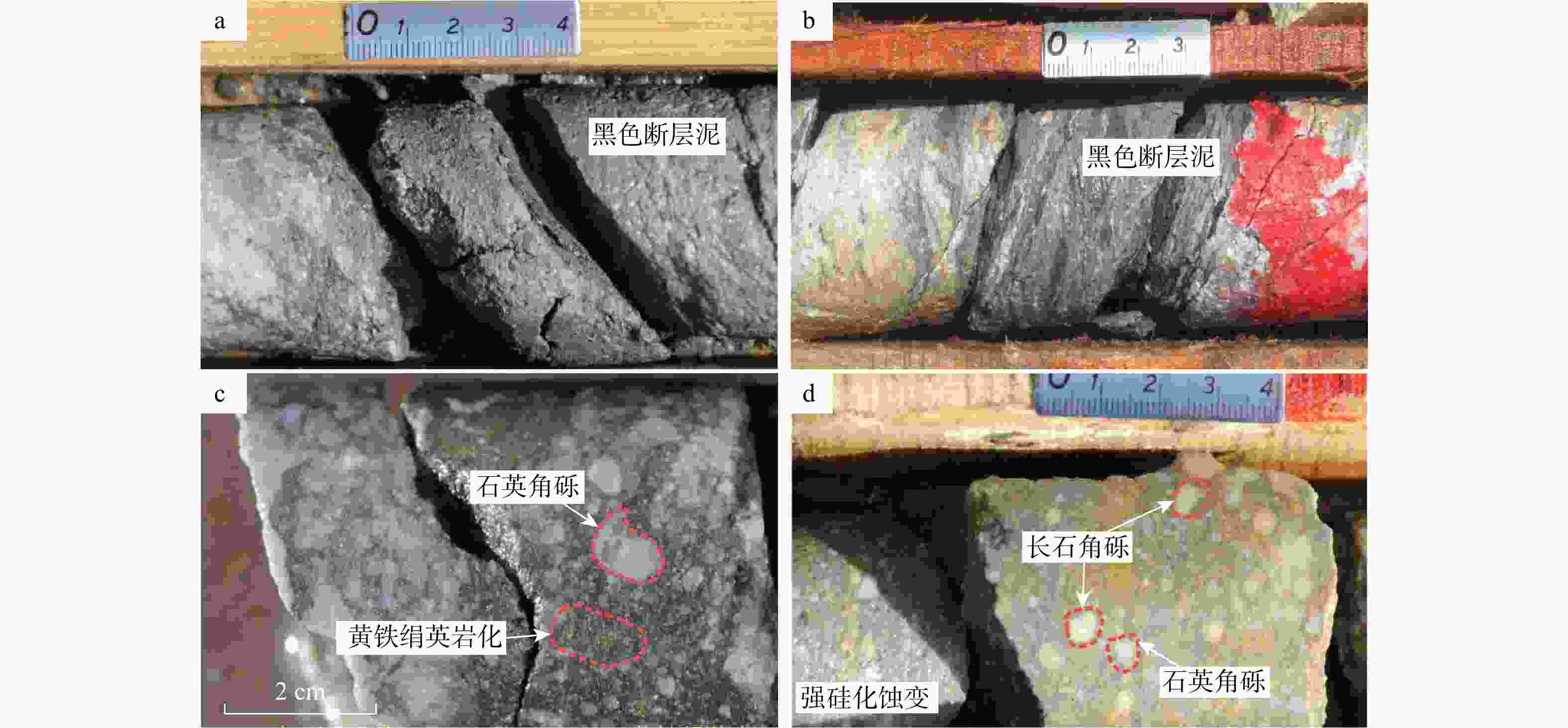

图 3 三山岛主断裂黑色断层泥（西岭ZK96-6孔）（a）、新城金矿黑色断层泥（ZK155-5孔）（b）；招远地区破头青主断裂黄铁绢英岩，含石英碎斑（ZK136-9孔）（c）及招远地区破头青黑色断层角砾，透镜状、圆球状石英角砾（171号脉151-2孔）（d）
Figure 3. Black fault mud on the main fault of Sanshan Island (hole ZK96-6 in Xiling) (a); b-Xincheng Gold Mine Black Fault Mud (Hole ZK155-5) (b); c-Zhaoyuan Baotouqing main fault yellow iron sericite with quartz speckles (hole ZK136-9) (c); Blue-black fault breccia with lenticular and spherical quartz breccia (vein 171, hole 151-2) (d)

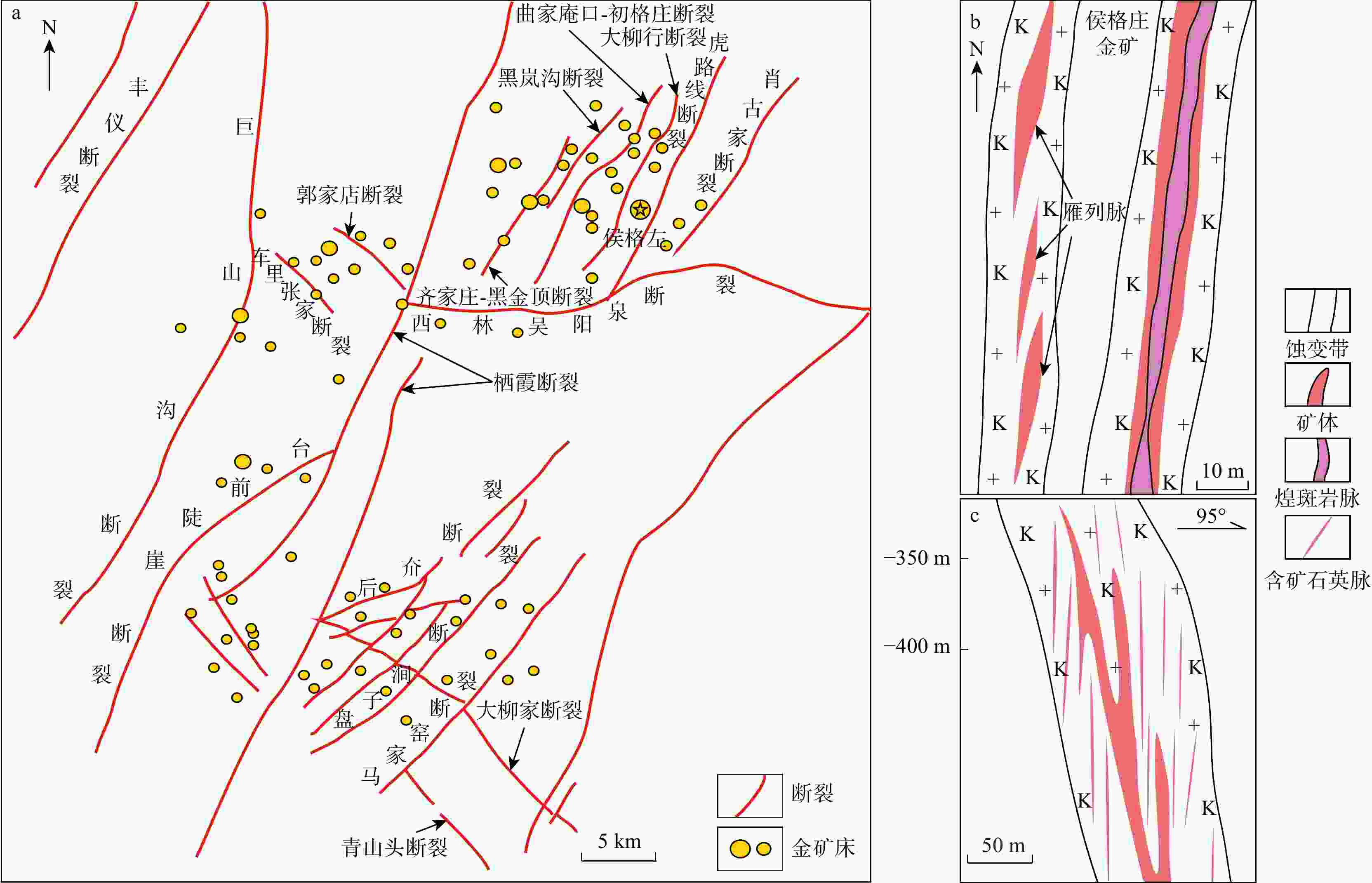

图 4 蓬−栖成矿区构造简图（a）、金矿9中段矿化平面示意图（b）和金矿脉与构造裂隙空间关系剖面示意图（c）（据文献[35]修改）
Figure 4. Schematic diagram of the Peng-Qi metallogenic area (a); Schematic diagram of mineralization plane of the middle member of Hougezhuang Gold Mine 9 (b); Schematic cross-sectional diagram of the spatial relationship between gold veins and tectonic fractures (C)

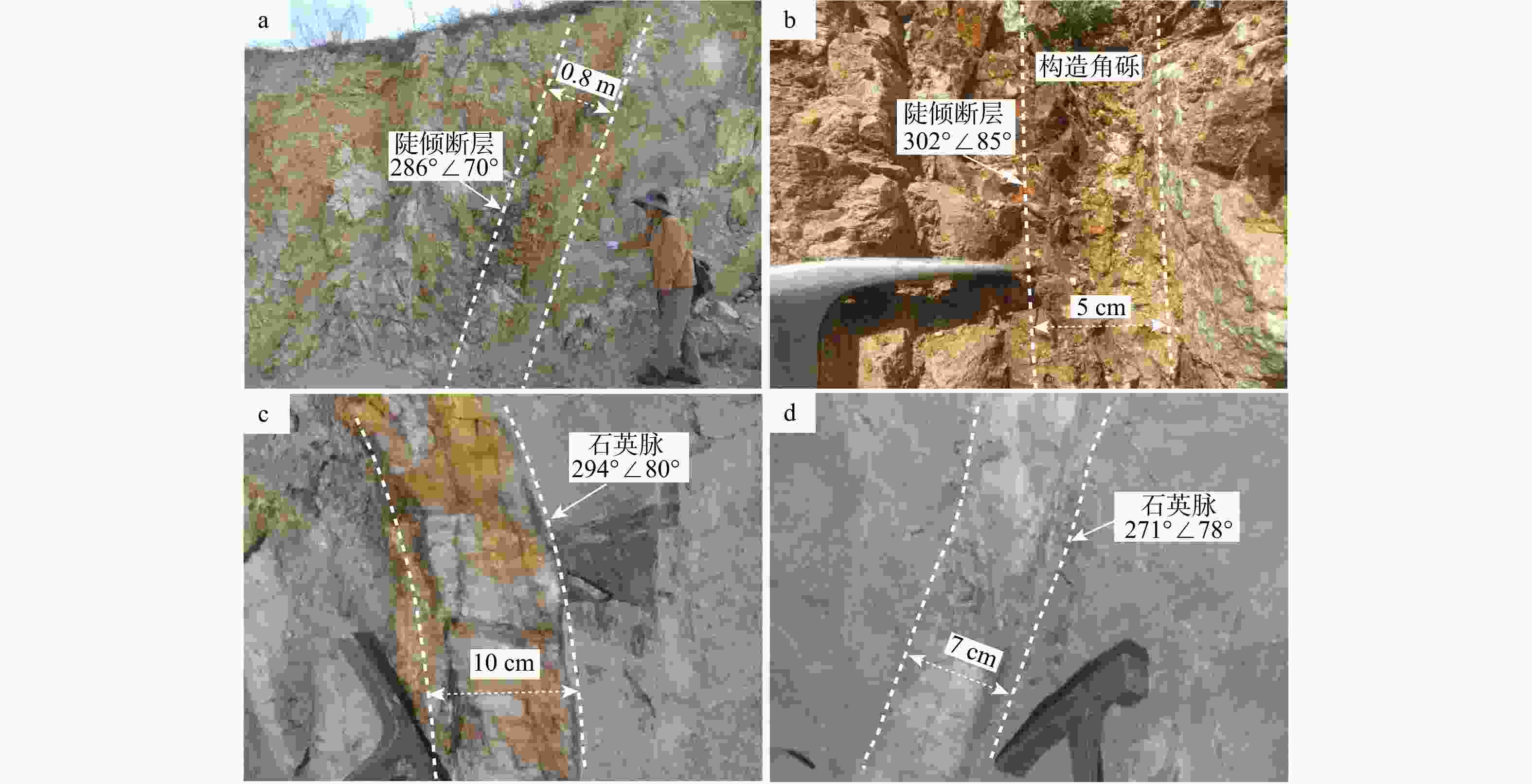

图 5 虎路线地表陡倾断层（a）、虎路线地表断层角砾（b）和侯格庄金矿7中段2-1号脉井下陡倾石英脉（c，d）
Figure 5. Tiger route surface steeply dipping faults (a); Tiger Route Surface Fault Breccia (b); Steeply dipping quartz vein in No. 2-1 vein in the middle section of Hougezhuang gold mine (c, d)

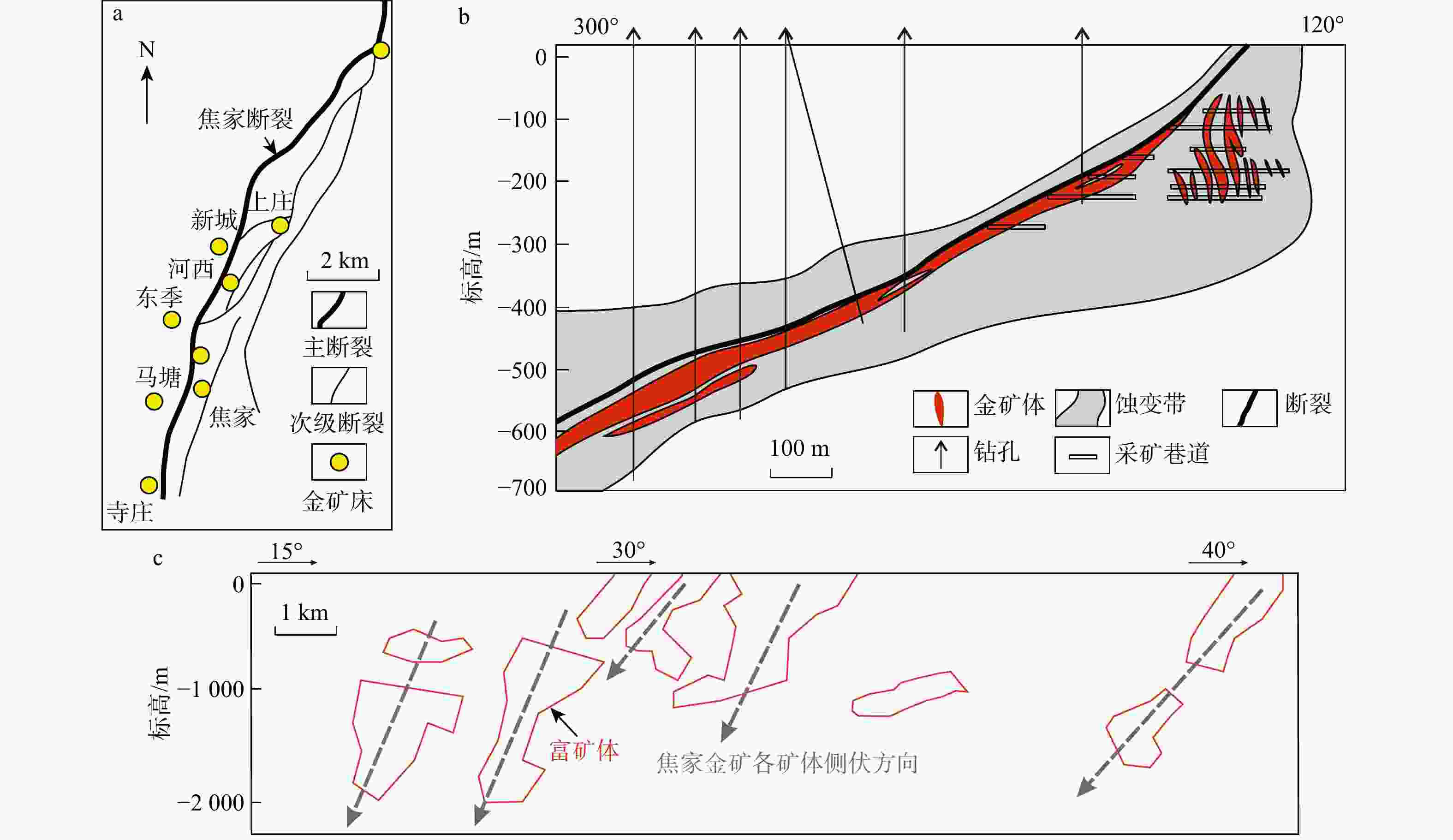

图 7 焦家断裂带构造简图（a），焦家金矿勘探线剖面图（b）和焦家金矿矿体纵投影图（c）（据文献[19]修改）
Figure 7. Schematic diagram of the Jiaojia fault zone (a); Jiaojia Gold Mine Exploration Line Profile (b); Longitudinal projection of the ore body of Jiaojia Gold Mine (C)

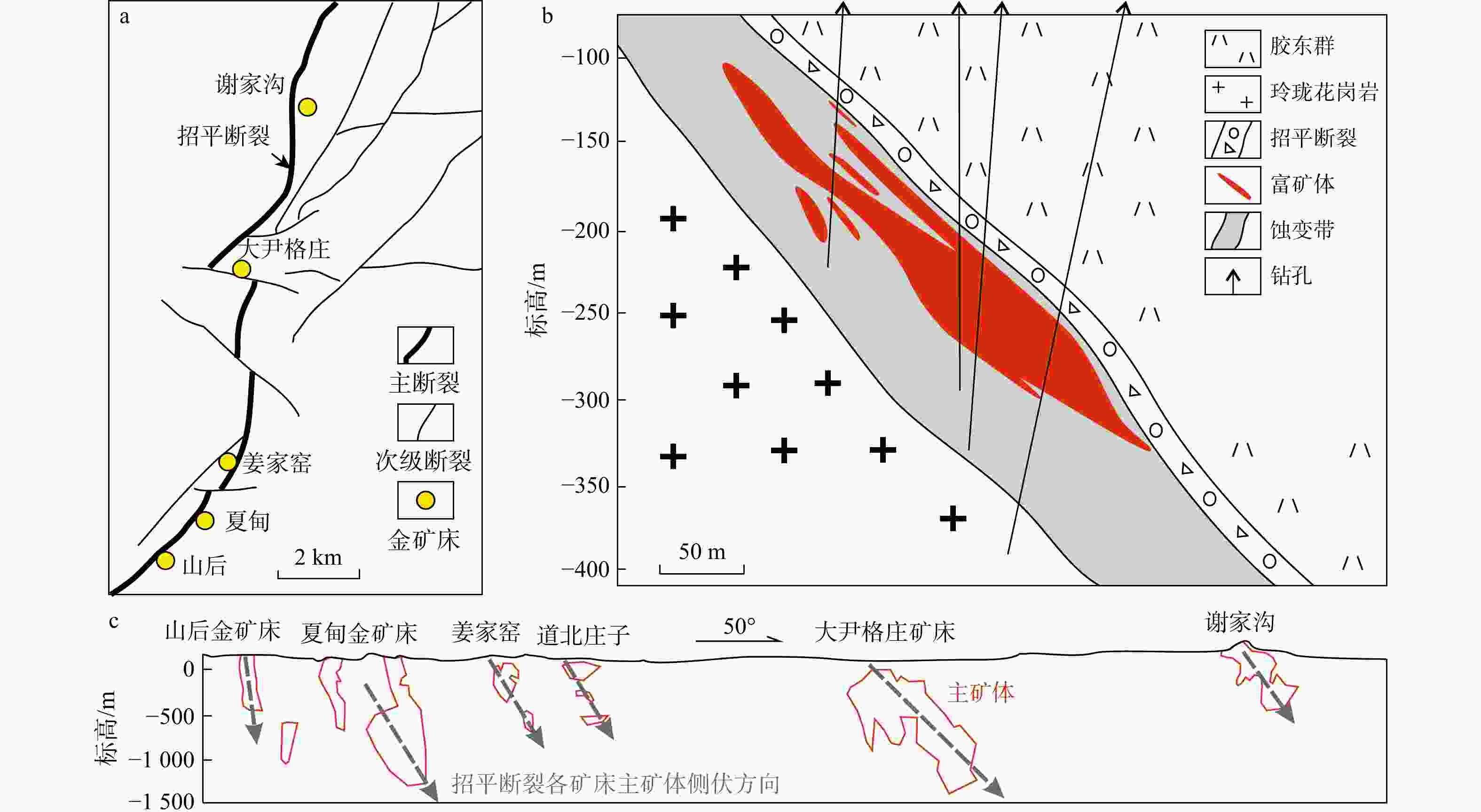

图 8 招平断裂带构造简图(a)；大伊格庄金矿勘探线剖面图(b)；招平断裂带各金矿矿体纵投影图(c)（据文献[32]修改）
Figure 8. Schematic diagram of Zhaoping fault zone (a); Exploration line profile of the Greater Igzhuang Gold Mine (b); Longitudinal projection diagram of each gold ore body in Zhaoping fault zone (c)

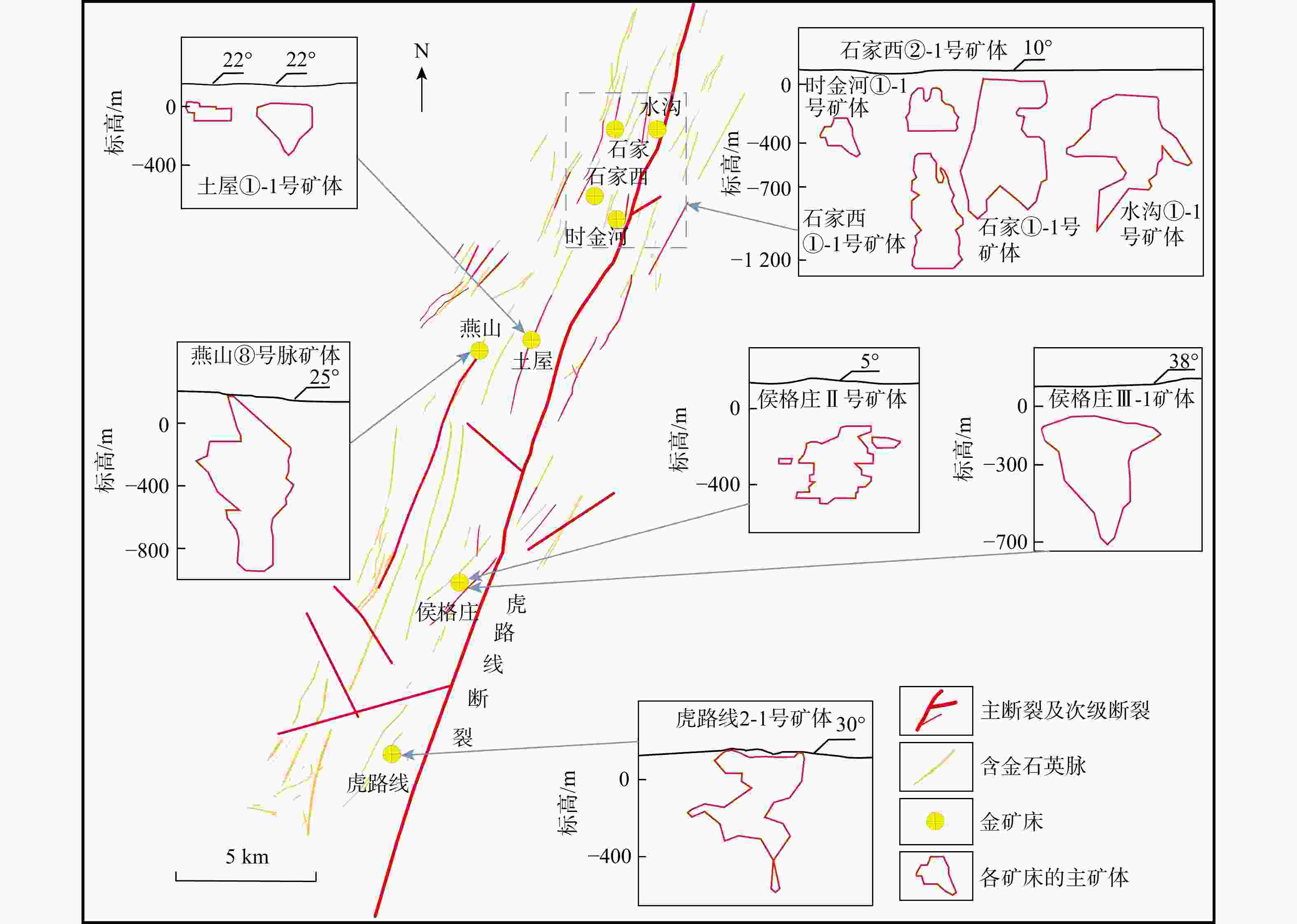

图 9 虎路线断裂构造简图及各矿床矿体纵投影图
Figure 9. Schematic diagram of the fault structure of the Tiger Route and the longitudinal projection diagram of the ore body of each deposit
-
[1] 邓军, 王庆飞, 张良, 等. 胶东型金矿成因模型[J]. 中国科学(地球科学), 2023, 53(10): 2323-2347. doi: 10.1360/SSTe-2022-0359DENG J, WANG Q F, ZHANG L, et al. Genetic model of Jiaodong type gold deposit[J]. Scientia Sinica (Terrae), 2023, 53(10): 2323-2347. (in Chinese with English abstract doi: 10.1360/SSTe-2022-0359 [2] 周明岭, 孙亮亮, 吕军阳, 等. 焦家式金矿勘查与研究[J]. 地质力学学报, 2024, 30(5): 747-767. doi: 10.12090/j.issn.1006-6616.2024061ZHOU M L, SUN L L, LYU J Y, et al. Exploration and scientific research of the Jiaojia-type gold deposit[J]. Journal of Geomechanics, 2024, 30(5): 747-767. (in Chinese with English abstract doi: 10.12090/j.issn.1006-6616.2024061 [3] 汪在聪, 汪翔, 宗克清, 等. 华北克拉通壳幔演化与胶东巨量金成矿作用[J]. 矿物岩石地球化学通报, 2023, 42(6): 1231-1247. doi: 10.19658/j.issn.1007-2802.2023.42.097WANG Z C, WANG X, ZONG K Q, et al. The secular crust-mantle evolution of the North China Craton and the formation of giant Jiaodong gold deposits[J]. Bulletin of Mineralogy, Petrology and Geochemistry, 2023, 42(6): 1231-1247. (in Chinese with English abstract doi: 10.19658/j.issn.1007-2802.2023.42.097 [4] 吕承训, 张达, 许亚青, 等. 胶东金矿成矿深度的构造校正测算及成矿预测[J]. 地学前缘, 2022, 29(1): 427-438.LYU C X, ZHANG D, XU Y Q, et al. Structural correction calculation of metallogenic depth and ore prediction in Jiaodong gold deposits[J]. Earth Science Frontiers, 2022, 29(1): 427-438. (in Chinese with English abstract. [5] DENG J, WANG Q F. Gold mineralization in China: Metallogenic provinces, deposit types and tectonic framework[J]. Gondwana Research, 2016, 36: 219-274. [6] 田瑞聪, 李大鹏, 张文, 等. 胶北隆起中生代壳幔岩浆的混合反应是巨量金质来源的关键[J]. 岩石学报, 2022, 38(1): 23-40. doi: 10.18654/1000-0569/2022.01.03TIAN R C, LI D P, ZHANG W, et al. Mesozoic crust-mantle magma mixing in Jiaobei uplift: The key to huge gold source[J]. Acta Petrologica Sinica, 2022, 38(1): 23-40. (in Chinese with English abstract doi: 10.18654/1000-0569/2022.01.03 [7] 朱平平, 刘岳, 成秋明. 胶东和鲁西金矿床空间分布分形差异及对金来源的启示[J]. 矿床地质, 2023, 42(3): 639-645.ZHU P P, LIU Y, CHENG Q M. The spatial distribution differences between Jiaodong and Luxi terrane gold deposits by fractal method and its implications for the source of gold[J]. Mineral Deposits, 2023, 42(3): 639-645. (in Chinese with English abstract [8] YANG L Q, DENG J, GUO R P, et al. World-class Xincheng gold deposit: An example from the giant Jiaodong gold province[J]. Geoscience Frontiers, 2016, 7(3): 419-430. doi: 10.1016/j.gsf.2015.08.006 [9] 杨立强, 邓军, 张良, 等. 胶东型金矿[J]. 岩石学报, 2024, 40(6): 1691-1711.YANG L Q, DENG J, ZHANG L, et al. Jiaodong-type gold deposit[J]. Acta Petrologica Sinica, 2024, 40(6): 1691-1711. (in Chinese with English abstract [10] 廖小明, 史宏江, 孙晓东, 等. 山东省栖霞台前地区控矿构造与找矿预测[J]. 黄金, 2020, 41(6): 7-13.LIAO X M, SHI H J, SUN X D, et al. Ore-controlling structures and prospecting predictions in Qiantai area, Qixia City, Shandong Province[J]. Gold, 2020, 41(6): 7-13. (in Chinese with English abstract [11] DENG J, WANG Q F, LIU X F, et al. The formation of the Jiaodong gold province[J]. Acta Geologica Sinica (English Edition), 2022, 96(6): 1801-1820. doi: 10.1111/1755-6724.15026 [12] LI L, SANTOSH M, LI S R. The “Jiaodong type” gold deposits: Characteristics, origin and prospecting[J]. Ore Geology Reviews, 2015, 65: 589-611. [13] LI S R, SANTOSH M. Geodynamics of heterogeneous gold mineralization in the North China Craton and its relationship to lithospheric destruction[J]. Gondwana Research, 2017, 50: 267-292. doi: 10.1016/j.gr.2017.05.007 [14] 赵智华, 邵玉宝, 纪旭波, 等. 胶东大柳行地区中生代花岗岩的地球化学、锆石U-Pb年龄、Lu-Hf同位素特征及其构造意义[J]. 地质科技通报, 2025, 44(6): 77-95.ZHAO Z H, SHAO Y B, JI X B, et al. Geochemistry, zircon U-Pb age and Lu-Hf isotopic characteristics of Mesozoic granites in Daliuhang, Jiaodong area and their tectonic significance[J]. Bulletin of Geological Science and Technology, 2025, 44(6): 77-95. (in Chinese with English abstract [15] 牛树银, 孙爱群, 张建珍, 等. 胶西北成矿集中区控矿构造分析[J]. 矿物学报, 2011, 31(增刊1): 82-83.NIU S Y, SUN A Q, ZHANG J Z, et al. Analysis of ore-controlling structures in northwestern Jiaodong metallogenic concentration area[J]. Acta Mineralogica Sinica, 2011, 31(S1): 82-83. (in Chinese with English abstract [16] 杨立强, 邓军, 宋明春, 等. 巨型矿床形成与定位的构造控制: 胶东金矿集区剖析[J]. 大地构造与成矿学, 2019, 43(3): 431-446. doi: 10.16539/j.ddgzyckx.2019.03.005YANG L Q, DENG J, SONG M C, et al. Structure control on formation and localization of giant deposits: An example of Jiaodong gold deposits in China[J]. Geotectonica et Metallogenia, 2019, 43(3): 431-446. (in Chinese with English abstract doi: 10.16539/j.ddgzyckx.2019.03.005 [17] FENG L Q, GU X X, ZHANG Y M, et al. Geology and geochronology of the Shijia gold deposit, Jiaodong Peninsula, China[J]. Ore Geology Reviews, 2020, 120: 103432. [18] DENG J, YANG L Q, LI R H, et al. Regional structural control on the distribution of world-class gold deposits: An overview from the Giant Jiaodong Gold Province, China[J]. Geological Journal, 2019, 54(1): 378-391. [19] 宋明春, 丁正江, 刘向东, 等. 胶东型金矿床断裂控矿及成矿模式[J]. 地质学报, 2022, 96(5): 1774-1802.SONG M C, DING Z J, LIU X D, et al. Structural controls on the Jiaodong type gold deposits and metallogenic model[J]. Acta Geologica Sinica, 2022, 96(5): 1774-1802. (in Chinese with English abstract [20] 李逸凡, 李洪奎, 陈国栋, 等. 论山东胶东金矿形成的挤压-伸展构造环境[J]. 大地构造与成矿学, 2019, 43(6): 1117-1132.LI Y F, LI H K, CHEN G D, et al. On the compression-extensional tectonic environment and gold mineralization in the Jiaodong area, Shandong Province[J]. Geotectonica et Metallogenia, 2019, 43(6): 1117-1132. (in Chinese with English abstract [21] YANG L Q, DENG J, ZHANG J, et al. Decrepitation thermometry and compositions of fluid inclusions of the damoqujia gold deposit, Jiaodong gold province, China: Implications for metallogeny and exploration[J]. Journal of China University of Geosciences, 2008, 19(4): 378-390. doi: 10.1016/s1002-0705(08)60071-0 [22] 李洪奎, 陈国栋, 耿科, 等. 山东胶东金矿成矿地质背景初论[J]. 山东国土资源, 2018, 34(5): 34-41.LI H K, CHEN G D, GENG K, et al. Preliminary discussion on metallogenic geological background of gold deposits in Jiaodong, Shandon[J]. ShangDong Land and Resources, 2018, 34(5): 34-41. (in Chinese with English abstract [23] ZHU R X, SUN W D. The big mantle wedge and decratonic gold deposits[J]. Science China Earth Sciences, 2021, 64(9): 1451-1462. doi: 10.1007/s11430-020-9733-1 [24] WANG H, LAN T G, FAN H R, et al. Fluid origin and critical ore-forming processes for the giant gold mineralization in the Jiaodong Peninsula, China: Constraints from in situ elemental and oxygen isotopic compositions of quartz and LA-CP-MS analysis of fluid inclusions[J]. Chemical Geology, 2022, 608: 121027. doi: 10.1016/j.chemgeo.2022.121027 [25] HU H L, FAN H R, LAN T G, et al. New constraints for crustal sulfur contamination of gold source: Evidence from complex δ34S of pyrite in the northwestern Jiaodong gold province, China[J]. Precambrian Research, 2022, 378: 106773. doi: 10.1016/j.precamres.2022.106773 [26] ZHANG H, HOU Q, CAO D. Study of thrust and nappe tectonics in the eastern Jiaodong Peninsula, China[J]. Science in China Series D: Earth Sciences, 2007, 50(2): 161-171. doi: 10.1007/s11430-007-2033-1 [27] 李洪奎, 李逸凡, 梁太涛, 等. 山东胶东型金矿的概念及其特征[J]. 黄金科学技术, 2017, 25(1): 1-8.WANG C, DENG J, SANTOSH M, et al. Timing, tectonic implications and genesis of gold mineralization in the Xincheng gold deposit, China: C-H-O isotopes, pyrite Rb-Sr and zircon fission track thermochronometry[J]. Ore Geology Reviews, 2015, 65: 659-673. LI H K, LI Y F, LIANG T T, et al. The concept and characteristics of Jiaodong type gold deposits, Shandong Province[J]. Gold Science and Technology, 2017, 25(1): 1-8. (in Chinese with English abstract [28] 李洪奎, 李逸凡, 梁太涛, 等. 山东胶东型金矿的概念及其特征[J]. 黄金科学技术, 2017, 25(1): 1-8.LI H K, LI Y F, LIANG T T, et al. The concept and characteristics of Jiaodong type gold deposits, Shandong Province[J]. Gold Science and Technology, 2017, 25(1): 1-8. (in Chinese with English abstract [29] 李洪奎, 卜文峰, 禚传源, 等. 山东胶东矿集区中生代构造事件与金矿成矿作用[J]. 山东国土资源, 2017, 33(1): 1-9.LI H K, BU W F, ZHUO C Y, et al. Mesozoic tectonic events and mineralization of gold deposits in Jiaodong area in Shandong Province[J]. Shangdong Land and Resources, 2017, 33(1): 1-9. (in Chinese with English abstract [30] LAN T, FAN Y C, LU J L, et al. Origin of the Dayingezhuang gold deposit in the Jiaodong district, eastern China: Insights from trace element character of pyrite and C-O-S isotope compositions[J]. Journal of Geochemical Exploration, 2022, 236: 106986. doi: 10.1016/j.gexplo.2022.106986 [31] 李洪奎, 陈国栋, 梁太涛, 等. 沂沭断裂带构造活动与胶东金矿形成关系之探讨[J]. 山东国土资源, 2017, 33(11): 6-14.LI H K, CHEN G D, LIANG T T, et al. Study on the relationship between tectonic activity in Yishu fault zone and the formation of gold deposits in Jiaodong area[J]. Shandong Land and Resources, 2017, 33(11): 6-14. (in Chinese with English abstract [32] 张瑞忠. 招平金矿带构造控矿机理及深部成矿预测[D]. 北京: 中国地质大学(北京), 2017.ZHANG R Z. Structural ore-controlling mechanism and deep ore prediction in Zhaoping gold belt[D]. Beijing: China University of Geosciences (Beijing), 2017. (in Chinese with English abstract [33] DENG J, WANG C M, BAGAS L, et al. Cretaceous-Cenozoic tectonic history of the Jiaojia fault and gold mineralization in the Jiaodong Peninsula, China: Constraints from zircon U-Pb, illite K-Ar, and apatite fission track thermochronometry[J]. Mineralium Deposita, 2015, 50(8): 987-1006. [34] 刘殿浩, 吕古贤, 张丕建, 等. 胶东三山岛断裂构造蚀变岩三维控矿规律研究与海域超大型金矿的发现[J]. 地学前缘, 2015, 35(增刊1): 1019.LIU D H, LV G X, ZHANG P J, et al. A study of 3D ore-controlling of the tectonic altered rocks of the Sanshandao fault in Jiaodong Peninsular and the discovery of an offshore super-large gold deposit in China[J]. Earth Science Frontiers, 2015, 35(S1): 1019. (in Chinese with English abstract [35] 徐春森, 申玉科, 曹建生, 等. 蓬莱侯格庄金矿构造特征及成矿预测[J]. 东华理工大学学报(自然科学版), 2021, 44(3): 249-259.XU C S, SHEN Y K, CAO J S, et al. Ore-controlling structure and ore-prospecting prediction and prospecting of Hougezhuang gold deposit in Penglai[J]. Journal of East China University of Technology (Natural Science), 2021, 44(3): 249-259. (in Chinese with English abstract [36] 单伟, 迟乃杰, 熊玉新, 等. 山东省蓬莱-栖霞金成矿带地壳结构对金成矿的约束[J]. 山东国土资源, 2023, 39(3): 5-13.SHAN W, CHI N J, XIONG Y X, et al. Constraint of crustal structures on gold mineralization in Penglai-Qixia gold metallogenic belt[J]. Shandong Land and Resources, 2023, 39(3): 5-13. (in Chinese with English abstract [37] HARDING T, VIERBUCHEN R, CHRISTIE-BLICK N. Structural styles, plate-tectonic settings, and hydrocarbon traps of divergent (transtensional) wrench faults[J]. Petroleum Exploration and Development Conference, 1985, 37: 0051. [38] SONG M C, LI J, YU X F, et al. Metallogenic characteristics and tectonic setting of the Jiaodong gold deposit, China[J]. Solid Earth Sciences, 2021, 6(4): 385-405. [39] 吕古贤, 郭涛, 舒斌, 等. 胶东金矿集中区构造体系多层次控矿规律研究[J]. 大地构造与成矿学, 2007, 31(2): 193-204.LYU G X, GUO T, SHU B, et al. Study on the multi-level controlling rule for tectonic system in Jiaodong gold-centralized area[J]. Geotectonica et Metallogenia, 2007, 31(2): 193-204. (in Chinese with English abstract. [40] LI P, CAI M F. Distribution law of in situ stress field and regional stress field assessments in the Jiaodong Peninsula, China[J]. Journal of Asian Earth Sciences, 2018, 166: 66-79. [41] 魏俊浩. 初论成矿场与矿产勘查意义[J]. 地质科技通报, 2020, 39(1): 114-129.WEI J H. Preliminary discussion on the theory of ore-forming field and its significant role for mineral exploration[J]. Bulletin of Geological Science and Technology, 2020, 39(1): 114-129. (in Chinese with English abstract [42] SIBSON R H, SCOTT J. Stress/fault controls on the containment and release of overpressured fluids: Examples from gold-quartz vein systems in Juneau, Alaska; Victoria, Australia and Otago, New Zealand[J]. Ore Geology Reviews, 1998, 13(1/2/3/4/5): 293-306. [43] SIBSON R H. Rupture nucleation on unfavorably oriented faults[J]. Bulletin of the Seismological Society of America, 1990, 80(6A): 1580-1604. [44] COX S F. Injection-driven swarm seismicity and permeability enhancement: Implications for the dynamics of hydrothermal ore systems in high fluid-flux, overpressured faulting regimes: An invited paper[J]. Economic Geology, 2016, 111(3): 559-587. [45] 李欢, 朱博文, 谢一鸣, 等. 里德尔剪切构造对山东鑫泰金矿的控制作用及其找矿意义[J]. 中国有色金属学报, 2025, 35(1): 323-335.LI H, ZHU B W, XIE Y M, et al. Controlling effect of Riedel shear structure on Xintai gold deposit in Shandong Province and its prospecting significance[J]. The Chinese Journal of Nonferrous Metals, 2025, 35(1): 323-335. (in Chinese with English abstract [46] 李宏达, 吴志春, 柏瑞, 等. 复杂脉状矿体精细化三维建模方法探讨[J]. 地质科技通报, 2025, 44(4): 379-390.LI H D, WU Z C, BAI R, et al. Discussion on fine 3D modeling method of complex vein-type ore body[J]. Bulletin of Geological Science and Technology, 2025, 44(4): 379-390. (in Chinese with English abstract -
