Petroleum accumulation conditions and exploration direction in the Cambrian-Ordovician buried-hills of Huanghua Depression, Bohai Bay Basin
-
摘要:
渤海湾盆地黄骅坳陷寒武系−奥陶系潜山内幕已捕获油气显示，但勘探尚未获突破。目前存在潜山内幕成藏因素、成藏类型及勘探潜力等认识不清的问题。基于新三维地震、钻井地质、测井和地球化学等资料，对潜山内幕成藏条件进行了系统分析，并探讨了其成藏类型与勘探方向。研究表明：黄骅坳陷发育古近系沙三段和上古生界石炭系−二叠系2套烃源岩，为潜山油气藏的形成提供了充足的油气源；潜山内幕发育基岩褶皱变形控制的背斜型和基底断层掀斜控制的断鼻型2种成因潜山圈闭类型，印支−早燕山运动期的区域挤压作用和晚燕山−喜山运动期的拉张作用为潜山的形成奠定了基础；岩性、云化、溶蚀及断裂作用控制了基质孔隙、溶蚀孔洞和裂缝型3类优势储层，构成了潜山内幕有利的储集空间。通过寒武系−奥陶系潜山内幕源−储配置关系分析，总结了“双源供烃−负反转背斜型”、“单源供烃−正反转背斜型”和“单源供烃−翘倾断鼻型”3种成藏类型，指出了目前埕海潜山和王官屯潜山内幕成藏条件最为有利，内幕未钻圈闭极具勘探价值，可作为下一步潜山勘探的重点方向。研究成果可为潜山勘探提供理论指导。
Abstract:Objective The Cambrian-Ordovician buried-hills in the Huanghua Depression, Bohai Bay Basin, have shown petroleum indications, but exploration breakthroughs remain elusive. The reservoir-forming factors, genetic types, and exploration potential within these buried-hill systems are still unclear.
Methods A systematic analysis of the reservoir-forming conditions was conducted using newly acquired 3D seismic data, drilling geology, well log, and geochemical data. This study further explores the genetic types of reservoirs and identifies potential exploration targets.
Results The research shows the following findings: The Huanghua Depression hosts two sets of hydrocarbon source rocks: The Third Member of the Paleogene Shahejie Formation (E
s 3) and the Upper Paleozoic Carboniferous-Permian, which provide abundant hydrocarbon sources for buried-hill reservoirs. Two types of genetic traps are identified within the buried-hill systems: Anticlinal traps controlled by basement fold deformation and fault-nose traps governed by basement fault tilting. Regional compressional stress during the Indosinian-Early Yanshanian orogeny, followed by extensional tectonism during the Late Yanshanian-Himalayan period, provided the foundation for buried-hill formation. Lithology, dolomitization, dissolution, and faulting jointly control three dominant reservoir types: Matrix pores, dissolution vugs, and fracture networks, which together created favorable pore spaces within the buried-hill systems. By analyzing the source-reservoir configurations in the Cambrian-Ordovician buried-hill systems, three reservoir-forming models are proposed: Dual-source hydrocarbon supply-negative inversion anticline type, single-source hydrocarbon supply-positive inversion anticline type, single-source hydrocarbon supply-tilting fault-nose type. The Chenghai and Wangguantun buried-hill systems have the most favorable reservoir-forming conditions. Undrilled intra-hill traps in these areas have significant exploration potential and are recommended as priority targets for future buried-hill exploration.Conclusion The research results can provide theoretical guidance for the buried-hil exploration.
-

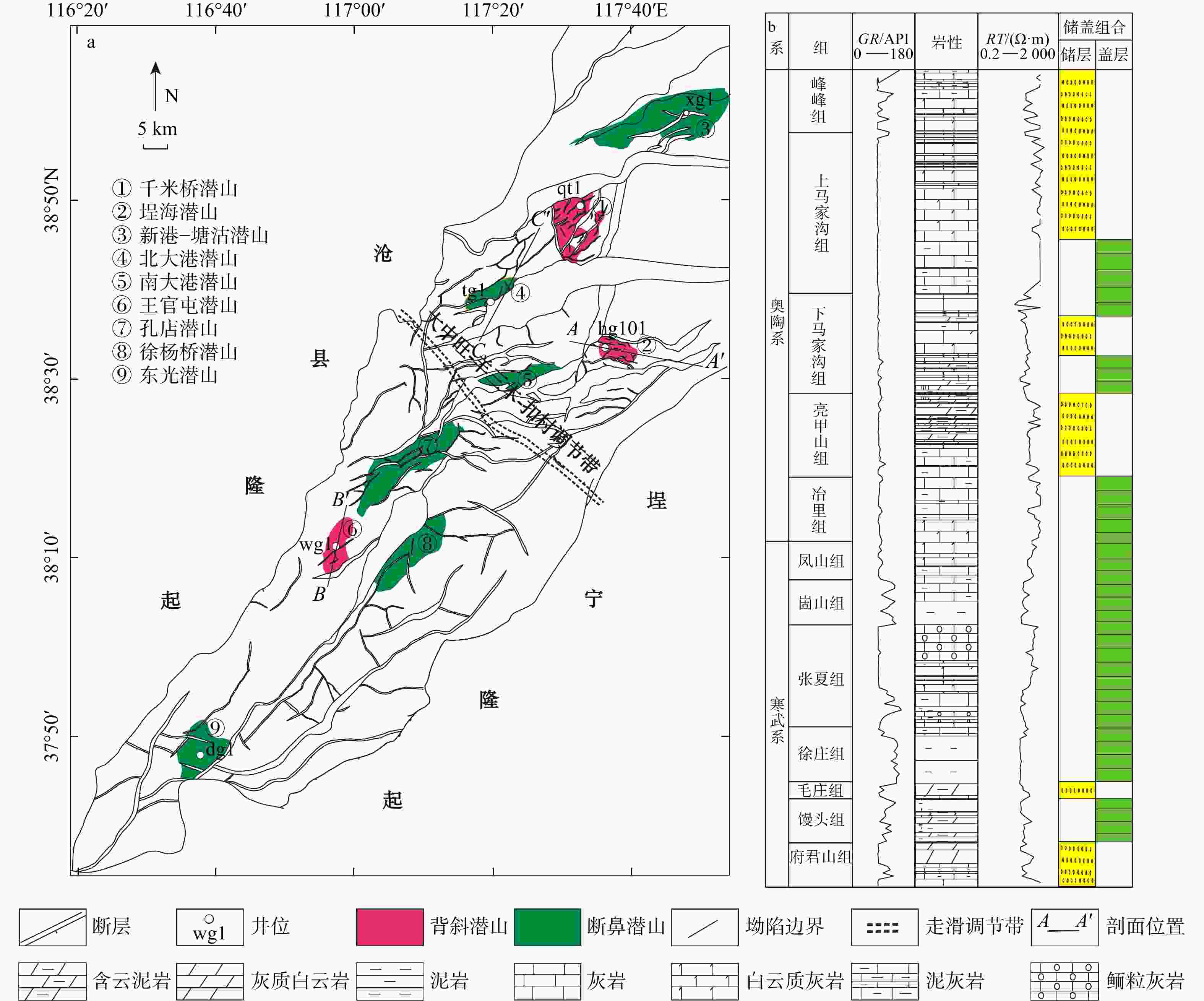

图 1 黄骅坳陷寒武系−奥陶系潜山分布图(a)与岩性综合柱状图(b) (GR. 自然伽马；RT. 电阻率)
Figure 1. Distribution (a) and comprehensive lithology histogram(b) in the Cambrian-Ordovician buried hills of Huanghua Depression

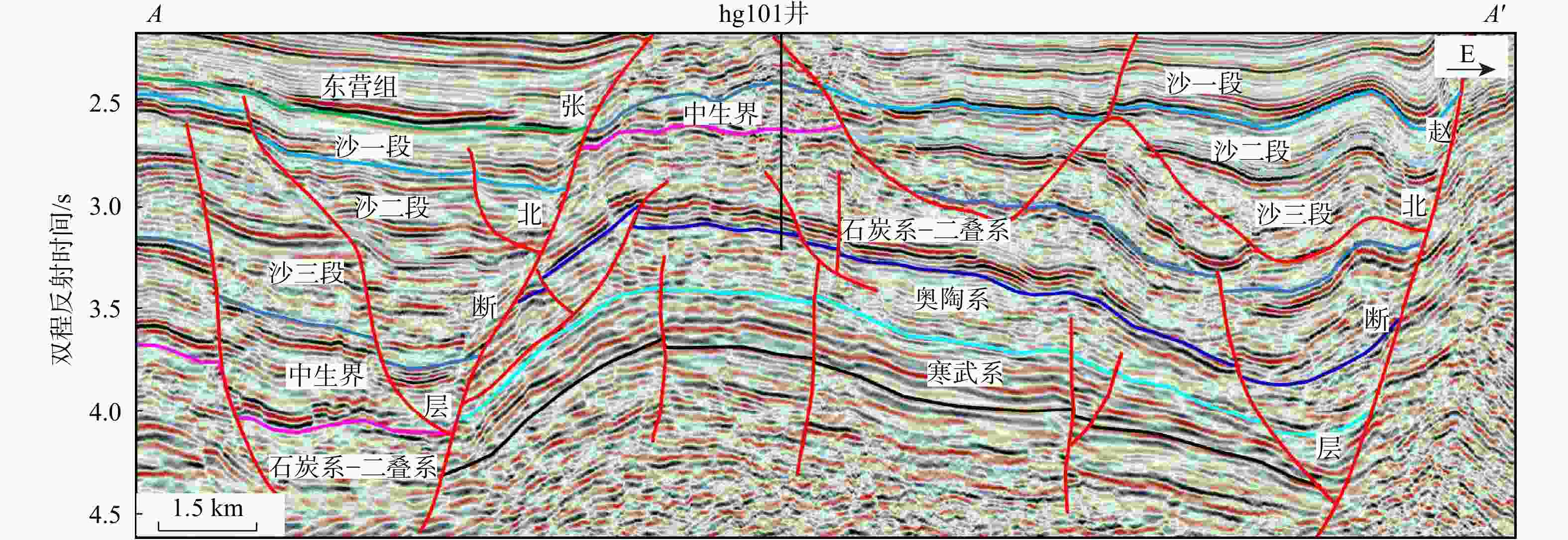

图 2 埕海“先隆后埋”型潜山圈闭地震剖面图（剖面位置见图1）
Figure 2. Seismic section of the "first uplift and then burial" type buried-hill trap in Chenghai area

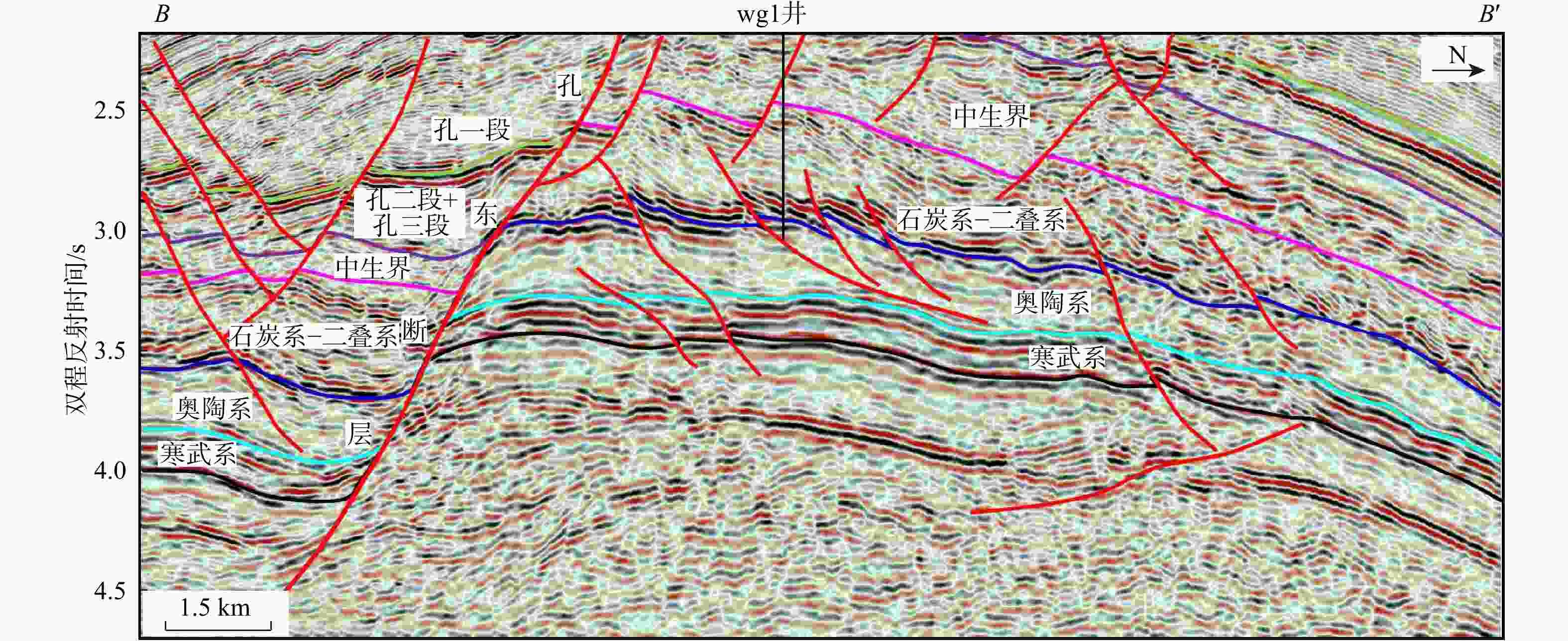

图 3 王官屯“先拗后隆”型潜山圈闭地震剖面图（剖面位置见图1）
Figure 3. Seismic section of the "first depression and then uplift" type buried-hill trap in Wangguantun area

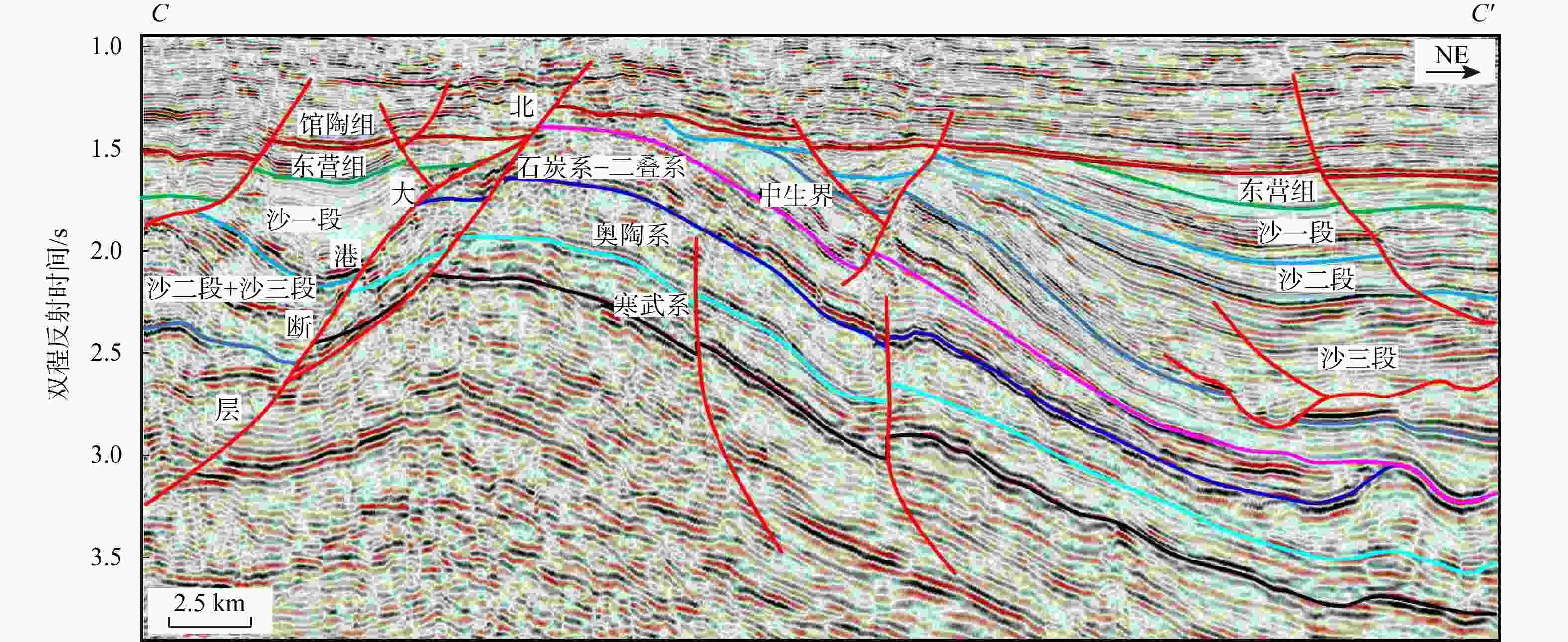

图 4 基底断层掀斜型潜山圈闭地震剖面图（剖面位置见图1）
Figure 4. Seismic section of basement fault tilted buried-hill trap

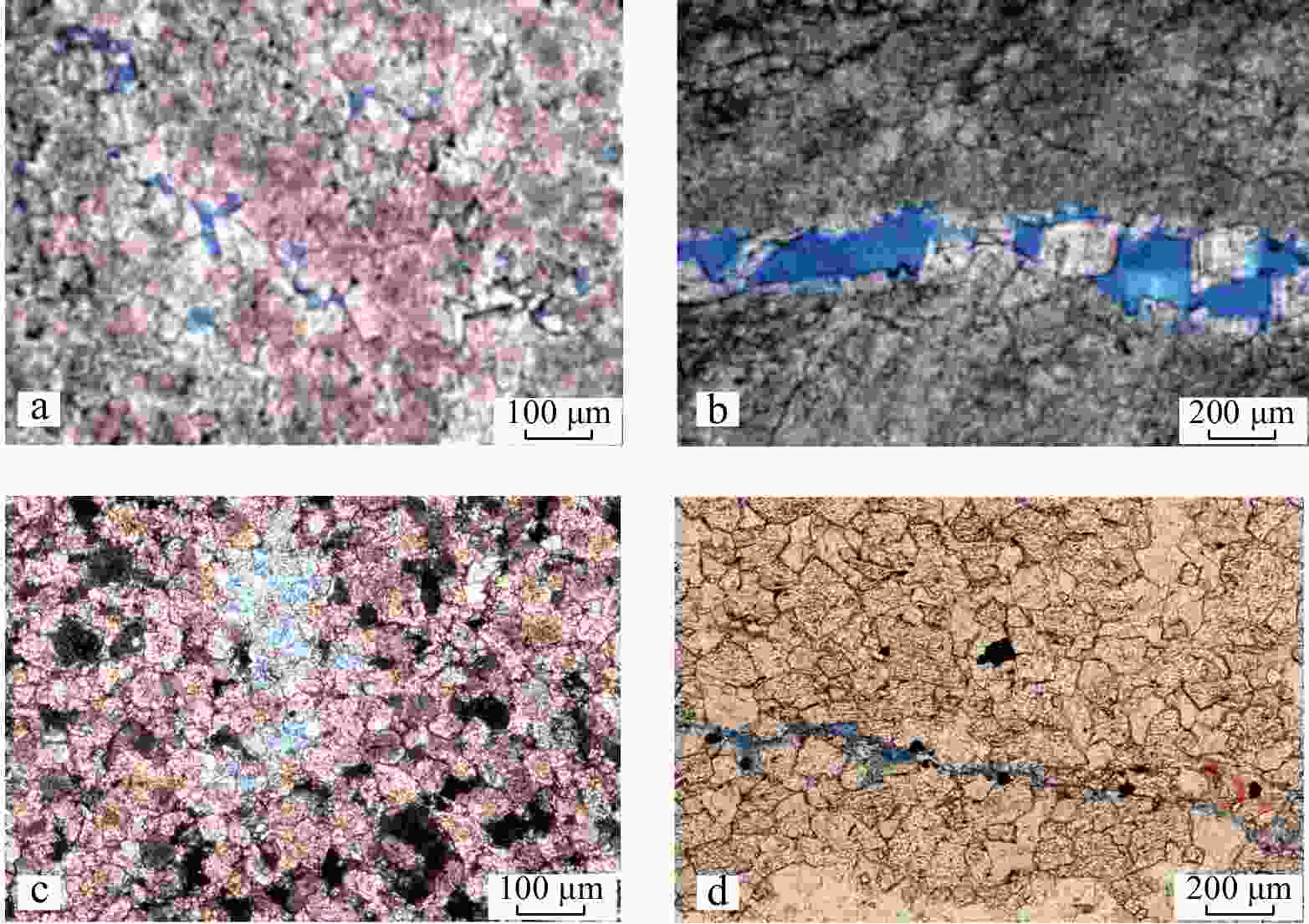

图 5 寒武系−奥陶系潜山内幕储集空间类型及特征
a.wg3井，
4515 m，府君山组晶间孔；b. wg3井，4474.5 m，府君山组构造缝；c. tg1井，2219 m，亮甲山组细晶白云岩，溶蚀孔洞；c. tg1井，2273 m，亮甲山组溶蚀孔缝Figure 5. Types and characteristics of reservoir space in the Cambrian-Ordovician buried-hills

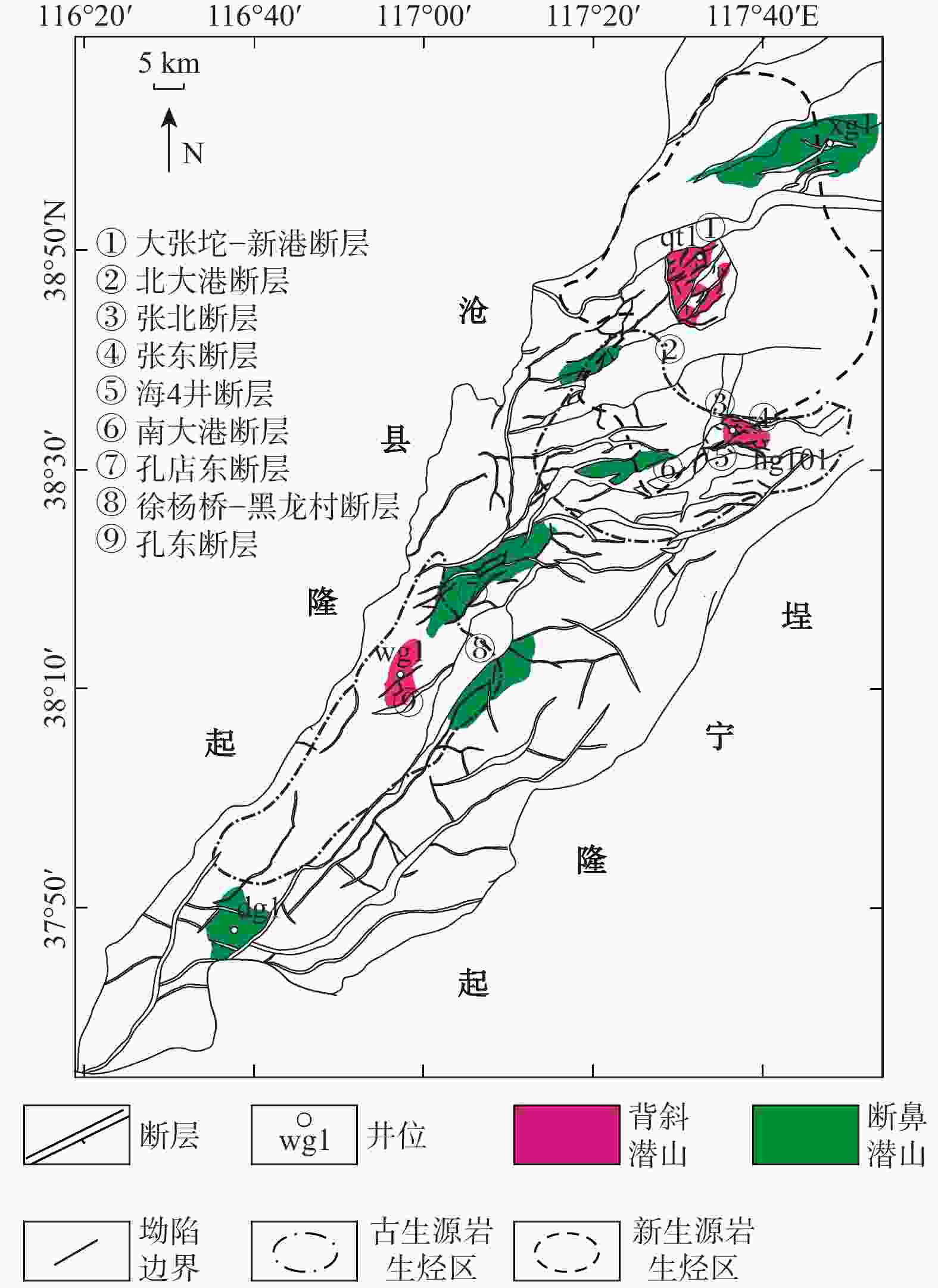

图 6 黄骅坳陷寒武系−奥陶系潜山内幕油源断裂分布
Figure 6. Distribution of oil-source faults in the Cambrian-Ordovician buried-hills of Huanghua Depression

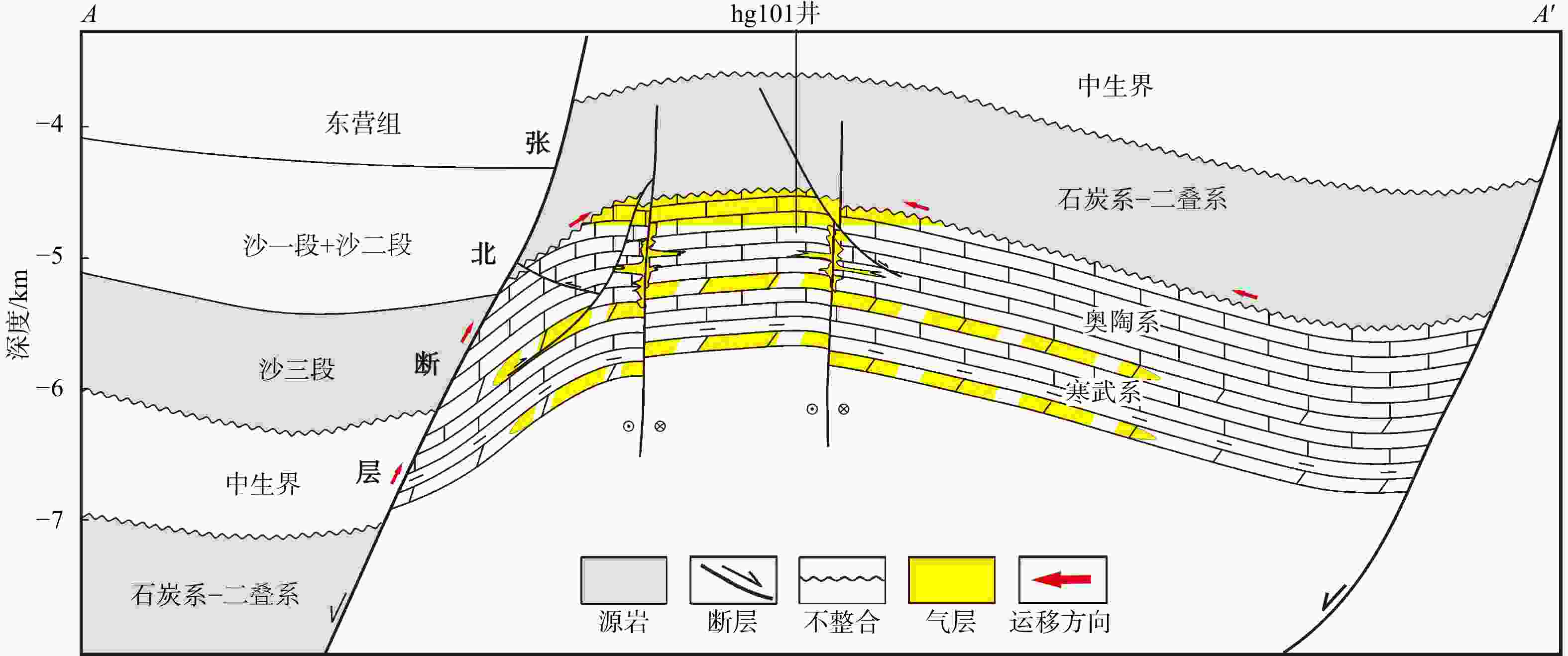

图 7 “双源供烃−负反转背斜型”潜山成藏类型（剖面位置见图1）
Figure 7. "Dual-source hydrocarbon supply-negative inversion anticline type" buried-hill reservoir formation

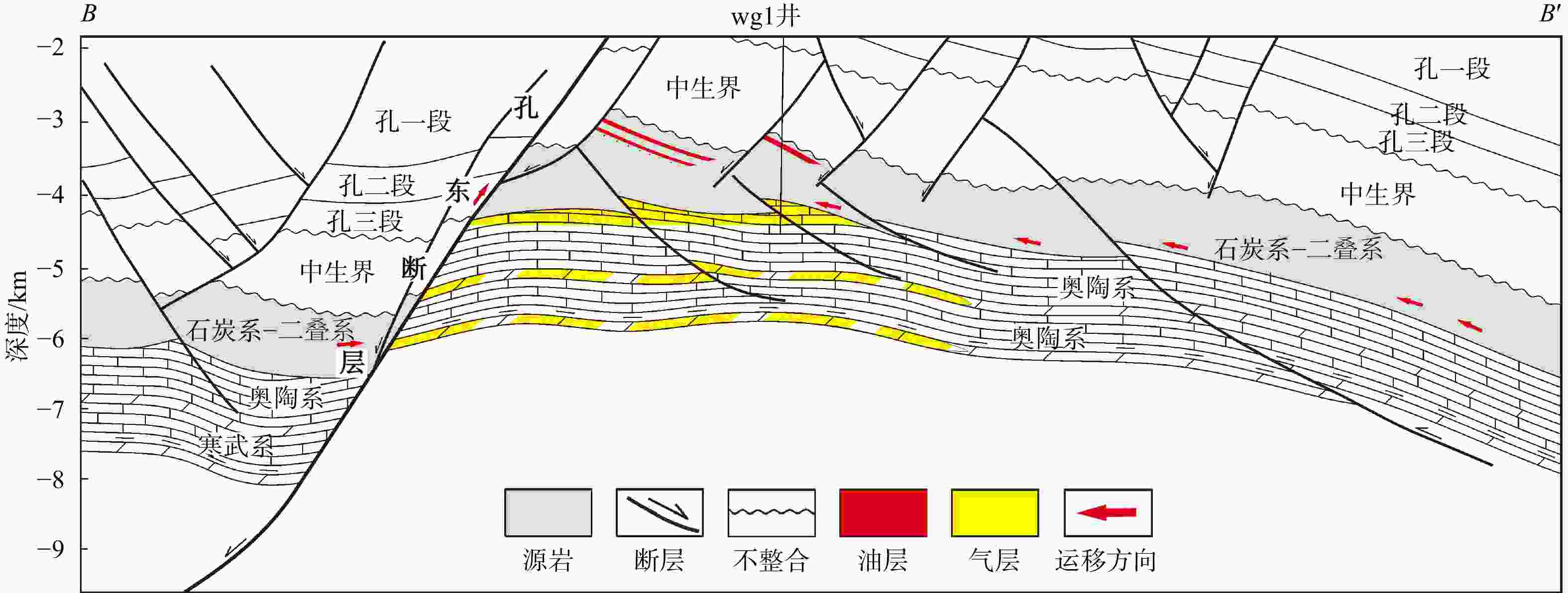

图 8 “单源供烃−正反转背斜型”潜山成藏类型（剖面位置见图1）
Figure 8. "Single-source hydrocarbon supply-positive inversion anticline type" buried-hill reservoir formation
图 9 “单源供烃−翘倾断鼻型”潜山成藏类型（剖面位置见图1）
Figure 9. "Single-source hydrocarbon supply-tilting fault-nose type" buried-hill reservoir formation
表 1 黄骅坳陷寒武系−奥陶系主要油源评价
Table 1. Evaluation of main hydrocarbon source in the Cambrian-Ordovician of Huanghua Depression
断层编号 油源断层名称 构造带 潜山名称 圈闭类型 沟通油源 水平供烃窗口/km 垂直供烃窗口/m 源储关系 控藏级别 ① 大张坨−新港 歧口凹陷 千米桥 背斜 Es3 42 300～ 1200 新生古储 Ⅰ ② 北大港 北大港 断鼻 Es3、C-P 15-35 1500 ～4500 混生古储 Ⅱ ③ 张北 埕海 背斜 Es3、C-P 3.5-5.8 700～ 2560 古生古储 Ⅰ ④ 张东 C-P 3.3-19 200～ 2200 古生古储 Ⅰ ⑤ 海4井 C-P 2.3 150～500 古生古储 Ⅰ ⑥ 南大港 南大港 断鼻 Es3、C-P 27 1200 ～2500 混生古储 Ⅱ ⑦ 孔店东 沧东凹陷 孔店 断鼻 C-P 12 100～650 古生古储 Ⅱ ⑧ 徐杨桥−黑龙村 徐杨桥 断鼻 C-P 36 2500 ～5500 古生古储 Ⅱ ⑨ 孔东 王官屯 背斜 C-P 11 150～650 古生古储 Ⅰ 注： Es3. 沙三段； C-P. 石炭系−二叠系
下载: 导出CSV
-
[1] 闫家伟,王文庆,吕芳芳,等. 复杂碳酸盐岩储层多数据融合预测技术:以千米桥潜山奥陶系为例[J]. 石油地球物理勘探,2021,56(3):583-592.YAN J W,WANG W Q,LÜ F F,et al. Fusion of multiple data for predicting complex carbonate reservoirs and its application:A case study on Ordovician of Qianmiqiao buried hills[J]. Oil Geophysical Prospecting,2021,56(3):583-592. (in Chinese with English abstract [2] 吴昊晟,毛敏,黄小刚,等. 歧口凹陷埕海潜山油气成藏条件与主控因素[J]. 地质科技情报,2014,33(6):99-103.WU H S,MAO M,HUANG X G,et al. Hydrocarbon accumulation condition and main controlling factors of Chenghai buried hill in Qikou Depression[J]. Geological Science and Technology Information,2014,33(6):99-103. (in Chinese with English abstract [3] 吴永平,杨池银,王喜双. 渤海湾盆地北部奥陶系潜山油气藏成藏组合及勘探技术[J]. 石油勘探与开发,2000,27(5):1-4. doi: 10.3321/j.issn:1000-0747.2000.05.003WU Y P,YANG C Y,WANG X S. Ordovician buried hill reservoir plays and exploration technique of northern Bohai Bay Basin[J]. Petroleum Exploration and Development,2000,27(5):1-4. (in Chinese with English abstract doi: 10.3321/j.issn:1000-0747.2000.05.003 [4] 姜平,王建华. 大港地区千米桥潜山奥陶系古岩溶研究[J]. 成都理工大学学报(自然科学版),2005,32(1):50-53. doi: 10.3969/j.issn.1671-9727.2005.01.009JIANG P,WANG J H. Study of Ordovician paleokarst in Qianmiqiao buried hill in Dagang oil field,China[J]. Journal of Chengdu University of Technology (Science & Technology Edition),2005,32(1):50-53. (in Chinese with English abstract doi: 10.3969/j.issn.1671-9727.2005.01.009 [5] 夏日元,唐健生. 黄骅坳陷奥陶系古岩溶发育演化模式[J]. 石油勘探与开发,2004,31(1):51-53. doi: 10.3321/j.issn:1000-0747.2004.01.015XIA R Y,TANG J S. The developed and evaluated patterns of Ordovician palaeo-karst in the Huanghua Depression[J]. Petroleum Exploration and Development,2004,31(1):51-53. (in Chinese with English abstract doi: 10.3321/j.issn:1000-0747.2004.01.015 [6] 李虹霖,郭涛,张如才,等. 辽西凸起斜坡区风化壳油气运移特征及控藏作用[J]. 地质科技通报,2022,41(4):109-116.LI H L,GUO T,ZHANG R C,et al. Hydrocarbon migration characteristics and its controlling effect on hydrocarbon accumulation of weathering crust in slope area of Liaoxi Uplift[J]. Bulletin of Geological Science and Technology,2022,41(4):109-116. (in Chinese with English abstract [7] 付立新,胡瑞波,刘淑芝,等. 黄骅盆地奥陶系古岩溶特征、演化及其对潜山油气聚集的控制作用[J]. 海相油气地质,2001,6(2):21-27. doi: 10.3969/j.issn.1672-9854.2001.02.004FU L X,HU R B,LIU S Z,et al. Characteristics and evolution of Ordovician paleokarst in Huanghua Basin and its control on buried hill oil and gas accumulation[J]. Marine Origin Petroleum Geology,2001,6(2):21-27. (in Chinese with English abstract doi: 10.3969/j.issn.1672-9854.2001.02.004 [8] 蔡忠贤,于聪灵,杨海军,等. 轮古西奥陶系古潜山油藏油水界面的分布规律和控制机理[J]. 地质科技通报,2020,39(1):130-136.CAI Z X,YU C L,YANG H J,et al. Distribution and differential entrapment mechanism of the oil-water interface within Ordovican in the west part of Lungu buried hill oil field[J]. Bulletin of Geological Science and Technology,2020,39(1):130-136. (in Chinese with English abstract [9] 马立桥,杨树锋,陈学时,等. 渤海湾盆地南北两侧奥陶系古风壳储层的不同发育模式[J]. 高校地质学报,2007,13(1):96-104. doi: 10.3969/j.issn.1006-7493.2007.01.012MA L Q,YANG S F,CHEN X S,et al. Different genetic models of Ordoviclan carbonate weathered crust reservoirs and petroleum exploration trend in the Bohai Bay Basin[J]. Geological Journal of China Universities,2007,13(1):96-104. (in Chinese with English abstract doi: 10.3969/j.issn.1006-7493.2007.01.012 [10] 李广兵. 黄骅坳陷千米桥潜山奥陶系古岩溶储层特征研究[D]. 西安:西北大学,2013.LI G B. Study on the characteristics of Ordovician palaeokarst reservoir of Qianmiqiao buried hill in Huanghua Depression[D]. Xi’an:Northwest University,2013. (in Chinese with English abstract [11] 华北石油勘探开发设计研究院. 潜山油气藏[M]. 北京:石油工业出版社,1982.North China Petroleum Exploration and Development Design and Research Institute. Buried hill oil and gas reservoirs[M]. Beijing:Petroleum Industry Press,1982. (in Chinese) [12] 张锐锋,田建章,黄远鑫,等. 冀中坳陷奥陶系潜山油气藏形成条件与成藏模式[J]. 地学前缘,2023,30(1):45-54.ZHANG R F,TIAN J Z,HUANG Y X,et al. Formation conditions and reservoir forming models of Ordovician buried hill reservoirs in Jizhong Depression[J]. Earth Science Frontiers,2023,30(1):45-54. (in Chinese with English abstract [13] 李岳桐,王文庆,卢刚臣,等. 黄骅坳陷潜山成因分类及其意义[J]. 东北石油大学学报,2018,42(3):75-83. doi: 10.3969/j.issn.2095-4107.2018.03.008LI Y T,WANG W Q,LU G C,et al. Genetic classification of buried hills and its significance of Huanghua Depression[J]. Journal of Northeast Petroleum University,2018,42(3):75-83. (in Chinese with English abstract doi: 10.3969/j.issn.2095-4107.2018.03.008 [14] 李慧勇,肖述光,李飞,等. 渤海郯庐断裂西支构造特征及对潜山形成的控制作用[J]. 地质科技通报,2021,40(5):33-41.LI H Y,XIAO S G,LI F,et al. Structural characteristics of the Western Branch of the Tanlu fault in Bohai Sea and its control on the formation of buried hills[J]. Bulletin of Geological Science and Technology,2021,40(5):33-41. (in Chinese with English abstract [15] 雷涛,唐明远,任广磊,等. 非渗透层下白云岩断控成藏模式:以大牛地气田马家沟组中下组合为例[J]. 地质科技通报,2024,43(5):18-30.LEI T,TANG M Y,REN G L,et al. Gas accumulation model of dolostones reservoirs beneath non-permeable layers controlled by faults:A case study of the middle-lower assemblage of Majiagou Formation in the Daniudi gas field[J]. Bulletin of Geological Science and Technology,2024,43(5):18-30. (in Chinese with English abstract [16] 王文庆,李岳桐,卢刚臣,等. 黄骅坳陷中部潜山地质特征及油气勘探方向[J]. 断块油气田,2017,24(5):613-617.WANG W Q,LI Y T,LU G C,et al. Geological characteristics and hydrocarbon exploration direction in buried-hill,central Huanghua Depression[J]. Fault-Block Oil & Gas Field,2017,24(5):613-617. (in Chinese with English abstract [17] 王文庆,陈书平,杨先范. 渤海海域侏罗−白垩纪沉积与构造演化[J]. 地质科学,2012,47(2):306-317. doi: 10.3969/j.issn.0563-5020.2012.02.004WANG W Q,CHEN S P,YANG X F. Sedimentary and tectonic evolution during Jurassic and Cretaceous in the Bohai Region[J]. Chinese Journal of Geology (Scientia Geologica Sinica),2012,47(2):306-317. (in Chinese with English abstract doi: 10.3969/j.issn.0563-5020.2012.02.004 [18] 张志攀,罗波. 渤海湾盆地黄骅坳陷南部乌马营地区构造特征及其油气地质意义[J]. 天然气勘探与开发,2017,40(3):31-37.ZHANG Z P,LUO B. Structural characteristics of Wumaying area in southern Huanghua Depression,the Bohai Bay Basin and their petroleum geology significance[J]. Natural Gas Exploration and Development,2017,40(3):31-37. (in Chinese with English abstract [19] 周立宏,陈长伟,崔宇,等. 渤海湾盆地黄骅坳陷油气勘探新领域、新类型及资源潜力[J]. 石油学报,2023,44(12):2160-2178. doi: 10.7623/syxb202312010ZHOU L H,CHEN C W,CUI Y,et al. New fields,new types and resource potentials of oil-gas exploration in Huanghua Depression of Bohai Bay Basin[J]. Acta Petrolei Sinica,2023,44(12):2160-2178. (in Chinese with English abstract doi: 10.7623/syxb202312010 [20] 方杰,王兴元,韩品龙,等. 黄骅坳陷寒武系−中新元古界潜山内幕成藏条件及勘探前景[J]. 中国石油勘探,2018,23(6):46-58. doi: 10.3969/j.issn.1672-7703.2018.06.006FANG J,WANG X Y,HAN P L,et al. Hydrocarbon accumulation conditions and exploration potential of inner buried hills of Cambrian to Meso-Neoproterozoic in Huanghua Depression,Bohai Bay Basin[J]. China Petroleum Exploration,2018,23(6):46-58. (in Chinese with English abstract doi: 10.3969/j.issn.1672-7703.2018.06.006 [21] 赵贤正,李宏军,付立新,等. 渤海湾盆地黄骅坳陷古生界煤成凝析气藏特征、主控因素与发育模式[J]. 石油学报,2021,42(12):1592-1604. doi: 10.7623/syxb202112005ZHAO X Z,LI H J,FU L X,et al. Characteristics,main controlling factors and development mode of Paleozoic coal-formed condensate gas reservoirs in Huanghua Depression,Bohai Bay Basin[J]. Acta Petrolei Sinica,2021,42(12):1592-1604. (in Chinese with English abstract doi: 10.7623/syxb202112005 [22] 金凤鸣,王鑫,李宏军,等. 渤海湾盆地黄骅坳陷乌马营潜山内幕原生油气藏形成特征[J]. 石油勘探与开发,2019,46(3):521-529. doi: 10.11698/PED.2019.03.10JIN F M,WANG X,LI H J,et al. Formation of the primary petroleum reservoir in Wumaying inner buried-hill of Huanghua Depression,Bohai Bay Basin,China[J]. Petroleum Exploration and Development,2019,46(3):521-529. (in Chinese with English abstract doi: 10.11698/PED.2019.03.10 [23] 龙礼文,李双文,赵敏,等. 黄骅坳陷孔南地区碎屑岩潜山油气成藏条件及勘探方向[J]. 新疆石油地质,2013,34(6):645-648.LONG L W,LI S W,ZHAO M,et al. Hydrocarbon accumulation conditions and exploration direction of clastic buried hill in Kongnan area,Huanghua Depression,Bohai Bay Basin[J]. Xinjiang Petroleum Geology,2013,34(6):645-648. (in Chinese with English abstract [24] 赵贤正,蒲秀刚,周立宏,等. 深盆湖相区页岩油富集理论、勘探技术及前景:以渤海湾盆地黄骅坳陷古近系为例[J]. 石油学报,2021,42(2):143-162.ZHAO X Z,PU X G,ZHOU L H,et al. Enrichment theory,exploration technology and prospects of shale oil in lacustrine facies zone of deep basin:A case study of the Paleogene in Huanghua Depression,Bohai Bay Basin[J]. Acta Petrolei Sinica,2021,42(2):143-162. (in Chinese with English abstract [25] 肖敦清,姜文亚,蒲秀刚,等. 渤海湾盆地歧口凹陷中深层天然气成藏条件与资源潜力[J]. 天然气地球科学,2018,29(10):1409-1421. doi: 10.11764/j.issn.1672-1926.2018.08.012XIAO D Q,JIANG W Y,PU X G,et al. Natural gas formation conditions and resource potential in mid-deep strata of the Qikou Sag,Bohai Bay Basin[J]. Natural Gas Geoscience,2018,29(10):1409-1421. (in Chinese with English abstract doi: 10.11764/j.issn.1672-1926.2018.08.012 [26] 韩学雨,李玉海,楼达,等. 黄骅坳陷孔西斜坡区奥陶系原生油气藏成藏过程及模式[J]. 吉林大学学报(地球科学版),2023,53(2):356-372.HAN X Y,LI Y H,LOU D,et al. Accumulation process and model of the primary Ordovician oil and gas reservoirs in Kongxi slope area,Huanghua Depression[J]. Journal of Jilin University (Earth Science Edition),2023,53(2):356-372. (in Chinese with English abstract [27] 杨晓利,王政军,高文中,等. 渤海湾盆地南堡凹陷深层碳酸盐岩潜山地质特征与勘探实践[J]. 石油实验地质,2022,44(3):425-432. doi: 10.11781/sysydz202203425YANG X L,WANG Z J,GAO W Z,et al. Geological characteristics and exploration practice of deep carbonate buried hills in Nanpu Sag,Bohai Bay Basin[J]. Petroleum Geology & Experiment,2022,44(3):425-432. (in Chinese with English abstract doi: 10.11781/sysydz202203425 [28] 史长林,纪友亮,廖前进,等. 黄骅坳陷奥陶系碳酸盐岩潜山成藏模式[J]. 油气地质与采收率,2009,16(6):29-31. doi: 10.3969/j.issn.1009-9603.2009.06.007SHI C L,JI Y L,LIAO Q J,et al. Accumulation patterns of Ordovician carbonate buried hill in Huanghua Depression[J]. Petroleum Geology and Recovery Efficiency,2009,16(6):29-31. (in Chinese with English abstract doi: 10.3969/j.issn.1009-9603.2009.06.007 [29] 杨池银,武站国. 千米桥潜山奥陶系碳酸盐岩储层成岩作用与孔隙演化[J]. 石油与天然气地质,2004,25(3):319-323. doi: 10.3321/j.issn:0253-9985.2004.03.016YANG C Y,WU Z G. Diagenesis and pore evolution of Ordovician carbonate reservoirs in Qianmiqiao buried hill[J]. Oil & Gas Geology,2004,25(3):319-323. (in Chinese with English abstract doi: 10.3321/j.issn:0253-9985.2004.03.016 [30] 姜美玲. 南堡凹陷南部下古生界岩溶储层发育主控因素及有利区预测[D]. 黑龙江大庆:东北石油大学,2023.JIANG M L. Main controlling factors of Lower Paleozoic karst reservoir development and prediction of favorable areas in southern Nanpu Depression[D]. Daqing Heilongjiang:Northeast Petroleum University,2023. (in Chinese with English abstract [31] 崔永谦,汪建国,田建章,等. 华北地台中北部寒武系−奥陶系白云岩储层特征及主控因素[J]. 石油学报,2018,39(8):890-901. doi: 10.7623/syxb201808005CUI Y Q,WANG J G,TIAN J Z,et al. Reservoir characteristics and main controlling factors of Cambrian-Ordovician dolomite in the north central part of North China Platform[J]. Acta Petrolei Sinica,2018,39(8):890-901. (in Chinese with English abstract doi: 10.7623/syxb201808005 [32] 方杰,吴小洲,王居峰. 黄骅坳陷下古生界深潜山油气聚集条件及成藏因素分析[J]. 中国石油勘探,2013,18(4):11-18. doi: 10.3969/j.issn.1672-7703.2013.04.002FANG J,WU X Z,WANG J F. Accumulation conditions and reservoiring factors of deep buried hills of Lower Paleozoic in Huanghua Depression[J]. China Petroleum Exploration,2013,18(4):11-18. (in Chinese with English abstract doi: 10.3969/j.issn.1672-7703.2013.04.002 [33] 邹伟宏,张放,崔占堂,等. 冀中油气区中元古界−古生界及其沉积环境[M]. 北京:石油工业出版社,2001:161-170.ZOU W H,ZHANG F,CUI Z T,et al. Middle Proterozoic-Paleozoic and sedimentary environment in central Hebei oil and gas area[M]. Beijing:Petroleum Industry Press,2001:161-170. (in Chinese) [34] 冯增昭,王英华,张吉森,等. 华北地台早古生代岩相古地理[M]. 北京:地质出版社,1990:49-74.FENG Z Z,WANG Y H,ZHANG J S,et al. Lithofacies and palaeogeography of Early paleozoic in North China platform[M]. Beijing:Geological Publishing House,1990:49-74. (in Chinese) [35] 邵龙义,董大啸,李明培,等. 华北石炭−二叠纪层序−古地理及聚煤规律[J]. 煤炭学报,2014,39(8):1725-1734.SHAO L Y,DONG D X,LI M P,et al. Sequence-paleogeography and coal accumulation of the Carboniferous-Permian in the North China Basin[J]. Journal of China Coal Society,2014,39(8):1725-1734. (in Chinese with English abstract [36] 饶勇,程涛,赵红岩,等. 大型走滑转换带对油气分布差异性控制作用:以西非科特迪瓦盆地为例[J]. 地质科技通报,2024,43(3):108-119.RAO Y,CHENG T,ZHAO H Y,et al. Role of the large-scale strike-slip transform zone in controlling the differential hydrocarbon distribution:A case of the Côte d'Ivoire Basin in West Africa[J]. Bulletin of Geological Science and Technology,2024,43(3):108-119. (in Chinese with English abstract [37] 赵贤正,吴兆徽,闫宝义,等. 冀中坳陷潜山内幕油气藏类型与分布规律[J]. 新疆石油地质,2010,31(1):4-6.ZHAO X Z,WU Z H,YAN B Y,et al. Distribution and types of buried hill oil-gas reservoir in Jizhong Depression[J]. Xinjiang Petroleum Geology,2010,31(1):4-6. (in Chinese with English abstract [38] 李丕龙,张善文,王永诗,等. 断陷盆地多样性潜山成因及成藏研究:以济阳坳陷为例[J]. 石油学报,2004,25(3):28-31. doi: 10.3321/j.issn:0253-2697.2004.03.005LI P L,ZHANG S W,WANG Y S,et al. Multiplex buried-hill genesis and pool-forming in rifted basin[J]. Acta Petrolei Sinica,2004,25(3):28-31. (in Chinese with English abstract doi: 10.3321/j.issn:0253-2697.2004.03.005 [39] 赵贤正,王权,金凤鸣,等. 冀中坳陷隐蔽型潜山油气藏主控因素与勘探实践[J]. 石油学报,2012,33(增刊1):71-79.ZHAO X Z,WANG Q,JIN F M,et al. Main controlling factors and exploration practice of subtle buried-hill hydrocarbon reservoir in Jizhong Depression[J]. Acta Petrolei Sinica,2012,33(S1):71-79. (in Chinese with English abstract [40] 吴小洲,牛嘉玉,吴丰成,等. 渤海湾盆地奥陶系潜山内幕油气成藏主控因素研究[J]. 海相油气地质,2013,18(1):1-12. doi: 10.3969/j.issn.1672-9854.2013.01.001WU X Z,NIU J Y,WU F C,et al. Major control factors of hydrocarbon accumulation in Ordovician interior buried hills,Bohaiwan Basin[J]. Marine Origin Petroleum Geology,2013,18(1):1-12. (in Chinese with English abstract doi: 10.3969/j.issn.1672-9854.2013.01.001 -
