山西省中条山中北段遥感示矿信息提取与区块优选

刘知; 李彦星; 杨波; 刘小松; 张航

doi:10.19509/j.cnki.dzkq.tb20240617

山西省中条山中北段遥感示矿信息提取与区块优选

doi: 10.19509/j.cnki.dzkq.tb20240617

刘知^{1, 2, 3,},
李彦星^{1, 2, 3, 4, ,},
杨波¹,
刘小松^{1, 2, 3},
张航¹

1.
山西省煤炭地质物探测绘院有限公司，山西晋中 030600
2.
自然资源部矿业城市自然资源调查监测与保护重点实验室，山西晋中 030600
3.
地质灾害监测预警与防治山西省重点实验室，山西晋中 030600
4.
中国地质大学（北京）地球物理与信息技术学院，北京 100083

基金项目: 山西省地质勘查基金项目（2018-49；2019-27）

详细信息

作者简介:
刘知：E-mail：2454667759@qq.com

通讯作者:
E-mail：66369280@qq.com

中图分类号: P627
计量
- 文章访问数: 80
- PDF下载量: 23
- 被引次数: 0
出版历程
- 收稿日期: 2024-10-21
- 录用日期: 2024-12-23
- 修回日期: 2024-12-18
- 网络出版日期: 2025-12-18

Extraction of remote sensing ore-indicating information and block optimization in middle-northern segment of Zhongtiao Mountain, Shanxi Province

LIU Zhi^{1, 2, 3
,},
LI Yanxing^{1, 2, 3, 4
, ,},
YANG Bo¹,
LIU Xiaosong^{1, 2, 3},
ZHANG Hang¹

1.
Coal Geological Geophysical Exploration Surveying and Mapping Institute of Shanxi Province, Jinzhong Shanxi 030600, China
2.
Key Laboratory of Monitoring and Protection of Natural Resources in Mining Cities, Ministry of Natural Resources, Jinzhong Shanxi 030600, China
3.
Shanxi Key Laboratory of Geological Disaster Monitoring, Early Warning and Prevention, Jinzhong Shanxi 030600, China
4.
School of Geophysics and Information Technology, China University of Geosciences (Beijing), Beijing 100083, China

More Information

Author Bio:
E-mail：2454667759@qq.com

Corresponding author: E-mail：66369280@qq.com

摘要

摘要:
区块优选是新一轮找矿突破战略行动一项重要工作，是响应自然资源部进一步提高找矿工作效率、发展新质生产力和提高矿产资源保障能力的重要举措。山西省中条山作为全国金、铜、铁等重要战略资源矿集区之一，矿产资源丰富，目前区内尚无大比例尺基于遥感卫星影像地质解译及找矿应用研究。以山西省中条山中北段为研究区，通过对Spot-6遥感影像进行控矿构造要素、控矿环形要素的人机交互解译，宏观上总结区域构造分布特征，基于Aster数据应用主成分分析法（PCA）初步提取蚀变矿化异常信息，以ASD光谱仪采集的野外典型岩矿光谱曲线作为训练样本，采用光谱角填图法（SAM）反演含矿地层分布，并利用结果用于筛选PCA提取信息，获取铁染、羟基、碳酸盐三大类矿化蚀变，分析蚀变异常与控矿要素（区域构造、赋矿地层、岩体分布等）的空间相关性。结果表明：①研究区线环构造发育，新增解译断裂84条，环形构造136条，解译结果可辅助修正前人地质调查成果的不足；②基于PCA法和岩矿光谱反演得到的矿化蚀变信息可有效指示矿化异常的位置，且研究区构造控矿作用明显；③结合野外实地验证和已有区域地质资料成果叠加分析得到综合异常等密度图，圈定出三大成矿优选区。研究成果为矿产资源潜力评价、找矿预测和深部找矿战略行动提供依据和指导。
- 遥感技术 /
- 蚀变信息 /
- 线环构造 /
- 找矿预测 /
- 中条山
Abstract: Objective
Ore block optimization of is an important task in the new round of strategic prospecting breakthrough actions, and a key initiative to respond to the Ministry of Natural Resources in further improving the efficiency of prospecting, developing new-quality productive forces, and enhancing the support capacity of mineral resources. As one of China's key national strategic resource concentration areas for gold, copper, iron, and other critical minerals, the Zhongtiao Mountain in Shanxi Province is abundant in mineral resources. However, to date, there is relatively limited research on the large-scale remote sensing geological interpretation and prospecting applications based on remote sensing satellite images in this region, which is of great significance for prospecting prediction.
Methods
The middle-northern segment of the Zhongtiao Mountain in Shanxi Province was selected as the study area. Based on human-computer interactive interpretation of ore-controlling structural and ore-controlling ring features from Spot-6 remote sensing images, the regional structural distribution of the study area was summarized from a macro perspective. Principal component analysis (PCA) was employed to preliminarily extract mineralization alteration anomaly information via Aster data. Additionally, with field spectral curves of typical rocks and minerals collected by an ASD spectrometer as training samples, the spectral angle mapping (SAM) method was applied to extract the distribution of ore-bearing strata. The distribution results were then used to screen the PCA extraction results to identify three major types of mineralization alterations, including iron staining, hydroxyl, and carbonate. The spatial correlation between alteration anomalies and ore-controlling factors (such as regional structures, ore-bearing strata, and rock mass distribution) was further analyzed.
Results
The results indicated that: (1) The linear and ring structures were well-developed in the study area, with 84 newly interpreted faults and 136 ring structures, which helped refine and supplement the shortcomings of previous geological survey findings. (2) The mineralization and alteration information obtained by PCA and rock-ore spectral inversion could effectively indicate mineralization anomalies, highlighting the important role of regional structures in ore formation. (3) A comprehensive anomaly isodensity map was obtained through combined analysis of field verification and existing regional geological data to delineate three optimal mineralization areas.
Conclusion
The research findings provide a basis and guidance for subsequent evaluation of mineral resource potential, prospecting prediction, and strategic actions of deep prospecting. The findings also promote the application of remote sensing-based geological prospecting in the Zhongtiao Mountain, and provide insights into future remote sensing-based geological prospecting efforts in other regions of Shanxi Province.
- remote sensing technology /
- alteration information /
- linear and ring structure /
- mineral prospecting prediction /
- Zhongtiao Mountain

HTML全文

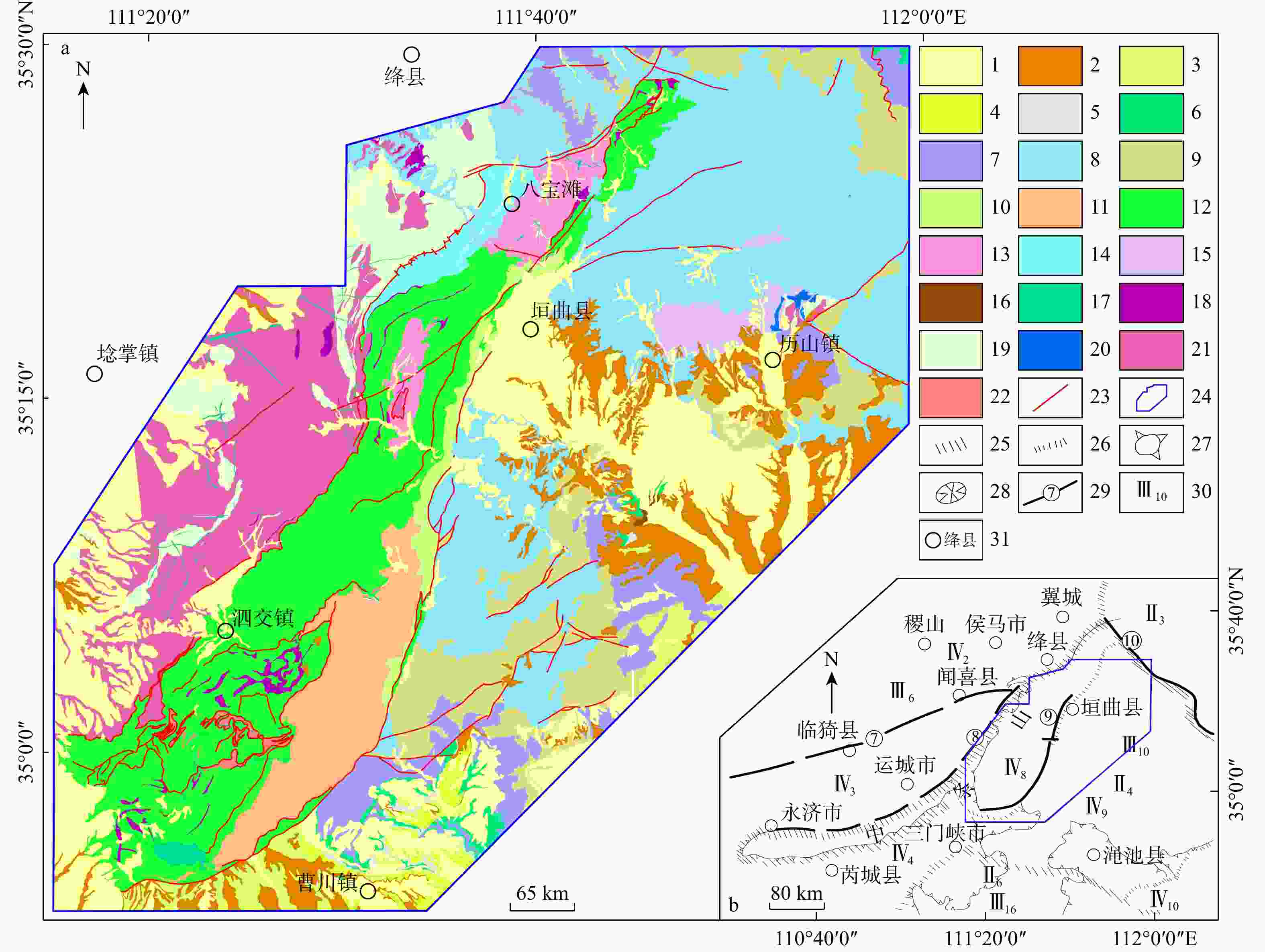

图 1 研究区地质简图(a)和大地构造位置(b)

1. 第四系；2. 新近系；3. 古近系；4. 二叠系；5. 石炭系；6. 奥陶系；7. 寒武系；8. 长城系雄耳群；9. 长城系汝阳群；10. 长城系担山石群；11. 上中条亚群；12. 下中条亚群；13. 绛县群铜矿峪亚群；14. 绛县群横岭关亚群；15. 宋家山群；16. 燕山期；17. 晋宁期；18. 中条期；19. 绛县期；20. 宋家山期；21. 涑水期；22. 角砾岩；23. 断裂；24. 研究区范围；25. 三级构造单元；26. 四级构造单元；27. 隆起；28. 坳陷；29. 已知或推断的大断裂及编号；30. 构造单元分级编号；31. 地名；⑦. 涑渭大断裂；⑧. 中条北麓大断裂；⑨. 中条南东侧大断裂；⑩. 太行南麓大断裂；Ⅲ₆. 汾渭断陷；Ⅳ₂. 稷山台拱；Ⅳ₃. 涑渭断凹；Ⅳ₄. 黄河断凹；Ⅱ₃. 山西中台隆；Ⅱ₄. 嵩条断褶区；Ⅲ₁₀. 中黄陷断褶束；Ⅳ₈. 中条台穹；Ⅳ₉. 黄金山凹断褶束；Ⅳ₁₀. 洛阳台凹；Ⅱ₆. 秦岭轴缘坳陷；Ⅲ₁₆. 华露台拱

Figure 1. Simplified geological map (a) and tectonic location (b) of the study area

下载: 全尺寸图片幻灯片

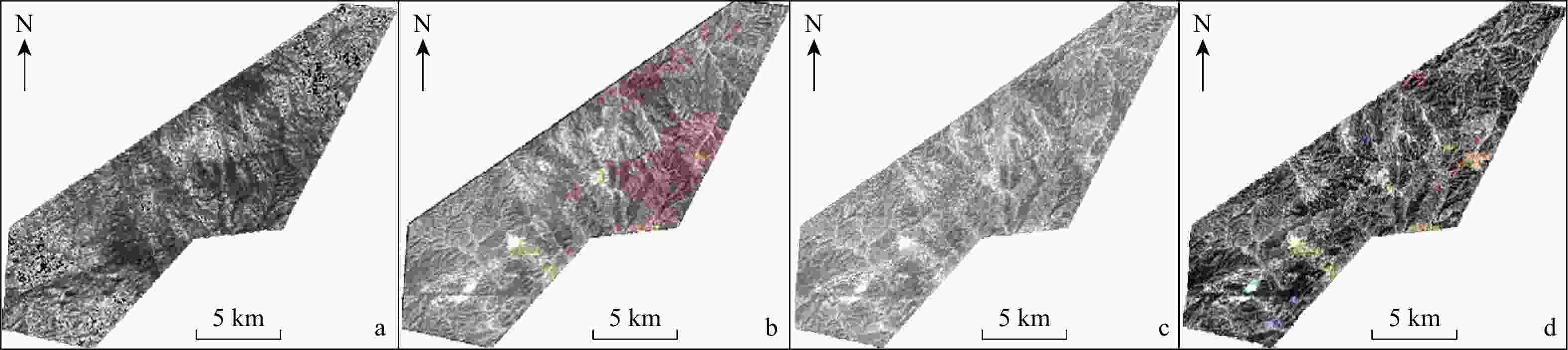

图 2 不同融合方法结果对比图（以横岭关地区为例）

a. Brovey融合方法；b. PC融合方法；c. Gram-Schmidt融合方法；d. NNDiffuse融合方法

Figure 2. Comparison of results using different fusion methods

下载: 全尺寸图片幻灯片

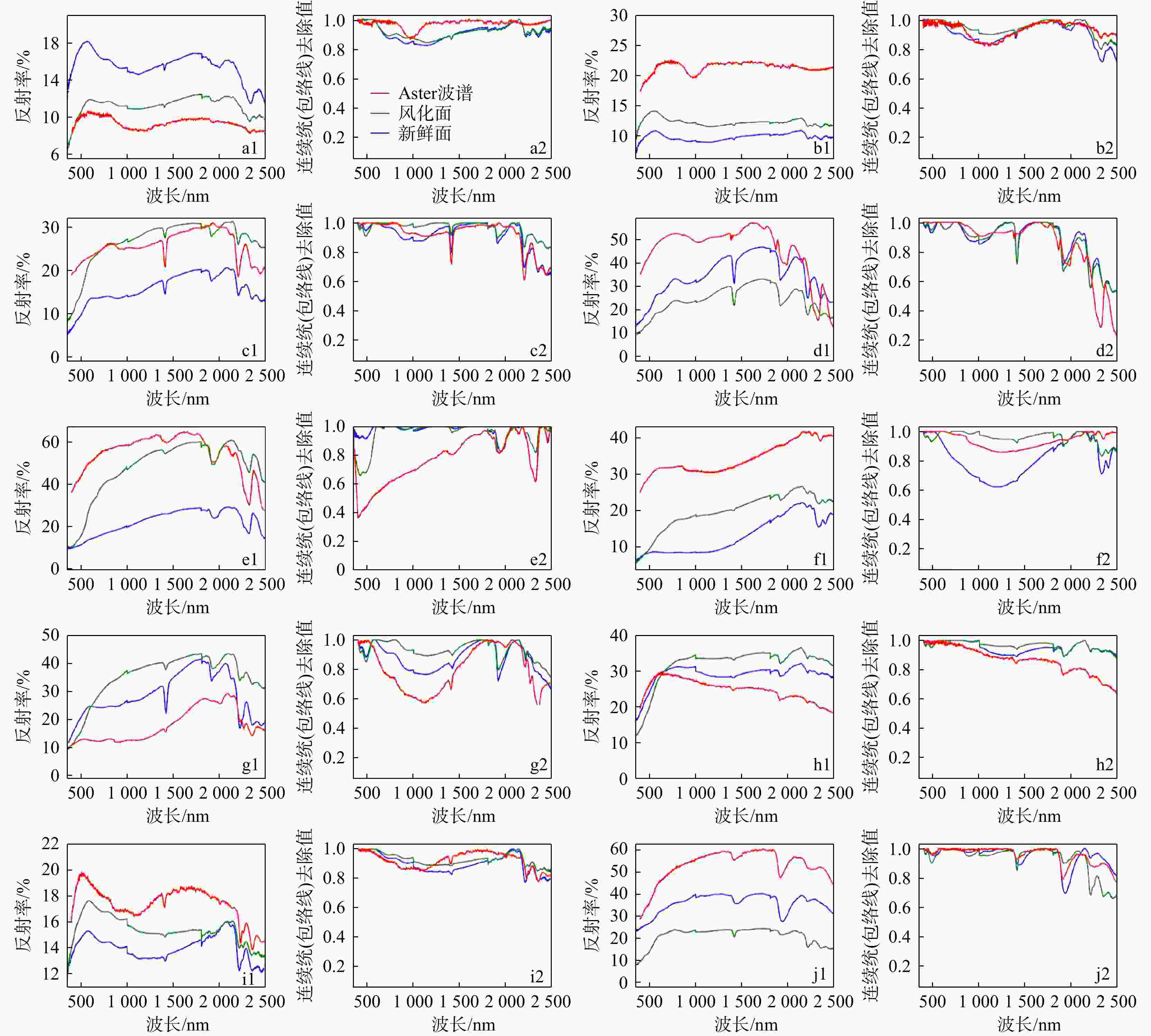

图 3 典型岩石波谱图（a1～j1）及连续统（包络线）去除图（a2～j2）

a1，a2. 安山岩；b1，b2. 变辉长岩；c1，c2. 片岩；d1，d2. 大理岩；e1，e2. 白云岩；f1，f2. 片麻岩；g1，g2. 千枚岩；h1，h2. 花岗岩；i1，i2. 板岩；j1，j2. 石英岩

Figure 3. Typical rock spectra (a1-j1) and continuum removal spectra (a2-j2)

下载: 全尺寸图片幻灯片

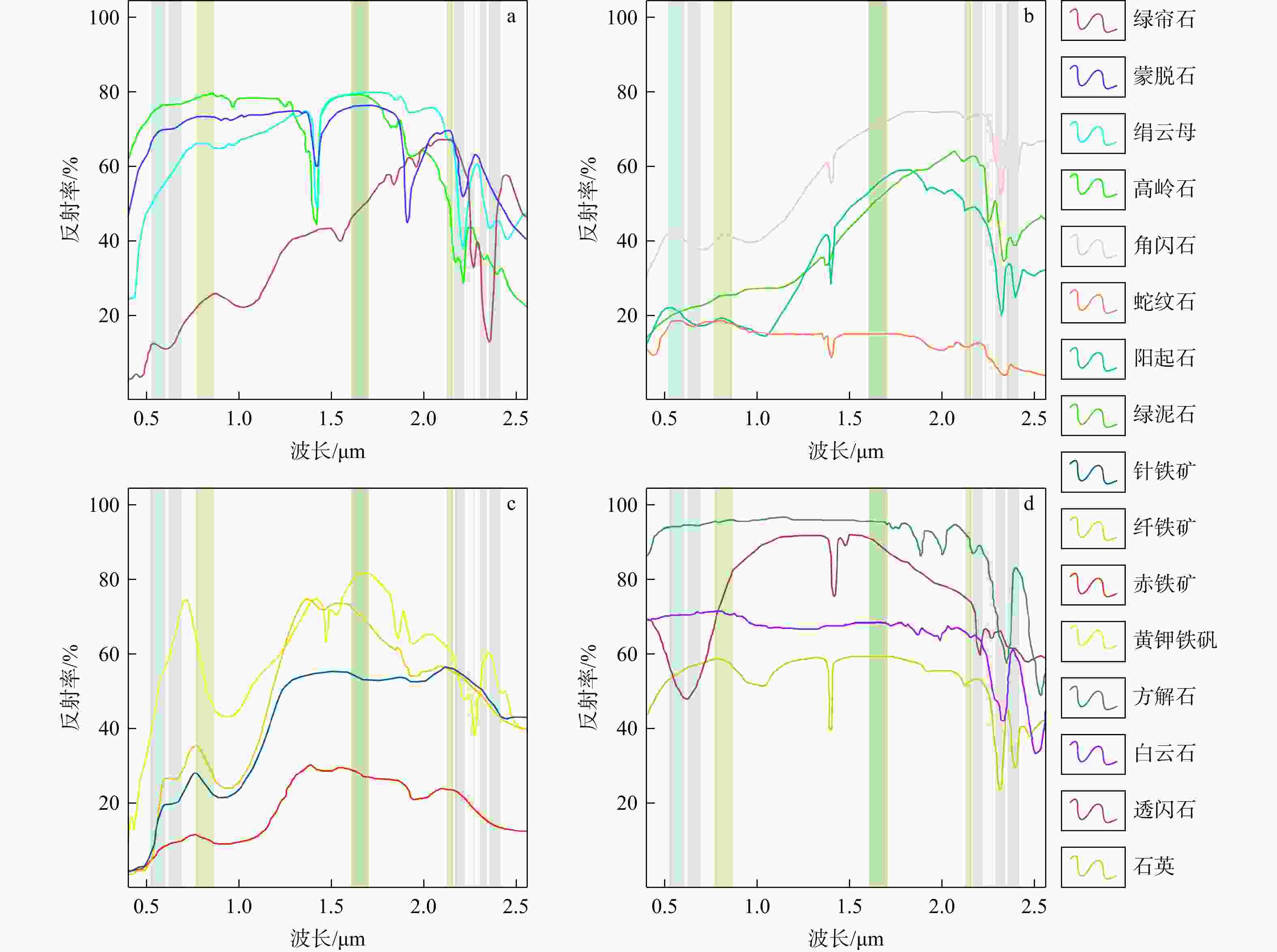

图 4 蚀变矿物波谱与Aster波段对应关系

a. Al-OH；b. Mg-OH；c. Fe离子；d. CO₃²⁻。彩色柱状为Aster数据的各波段宽度

Figure 4. Correation between spectra of alteration minerals and Aster bands

下载: 全尺寸图片幻灯片

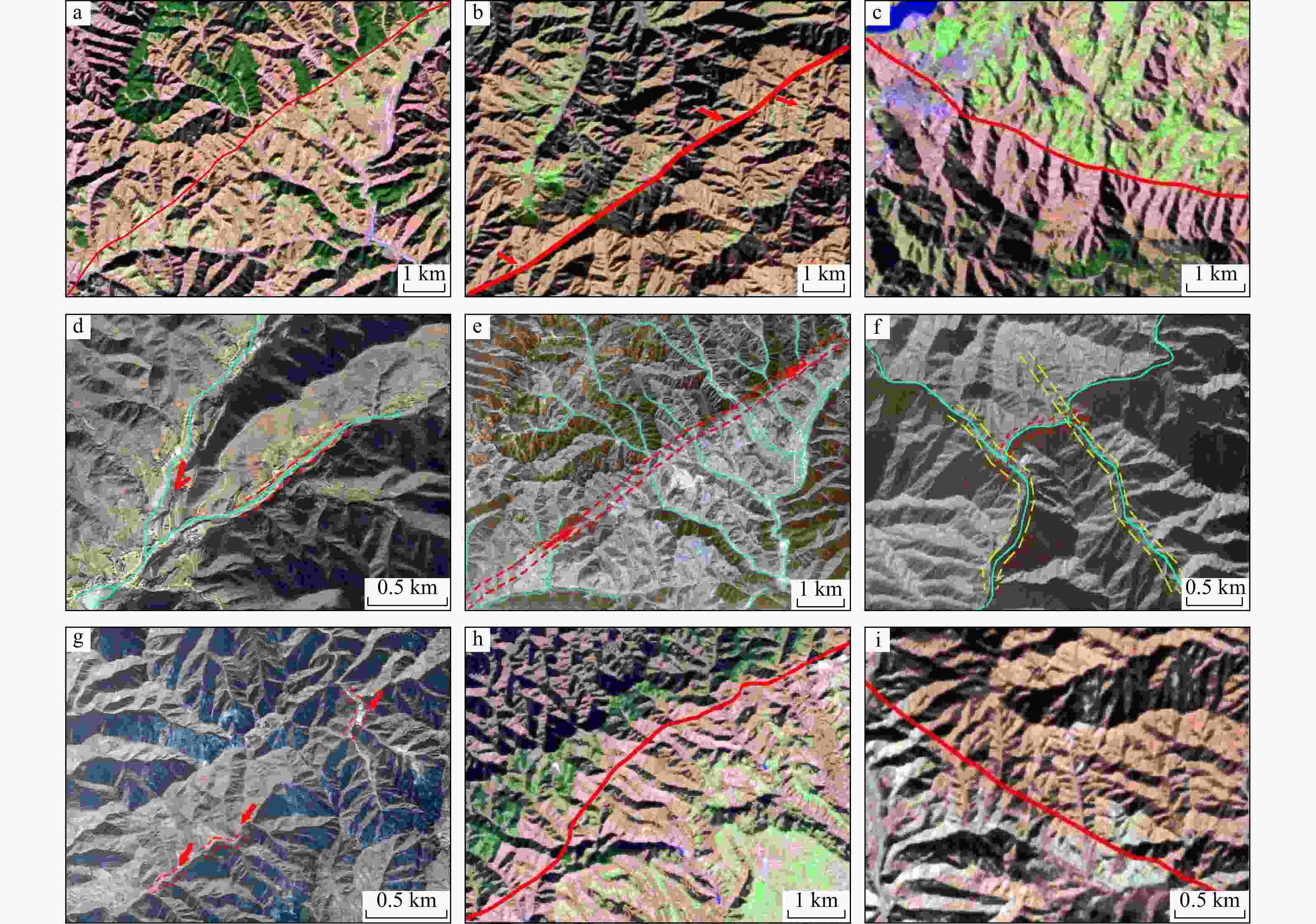

图 5 研究区线性构造遥感解译标志

a. 不同地貌单元；b. 断层三角面；c. 色调差异明显；d. 河流汇聚和局部直线；e. 同步错动水系；f. 直角河和同向转弯河系；g. 山脊（规律）错动；h. 正负地形突变；i. 断裂切割地层。淡绿色线为山脊走向或者河流走向；其余线型均为辅助线，起区分和指示作用，无实际含义；下同

Figure 5. Remote sensing interpretation signs for linear structures in the study area

下载: 全尺寸图片幻灯片

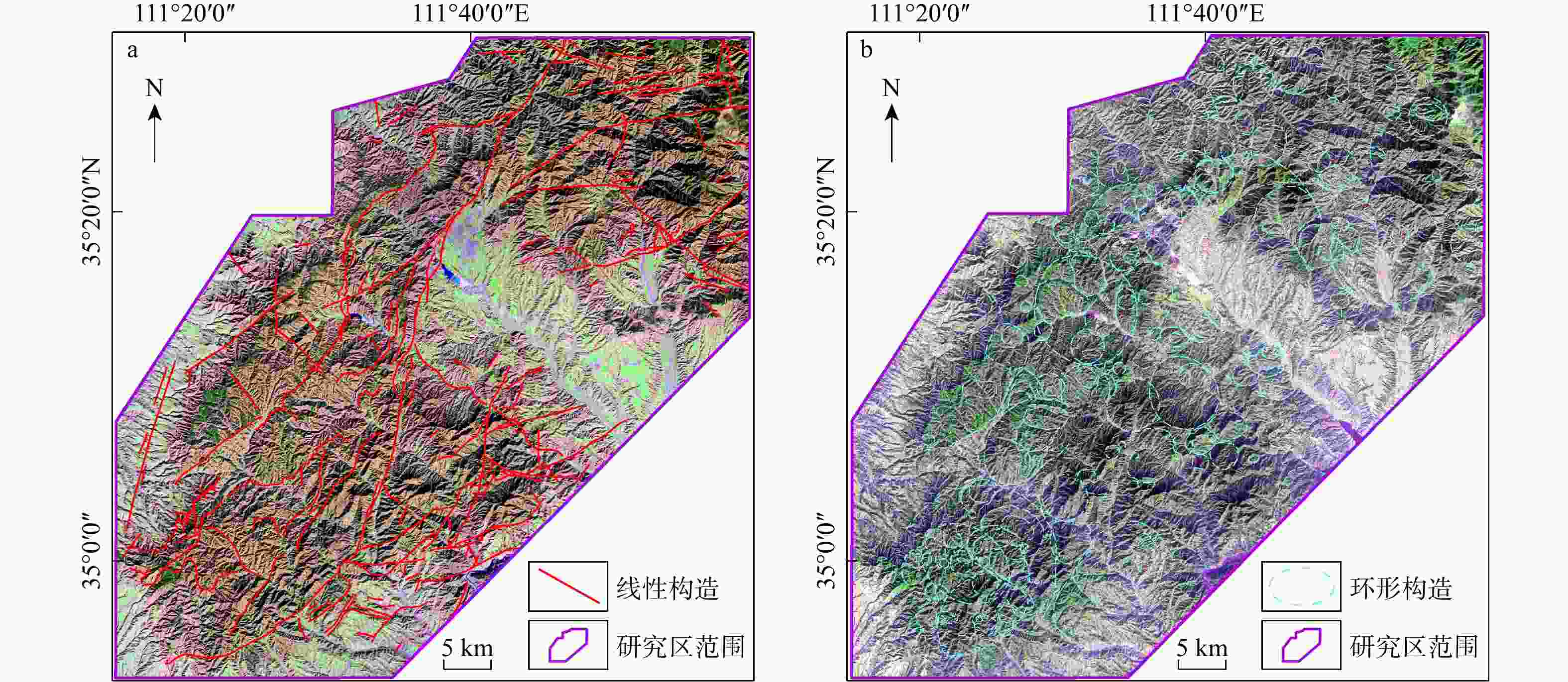

图 6 研究区主要断裂构造解译图(a)和环形构造解译图(b)

Figure 6. Interpretation maps of main fault structures (a) and ring structures (b) in the study area

下载: 全尺寸图片幻灯片

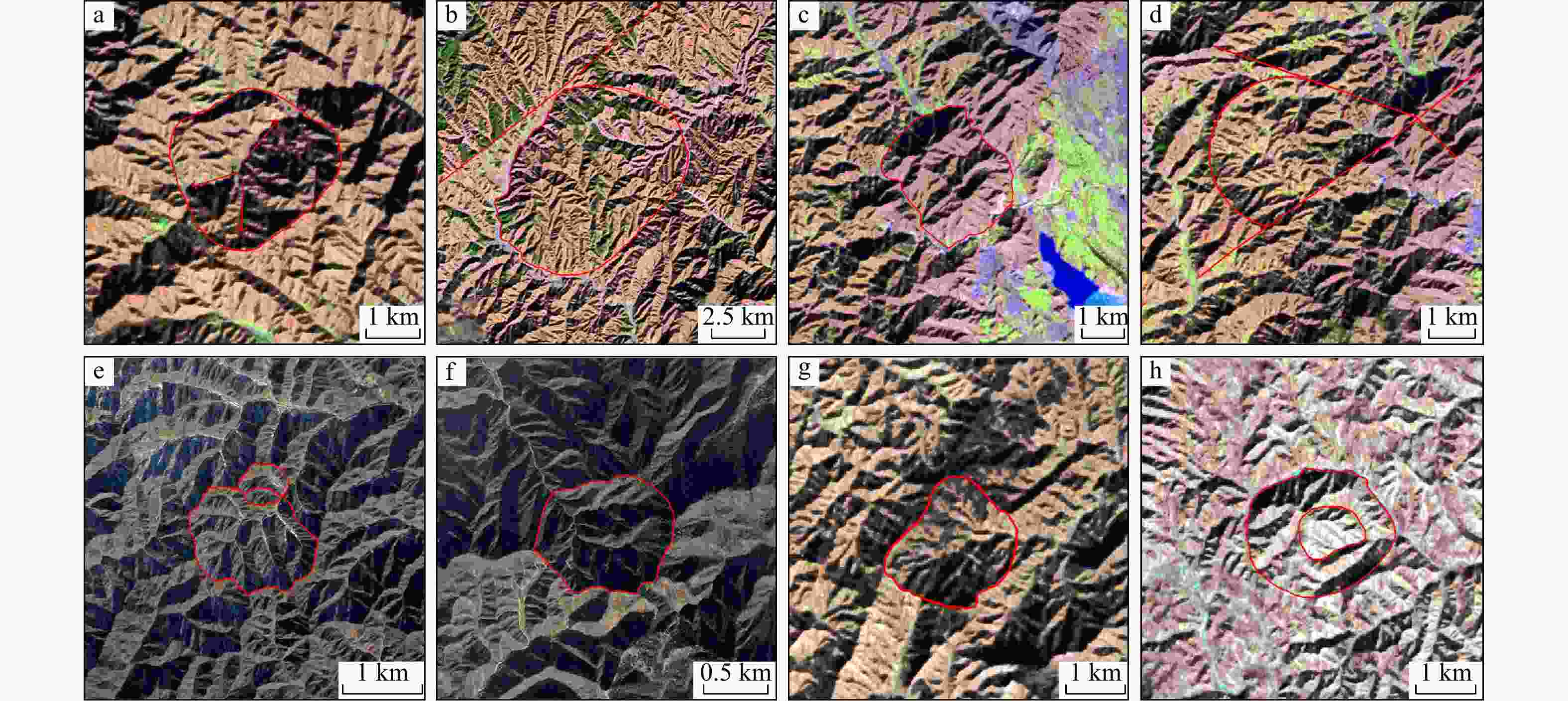

图 7 研究区环形构造遥感解译标志

a. 放射状环要素；b. 线环相切型构造；c. 地貌突变型环要素；d. 线环相交型构造；e. 双环相交型构造；f. 火山口型环要素；g. 火山锥型环要素；h. 色调差异明显的双环套合环要素

Figure 7. Remote sensing interpretation signs for ring structures in the study area

下载: 全尺寸图片幻灯片

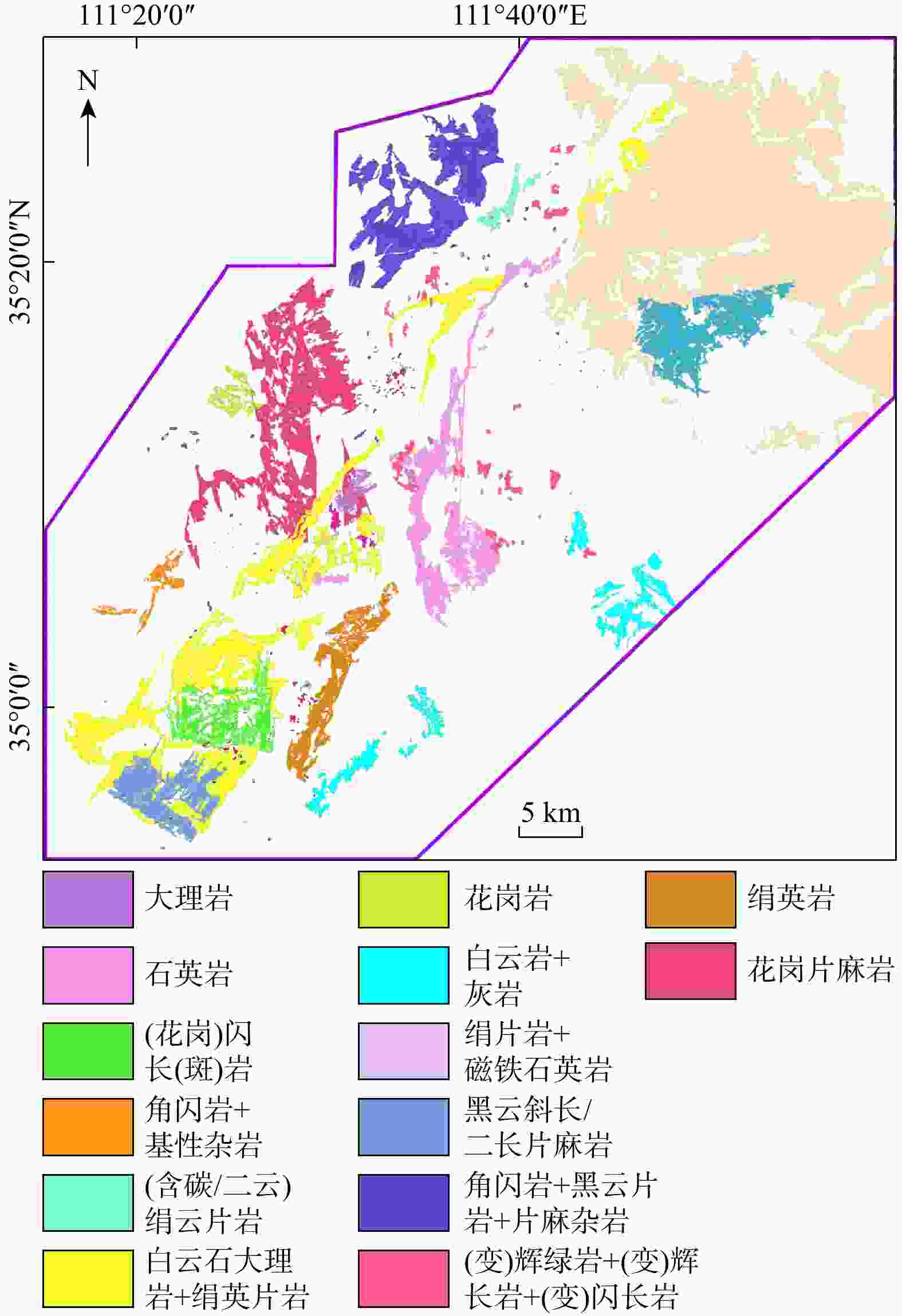

图 8 基于光谱反演的蚀变岩性反演图

Figure 8. Alteration lithology inversion map based on inversion spectral data

下载: 全尺寸图片幻灯片

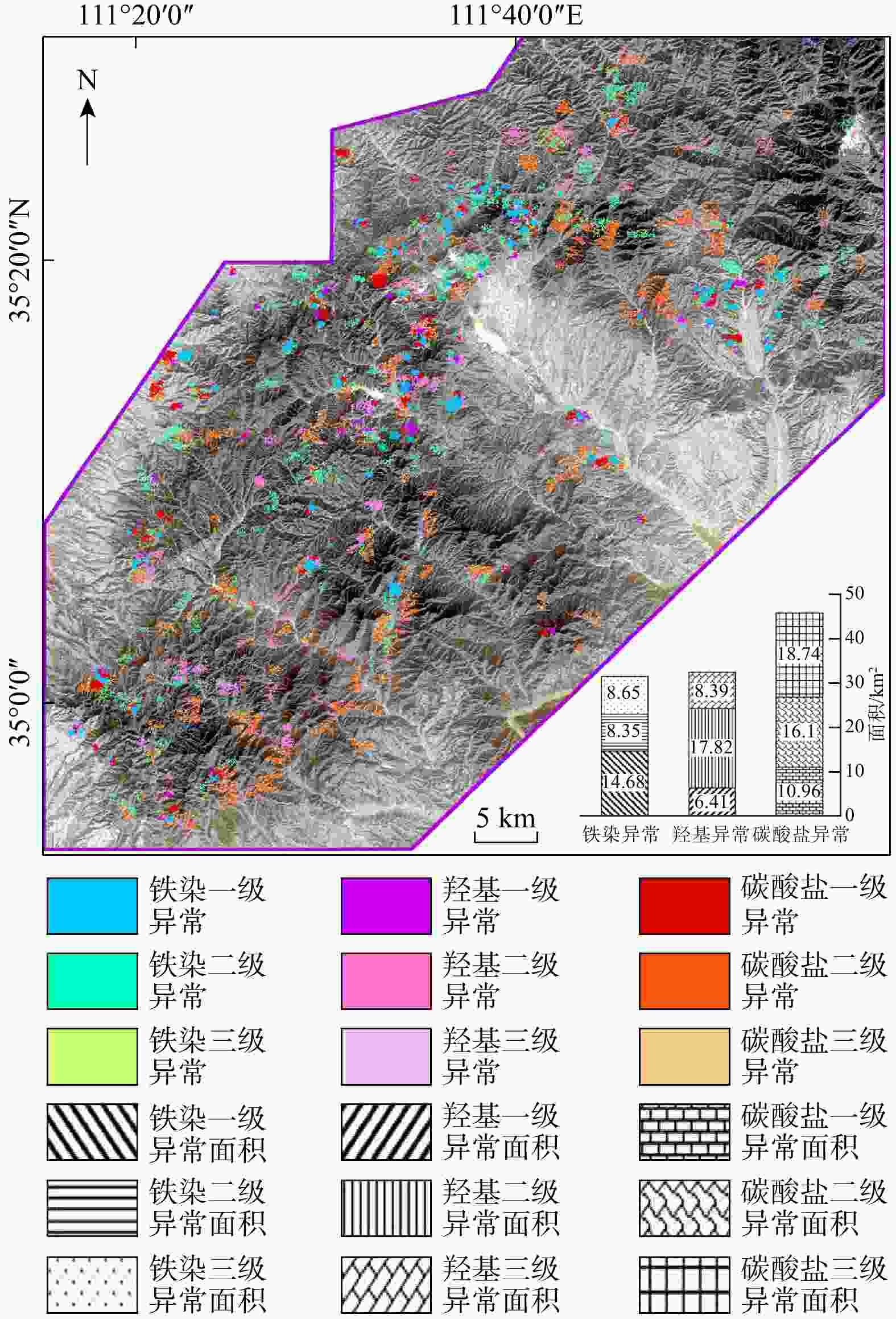

图 9 遥感异常分布与统计图

Figure 9. Remote sensing anomaly distribution and statistics map

下载: 全尺寸图片幻灯片

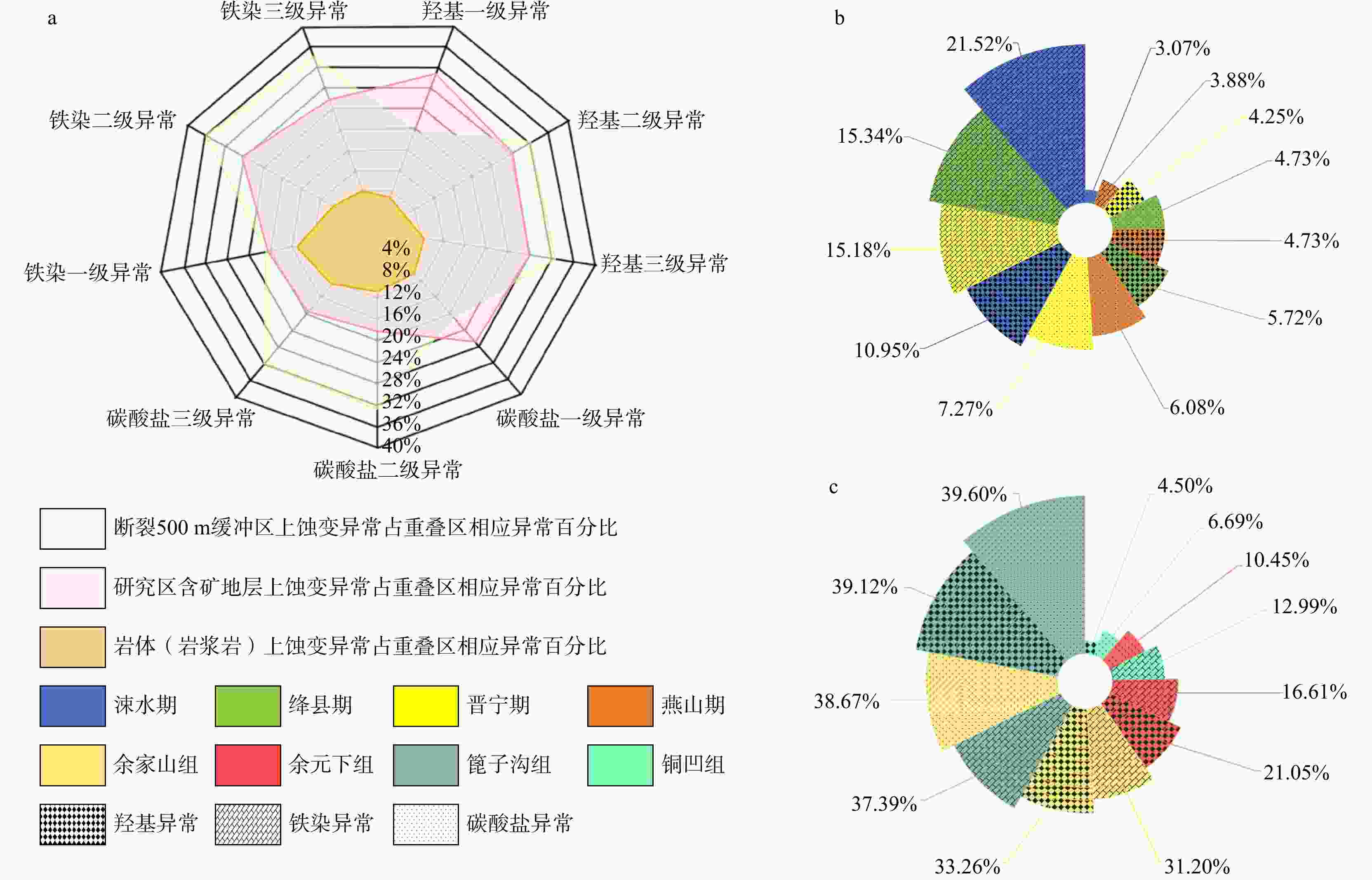

图 10 蚀变异常相关性分析

a. 蚀变异常面积与重叠区相应异常面积百分比雷达概率图；b. 蚀变异常面积与不同构造运动期岩体面积百分比玫瑰概率图；c. 蚀变异常面积与不同含矿地层面积百分比玫瑰概率图

Figure 10. Correlation analysis of alteration anomalies

下载: 全尺寸图片幻灯片

图 11 研究区构造野外查证照片

a，b. 地层错动；c. 断裂擦痕；d，e. 断层破碎带填充；f. 断层破碎带

Figure 11. Photos of field structural verification in the study area

下载: 全尺寸图片幻灯片

图 12 矿化蚀变野外验证结果

a. 褐铁矿化与绢英岩化；b. 黄铁矿化；c. 褐铁矿化与孔雀石化；d. 绿泥石化；e. 绿帘石化与碳酸盐化；f. 绿帘石化与硅化；g. 孔雀石化；h. 石英岩化与白云岩化；i. 碳酸盐化

Figure 12. Field verification results of mineralization and alteration

下载: 全尺寸图片幻灯片

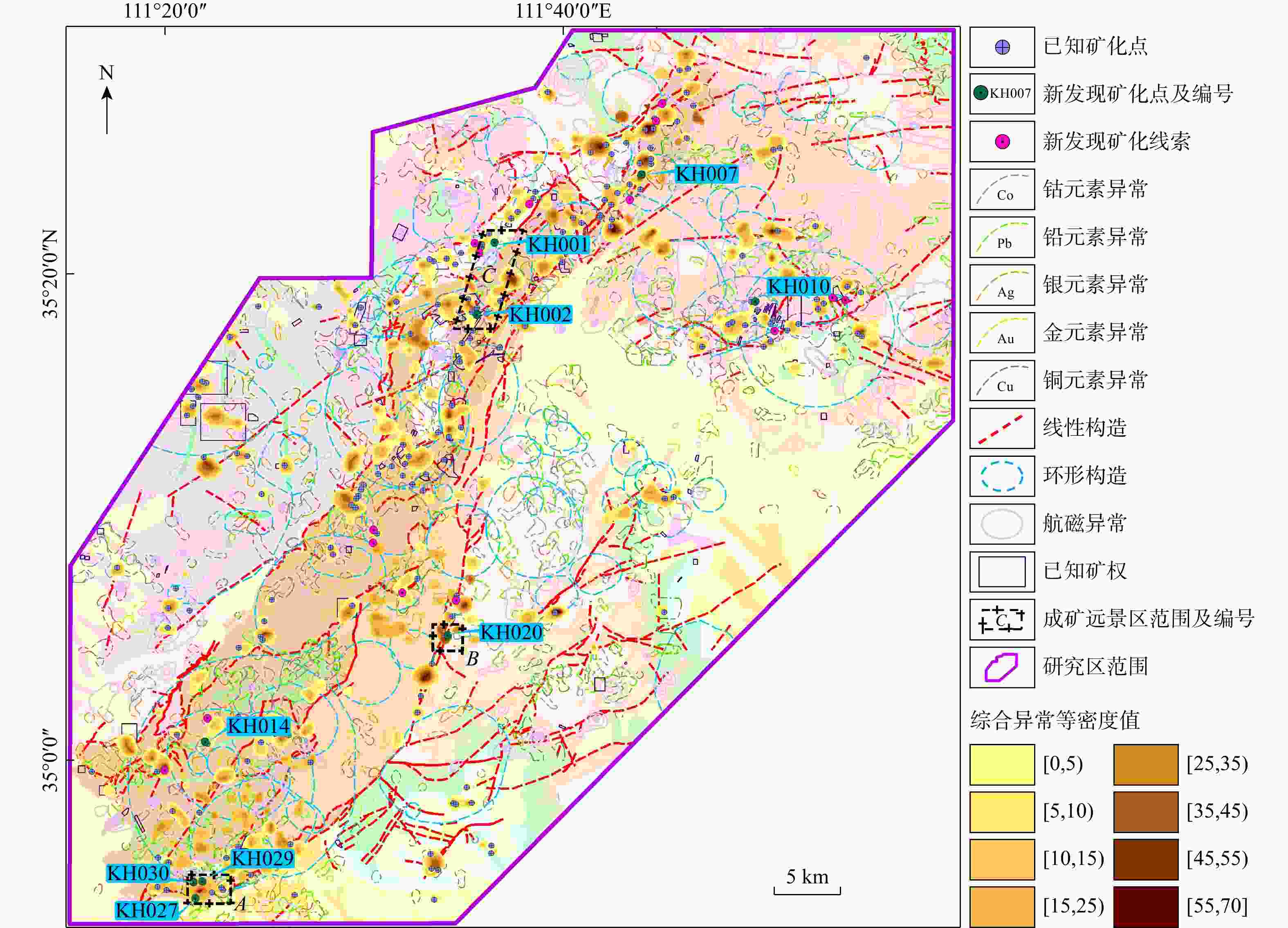

图 13 综合异常等密度图

Figure 13. Comprehensive anomaly isodensity map

下载: 全尺寸图片幻灯片

表 1 研究区遥感数据基本情况

Table 1. Basic information of remote sensing data in the study area

数据种类	成像日期	面积/km²	空间分辨率
Spot-6数据	2015/12/16	3150	全色分辨率为1.5 m 多光谱分辨率为6 m
	2014/12/12
	2013/12/31
Aster数据	2005/03/23	3150	Band1～3分辨率为15 m Band4～9分辨率为30 m Band10～14分辨率为90 m
	2005/03/30
	2006/03/24

下载: 导出CSV

表 2 不同融合方法定量评价

Table 2. Quantitative evaluation of different fusion methods

融合方法	均值	标准差	信息熵	平均梯度
NNDiffuse	0.60863	0.04475	5.24934	0.02162
Gram-Schmidt	0.50261	0.00749	2.85081	0.00492
PC	0.51384	0.00478	2.26483	0.00285
Brovey	0.50100	0.00027	0.00122	0.00019
注：参数值为各波段参数的平均值

下载: 导出CSV

表 3 各类干扰地物去除方法

Table 3. Methods for removing various types of disturbing features

干扰因素	去除方法
植被	（Band3−Band2）/（Band3+Band2）或Band3/Band2
云	（b1 ge 云的最低亮度值）×0+（b1 lt 云的最低亮度值）×1
云	或者Band1高端切割
盐碱地	Band9/Band1或者Band1高端切割
水体	Band9/Band1或者（Band1−Band4）/（Band1+Band4）
阴影	（b1 ge 阴影中的高值）×1+（b1 lt 阴影中的低值）×0
阴影	或者Band9/Band1
冰雪	Band2或Band3高端切割
注：b1=Band6/Band1

下载: 导出CSV

表 4 4类蚀变的主成分变换特征向量矩阵

Table 4. PCA eigenvector matrices of four alteration types

蚀变类型	波段组合	主成分
蚀变类型	波段组合	PC1	PC2	PC3	PC4
铁离子基团（Fe³⁺&Fe²⁺）	Band1	0.265456	0.441699	−0.434136	−0.751158
	Band2	0.342133	0.514535	−0.354134	0.654396
	Band3	0.515148	0.328932	0.741541	−0.048923
	Band4	0.747815	−0.631286	−0.214641	0.005133
Al-OH基团	Band1	0.289626	0.572485	0.745240	−0.237267
	Band3	0.445364	0.648204	−0.554224	0.226745
	Band4	0.644482	−0.302524	−0.154528	−0.666426
	Band8	0.582397	−0.354568	0.350533	0.669486
Mg-OH基团	Band1	0.237826	0.515545	0.454256	0.684865
	Band4	0.434612	0.699602	−0.294525	−0.485568
	Band6	0.649462	−0.358542	−0.540554	0.395426
	Band7	0.542688	−0.344264	0.642136	−0.365452
CO₃^2-基团	Band1	−0.236845	0.565217	0.391453	0.605438
	Band3	−0.440441	0.646354	−0.134504	−0.645021
	Band4	−0.644187	−0.250453	−0.634035	0.342878
	Band5	−0.574503	−0.447450	0.651055	−0.203504

下载: 导出CSV

表 5 新发现矿化点信息统计

Table 5. Statistics of newly discovered mineralization occurrence information

编号	点位坐标/m	出露地层	容矿岩石	Cu	Zn	Pb	Ag	Au	所在区位	备注
编号	点位坐标/m	出露地层	容矿岩石	w_B/%			w_B/10⁻⁶		所在区位	备注
KH001	x=3913998 y=19555231	Ar₂t₃	石榴子石绢英片岩	0.5342	0.00254	0.00108	0.214	0.00123	省道335旁	铜矿化点
KH002	x=3908517 y=19553831	Pt₁b	绢英片岩	0.5245	0.00296	0.00157	0.111	0.0175	刘庄冶西南	铜矿化点
KH007	x=3919153 y=19566379	Pt₁b	碳质板岩夹白云石大理岩	2.0586	0.00307	0.00192	1.866	0.532	前海西南	金、铜矿化点
KH010	x=3909536 y=19574976	Ar₂j	石英岩、含碳绢英片岩	3.6783	0.00167	0.00219	0.718	0.878	篱笆沟南	金矿化点、铜矿化线索点
KH014	x=3876096 y=19533351	Pt₁b，Pt₁yj	碳质板岩、白云石大理岩	0.5345	0.00164	0.00123	0.215	0.024	柳仙洞西	铜矿化点
KH020	x=3884197 y=19551670	Pt₁yj，Chm	白云石大理岩、安山岩	0.0494	4.8988	7.9696	4.343	0.0264	上桃沟村	铅、锌矿化点，铜矿化线索点
KH027	x=3864443 y=19533227	Pt₁yj	白云石大理岩	0.6476	0.00161	0.0011	0.275	0.0331	西岭梁西北	铜矿化点
KH029	x=3865560 y=19533098	Pt₁yj	白云石大理岩	0.565	0.00143	0.000625	1.008	0.476	南白山东	铜矿化点
KH030	x=3865508 y=19532389	Pt₁yj	白云石大理岩	1.1206	0.00185	0.00329	3.246	0.0471	小场梁东	铜矿化点
注：Ar₂t_3. 横岭关亚群铜凹组三段；Pt₁b_. 中条群篦子沟组；Ar₂j_. 宋家山群绛道沟组；Pt₁yj_. 中条群余家山组；Chm_. 熊耳群马家河组

下载: 导出CSV
