基于AHP-CRITIC法的储层非均质定量表征：以樊151块沙四上纯下次亚段2<sup>4</sup>小层为例

杨怡梦; 徐守余; 陈麦雨; 崔改霞; 胡津

doi:10.19509/j.cnki.dzkq.tb20240394

基于AHP-CRITIC法的储层非均质定量表征：以樊151块沙四上纯下次亚段2⁴小层为例

doi: 10.19509/j.cnki.dzkq.tb20240394

杨怡梦^1,,
徐守余^1, ,,
陈麦雨^{2, 3},
崔改霞¹,
胡津¹

1 .
中国石油大学（华东）地球科学与技术学院，山东青岛 266580
2 .
江西省国土空间调查规划研究院，南昌 330002
3 .
自然资源部大湖流域国土空间生态保护修复工程技术创新中心，南昌 330025

基金项目: 国家科技重大专项课题（2017ZX05009001）

详细信息

作者简介:
杨怡梦：E-mail：2323773613@qq.com

通讯作者:
E-mail：xushouyu@upc.edu.cn

计量
- 文章访问数: 1
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2024-07-15
- 录用日期: 2024-10-21
- 修回日期: 2024-10-09
- 网络出版日期: 2025-08-27

Quantitative characterization of reservoir heterogeneity using AHP-CRITIC method: A case study of 2⁴ layers of the Upper Es₄ Member in Block Fan 151

YANG Yimeng^1
,,
XU Shouyu^{1
, ,},
CHEN Maiyu^{2, 3},
CUI Gaixia¹,
HU Jin¹

1 .
School of Geosciences, China University of Petroleum (East China), Qingdao Shandong 266580, China
2 .
Land Spatial Survey and Planning Institute of Jiangxi Province, Nanchang 330002, China
3 .
Technology Innovation Center for Land Spatial Ecological Protection and Restoration in Great Lakes Basin, MNR, Nanchang 330025, China

More Information

Author Bio:
E-mail：2323773613@qq.com

Corresponding author: E-mail：xushouyu@upc.edu.cn

摘要

摘要:
樊151块为低渗透滩坝砂油藏，储层整体物性差，非均质性强，导致在实际开发中原油采收率较低，滞留较多的剩余油。分析储层非均质性对剩余油分布的影响，找出剩余油富集部位，对油田提高采收率具有重要的指导意义。同时储层非均质性综合指数的计算在定量表征非均质性方面具有重要意义，因此提高储层非均质性综合指数计算的准确性，可为预测油田开发有利区和寻找剩余油提供参数依据。为提高储层非均质性综合指数计算的准确性，提出了AHP-CRITIC组合赋权法，采用线性组合的方法得到主客观复合权重，定量计算储层非均质的综合指数，该方法兼顾主观性和客观性，实现优势互补弥补了单一赋权的不足。使用AHP-CRITIC组合赋权法对樊151块沙四上纯下次亚段2⁴小层储层非均质性进行了定量研究，结果表明：非均质综合指数I值的范围在0.27～0.73，综合指数值在0.4～0.65之间约占63%。研究区目的层呈现中等-较强非均质，非均质综合指数值I的高值区域分布情况与该小层剩余油饱和度平面等值线图的高值区域基本吻合，说明AHP-CRITIC组合赋权法合理地分配了评价指标参数的权重，形成了适用于该小层的储层非均质性定量评价标准，为储层非均质定量表征提供了新方法。
- AHP-CRITIC组合赋权法 /
- 储层非均质性 /
- 定量表征 /
- 樊151区块
Abstract: Objective
Block Fan 151 is a low-permeability beach-bar sandstone reservoir with poor overall physical properties and high heterogeneity, resulting in low oil recovery and significant amounts of residual oil during development. It is essential to analyze the influence of reservoir heterogeneity on the distribution of residual oil and identify enrichment areas. Furthermore, calculating the reservoir heterogeneity comprehensive index plays a crucial role in quantitatively characterizing heterogeneity. Therefore, improving the accuracy of calculating the comprehensive index can provide a basis for predicting favorable areas for oilfield development and finding residual oil.
Methods
To improve the accuracy of the comprehensive reservoir heterogeneity index calculation, this study proposes the AHP-CRITIC combined weighting method. This method determines the composite weight of evaluation indicators using both subjective and objective data, overcoming the limitations of a single weighting approach.
Results
Quantitative analysis of the heterogeneity of the 2⁴ layers in the Upper Es4 Member of Block Fan 151 shows that the heterogeneous comprehensive index I ranges from 0.27 to 0.73, with about 63% of the values falling between 0.4 and 0.65.
Conclusion
The target formation in the study area exhibits moderate to strong heterogeneity, and the distribution of high values of the comprehensive heterogeneity index I aligns closely with the high-value areas on the residual oil saturation contour map. This indicates that the AHP-CRITIC combined weighting method effectively assigns weights to the evaluation parameters and establishes a quantitative evaluation criterion for the heterogeneity of this reservoir. This approach offers a new method for the quantitative characterization of reservoir heterogeneity.
- AHP-CRITIC combined weighting method /
- reservoir heterogeneity /
- quantitative characterization /
- Block Fan 151

HTML全文

图 1 研究区地理位置和樊151块沙四上纯下次亚段顶部构造图（改编自陈麦雨^[19]）

Figure 1. Location of the study area and top structure map of Shasi upper Chun sub-member in Block Fan 151 (adapted from Chen^[19])

下载: 全尺寸图片幻灯片

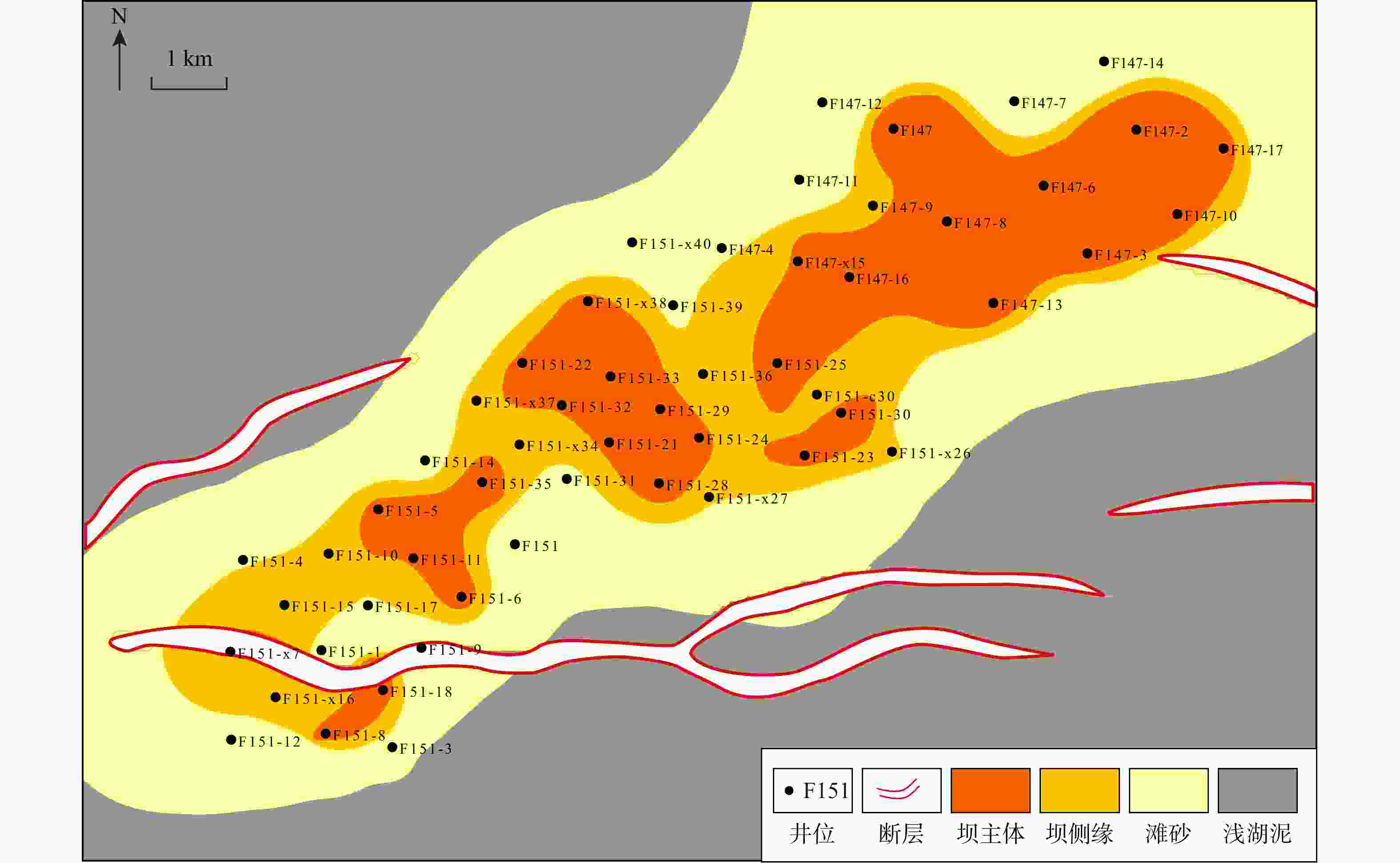

图 2 2⁴小层沉积微相展布图

Figure 2. Microfacies distribution of 2⁴ layers’ sediments

下载: 全尺寸图片幻灯片

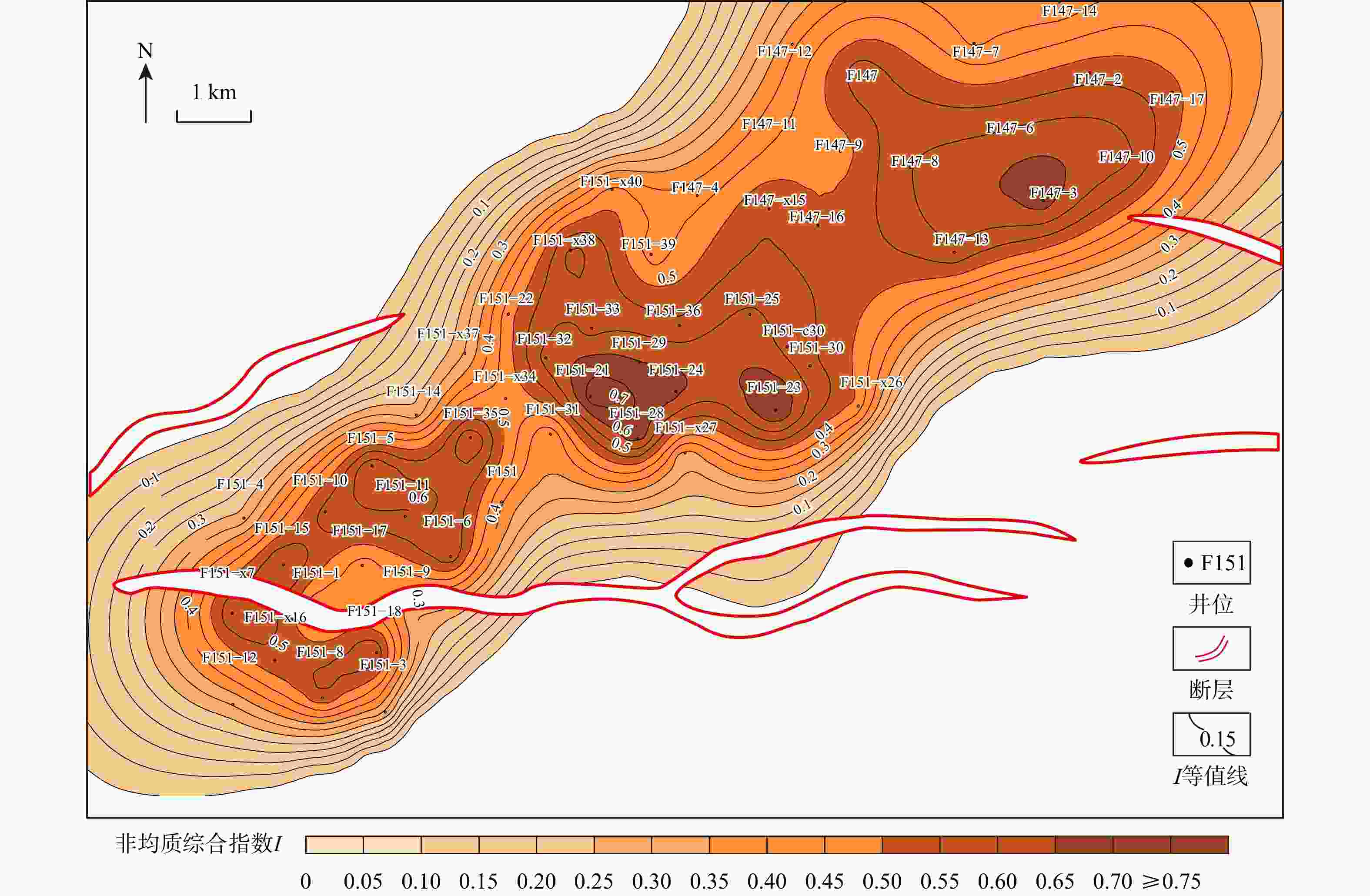

图 3 2⁴小层储层平面非均质综合指数I等值线图

Figure 3. Contour map of 2⁴ layers’ reservoir plane anisotropy composite index

下载: 全尺寸图片幻灯片

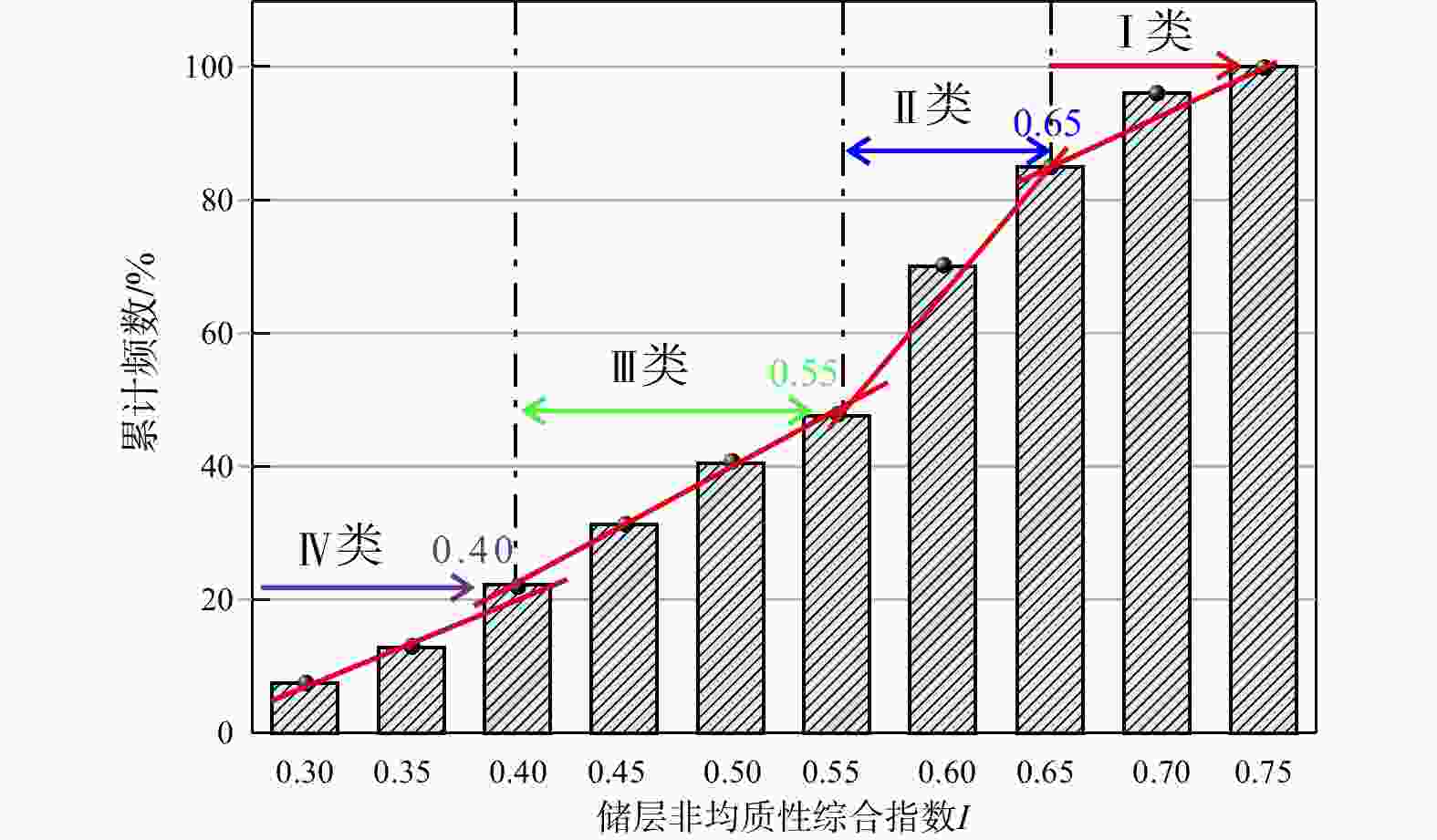

图 4 2⁴小层储层非均质性综合指数I累计频数百分比

Figure 4. Percentage of 2⁴ layers’ reservoir cumulative frequency of heterogeneous composite index I

下载: 全尺寸图片幻灯片

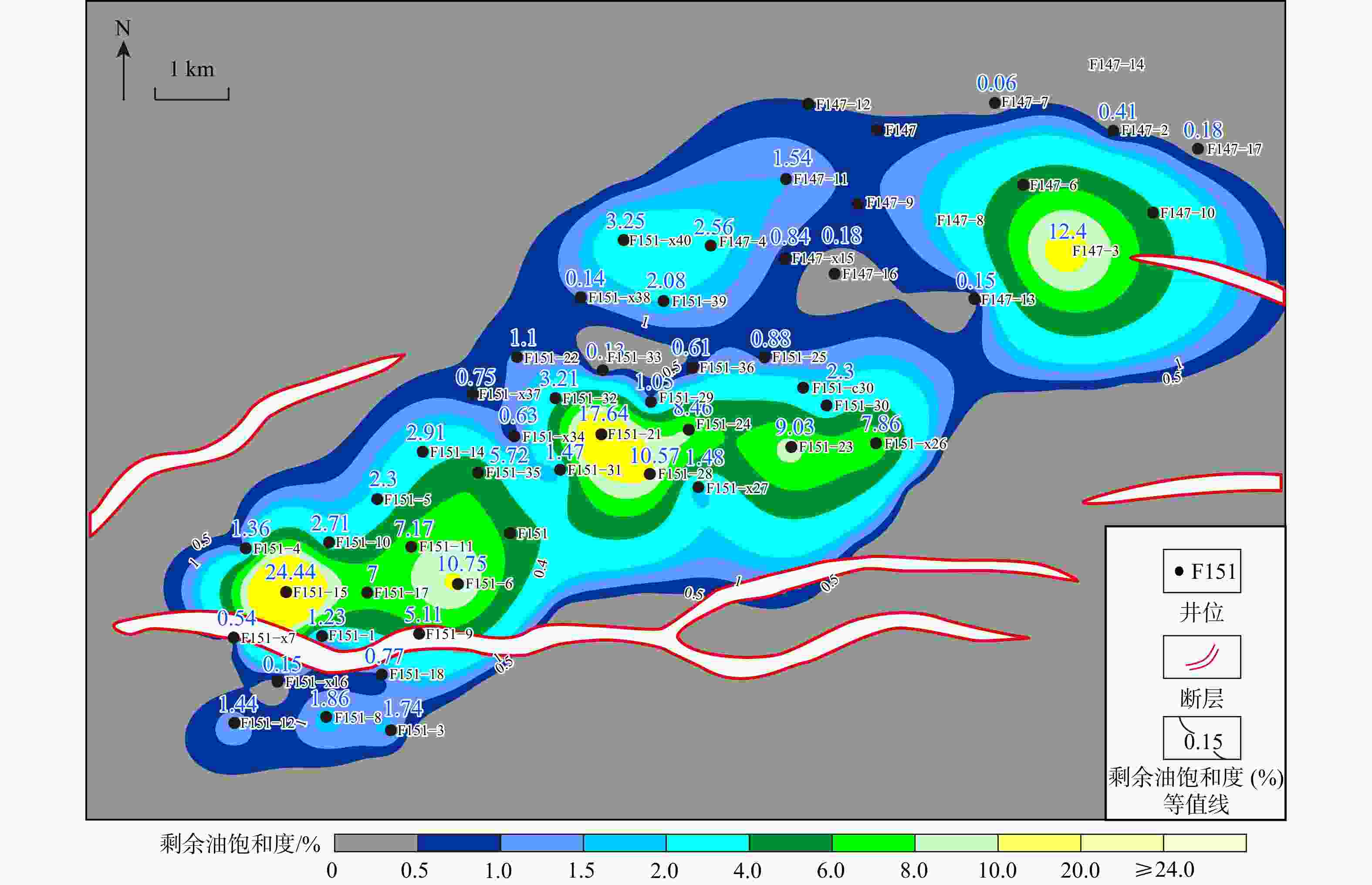

图 5 2⁴小层剩余油饱和度平面展布图

Figure 5. Plane layout of remaining oil saturation in small 2⁴ layers’ sediments

下载: 全尺寸图片幻灯片

表 1 樊151块地层层序表

Table 1. Stratigraphic sequence of Block Fan 151

界	系	组	段	亚段		厚度/m
新生界	第四系	平原组				300～350
	新近系	明化镇组				700～760
	新近系	馆陶组				250～300
	古近系	东营组				410～510
		沙河街组	沙一段沙二段沙三段			120～195
						160～230
						220～380
			沙四段	沙四上	纯上	100～190
				沙四上	纯下	80～160
				沙四下		未钻穿

下载: 导出CSV

表 2 平均一致性指标

Table 2. Indicator value of average random consistency

n	1	2	3	4	5	6	7	8	9	10	11	12
RI	0	0	0.52	0.89	1.12	1.26	1.36	1.41	1.46	1.49	1.52	1.54

下载: 导出CSV

表 3 樊151块沙四上纯下次亚段24小层的8项指标参数

Table 3. The 8 indicators of small layers in the next subsegment of Sand four upper pure section in Block Fan 151

井名	沉积微相	砂岩厚度/ m	泥质含量 P_B/%	渗透率/ 10⁻³μm²	渗透率变异系数	渗透率级差	夹层厚度/ m		夹层频率
F147-12	0.33	2.40	23.38	0.60	0.40	5.70	0	0.00
F151-x40	0.33	2.74	4.59	3.25	0.18	3.30	0	0.00
F151-x38	1.00	5.97	17.69	0.33	0.38	11.00	0.78	0.17
F151-22	1.00	5.90	41.15	1.10	0.93	34.44	1.15	0.34
F151-x37	0.33	3.12	43.28	0.75	0.41	2.41	2.80	0.32
F151-14	0.33	3.30	53.92	2.91	0.49	3.06	2.40	0.91
F151-5	1.00	6.40	19.87	2.30	0.39	11.00	0.75	0.16
F151-10	0.67	5.00	18.52	2.71	0.19	1.47	1.00	0.20
F151-15	0.67	6.00	35.47	24.44	1.19	17.31	2.50	0.50
F151-x7	0.67	7.99	40.99	0.54	0.00	16.00	2.22	0.25
F147-14	0.33	3.90	48.94	0.20	0.65	5.80	0.60	0.26
F147-7	0.33	3.80	42.36	0.06	0.65	6.60	0	0.00
F147	1.00	5.80	44.95	0.70	0.58	7.20	0.40	0.17
F147-11	0.33	3.50	26.91	1.54	0.52	7.90	0	0.00
F147-4	0.33	4.09	29.23	2.56	0.28	1.79	1.62	0.24

下载: 导出CSV

表 4 储层评价指标参数权值（AHP方法）

Table 4. Reservoir evaluation indicator weight (AHP method)

指标参数	沉积微相	砂岩厚度	泥质含量	渗透率	渗透率变异系数	渗透率级差	夹层厚度	夹层频率
权重	0.028	0.336	0.027	0.276	0.136	0.103	0.053	0.042

下载: 导出CSV

表 5 储层评价指标参数权值（CRITIC方法）

Table 5. Reservoir evaluation indicator weight (CRITIC method)

指标参数	沉积微相	砂岩厚度	泥质含量	渗透率	渗透率变异系数	渗透率级差	夹层厚度	夹层频率
权重	0.021	0.121	0.106	0.118	0.119	0.093	0.131	0.102

下载: 导出CSV

表 6 储层评价指标参数权值（AHP-CRITIC组合方法）

Table 6. Reservoir evaluation indicator weight (AHP-CRITIC combined method)

指标参数	沉积微相	砂岩厚度	泥质含量	渗透率	渗透率变异系数	渗透率级差	夹层厚度	夹层频率
权重	0.119	0.229	0.066	0.197	0.127	0.098	0.092	0.072

下载: 导出CSV

表 7 研究区储层平面非均质性定量评价标准

Table 7. Quantitative assessment criteria for reservoir surface heterogeneity in the study area

综合指数I	非均质程度	分类
I≤0.40	强非均质性	Ⅳ
0.4<I≤0.55	较强非均质性	Ⅲ
0.55<I≤0.65	中等非均质性	Ⅱ
I>0.65	弱非均质性	Ⅰ

下载: 导出CSV
