Rock image lithology recognition method based on lightweight convolutional neural network
-
摘要:
岩性识别是油气勘探和开发过程中的重要环节，对于油气勘探定位、储层评价以及储层模型建立具有重要的指导意义。但传统的人工岩性识别方法耗时耗力，经典的深度学习模型虽然识别精度高，但模型的参数量较大，为了提高模型识别精度，同时降低模型的参数量，使模型适用于岩性实时识别工作，首先收集了白云岩、砂岩等8种岩石共
3016 张岩石图像构建岩性识别数据集，然后以轻量型卷积神经网络ShuffleNetV2模型为基础网络，提出了一种Rock-ShuffleNetV2岩性识别模型（RSHFNet模型）。模型中将混合注意力机制模块（convolutional block attention module，简称CBAM）以及多尺度特征融合模块（multi-scale feature fusion module，简称MSF）融入基础网络中以加强模型的特征提取能力，提升模型识别性能，并优化模型中ShuffleNetV2单元的堆叠次数以减少模型参数量。结果表明：与基础模型相比，RSHFNet模型的准确率达到了87.21%，提高了4.98%；同时，模型参数量与浮点运算量分别降低到了869702 个，0.93×108，分别是基础模型的0.67，0.63倍，模型参数量明显降低；并且RSHFNet模型的综合性能明显优于现有的卷积神经网络。RSHFNet岩性识别模型具有较高的识别精度和较好的泛化能力，同时更加的轻量化，为实现野外实时的岩性识别工作提供了新思路。-
关键词:
- 岩性识别 /
- ShuffleNetV2网络 /
- 混合注意力机制模块 /
- 多尺度特征融合模块 /
- 卷积神经网络
Abstract:ObjectiveLithology identification is a crucial step in the process of oil and gas detection and exploration, providing important guidance for exploration positioning, reservoir evaluation, and the establishment of reservoir models. However, traditional manual lithology identification methods are time-consuming and labor-intensive. Although classical deep learning models achieve high identification accuracy, they often have a large number of parameters. To enhance model accuracy while reducing the number of parameters, the aim of this research is to make the model suitable for real-time lithology identification.
MethodsThis paper first collected a dataset of
3016 rock images consisting of eight types of rocks, including dolomite and sandstone. Based on the lightweight convolutional neural network ShuffleNetV2, the paper proposes a Rock-ShuffleNetV2 lithology identification model (RSHFNet model). The model incorporates the convolutional block attention module (CBAM) and multi-scale feature fusion module (MSF) into the basic network to enhance feature extraction capabilities and improve identification performance. Additionally, the number of stacked ShuffleNetV2 units is optimized to reduce the model's parameters.ResultsThe experimental results show that the RSHFNet model achieved an accuracy of 87.21%, which is a 4.98% improvement over the baseline model. Furthermore, the model's parameters and floating-point operations were reduced to
869702 , 0.93×108, respectively, representing 67% of the model's parameters and 63% of the floating-point operations of the baseline model. This reduction significantly decreases the model's size. Additionally, the RSHFNet model demonstrates superior overall performance compared to existing convolutional neural networks.ConclusionThe proposed RSHFNet lithology identification model offers high recognition accuracy and strong generalization capabilities while being more lightweight, providing a new approach for real-time lithology identification in the field.
-

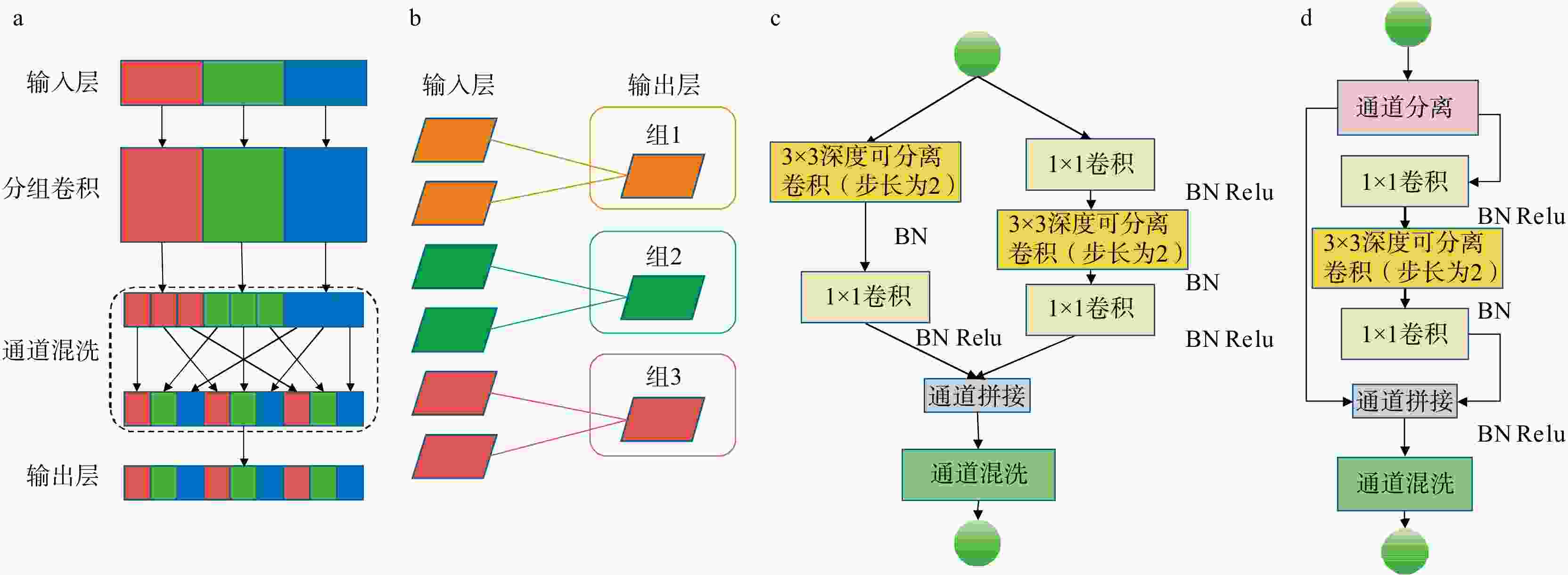

图 1 ShuffleNetV2核心结构
a. 通道混洗；b. 分组卷积；c. 下采样单元；d. 基本单元；BN. 只进行批量化处理；BN Relu. 先进行批量化处理，再用Relu激活函数处理；下同
Figure 1. Core structure of ShuffleNetV2

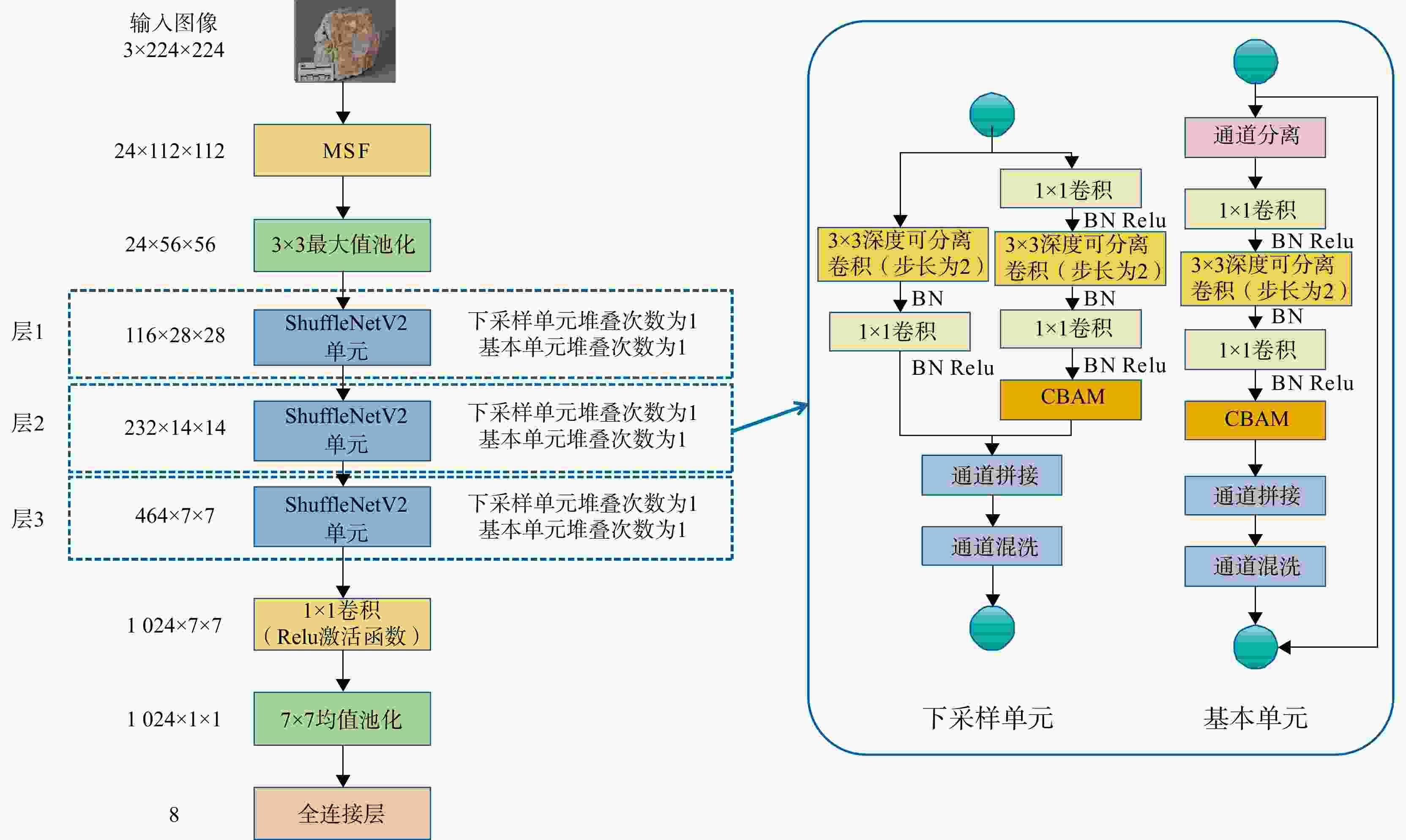

图 2 RSHFNet模型结构
MSF. 多尺度特征融合模块；CBAM. 混合注意力机制模块；下同
Figure 2. Structure of RSHFNet model

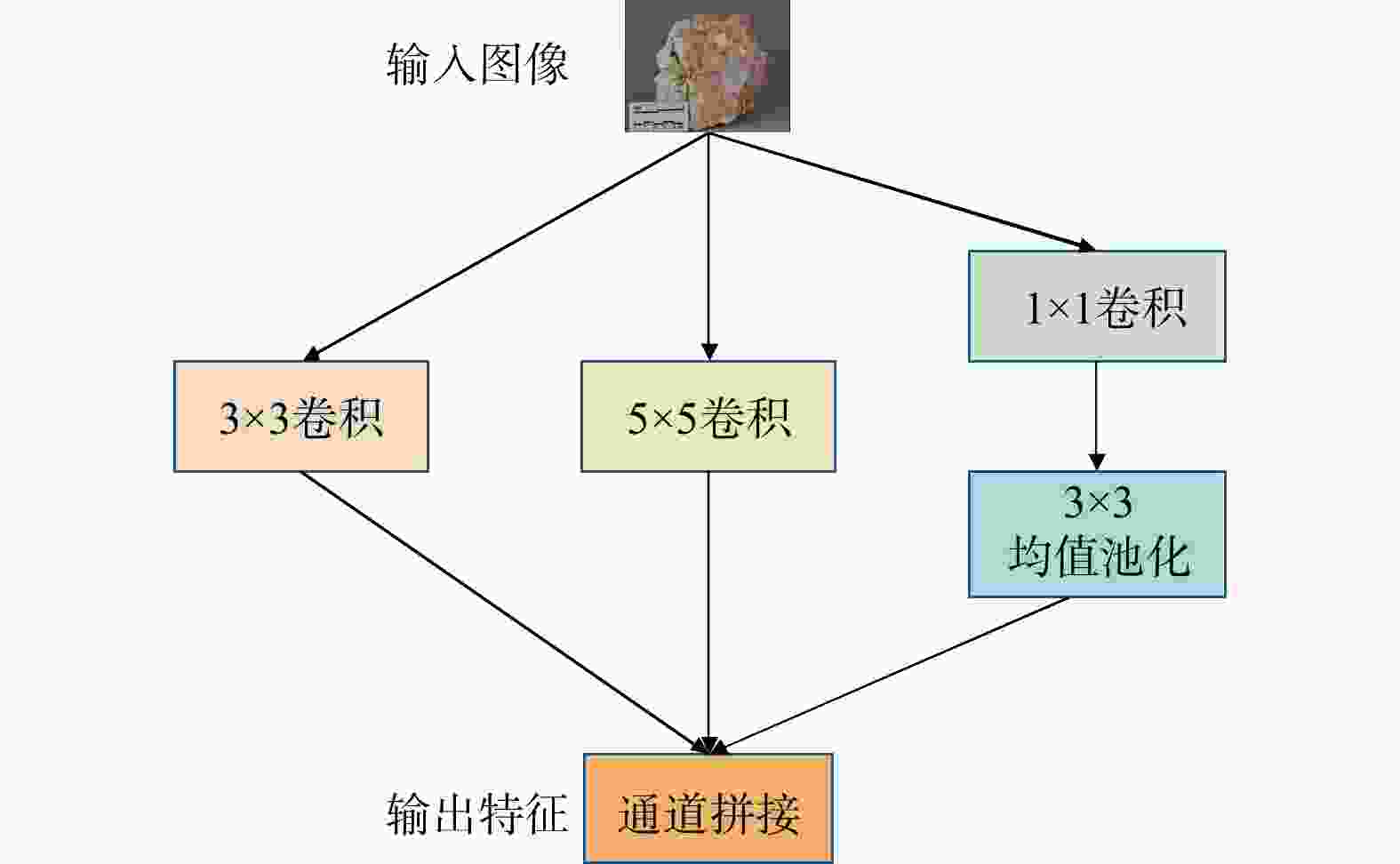

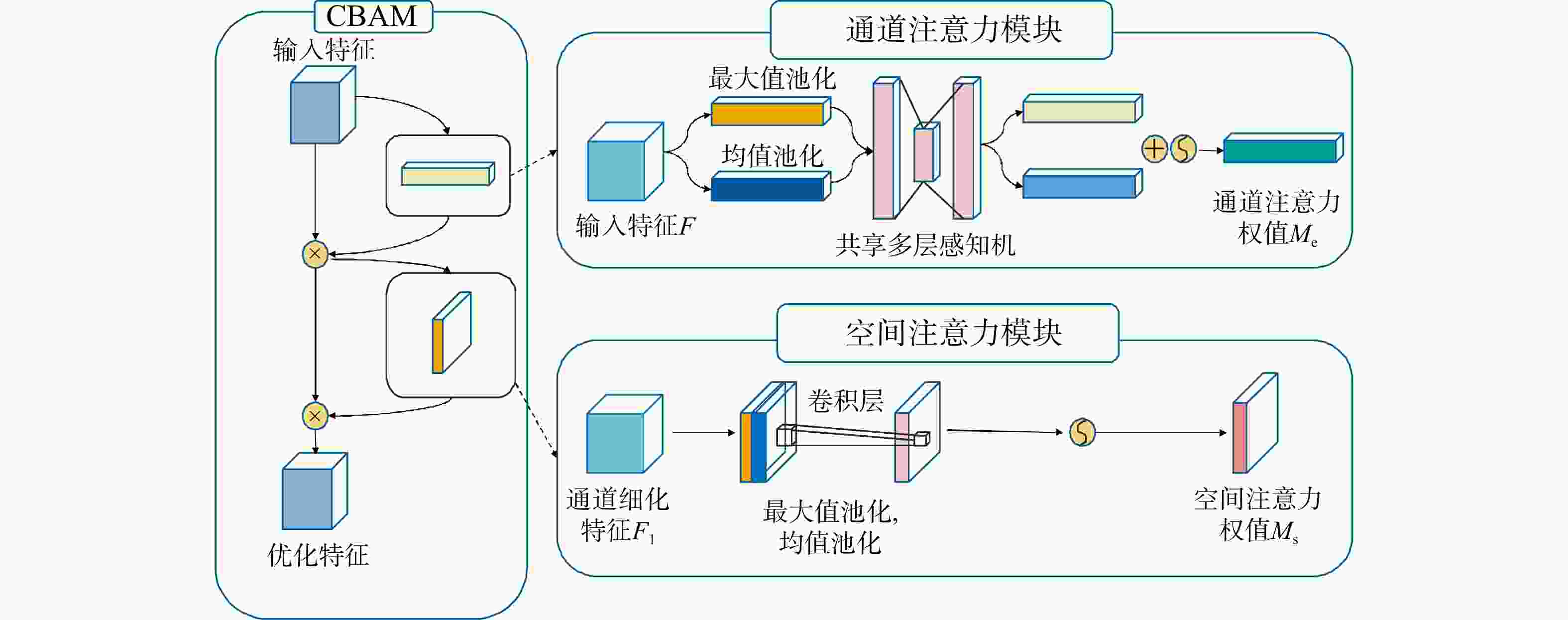

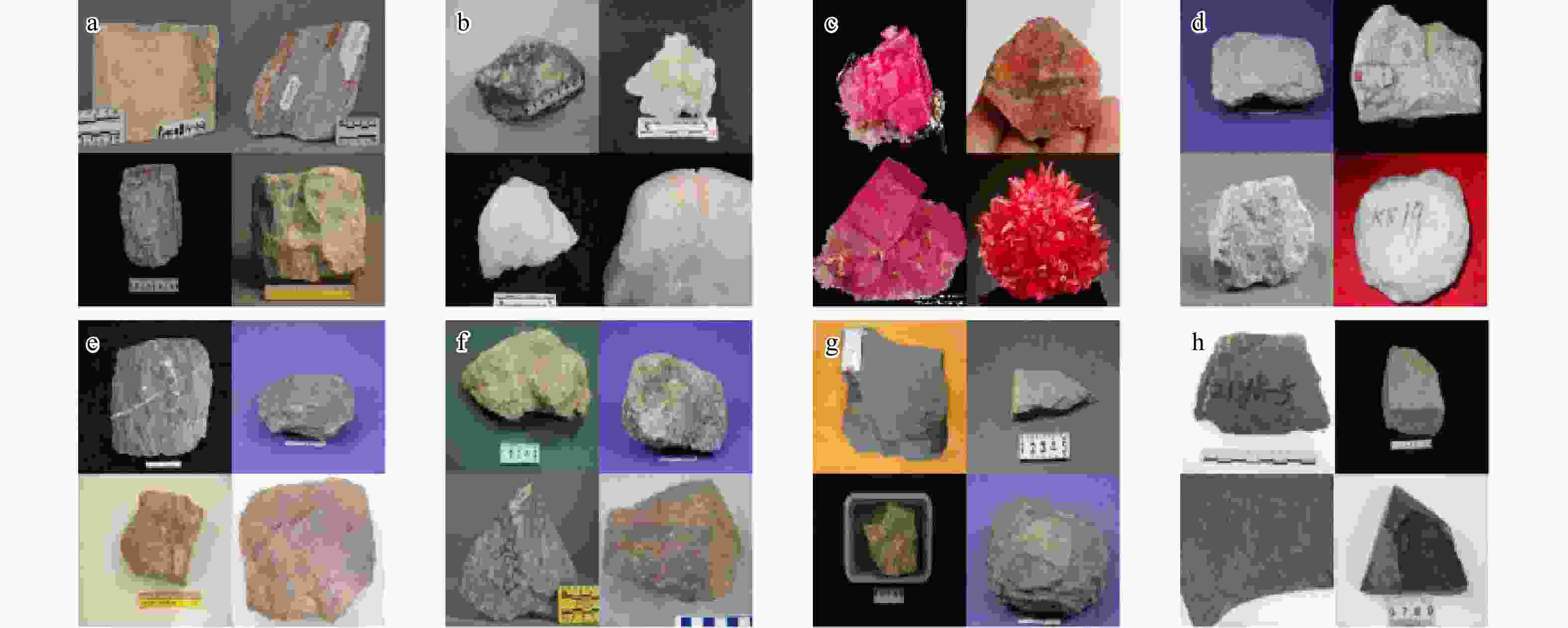

图 5 岩性识别数据集示例图像
a. 白云岩；b. 方解石；c. 菱锰矿；d. 菱镁矿；e. 石灰岩；f. 砂岩；g. 页岩；h. 泥岩
Figure 5. Example images of lithology identification dataset

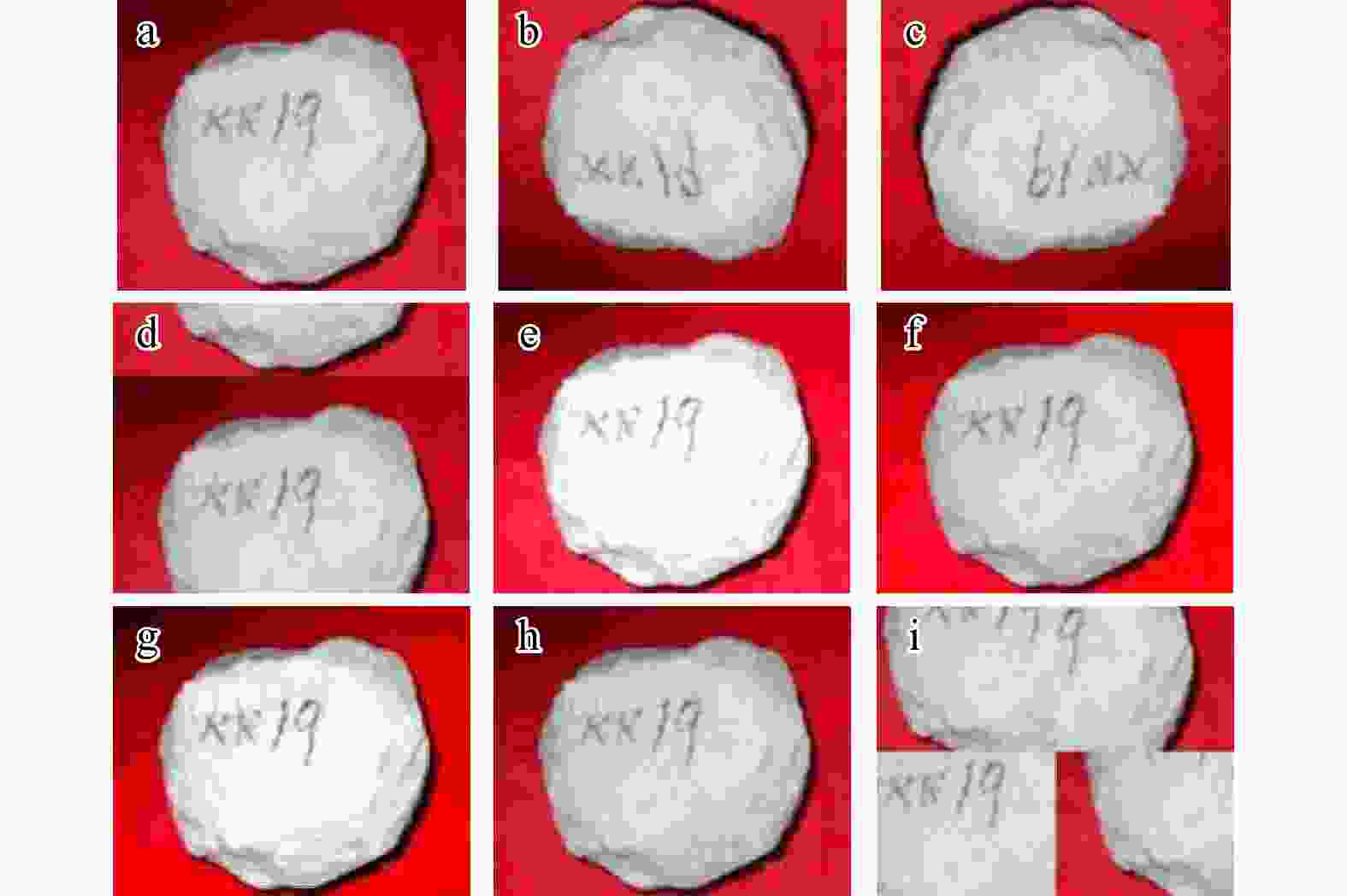

图 6 数据增强后图像效果
a. 原始图像；b. 图像翻转；c. 图像旋转；d. 图像平移；e. 亮度调整；f. 色度调整；g. 对比度调整；h. 锐度调整；i. 裁剪拼接
Figure 6. Effects of data augmentation on images

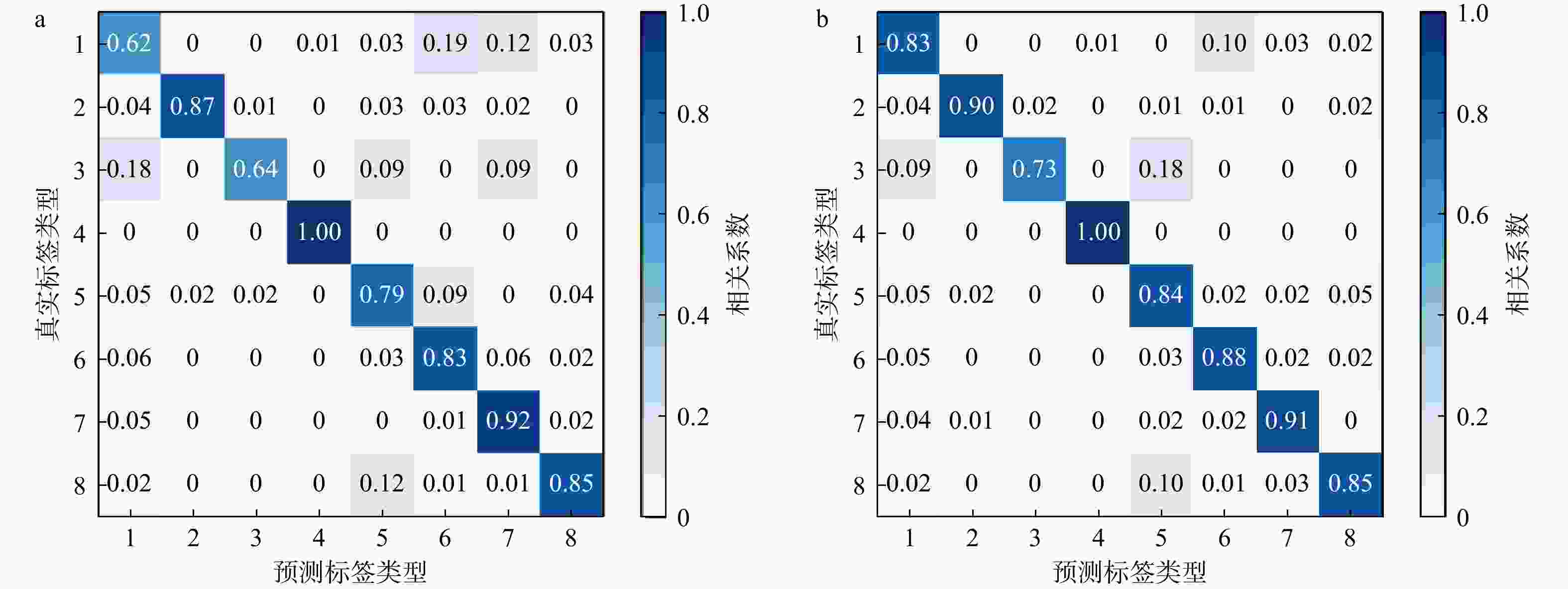

图 7 改进前后混淆矩阵
a. ShuffleNetV2混淆矩阵；b. RSHFNet混淆矩阵；1. 白云岩；2. 方解石；3. 菱镁矿；4. 菱锰矿；5. 石灰岩；6. 砂岩；7. 泥岩；8. 页岩
Figure 7. Confusion matrix before and after improvement

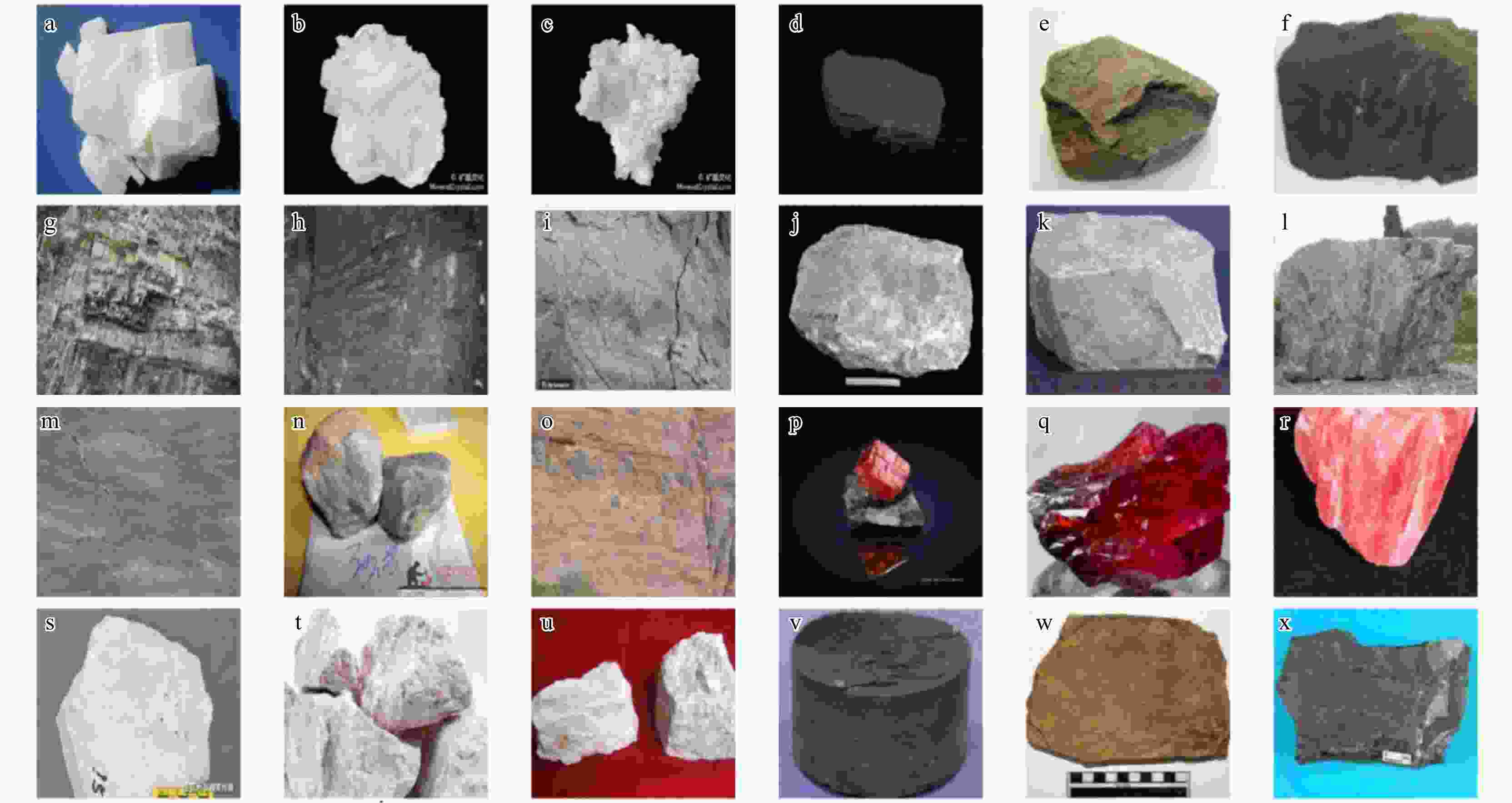

图 8 RSHFNet模型预测结果
a～c. 预测类别：方解石；d～f. 预测类别：泥岩；g～i. 预测类别：白云岩；j～l，t. 预测类别：石灰岩；m～o，w. 预测类别：砂岩；p～r. 预测类别：菱锰矿；s，u. 预测类别：菱镁矿；v，x. 预测类别：页岩
Figure 8. Predicted results of the RSHFNet model
表 1 数据增强前后训练集分布
Table 1. Distributions of training set before and after data augmentation
岩性 原始训练集
数量/张增强后训练集
数量/张岩性 原始训练集
数量/张增强后训练集
数量/张白云岩 343 1 372 石灰岩 228 1 368 方解石 412 1 236 砂岩 495 1 485 菱镁矿 45 360 页岩 417 1 251 菱锰矿 60 466 泥岩 414 1 242
下载: 导出CSV
表 2 数据增强前后实验结果
Table 2. Experimental results before and after data augmentation
数据集 准确率/% 精确率/% 召回率/% F1分数/% 原始数据集 76.58 69.93 68.85 69.10 数据增强后的数据集 82.23 82.21 81.42 81.54
下载: 导出CSV
表 3 引入不同注意力模块后的实验结果
Table 3. Experimental results after introducing different attention modules
模型 准确
率/%精确
率/%召回
率/%F1分
数/%模型参
数量/个浮点运
算量/108基础网络 82.23 82.21 81.42 81.54 1 295 037 1.47 基础网络+SE 82.89 81.30 80.21 80.19 1 303 064 1.48 基础网络+ECA 83.32 83.80 81.21 82.15 1 260 268 1.48 基础网络+CA 83.06 83.02 79.76 80.93 1 325 720 1.48 基础网络+CBAM 86.05 86.09 84.75 85.12 1 304 648 1.48
下载: 导出CSV
表 4 消融实验结果
Table 4. Results of ablation experiment
模型 准确
率/%精确
率/%召回
率/%F1分
数/%模型参
数量/个浮点运算
量/108基础网络 82.23 82.21 81.42 81.54 1 295 037 1.47 基础网络+CBAM 86.05 86.09 84.75 85.12 1 304 648 1.48 基础网络+MSF 83.39 82.84 83.31 82.90 1 260 404 1.51 基础网络-Lighter 85.71 87.41 85.89 83.38 850 848 0.90 RSHFNet 87.21 86.37 86.68 86.39 869 702 0.93
下载: 导出CSV
表 5 不同模型的对比实验结果
Table 5. Comparative experimental results of different models
模型 准确
率/%精确
率/%召回
率/%F1分
数/%模型参
数量/个浮点运算
量/108VGG16 67.77 70.68 67.66 66.96 134 301 768 155.20 ResNet18 85.71 84.86 86.29 85.27 11 180 616 18.24 ResNet50 85.05 85.09 83.73 84.11 23 524 424 41.32 DenseNet169 87.21 85.63 86.83 85.91 12 497 800 34.34 GhostNet 82.39 84.18 82.80 83.09 4 212 120 1.97 MobileNetV3-small 82.72 78.18 78.72 78.71 1 238 996 0.65 MobileNetV3-large 85.88 83.51 82.56 82.83 2 685 164 2.71 ShufleNetV2 82.23 82.21 81.42 81.54 1 295 037 1.47 ShuffleNetV2-Y 79.57 79.31 78.24 78.13 275 066 0.33 RSHFNet 87.21 86.37 86.68 86.39 869 702 0.93
下载: 导出CSV
-
