Application of five-dimensional seismic prediction method based on amplitude attribute in Shunbei Well X area
-
摘要:
针对顺北超深层碳酸盐岩断控缝洞型储集体储层非均质性强、地震资料信噪比低、叠后储层预测精度不足及裂缝识别困难等问题，基于五维地震数据，探索了提高裂缝型储层预测精度的新方法。在研究顺北断控缝洞型油气藏储层发育特征的基础上，开展了五维地震各向异性正演模拟，建立了地震振幅与裂缝参数的关系，并优选了裂缝预测敏感参数；在此基础上推导出傅里叶级数形式的方位弹性阻抗方程，开展了裂缝型储层预测，并在顺北X井区进行了应用。研究结果明确了超深层碳酸盐岩断控储集体的AVAZ（amplitude variation with azimuth and offset）地震响应特征，指出裂缝密度是指示裂缝型储层的敏感参数；同时，利用二阶傅里叶系数表征了裂缝发育密度，在顺北X井区实现了裂缝型储层的精细表征，预测吻合率较高。基于振幅属性的五维地震预测技术通过挖掘宽方位地震数据的振幅、方位信息，丰富了裂缝发育密度和方向等相关信息的预测。建立的傅里叶系数−裂缝密度映射关系为断控缝洞型油藏预测提供了定量化工具，为断控缝洞型油藏裂缝预测及目标评价提供了新的思路。
Abstract:Objective In response to challenges such as strong reservoir heterogeneity, low signal-to-noise ratios in seismic data, insufficient prediction accuracy for poststack reservoirs, and difficulty in identifying fractures in ultradeep carbonate reservoirs in Shunbei, a new method is explored to increase the prediction accuracy for fractured reservoirs on the basis of five-dimensional seismic data.
Methods To study the reservoir development characteristics of the Shunbei fault-controlled fracture-cave-type oil and gas reservoirs, a five-dimensional seismic anisotropic forward simulation was conducted, relationship between the seismic amplitude and fracture parameters were established, and the sensitive parameters for fracture prediction were optimized. On the basis, a Fourier series form of the directional elastic impedance equation was derived, fracture-type reservoir prediction was carried out, and the method was applied to the Shunbei Well X area.
Results The AVAZ seismic response characteristics of ultradeep carbonate rock fault-controlled reservoirs were clarified, and the fracture density was identified as a sensitive parameter for identifying fractured reservoirs. Additionally, using second-order Fourier coefficients to characterize fracture development density, a precise characterization of fracture-type reservoirs in the Shunbei Well X area was achieved with high prediction accuracy.
Conclusion The application of five-dimensional seismic prediction technology based on amplitude attributes enhances the prediction of the fracture development density and direction by utilizing amplitude and orientation information from wide-azimuth seismic data. The established Fourier coefficient fracture density mapping relationship provides a quantitative prediction tool for fracture-controlled fracture-cave reservoirs and offers new ideas for fracture prediction and target evaluation in such reservoirs.
-

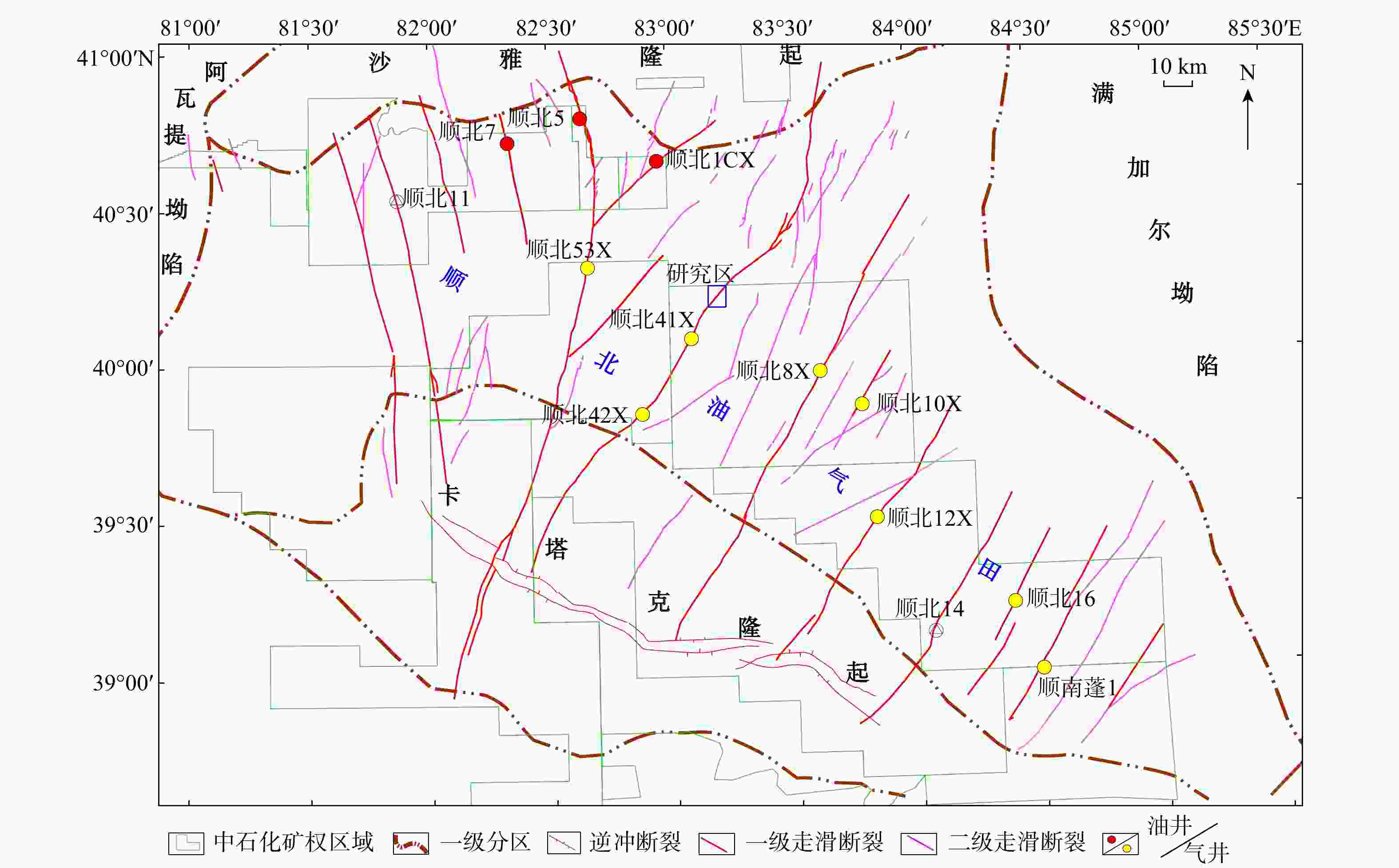

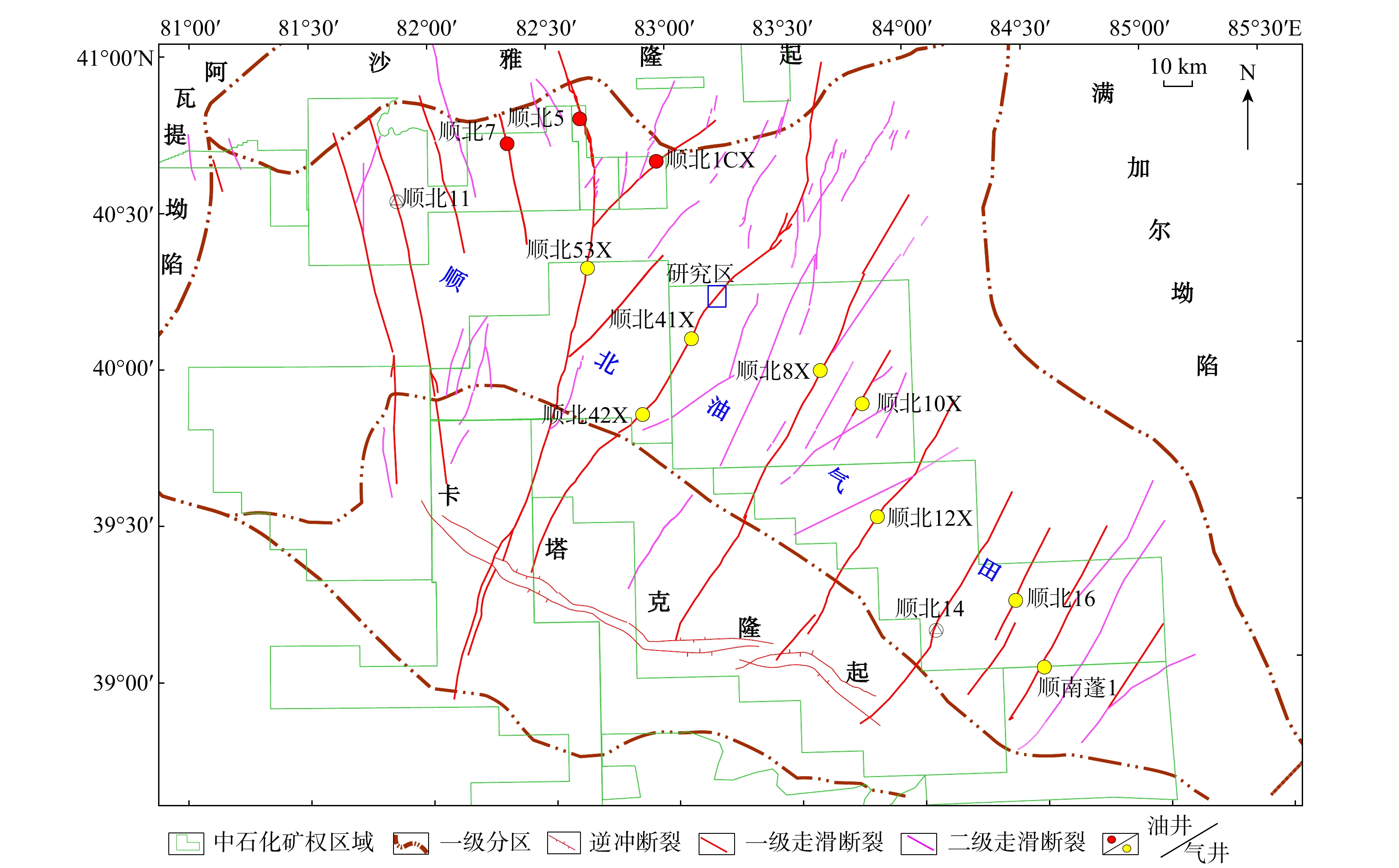

图 1 顺北油气田构造单元与奥陶系一间房组顶面断裂体系图
Figure 1. Structural unit of Shunbei oil and gas field and top fault system of Ordovician Yijianfang Formation

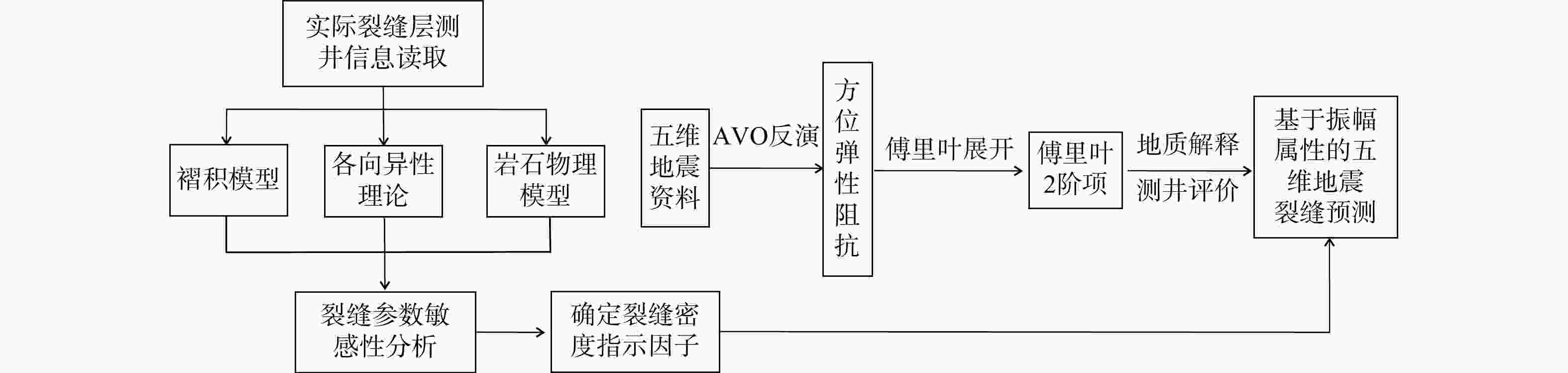

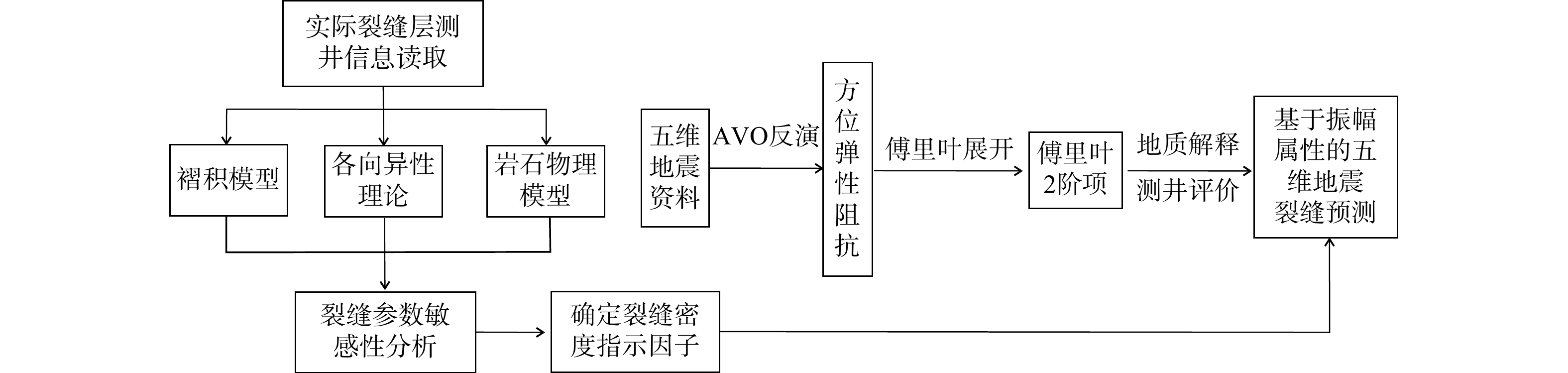

图 2 基于振幅属性的五维地震预测技术思路
Figure 2. Technical approach for five-dimensional seismic prediction on the basis of amplitude attributes

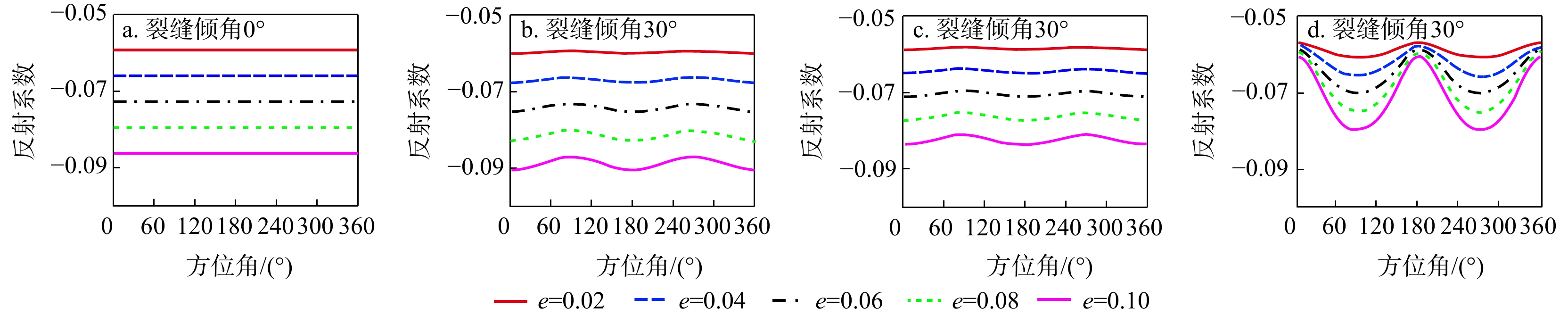

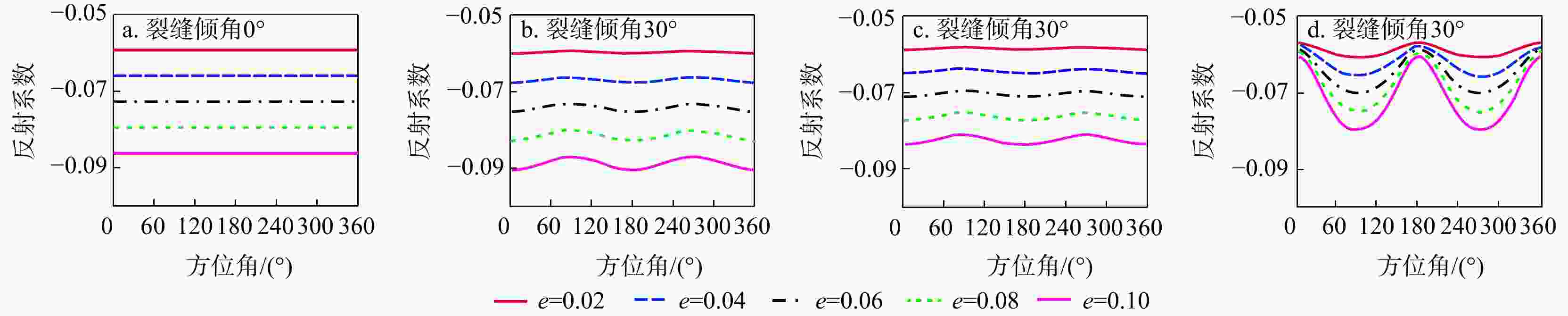

图 3 裂缝密度(e)变化时“隔层−裂缝层”界面的AVAZ变化特征
Figure 3. AVAZ variation characteristics of the "interlayer-fracture layer" interface when the fracture density changes

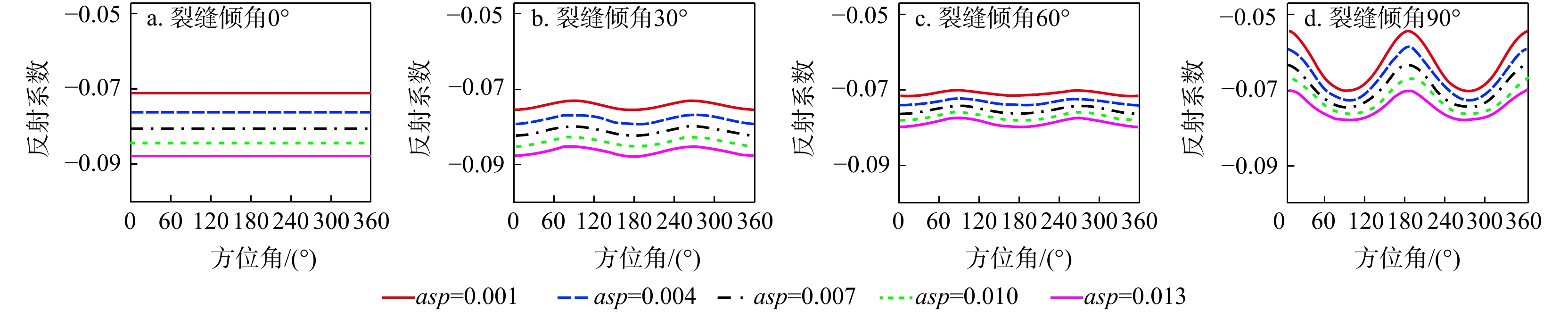

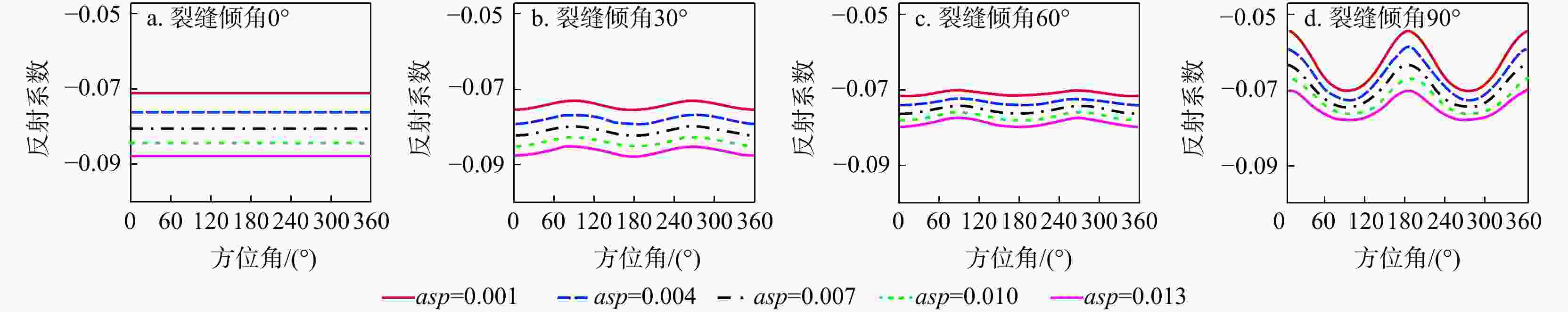

图 4 裂缝纵横比(asp)变化时“隔层−裂缝层”界面的AVAZ变化特征
Figure 4. AVAZ variation characteristics of the "interlayer-fracture layer" interface when the fracture aspect ratio changes

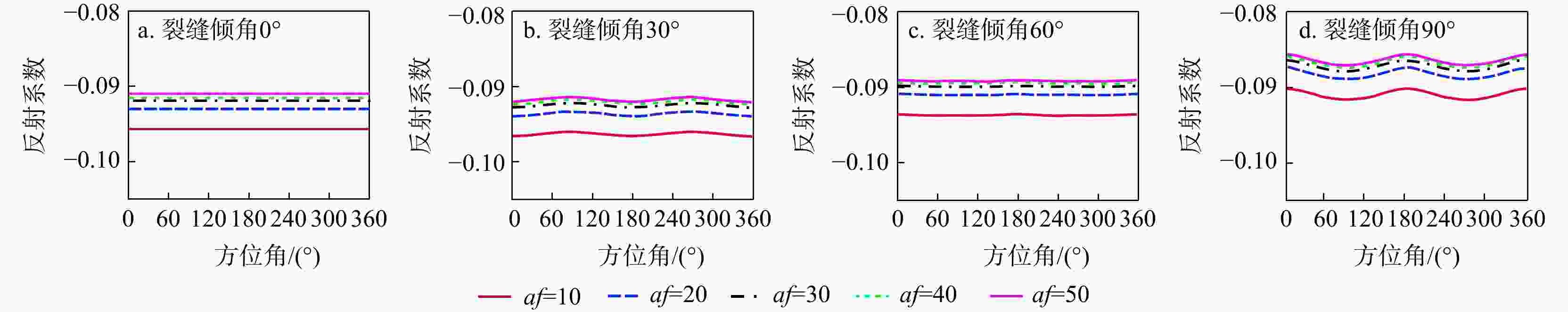

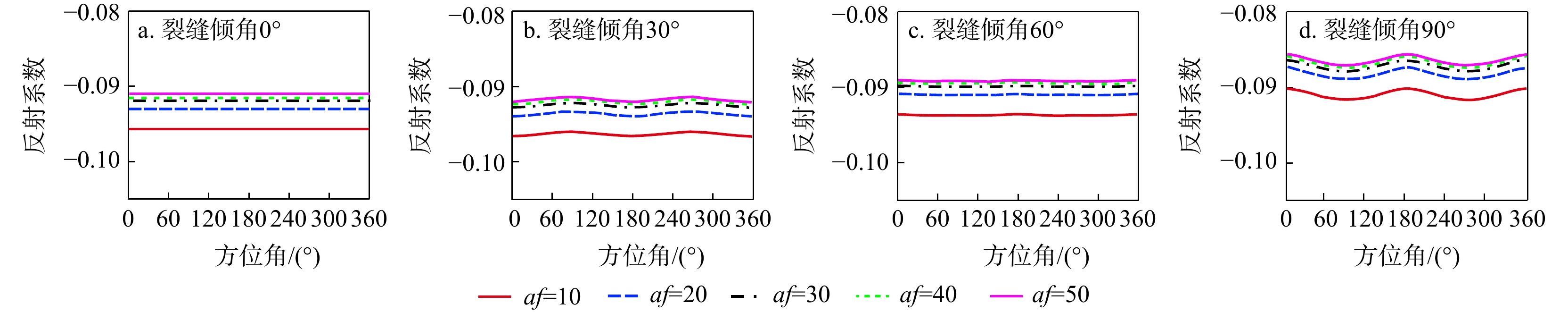

图 5 裂缝长度(af)变化时“隔层−裂缝层”界面的AVAZ变化特征
Figure 5. AVAZ variation characteristics of the "interlayer-fracture layer" interface when the fracture length changes

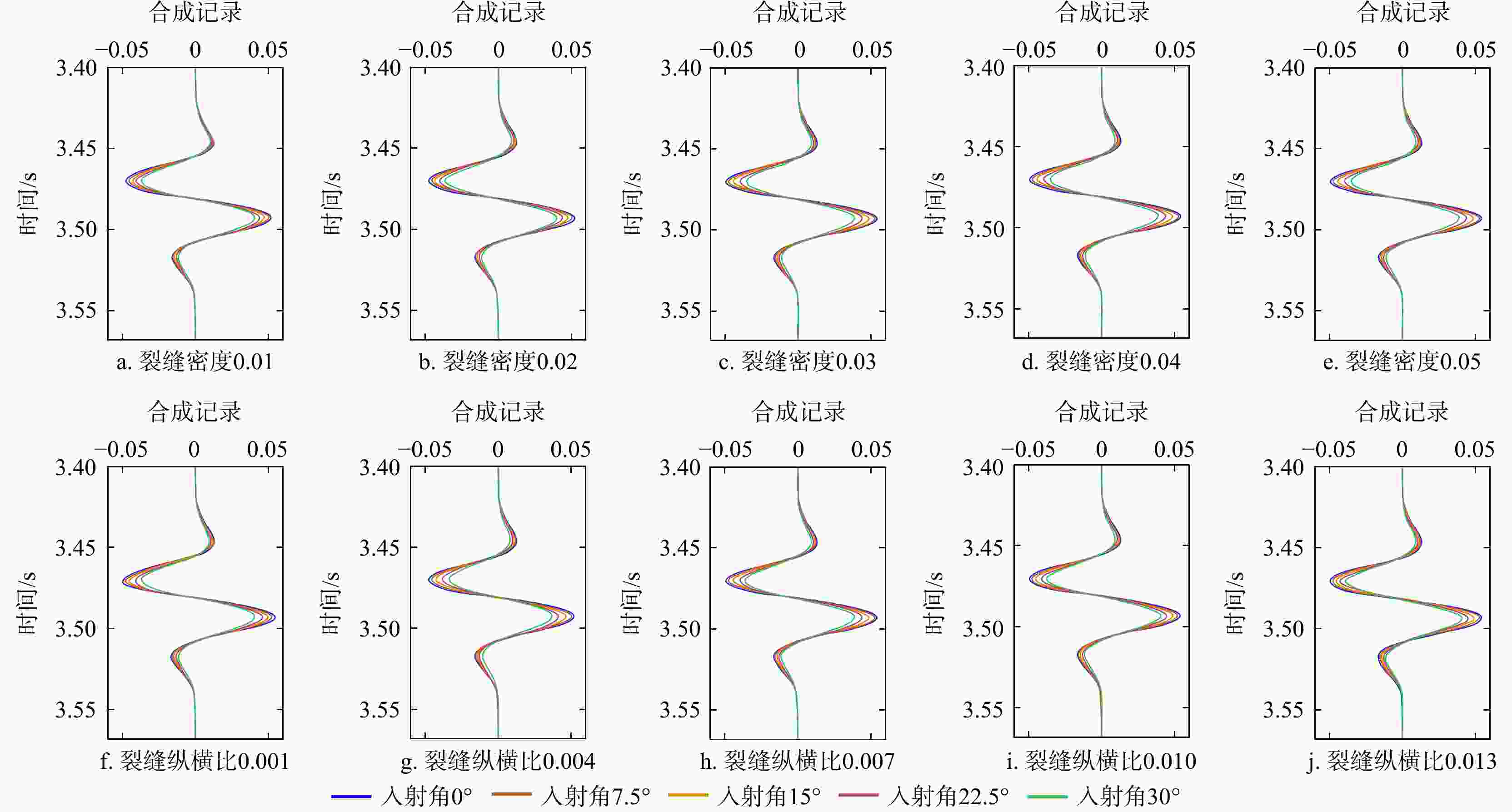

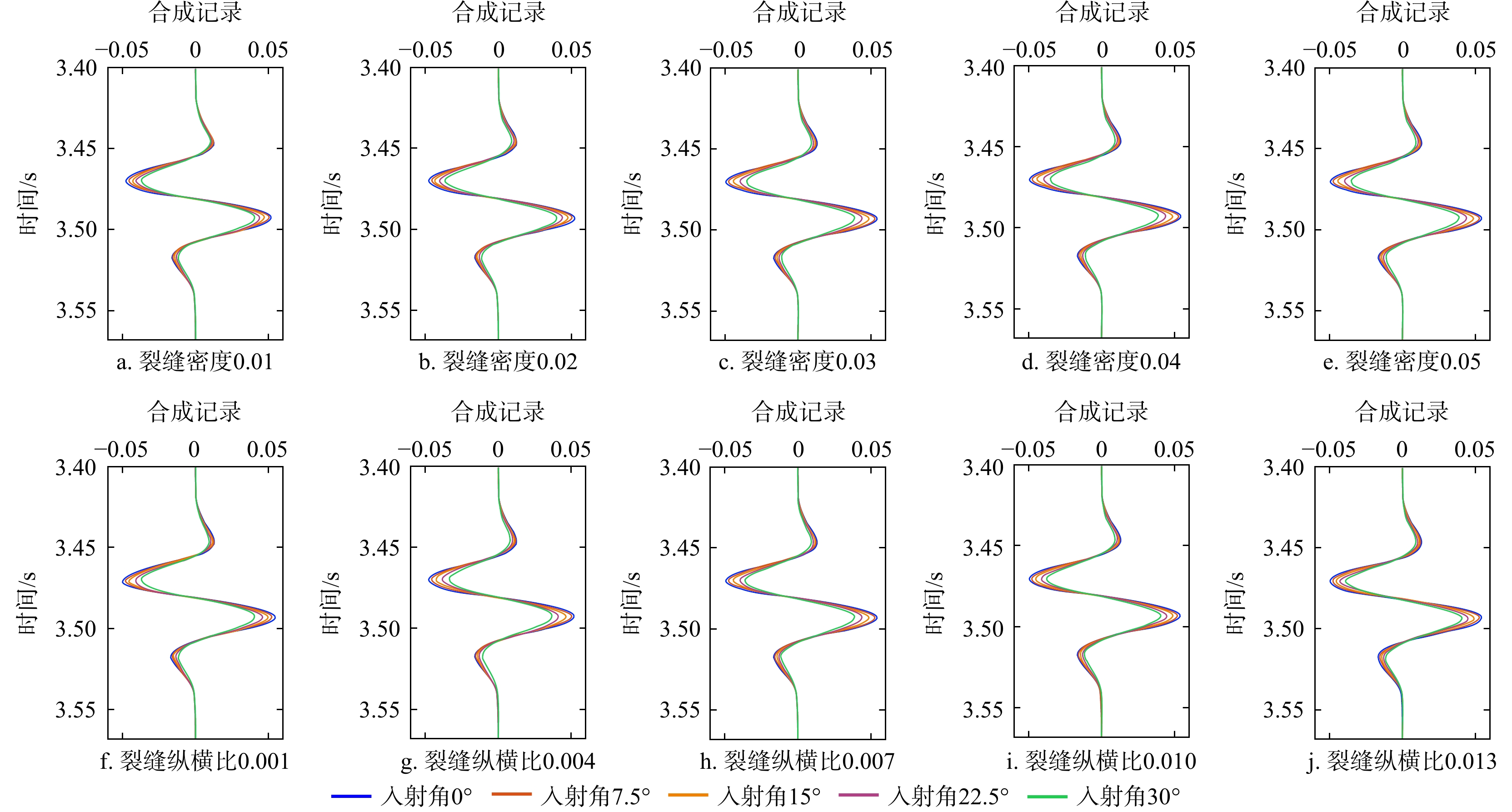

图 6 裂缝密度、纵横比不同时地震响应随入射角变化
Figure 6. Seismic response varies with incident angle when the fracture density and aspect ratio are different

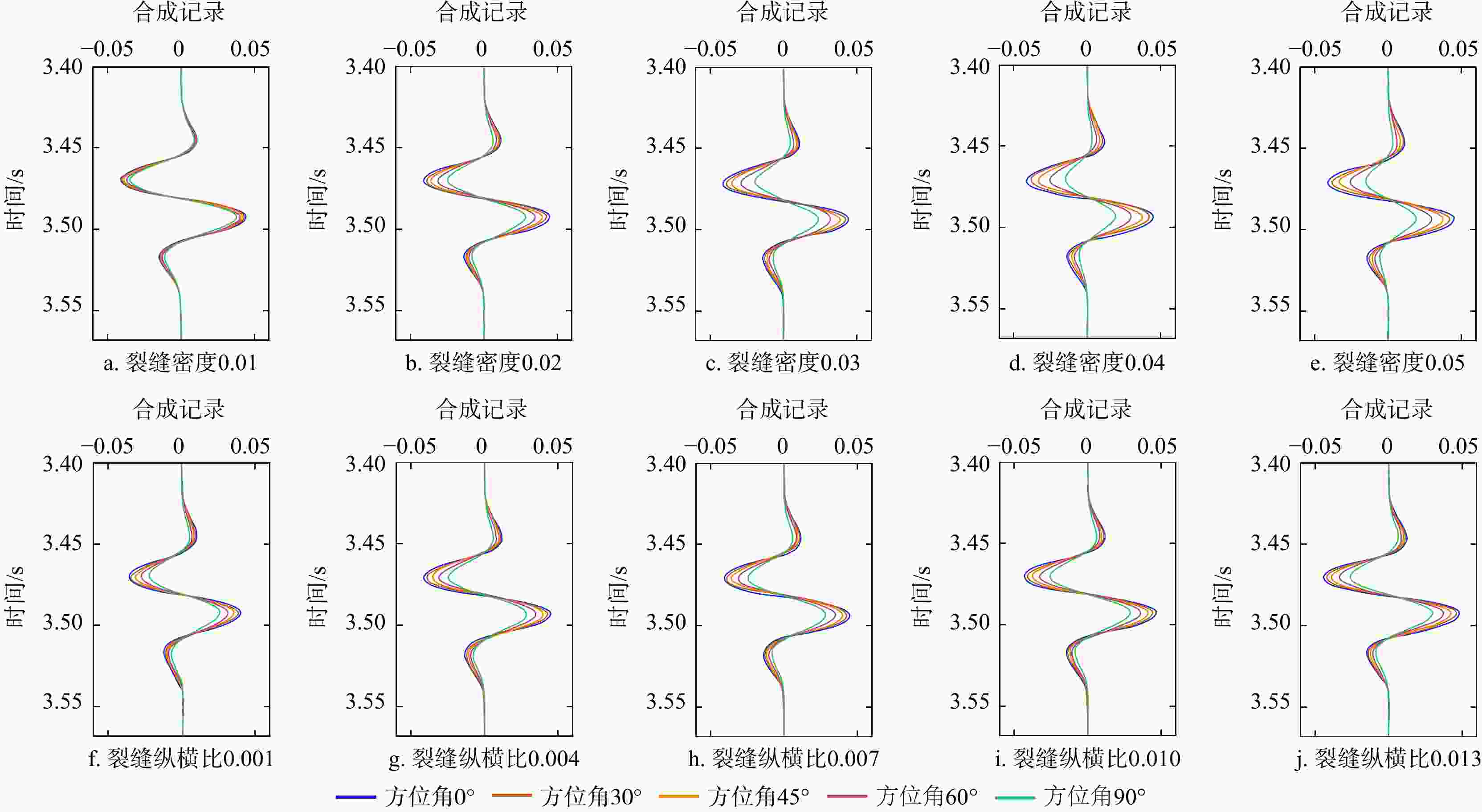

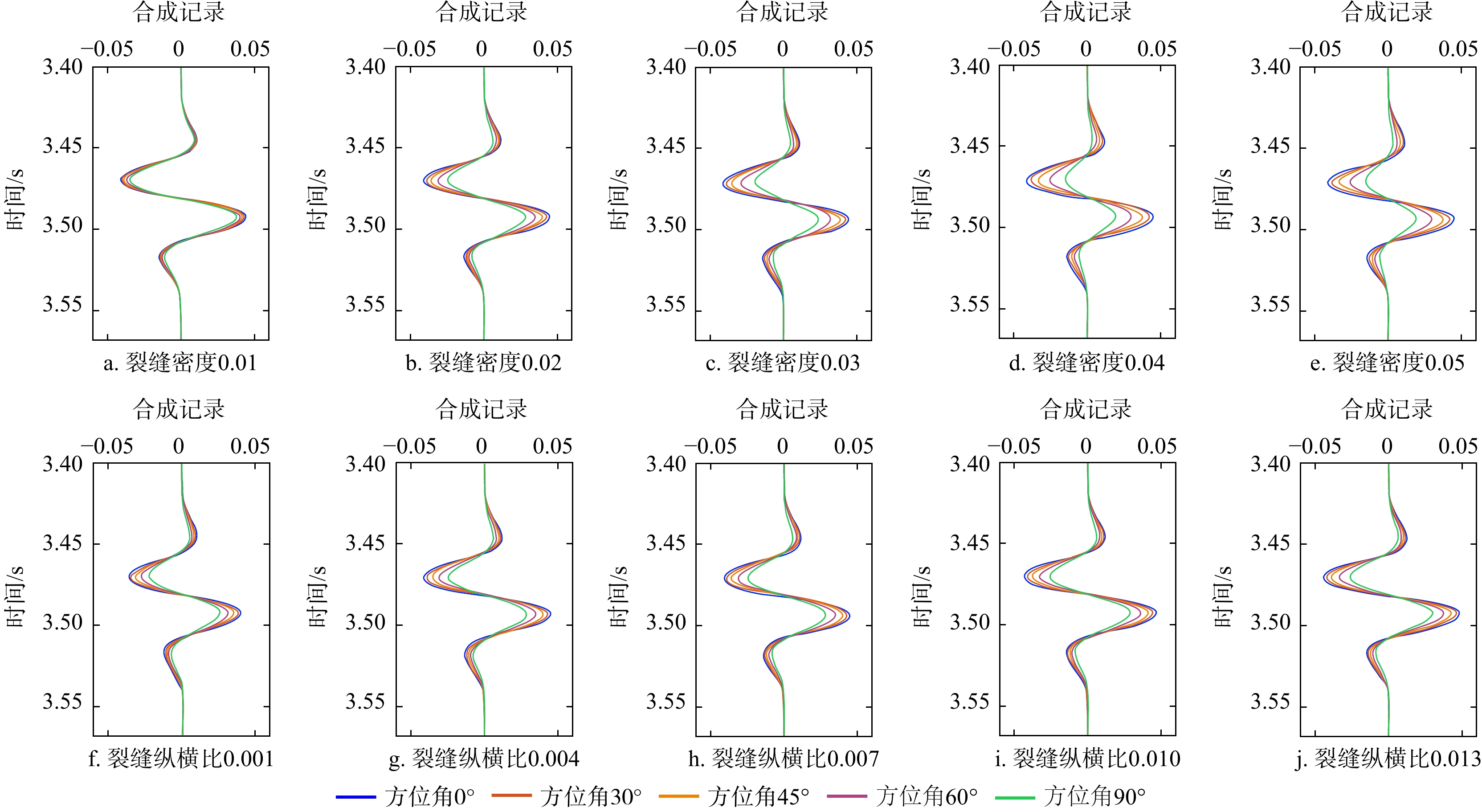

图 7 裂缝密度、纵横比不同时地震响应随方位角变化
Figure 7. Seismic response changes with azimuth angle when the fracture density and aspect ratio are different

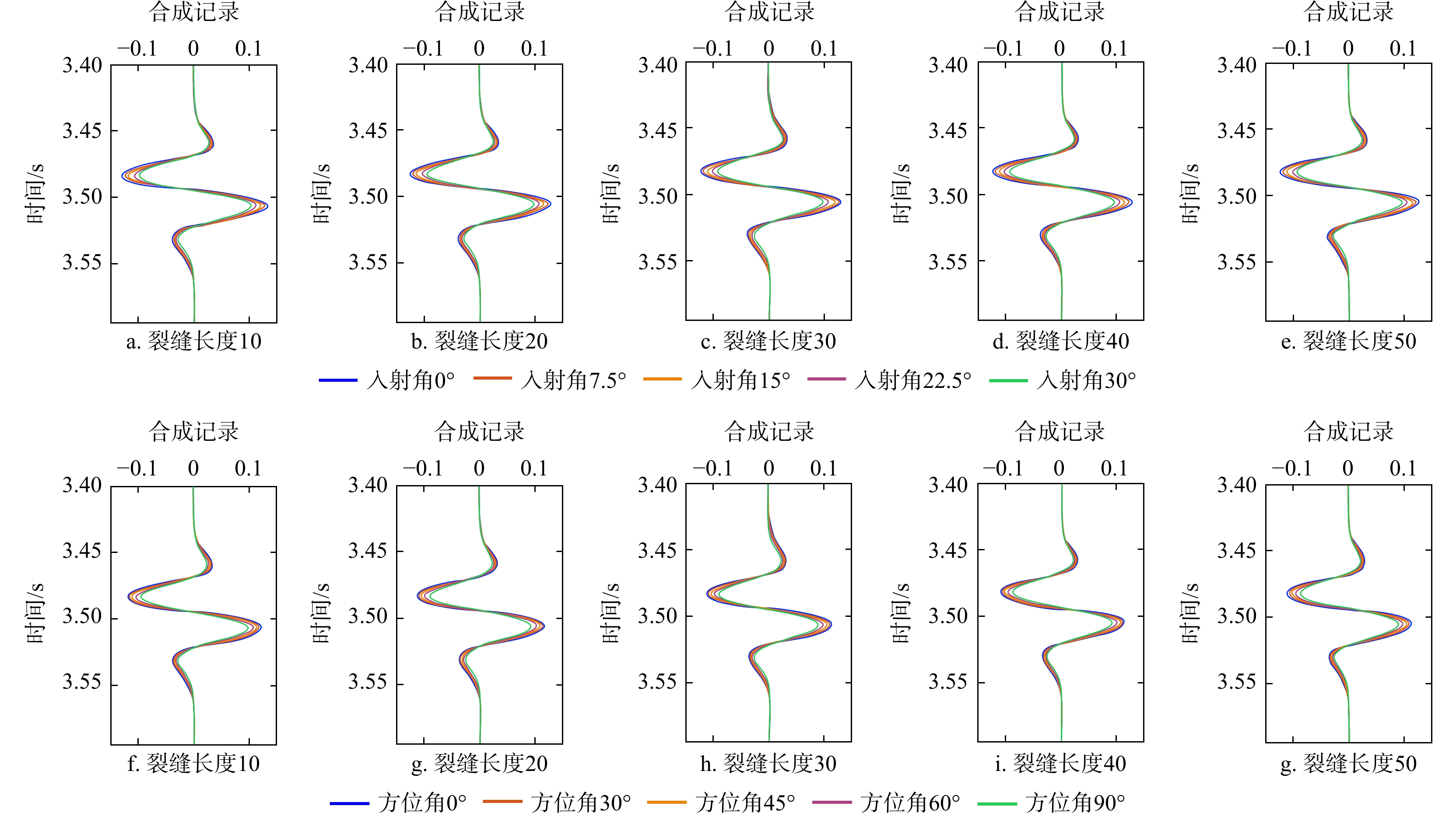

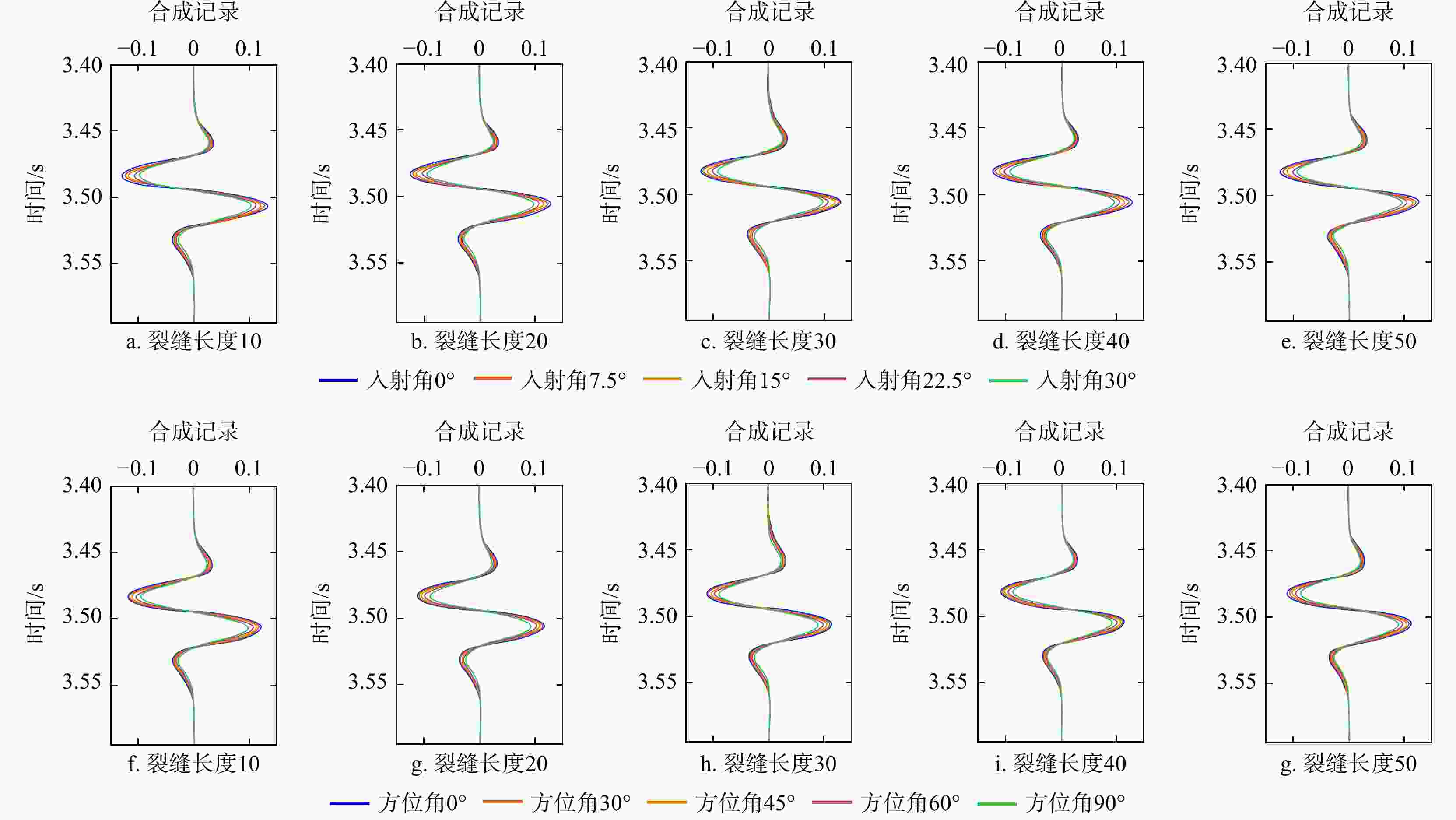

图 8 裂缝长度不同时地震响应随入射角、方位角的变化
Figure 8. Seismic response changes with incident angle and azimuth angle when the fracture length is different

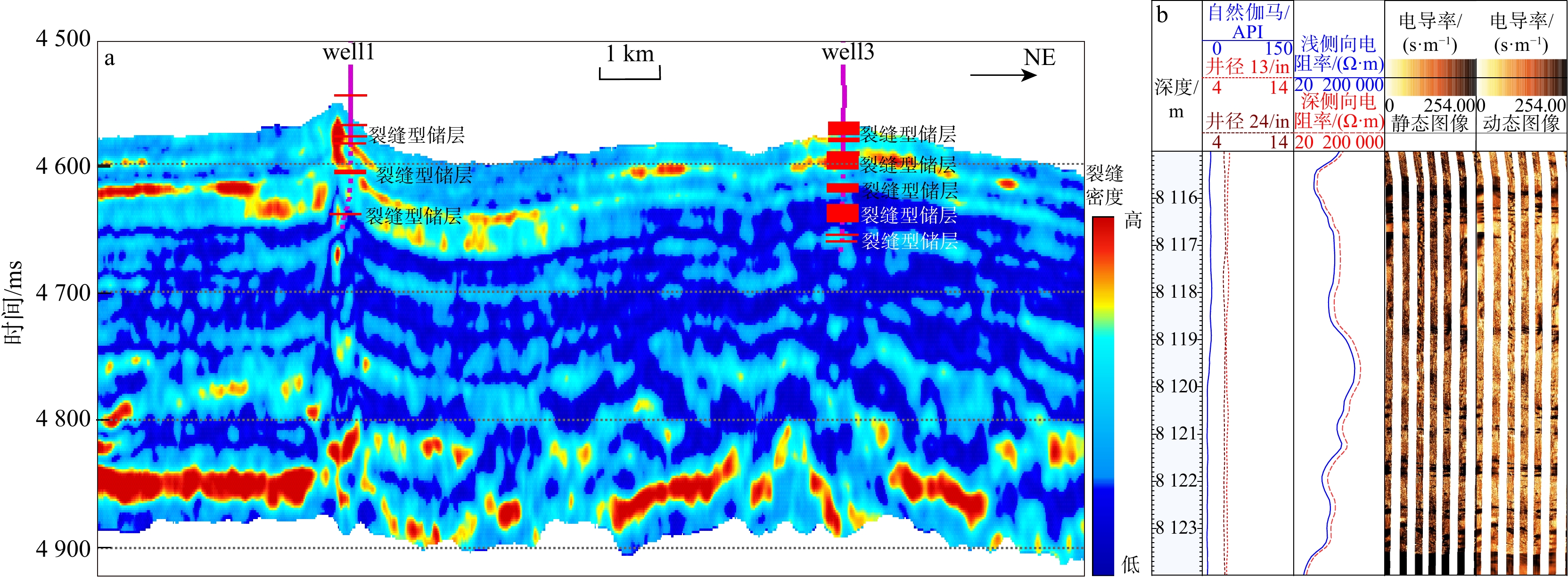

图 9 过well1-well3井连井叠前裂缝密度预测图(a)和well3井成像测井解释图(b)
13，24均为仪器代码，1 in=
0.0254 mFigure 9. Prediction of prestack fracture density through well1-well3 (a) and interpretation of well3 imaging logging (b)

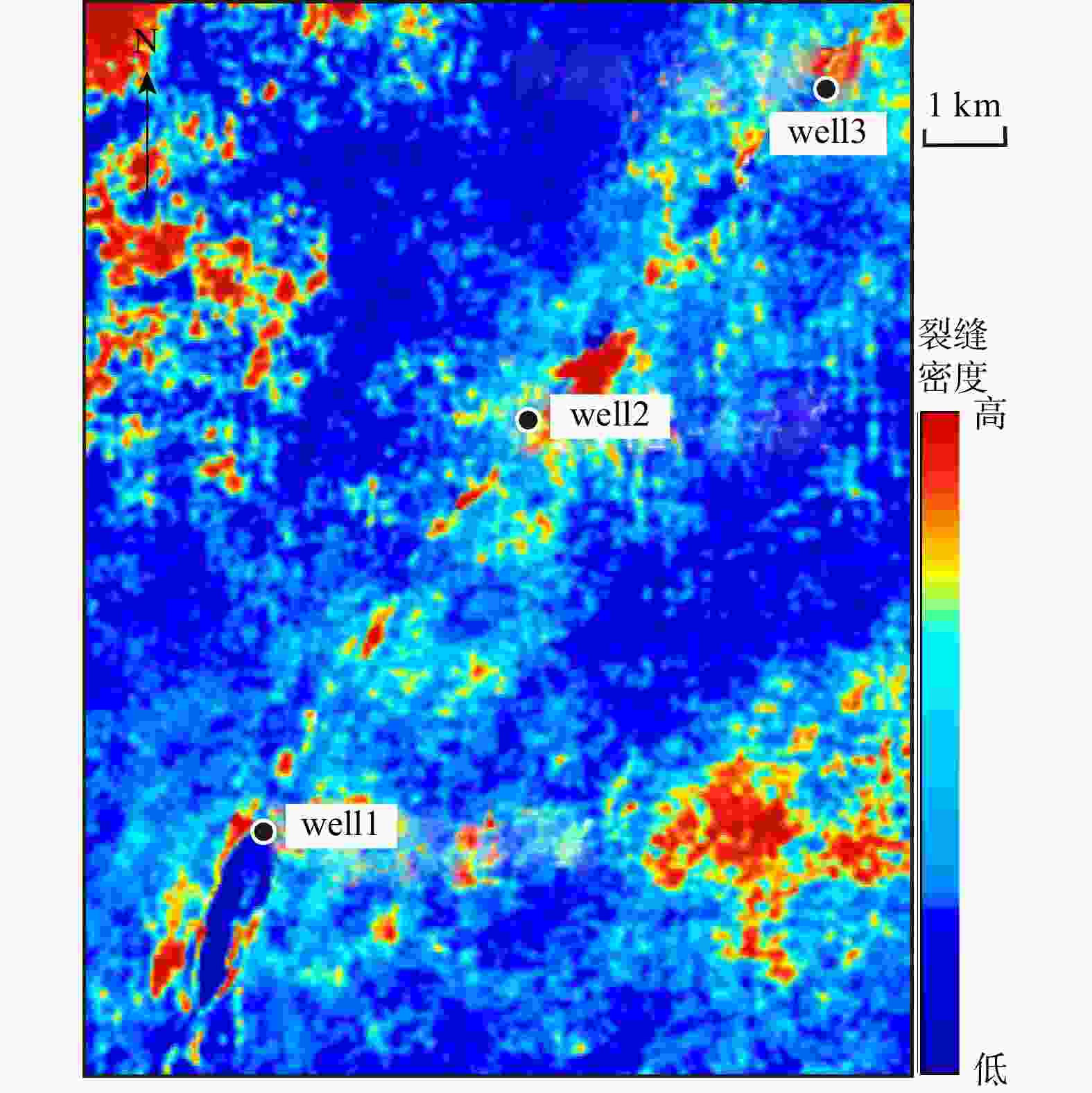

图 10 顺北X井区一间房组顶面裂缝密度切片
Figure 10. Slicing of fracture density on the top surface of the Yijianfang Formation in Shunbei Well X area
-
