基于微震技术的河流过程监测及水文参数反演的初步探索

冯亮; 张世哲; 谢斌; 周晓悦; 续伟; 王艳梅

doi:10.19509/j.cnki.dzkq.tb20240293

基于微震技术的河流过程监测及水文参数反演的初步探索

doi: 10.19509/j.cnki.dzkq.tb20240293

冯亮^{1a, 1b, ,},
张世哲^{1a, 2, 3},
谢斌⁴,
周晓悦^1a,
续伟^1a,
王艳梅^1a

1a.
江西理工大学：资源与环境工程学院
1b.
江西理工大学：河流源头水生态保护江西省重点实验室，江西赣州 341000
2.
中国科学院大学，北京 100049
3.
中国科学院、水利部成都山地灾害与环境研究所，成都 610041
4.
江西省地震局赣州地震监测中心站，江西赣州 341000

基金项目: 国家自然科学基金青年科学基金项目（4210071309）；江西省自然科学基金面上项目（20224BAB203040）；中国地震局“监测、预报、科研”三结合课题基金项目（3JH-202401050）；江西省地震局“2111”孵化基金项目（FD2111-202404）

详细信息

通讯作者:
E-mail：liang.feng@jxust.edu.cn

中图分类号: X43；X84；TM93
计量
- 文章访问数: 46
- PDF下载量: 10
- 被引次数: 0
出版历程
- 收稿日期: 2024-06-03
- 录用日期: 2024-07-26
- 修回日期: 2024-07-25
- 网络出版日期: 2025-12-18

Preliminary exploration of river process monitoring and hydrological parameter inversion based on microseismic technology

FENG Liang^{1a, 1b
, ,},
ZHANG Shizhe^{1a, 2, 3},
XIE Bin⁴,
ZHOU Xiaoyue^1a,
XU Wei^1a,
WANG Yanmei^1a

1a.
School of Resources and Environmental Engineering, Jiangxi University of Science and Technology
1b.
Jiangxi Provincial Key Laboratory of Water Ecology Protection of River Headwaters, Jiangxi University of Science and Technology, Ganzhou Jiangxi 341000, China
2.
University of Chinese Academy of Sciences, Beijing 100049, China
3.
Chengdu Institute of Mountain Hazards and Environment, Chinese Academy of Sciences, Ministry of Water Resources, Chengdu 610041, China
4.
Ganzhou Earthquake Monitoring Center Station, Jiangxi Provincial Seismological Bureau, Ganzhou Jiangxi 341000, China

More Information

Corresponding author: E-mail：liang.feng@jxust.edu.cn

摘要

摘要:

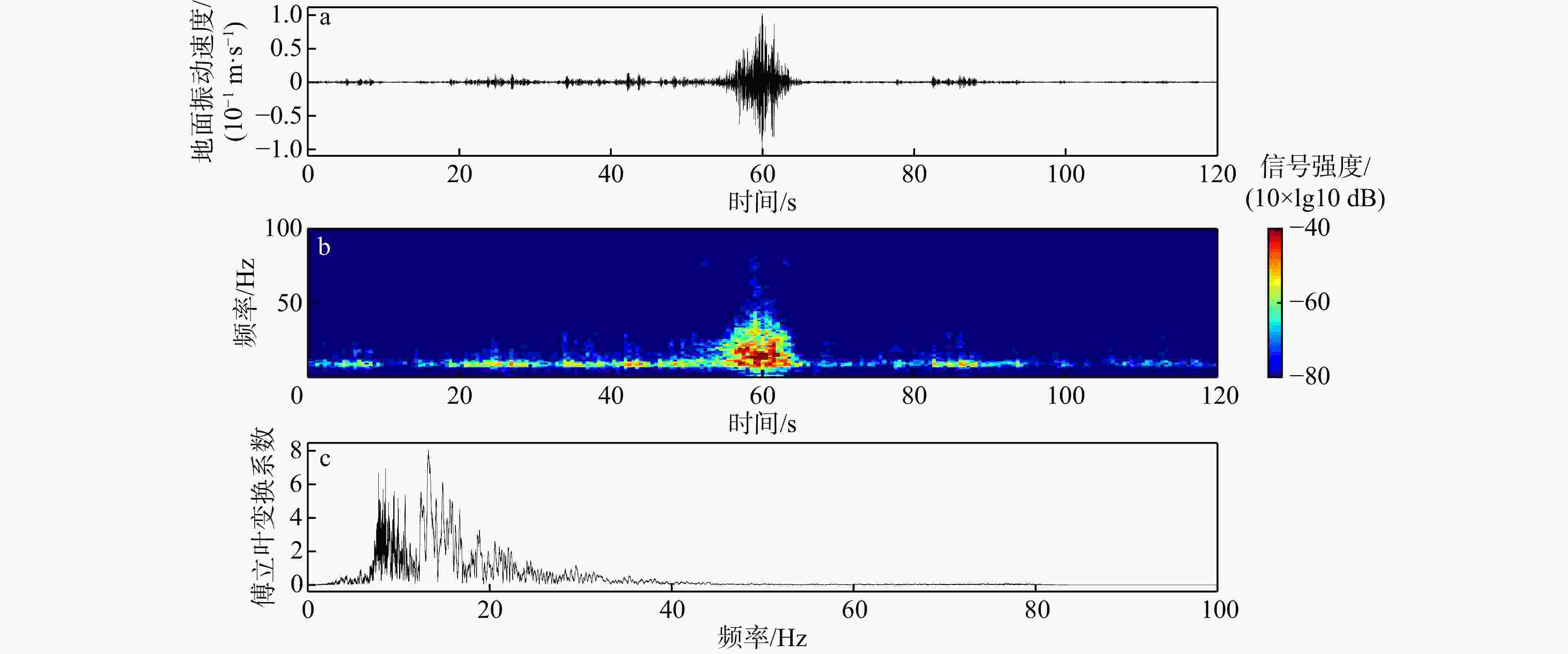

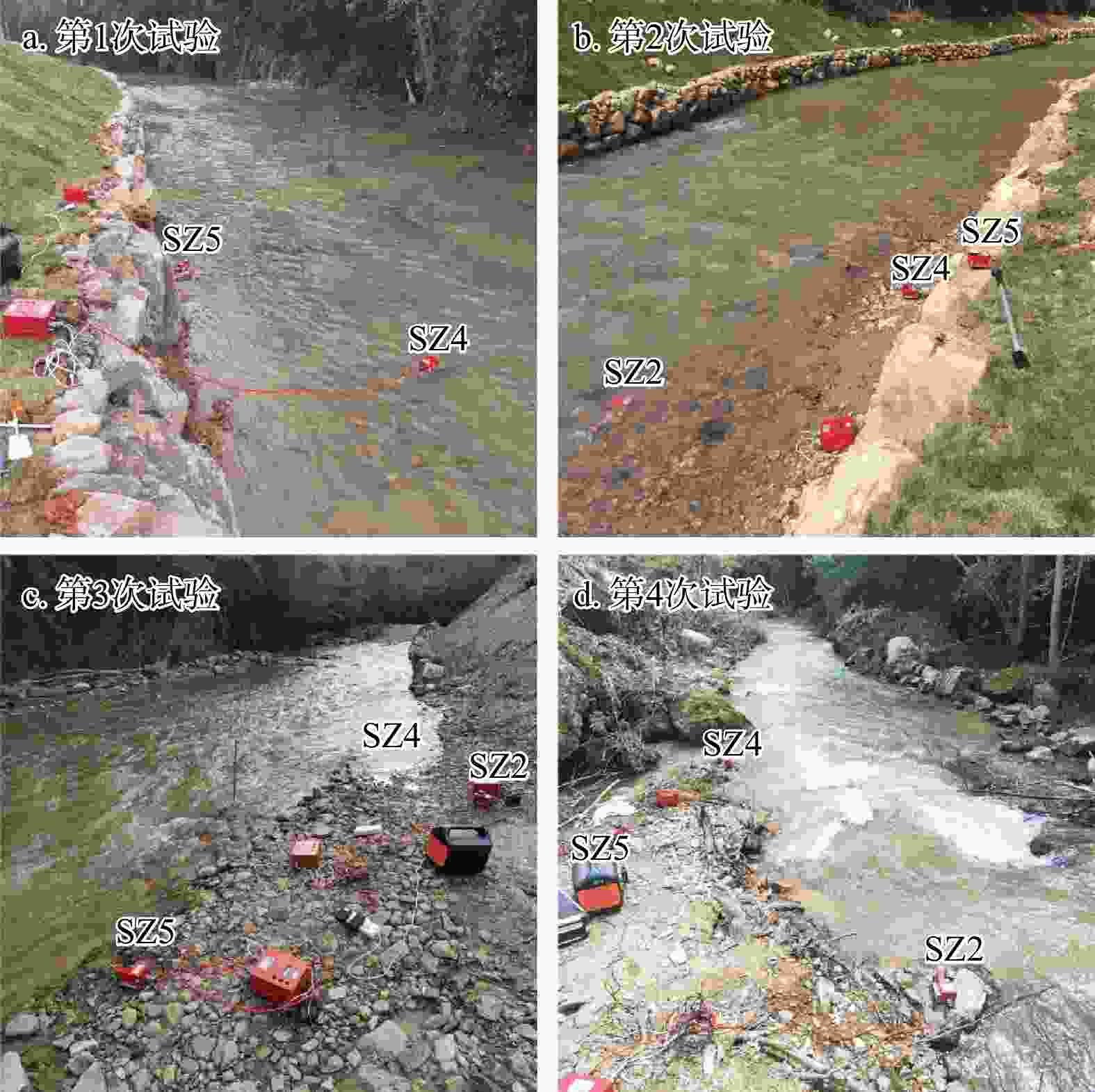

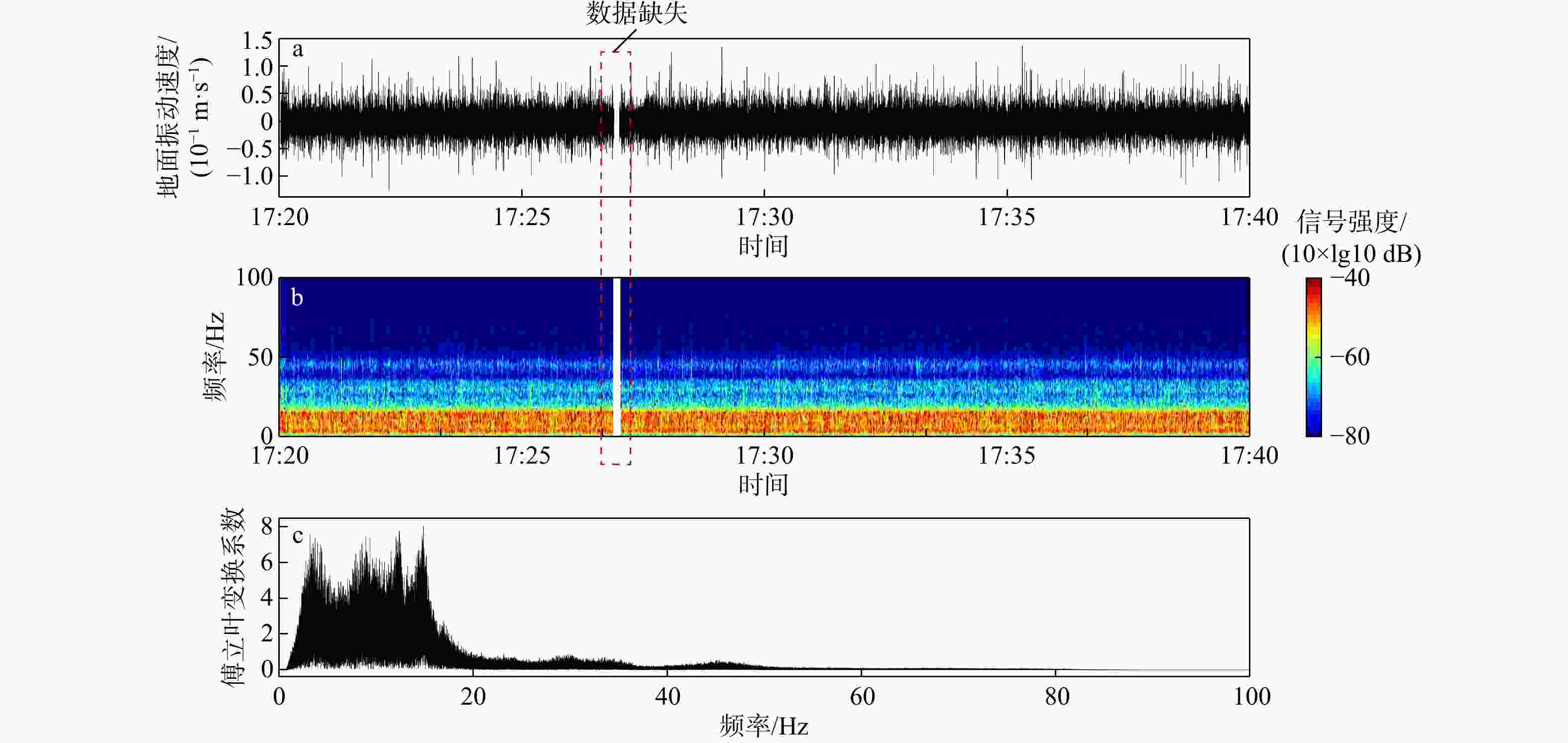

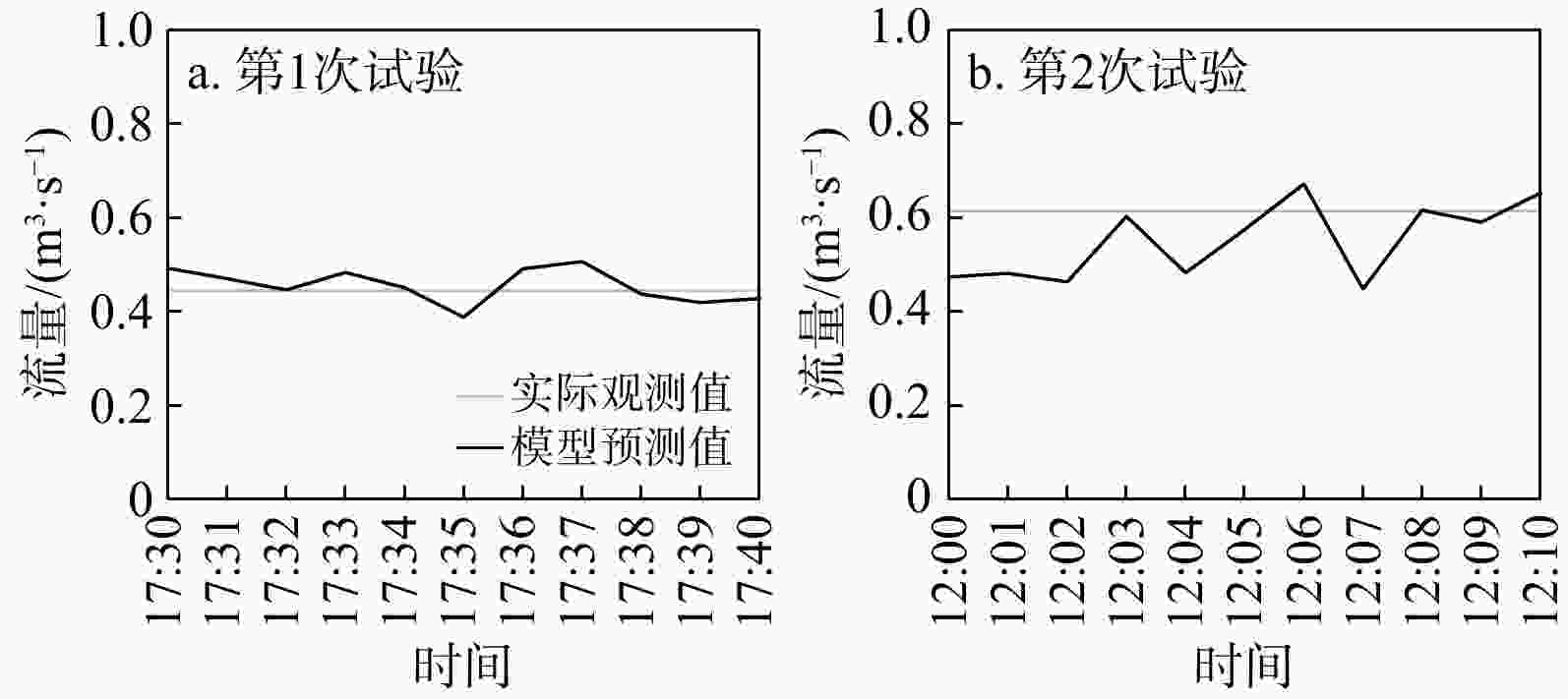

河流监测手段趋向遥感、智能化，传统河流监测技术费时费力，且在洪水期间面临仪器损坏和缺失数据的风险。国家地震台网分布广泛密集，微震技术具有远程无接触、低成本和24 h无间断监测的特点，正逐渐被用于河流监测中。通过野外河流微震监测试验，监测与分析河流过程的动态振动信号，获取河流湍流过程微震信号的物理特征。在此基础上，利用带通滤波的方法保留2～7 Hz频带的信号，采用Welch法计算出微震信号时频分析图上在2～7 Hz频带内1 min平均地震功率，将其转换为能量的形式，并与现场测得的河流水文数据相匹配，从而评估微震监测河流的潜力。为获取河流的水文参数，提出一个简单的线性回归模型量化平均功率谱密度（PSD）与河流湍流过程之间的关系，由此推导出反演计算河流流量的线性近似模型，模型反演结果在实测值附近波动，相对误差在10.29%以内，反演结果较为准确。本研究为野外河流微震监测试验的初步探索，研究成果可为依托国家高密度地震台站的河流洪水及常态水文遥感、智能化监测提供参考和理论依据。
- 微震监测 /
- 河流过程监测 /
- 时频分析 /
- 功率谱密度（PSD） /
- 流量反演 /
- 水文参数反演
Abstract: <p>River monitoring tends to be adopt remote sensing and intelligent technologies. Traditional river monitoring techniques are time-consuming and labor-intensive, and face the risks of instrument damage and missing data during floods. Benefiting from the advantages of remote non-contact operation, low cost and 24-hour continuous monitoring, microseismic technology is increasingly applied in river monitoring. In this paper, field microseismic monitoring experiments on rivers were conducted to monitor and analyze the dynamic vibration signals of river processes. Thereby obtaining the physical characteristics of microseismic signals generated by river turbulence. On this basis, a band-pass filtering method was used to retain signals in the 2-7 Hz frequency band. The Welch method, was employed to calculate the 1-minute average seismic power within the 2-7 Hz frequency band from the time-frequency analysis diagram of microseismic signals, which was then converted energy form and matched with the field measured river hydrological data to evaluate the potential of microseismic technology in river monitoring. To acquire the hydrological parameters of the rivers, a simple linear regression model was proposed to quantify the relationship between the average power spectral density (PSD) and the river turbulence process. A linear approximation model for inverting river discharge was derived accordingly. The inversion results of the model fluctuated around the measured values with a relative errors within 10.29%, indicating high accuracy. This study is a preliminary exploration of field microseismic monitoring experiments on rivers. The research results can provide a reference and theoretical basis for remote sensing and intelligent monitoring of river floods and normal hydrology relying on the national high-density seismic network.</p></sec><p style="line-height: 12px;"> </p> </div> <ul class="article-keyword article-info-en"> <b>Key words:</b> <li > <a class="underHigh mainColor" onclick="searchLike('keywordEn','microseismic monitoring')" href="javascript:void(0);"> microseismic monitoring</a> / </li> <li > <a class="underHigh mainColor" onclick="searchLike('keywordEn','river process monitoring')" href="javascript:void(0);"> river process monitoring</a> / </li> <li > <a class="underHigh mainColor" onclick="searchLike('keywordEn','time-frequency analysis')" href="javascript:void(0);"> time-frequency analysis</a> / </li> <li > <a class="underHigh mainColor" onclick="searchLike('keywordEn','power spectral density (PSD)')" href="javascript:void(0);"> power spectral density (PSD)</a> / </li> <li > <a class="underHigh mainColor" onclick="searchLike('keywordEn','discharge inversion')" href="javascript:void(0);"> discharge inversion</a> / </li> <li > <a class="underHigh mainColor" onclick="searchLike('keywordEn','hydrological parameter inversion')" href="javascript:void(0);"> hydrological parameter inversion</a> </li> </ul> </div> </li>  <div val="HTML全文" class="html-text phone-title phone-mark"> <a class='nonce mainColor' data-navId="htmlContent" rel="html" articleId='cd4df305-cbb0-47a7-9d97-39203b049dec' onclick="ajaxCountHtmlView('cd4df305-cbb0-47a7-9d97-39203b049dec');" href="javascript:void(0);"> HTML全文<num></num> </a> </div> <li id="htmlContent" class="article-box article-main-mid"> </li> <div class="phone-title" style="display:none;"></div>   <li class="article-box article-chart" id="figTab"> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html> <head> <meta name="renderer" content="webkit" /> </head> <body> <div class="_figclass figure"> <div class="figureTextBox"> <div> <a class="" title="图 1 试验仪器<br>Fig. 1. Experimental instruments" href="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-1.jpg" > <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-1_mini.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-1.jpg'" class="figure_img figure_type1 " id="Fig-Figure1" ref="#Fig-Figure1"/> </a> </div> <div class="figureTitle"> <p class="figTabSpan"> <span class="FigText" id="Figure1"> <b>图 1</b> </span> 试验仪器</p>   <p class="figTabSpan"> <span class="FigText" id="Figure1"> <b>Figure 1.</b> </span> Experimental instruments</p>  </div> </div>  <div class="figure_button"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png"/>下载: <a href="javascript:void(0);" onclick="downloadImg('0463fc4d-51f6-424a-af94-ba44ad594ca3','figure')">全尺寸图片</a> <a href="javascript:void(0);" onclick="downloadPPT('0463fc4d-51f6-424a-af94-ba44ad594ca3','figure')" style="border-left: 1px solid #ccc;padding-left: 5px;">幻灯片</a> </div>  </div> <div class="_figclass figure"> <div class="figureTextBox"> <div> <a class="" title="图 2 显示试验及台站位置的场地地形图<br>Fig. 2. Topographic map of the study area showing the locations of the experiments and stations" href="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-2.jpg" > <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-2_mini.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-2.jpg'" class="figure_img figure_type1 " id="Fig-Figure2" ref="#Fig-Figure2"/> </a> </div> <div class="figureTitle"> <p class="figTabSpan"> <span class="FigText" id="Figure2"> <b>图 2</b> </span> 显示试验及台站位置的场地地形图</p>   <p class="figTabSpan"> <span class="FigText" id="Figure2"> <b>Figure 2.</b> </span> Topographic map of the study area showing the locations of the experiments and stations</p>  </div> </div>  <div class="figure_button"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png"/>下载: <a href="javascript:void(0);" onclick="downloadImg('0a71a254-1356-4b13-a462-a60f2b3dbfa8','figure')">全尺寸图片</a> <a href="javascript:void(0);" onclick="downloadPPT('0a71a254-1356-4b13-a462-a60f2b3dbfa8','figure')" style="border-left: 1px solid #ccc;padding-left: 5px;">幻灯片</a> </div>  </div> <div class="_figclass figure"> <div class="figureTextBox"> <div> <a class="" title="图 3 河道仪器布设图（SZ2等均为实验仪器编号）<br>Fig. 3. Layout of seismic instruments" href="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-3.jpg" > <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-3_mini.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-3.jpg'" class="figure_img figure_type1 " id="Fig-Figure3" ref="#Fig-Figure3"/> </a> </div> <div class="figureTitle"> <p class="figTabSpan"> <span class="FigText" id="Figure3"> <b>图 3</b> </span> 河道仪器布设图（SZ2等均为实验仪器编号）</p>   <p class="figTabSpan"> <span class="FigText" id="Figure3"> <b>Figure 3.</b> </span> Layout of seismic instruments</p>  </div> </div>  <div class="figure_button"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png"/>下载: <a href="javascript:void(0);" onclick="downloadImg('81fe1ba2-598d-454c-87c3-7c96d94fc213','figure')">全尺寸图片</a> <a href="javascript:void(0);" onclick="downloadPPT('81fe1ba2-598d-454c-87c3-7c96d94fc213','figure')" style="border-left: 1px solid #ccc;padding-left: 5px;">幻灯片</a> </div>  </div> <div class="_figclass figure"> <div class="figureTextBox"> <div> <a class="" title="图 4 速度面积法估算河流流量示意图<br>Fig. 4. Schematic diagram of river discharge estimation by the velocity-area method" href="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-4.jpg" > <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-4_mini.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-4.jpg'" class="figure_img figure_type1 " id="Fig-Figure4" ref="#Fig-Figure4"/> </a> </div> <div class="figureTitle"> <p class="figTabSpan"> <span class="FigText" id="Figure4"> <b>图 4</b> </span> 速度面积法估算河流流量示意图</p>  <p class="figTabSpan"> <i>p</i><sub>0</sub>. 河岸起点；<i>p<sub>i</sub></i>. 第<i>i</i>个测量点；<i>p<sub>i</sub></i><i>p</i><sub>0</sub>. 测量点至河岸距离；<i>h<sub>i</sub></i>. 测量点<i>p</i><sub><i>i</i></sub>所测水位；<i>v<sub>i</sub></i>. 测量点<i>p</i><sub><i>i</i></sub>所测表面流速；<i>u<sub>i</sub></i>. 切片流速；<i>d<sub>i</sub></i>. 切片深度；<i>b<sub>i</sub></i>. 切片宽度</p>  <p class="figTabSpan"> <span class="FigText" id="Figure4"> <b>Figure 4.</b> </span> Schematic diagram of river discharge estimation by the velocity-area method</p>  </div> </div>  <div class="figure_button"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png"/>下载: <a href="javascript:void(0);" onclick="downloadImg('423ed529-b69f-4081-b455-0192634c169f','figure')">全尺寸图片</a> <a href="javascript:void(0);" onclick="downloadPPT('423ed529-b69f-4081-b455-0192634c169f','figure')" style="border-left: 1px solid #ccc;padding-left: 5px;">幻灯片</a> </div>  </div> <div class="_figclass figure"> <div class="figureTextBox"> <div> <a class="" title="图 5 不同断面位置处河流信号和环境噪音中的车辆信号波形（通道E为微震设备EW方向接收到的信号；通道N为微震设备NS方向接收到的信号；通道Z为微震设备垂直方向接收到的信号；下同）<br>Fig. 5. Waveforms of river signals and vehicle signals at different section locations" href="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-5.jpg" > <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-5_mini.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-5.jpg'" class="figure_img figure_type2 " id="Fig-Figure5" ref="#Fig-Figure5"/> </a> </div> <div class="figureTitle"> <p class="figTabSpan"> <span class="FigText" id="Figure5"> <b>图 5</b> </span> 不同断面位置处河流信号和环境噪音中的车辆信号波形（通道E为微震设备EW方向接收到的信号；通道N为微震设备NS方向接收到的信号；通道Z为微震设备垂直方向接收到的信号；下同）</p>   <p class="figTabSpan"> <span class="FigText" id="Figure5"> <b>Figure 5.</b> </span> Waveforms of river signals and vehicle signals at different section locations</p>  </div> </div>  <div class="figure_button"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png"/>下载: <a href="javascript:void(0);" onclick="downloadImg('a4b3c53f-c76f-4930-a039-30540d807032','figure')">全尺寸图片</a> <a href="javascript:void(0);" onclick="downloadPPT('a4b3c53f-c76f-4930-a039-30540d807032','figure')" style="border-left: 1px solid #ccc;padding-left: 5px;">幻灯片</a> </div>  </div> <div class="_figclass figure"> <div class="figureTextBox"> <div> <a class="" title="图 6 第1次试验位置SZ4微震基站通道E记录的河流产生的微震信号(a～b)及其频谱(c)特征<br>Fig. 6. Microseismic signals generated by the river (a-b) and their spectral characteristics (c) recorded by Chamel E of the SZ4 microseismic station at the 1st experiment location" href="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-6.jpg" > <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-6_mini.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-6.jpg'" class="figure_img figure_type2 " id="Fig-Figure6" ref="#Fig-Figure6"/> </a> </div> <div class="figureTitle"> <p class="figTabSpan"> <span class="FigText" id="Figure6"> <b>图 6</b> </span> 第1次试验位置SZ4微震基站通道E记录的河流产生的微震信号(a～b)及其频谱(c)特征</p>   <p class="figTabSpan"> <span class="FigText" id="Figure6"> <b>Figure 6.</b> </span> Microseismic signals generated by the river (a-b) and their spectral characteristics (c) recorded by Chamel E of the SZ4 microseismic station at the 1st experiment location</p>  </div> </div>  <div class="figure_button"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png"/>下载: <a href="javascript:void(0);" onclick="downloadImg('05e8fff6-20fe-46af-b6fc-a2191ea56a17','figure')">全尺寸图片</a> <a href="javascript:void(0);" onclick="downloadPPT('05e8fff6-20fe-46af-b6fc-a2191ea56a17','figure')" style="border-left: 1px solid #ccc;padding-left: 5px;">幻灯片</a> </div>  </div> <div class="_figclass figure"> <div class="figureTextBox"> <div> <a class="" title="图 7 第3次试验位置处SZ3微震基站通道E记录波形图<br>Fig. 7. Waveform diagram recorded by Channel E of the SZ3 microseismic station at the 3rd experiment station" href="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-7.jpg" > <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-7_mini.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-7.jpg'" class="figure_img figure_type1 " id="Fig-Figure7" ref="#Fig-Figure7"/> </a> </div> <div class="figureTitle"> <p class="figTabSpan"> <span class="FigText" id="Figure7"> <b>图 7</b> </span> 第3次试验位置处SZ3微震基站通道E记录波形图</p>   <p class="figTabSpan"> <span class="FigText" id="Figure7"> <b>Figure 7.</b> </span> Waveform diagram recorded by Channel E of the SZ3 microseismic station at the 3rd experiment station</p>  </div> </div>  <div class="figure_button"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png"/>下载: <a href="javascript:void(0);" onclick="downloadImg('96abf4b9-6a95-497d-a5b0-6cc37eabf095','figure')">全尺寸图片</a> <a href="javascript:void(0);" onclick="downloadPPT('96abf4b9-6a95-497d-a5b0-6cc37eabf095','figure')" style="border-left: 1px solid #ccc;padding-left: 5px;">幻灯片</a> </div>  </div> <div class="_figclass figure"> <div class="figureTextBox"> <div> <a class="" title="图 8 车辆产生的微震信号(a～b)及其频谱特征(c)（SZ3微震基站通道E 15:55记录的数据）<br>Fig. 8. Microseismic signals generated by vehicles (a-b) and their spectral characteristics (c)" href="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-8.jpg" > <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-8_mini.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-8.jpg'" class="figure_img figure_type2 " id="Fig-Figure8" ref="#Fig-Figure8"/> </a> </div> <div class="figureTitle"> <p class="figTabSpan"> <span class="FigText" id="Figure8"> <b>图 8</b> </span> 车辆产生的微震信号(a～b)及其频谱特征(c)（SZ3微震基站通道E 15:55记录的数据）</p>   <p class="figTabSpan"> <span class="FigText" id="Figure8"> <b>Figure 8.</b> </span> Microseismic signals generated by vehicles (a-b) and their spectral characteristics (c)</p>  </div> </div>  <div class="figure_button"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png"/>下载: <a href="javascript:void(0);" onclick="downloadImg('39f3baad-ee99-4473-bd90-5dddd168f11b','figure')">全尺寸图片</a> <a href="javascript:void(0);" onclick="downloadPPT('39f3baad-ee99-4473-bd90-5dddd168f11b','figure')" style="border-left: 1px solid #ccc;padding-left: 5px;">幻灯片</a> </div>  </div> <div class="_figclass figure"> <div class="figureTextBox"> <div> <a class="" title="图 9 试验期间河流平均流速变化(a)与SZ4微震基站通道E记录的2～7 Hz频带上的波形图(b)及时频分析图(c)<br>Fig. 9. Correlation between the average flow velocity changes of the river during the experiment (a), waveform diagram (b) and time-frequency analysis diagram (c) of signals in the 2-7 Hz frequency band recorded by Channel E of the SZ4 microseismic station" href="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-9.jpg" > <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-9_mini.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-9.jpg'" class="figure_img figure_type2 " id="Fig-Figure9" ref="#Fig-Figure9"/> </a> </div> <div class="figureTitle"> <p class="figTabSpan"> <span class="FigText" id="Figure9"> <b>图 9</b> </span> 试验期间河流平均流速变化(a)与SZ4微震基站通道E记录的2～7 Hz频带上的波形图(b)及时频分析图(c)</p>   <p class="figTabSpan"> <span class="FigText" id="Figure9"> <b>Figure 9.</b> </span> Correlation between the average flow velocity changes of the river during the experiment (a), waveform diagram (b) and time-frequency analysis diagram (c) of signals in the 2-7 Hz frequency band recorded by Channel E of the SZ4 microseismic station</p>  </div> </div>  <div class="figure_button"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png"/>下载: <a href="javascript:void(0);" onclick="downloadImg('619dd071-941b-4e87-8d2f-8897d9fe907c','figure')">全尺寸图片</a> <a href="javascript:void(0);" onclick="downloadPPT('619dd071-941b-4e87-8d2f-8897d9fe907c','figure')" style="border-left: 1px solid #ccc;padding-left: 5px;">幻灯片</a> </div>  </div> <div class="_figclass figure"> <div class="figureTextBox"> <div> <a class="" title="图 10 平均流速和平均地震功率变化对比图<br>Fig. 10. Comparison between average flow velocity and average seismic power" href="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-10.jpg" > <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-10_mini.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-10.jpg'" class="figure_img figure_type1 " id="Fig-Figure10" ref="#Fig-Figure10"/> </a> </div> <div class="figureTitle"> <p class="figTabSpan"> <span class="FigText" id="Figure10"> <b>图 10</b> </span> 平均流速和平均地震功率变化对比图</p>   <p class="figTabSpan"> <span class="FigText" id="Figure10"> <b>Figure 10.</b> </span> Comparison between average flow velocity and average seismic power</p>  </div> </div>  <div class="figure_button"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png"/>下载: <a href="javascript:void(0);" onclick="downloadImg('f2c882e9-e148-4409-9b0f-54337273a73e','figure')">全尺寸图片</a> <a href="javascript:void(0);" onclick="downloadPPT('f2c882e9-e148-4409-9b0f-54337273a73e','figure')" style="border-left: 1px solid #ccc;padding-left: 5px;">幻灯片</a> </div>  </div> <div class="_figclass figure"> <div class="figureTextBox"> <div> <a class="" title="图 11 湍流过程在通道E、N、Z上的流量回归系数及95%置信区间<br>Fig. 11. Flow regression coefficients and 95% confidence intervals of the turbulent flow process in the E, N, and Z Channels" href="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-11.jpg" > <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-11_mini.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-11.jpg'" class="figure_img figure_type1 " id="Fig-Figure11" ref="#Fig-Figure11"/> </a> </div> <div class="figureTitle"> <p class="figTabSpan"> <span class="FigText" id="Figure11"> <b>图 11</b> </span> 湍流过程在通道E、N、Z上的流量回归系数及95%置信区间</p>   <p class="figTabSpan"> <span class="FigText" id="Figure11"> <b>Figure 11.</b> </span> Flow regression coefficients and 95% confidence intervals of the turbulent flow process in the E, N, and Z Channels</p>  </div> </div>  <div class="figure_button"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png"/>下载: <a href="javascript:void(0);" onclick="downloadImg('6c98f218-c783-41f6-81fd-92763fe882d8','figure')">全尺寸图片</a> <a href="javascript:void(0);" onclick="downloadPPT('6c98f218-c783-41f6-81fd-92763fe882d8','figure')" style="border-left: 1px solid #ccc;padding-left: 5px;">幻灯片</a> </div>  </div> <div class="_figclass figure"> <div class="figureTextBox"> <div> <a class="" title="图 12 河流流量预测值与实际观测值对比图<br>Fig. 12. Comparison chart of predicted river discharge and observed discharge" href="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-12.jpg" > <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-12_mini.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-12.jpg'" class="figure_img figure_type1 " id="Fig-Figure12" ref="#Fig-Figure12"/> </a> </div> <div class="figureTitle"> <p class="figTabSpan"> <span class="FigText" id="Figure12"> <b>图 12</b> </span> 河流流量预测值与实际观测值对比图</p>   <p class="figTabSpan"> <span class="FigText" id="Figure12"> <b>Figure 12.</b> </span> Comparison chart of predicted river discharge and observed discharge</p>  </div> </div>  <div class="figure_button"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png"/>下载: <a href="javascript:void(0);" onclick="downloadImg('66c29995-a40b-4fe1-880e-123ff81198f0','figure')">全尺寸图片</a> <a href="javascript:void(0);" onclick="downloadPPT('66c29995-a40b-4fe1-880e-123ff81198f0','figure')" style="border-left: 1px solid #ccc;padding-left: 5px;">幻灯片</a> </div>  </div> </body> </html> </li>  <div class="phone-title" rel="ref" val="参考文献"> <a class="mainColor" data-navId="References" href="javascript:void(0);"> 参考文献<num>(40)</num> </a> </div>  <li id="References" class="article-box article-references"> <div class="References-wrap"> <table class="reference-tab"> <tr class="document-box" id="b1"> <td valign="top" class="td1">[1]</td> <td class="td2"> 梁以夫. 洪水成因及减灾对策[J]. 广西水利水电, 1992(1): 2-4.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.16014/j.cnki.1003-1510.1992.01.001" target="_blank">10.16014/j.cnki.1003-1510.1992.01.001</a></span><p class="mar6"></p>LIANG Y F. Causes of flood and countermeasures for disaster reduction[J]. Guangxi Water Resources & Hydropower Engineering, 1992(1): 2-4. (in Chinese with English abstract<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.16014/j.cnki.1003-1510.1992.01.001" target="_blank">10.16014/j.cnki.1003-1510.1992.01.001</a></span> </td> </tr> <tr class="document-box" id="b2"> <td valign="top" class="td1">[2]</td> <td class="td2"> 田国珍, 刘新立, 王平, 等. 中国洪水灾害风险区划及其成因分析[J]. 灾害学, 2006, 21(2): 1-6.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.3969/j.issn.1000-811X.2006.02.001" target="_blank">10.3969/j.issn.1000-811X.2006.02.001</a></span><p class="mar6"></p>TIAN G Z, LIU X L, WANG P, et al. Flood risk zoning and causal analysis in China[J]. Journal of Catastrophology, 2006, 21(2): 1-6. (in Chinese with English abstract<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.3969/j.issn.1000-811X.2006.02.001" target="_blank">10.3969/j.issn.1000-811X.2006.02.001</a></span> </td> </tr> <tr class="document-box" id="b3"> <td valign="top" class="td1">[3]</td> <td class="td2"> 曹厚光. 陕西省汉江、嘉陵江流域1981年洪水灾害的成因[J]. 西北大学学报(自然科学版), 1984, 14(2): 77-93.<p class="mar6"></p>CAO H G. The origin of flood damage on the valleys of the Han and Jialing River of Shaanxi Province in 1981[J]. Journal of Northwest University (Natural Science Edition), 1984, 14(2): 77-93. (in Chinese with English abstract </td> </tr> <tr class="document-box" id="b4"> <td valign="top" class="td1">[4]</td> <td class="td2"> 冯普林, 石长伟, 张广林. 渭河“2003” 洪水灾害及其减灾措施的分析[J]. 中国水利水电科学研究院学报, 2004, 2(1): 44-49.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.3969/j.issn.1672-3031.2004.01.007" target="_blank">10.3969/j.issn.1672-3031.2004.01.007</a></span><p class="mar6"></p>FENG P L, SHI C W, ZHANG G L. Analysis of “2003” Weihe River flood and its disaster mitigation measures[J]. Journal of China Institute of Water, 2004, 2(1): 44-49. (in Chinese with English abstract<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.3969/j.issn.1672-3031.2004.01.007" target="_blank">10.3969/j.issn.1672-3031.2004.01.007</a></span> </td> </tr> <tr class="document-box" id="b5"> <td valign="top" class="td1">[5]</td> <td class="td2"> 罗志春. 西河“8.13” 洪水灾害成因分析[J]. 水利科技与经济, 2011, 17(3): 70-71.<p class="mar6"></p>LUO Z C. Cause analysis of “8.13” flood disaster in Xihe River[J]. Water Conservancy Science and Technology and Economy, 2011, 17(3): 70-71. (in Chinese) </td> </tr> <tr class="document-box" id="b6"> <td valign="top" class="td1">[6]</td> <td class="td2"> 李甲振, 郭新蕾, 巩同梁, 等. 无资料或少资料区河流流量监测与定量反演[J]. 水利学报, 2018, 49(11): 1420-1428.<p class="mar6"></p>LI J Z, GUO X L, GONG T L, et al. A method estimating natural runoff in regions with none or less data[J]. Journal of Hydraulic Engineering, 2018, 49(11): 1420-1428. (in Chinese with English abstract </td> </tr> <tr class="document-box" id="b7"> <td valign="top" class="td1">[7]</td> <td class="td2"> 彭勃, 强思远, 施小清. 基于贝叶斯实验设计优化跨孔高密度电阻率法监测四维水文地质过程[J]. 地质科技通报, 2025, 44(5): 293-301.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.19509/j.cnki.dzkq.tb20230600" target="_blank">10.19509/j.cnki.dzkq.tb20230600</a></span><p class="mar6"></p>PENG B, QIANG S Y, SHI X Q. Optimizing 4D hydrogeological process monitoring using cross-hole electrical resistivity tomography(CHERT) via Bayesian experimental design[J]. Bulletin of Geological Science and Technology, 2025, 44(5): 293-301. (in Chinese with English abstract<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.19509/j.cnki.dzkq.tb20230600" target="_blank">10.19509/j.cnki.dzkq.tb20230600</a></span> </td> </tr> <tr class="document-box" id="b8"> <td valign="top" class="td1">[8]</td> <td class="td2"> BURTIN A, HOVIUS N, MCARDELL B W, et al. Seismic constraints on dynamic links between geomorphic processes and routing of sediment in a steep mountain catchment[J]. Earth Surface Dynamics, 2014, 2(1): 21-33.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.5194/esurf-2-21-2014" target="_blank">10.5194/esurf-2-21-2014</a></span> </td> </tr> <tr class="document-box" id="b9"> <td valign="top" class="td1">[9]</td> <td class="td2"> EMANUEL K. Increasing destructiveness of tropical cyclones over the past 30 years[J]. Nature, 2005, 436(7051): 686-688.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1038/nature03906" target="_blank">10.1038/nature03906</a></span> </td> </tr> <tr class="document-box" id="b10"> <td valign="top" class="td1">[10]</td> <td class="td2"> GOVI M, MARAGA F, MOIA F. Seismic detectors for continuous bed load monitoring in a gravel stream[J]. Hydrological Sciences Journal, 1993, 38(2): 123-132.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1080/02626669309492650" target="_blank">10.1080/02626669309492650</a></span> </td> </tr> <tr class="document-box" id="b11"> <td valign="top" class="td1">[11]</td> <td class="td2"> BURTIN A, BOLLINGER L, VERGNE J, et al. Spectral analysis of seismic noise induced by rivers: A new tool to monitor spatiotemporal changes in stream hydrodynamics[J]. Journal of Geophysical Research: Solid Earth, 2008, 113(B5): 1-14. </td> </tr> <tr class="document-box" id="b12"> <td valign="top" class="td1">[12]</td> <td class="td2"> ROTH D L, BRODSKY E E, FINNEGAN N J, et al. Bed load sediment transport inferred from seismic signals near a river[J]. Journal of Geophysical Research: Earth Surface, 2016, 121(4): 725-747.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1002/2015JF003782" target="_blank">10.1002/2015JF003782</a></span> </td> </tr> <tr class="document-box" id="b13"> <td valign="top" class="td1">[13]</td> <td class="td2"> ANTHONY R E, ASTER R C, RYAN S, et al. Measuring mountain river discharge using seismographs emplaced within the hyporheic zone[J]. Journal of Geophysical Research: Earth Surface, 2018, 123(2): 210-228.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1002/2017JF004295" target="_blank">10.1002/2017JF004295</a></span> </td> </tr> <tr class="document-box" id="b14"> <td valign="top" class="td1">[14]</td> <td class="td2"> COOK K L, REKAPALLI R, DIETZE M, et al. Detection and potential early warning of catastrophic flow events with regional seismic networks[J]. Science, 2021, 374(6563): 87-92.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1126/science.abj1227" target="_blank">10.1126/science.abj1227</a></span> </td> </tr> <tr class="document-box" id="b15"> <td valign="top" class="td1">[15]</td> <td class="td2"> FOULDS S A, GRIFFITHS H M, MACKLIN M G, et al. Geomorphological records of extreme floods and their relationship to decadal-scale climate change[J]. Geomorphology, 2014, 216: 193-207.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1016/j.geomorph.2014.04.003" target="_blank">10.1016/j.geomorph.2014.04.003</a></span> </td> </tr> <tr class="document-box" id="b16"> <td valign="top" class="td1">[16]</td> <td class="td2"> GAEUMAN D. High-flow gravel injection for constructing designed in-channel features[J]. River Research and Applications, 2014, 30(6): 685-706.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1002/rra.2662" target="_blank">10.1002/rra.2662</a></span> </td> </tr> <tr class="document-box" id="b17"> <td valign="top" class="td1">[17]</td> <td class="td2"> RAZAVI T, COULIBALY P. Streamflow prediction in ungauged basins: Review of regionalization methods[J]. Journal of Hydrologic Engineering, 2013, 18(8): 958-975.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1061/(ASCE)HE.1943-5584.0000690" target="_blank">10.1061/(ASCE)HE.1943-5584.0000690</a></span> </td> </tr> <tr class="document-box" id="b18"> <td valign="top" class="td1">[18]</td> <td class="td2"> POLI P, BOAGA J, MOLINARI I, et al. The 2020 coronavirus lockdown and seismic monitoring of anthropic activities in northern Italy[J]. Scientific Reports, 2020, 10: 9404.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1038/s41598-020-66368-0" target="_blank">10.1038/s41598-020-66368-0</a></span> </td> </tr> <tr class="document-box" id="b19"> <td valign="top" class="td1">[19]</td> <td class="td2"> HERSCHY R. The velocity-area method[J]. Flow Measurement and Instrumentation, 1993, 4(1): 7-10.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1016/0955-5986(93)90004-3" target="_blank">10.1016/0955-5986(93)90004-3</a></span> </td> </tr> <tr class="document-box" id="b20"> <td valign="top" class="td1">[20]</td> <td class="td2"> GENÇ O, ARDıÇLıOĞLU M, AĞıRALIOĞLU N. Calculation of mean velocity and discharge using water surface velocity in small streams[J]. Flow Measurement and Instrumentation, 2015, 41: 115-120.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1016/j.flowmeasinst.2014.10.013" target="_blank">10.1016/j.flowmeasinst.2014.10.013</a></span> </td> </tr> <tr class="document-box" id="b21"> <td valign="top" class="td1">[21]</td> <td class="td2"> WELCH P. The use of fast Fourier transform for the estimation of power spectra: A method based on time averaging over short, modified periodograms[J]. IEEE Transactions on Audio and Electroacoustics, 1967, 15(2): 70-73.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1109/TAU.1967.1161901" target="_blank">10.1109/TAU.1967.1161901</a></span> </td> </tr> <tr class="document-box" id="b22"> <td valign="top" class="td1">[22]</td> <td class="td2"> 柳云龙, 田有, 冯晅, 等. 微震技术与应用研究综述[J]. 地球物理学进展, 2013, 28(4): 1801-1808.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.6038/pg20130421" target="_blank">10.6038/pg20130421</a></span><p class="mar6"></p>LIU Y L, TIAN Y, FENG X, et al. Review of microseism technology and its application[J]. Progress in Geophysics, 2013, 28(4): 1801-1808. (in Chinese with English abstract<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.6038/pg20130421" target="_blank">10.6038/pg20130421</a></span> </td> </tr> <tr class="document-box" id="b23"> <td valign="top" class="td1">[23]</td> <td class="td2"> 冯甜, 吴建平, 房立华. 微震研究与应用进展[J]. 中国地震, 2021, 37(2): 261-272.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.3969/j.issn.1001-4683.2021.02.002" target="_blank">10.3969/j.issn.1001-4683.2021.02.002</a></span><p class="mar6"></p>FENG T, WU J P, FANG L H. A review on research and application of microseismicity[J]. Earthquake Research in China, 2021, 37(2): 261-272. (in Chinese with English abstract<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.3969/j.issn.1001-4683.2021.02.002" target="_blank">10.3969/j.issn.1001-4683.2021.02.002</a></span> </td> </tr> <tr class="document-box" id="b24"> <td valign="top" class="td1">[24]</td> <td class="td2"> ADERHOLD K, ANDERSON K E, REUSCH A M, et al. Data quality of collocated portable broadband seismometers using direct burial and vault emplacement[J]. Bulletin of the Seismological Society of America, 2015, 105(5): 2420-2432.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1785/0120140352" target="_blank">10.1785/0120140352</a></span> </td> </tr> <tr class="document-box" id="b25"> <td valign="top" class="td1">[25]</td> <td class="td2"> FARANDA D, BOURDIN S, GINESTA M, et al. A climate-change attribution retrospective of some impactful weather extremes of 2021[J]. Weather and Climate Dynamics, 2022, 3(4): 1311-1340.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.5194/wcd-3-1311-2022" target="_blank">10.5194/wcd-3-1311-2022</a></span> </td> </tr> <tr class="document-box" id="b26"> <td valign="top" class="td1">[26]</td> <td class="td2"> DÍAZ J, RUÍZ M, CRESCENTINI L, et al. Seismic monitoring of an alpine mountain river[J]. Journal of Geophysical Research: Solid Earth, 2014, 119(4): 3276-3289.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1002/2014JB010955" target="_blank">10.1002/2014JB010955</a></span> </td> </tr> <tr class="document-box" id="b27"> <td valign="top" class="td1">[27]</td> <td class="td2"> BAKKER M, GIMBERT F, GEAY T, et al. Field application and validation of a seismic bedload transport model[J]. Journal of Geophysical Research: Earth Surface, 2020, 125(5): 1-23.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1029/2019JF005416" target="_blank">10.1029/2019JF005416</a></span> </td> </tr> <tr class="document-box" id="b28"> <td valign="top" class="td1">[28]</td> <td class="td2"> GIMBERT F, TSAI V C, LAMB M P. A physical model for seismic noise generation by turbulent flow in rivers[J]. Journal of Geophysical Research: Earth Surface, 2014, 119(10): 2209-2238.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1002/2014JF003201" target="_blank">10.1002/2014JF003201</a></span> </td> </tr> <tr class="document-box" id="b29"> <td valign="top" class="td1">[29]</td> <td class="td2"> TSAI V C, MINCHEW B, LAMB M P, et al. A physical model for seismic noise generation from sediment transport in rivers[J]. Geophysical Research Letters, 2012, 39(2): 1-6. </td> </tr> <tr class="document-box" id="b30"> <td valign="top" class="td1">[30]</td> <td class="td2"> BURTIN A, CATTIN R, BOLLINGER L, et al. Towards the hydrologic and bed load monitoring from high-frequency seismic noise in a braided river: The “torrent de St Pierre”, French Alps[J]. Journal of Hydrology, 2011, 408(1/2): 43-53. </td> </tr> <tr class="document-box" id="b31"> <td valign="top" class="td1">[31]</td> <td class="td2"> HSU L, FINNEGAN N J, BRODSKY E E. A seismic signature of river bedload transport during storm events[J]. Geophysical Research Letters, 2011, 38(13): 1-6. </td> </tr> <tr class="document-box" id="b32"> <td valign="top" class="td1">[32]</td> <td class="td2"> PICOZZI M, COVIELLO V, PALO M, et al. Seismic signature of an extreme hydro-meteorological event in Italy[J]. NPJ Natural Hazards, 2024, 1(1): 1-9. </td> </tr> <tr class="document-box" id="b33"> <td valign="top" class="td1">[33]</td> <td class="td2"> CHIMENE C A, CAMPOS J N B. The design flood under two approaches: Synthetic storm hyetograph and observed storm hyetograph[J]. Journal of Applied Water Engineering and Research, 2020, 8(3): 171-182.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1080/23249676.2020.1787242" target="_blank">10.1080/23249676.2020.1787242</a></span> </td> </tr> <tr class="document-box" id="b34"> <td valign="top" class="td1">[34]</td> <td class="td2"> BARRIÈRE J, OTH A, HOSTACHE R, et al. Bed load transport monitoring using seismic observations in a low-gradient rural gravel bed stream[J]. Geophysical Research Letters, 2015, 42(7): 2294-2301.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1002/2015GL063630" target="_blank">10.1002/2015GL063630</a></span> </td> </tr> <tr class="document-box" id="b35"> <td valign="top" class="td1">[35]</td> <td class="td2"> LAROSE E, CARRIÈRE S, VOISIN C, et al. Environmental seismology: What can we learn on earth surface processes with ambient noise[J]. Journal of Applied Geophysics, 2015, 116: 62-74.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1016/j.jappgeo.2015.02.001" target="_blank">10.1016/j.jappgeo.2015.02.001</a></span> </td> </tr> <tr class="document-box" id="b36"> <td valign="top" class="td1">[36]</td> <td class="td2"> SCHMANDT B, ASTER R C, SCHERLER D, et al. Multiple fluvial processes detected by riverside seismic and infrasound monitoring of a controlled flood in the Grand Canyon[J]. Geophysical Research Letters, 2013, 40(18): 4858-4863.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1002/grl.50953" target="_blank">10.1002/grl.50953</a></span> </td> </tr> <tr class="document-box" id="b37"> <td valign="top" class="td1">[37]</td> <td class="td2"> TUROWSKI J M, BADOUX A, RICKENMANN D. Start and end of bedload transport in gravel-bed streams[J]. Geophysical Research Letters, 2011, 38(4): 1-5. </td> </tr> <tr class="document-box" id="b38"> <td valign="top" class="td1">[38]</td> <td class="td2"> TUROWSKI J M, BLOEM J P. The influence of sediment thickness on energy delivery to the bed by bedload impacts[J]. Geodinamica Acta, 2016, 28(3): 199-208.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.1080/09853111.2015.1047195" target="_blank">10.1080/09853111.2015.1047195</a></span> </td> </tr> <tr class="document-box" id="b39"> <td valign="top" class="td1">[39]</td> <td class="td2"> VIPARELLI E, GAEUMAN D, WILCOCK P R, et al. A model to predict the evolution of a gravel bed river under an imposed cyclic hydrograph and its application to the Trinity River[J]. Water Resources Research, 2011, 47(2): 1-22. </td> </tr> <tr class="document-box" id="b40"> <td valign="top" class="td1">[40]</td> <td class="td2"> 曹凯, 卢渊, 庞小龙, 等. 基于微震事件频次的采空区沉陷变形智能预警方法[J]. 地质科技通报, 2025, 44(4): 78-89.<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.19509/j.cnki.dzkq.tb20240646" target="_blank">10.19509/j.cnki.dzkq.tb20240646</a></span><p class="mar6"></p>CAO K, LU Y, PANG X L, et al. Intelligent early warning method for subsidence deformation in goaf based on the frequency of microseismic events[J]. Bulletin of Geological Science and Technology, 2025, 44(4): 78-89. (in Chinese with English abstract<span> doi: <a class="mainColor ref-doi" href="http://dx.doi.org/10.19509/j.cnki.dzkq.tb20240646" target="_blank">10.19509/j.cnki.dzkq.tb20240646</a></span> </td> </tr> </table> </div></li>  <div class="phone-title" val="相关文章"> <a class="mainColor" data-navId="relative-article" href="javascript:void(0);" onclick="loadRelativeArticles();"> 相关文章 </a> </div>  <li class="article-box relateArticleStatus article-related-article" id="relative-article" > </li> <input type="hidden" value="1" id="journalreferenceCodeType">  <div class="phone-title" val="施引文献" class="html-beiyin"> <a class="mainColor" data-navId="citedby-info" id="citedby-li" rel="citedby" href="javascript:void(0);"> 施引文献<num id="citedby-num"></num> </a> </div> <li id="citedby-info" class="article-box article-knowledge-map"></li>  <div class="phone-title" rel="sup" val="资源附件"> <a class="mainColor" data-navId="Supplementary" href="javascript:void(0);"> 资源附件<num>(0)</num> </a> </div>  <li id="Supplementary" class="article-box articleListBox article-supplements"> </li>  <div class="phone-title" val="访问统计" rel="metric" onclick="loadArticleMetricCount('cd4df305-cbb0-47a7-9d97-39203b049dec');" style="display:none;"> <a class="mainColor" data-navId="metric_count" href="javascript:void(0);"> 访问统计<num></num> </a> </div>  <li class="article-box visitStatisticsStatus article-statistics" id="metric_count">  <img id="downLoading" src="//dzkjtb.cug.edu.cn/style/web/images/public/1.gif" alt="加载中" /> <div class="hichart_box" id="article_visit_count_column"></div> <div class="hichart_box" id="article_visit_type_pie"></div> <div class="hichart_box" id="article_visit_area_pie"></div> </li> </ul>  <div> <div id="trendmd-suggestions" style="padding-bottom:10px;"></div> <script> $(document).ready(function(){ var oScript = document.createElement("script"); oScript.type = "text/javascript"; oScript.src="//js.trendmd.com/trendmd.min.js"; oScript.defer=""; oScript.setAttribute("data-trendmdconfig","{'element':'#trendmd-suggestions'}"); document.body.appendChild(oScript); }) </script> </div> </div>  <div class="article-right fr">  <div class="download visible-lg"> <div class="btns pull-left"> <button class="btn pdf-btn" onclick="downloadpdf('cd4df305-cbb0-47a7-9d97-39203b049dec');"> <span class="articleFont icon-pdf pull-left" style="line-height:35px;font-size:25px;padding-right:5px;"></span> <a href="javascript:void(0);" class="download-font pull-left">PDF下载 <b id="pdfSize" style="font-size:12px;">( 2353 KB)</b></a> </button> <button class="btn xml-btn littleBtn" onclick="toExportXML('cd4df305-cbb0-47a7-9d97-39203b049dec');"> <a href="javascript:void(0);" class="download-font">XML下载</a> </button> <button class="btn li-excel littleBtn" data-target="#exportCitationModal" data-toggle="modal"> <a class="download-font" href="javascript:void(0);">导出引用</a> </button> <button class="btn show-formula littleBtn" onclick="switchFormula();"> <a class="download-font switchFormula" href="javascript:void(0);" >Turn off MathJax</a> </button> </div> <div class="Matrix-code pull-right"> <img style="display:block;" src="/fileDZKJTB/journal/article/dzkjtb/2026/1/WECHAT/wechat_cn_cd4df305-cbb0-47a7-9d97-39203b049dec.jpg" alt="WeChat"> <span>点击查看大图</span> </div> </div>  <div class="atlas-wrapper right-border visible-lg ">  <ul class="atlas" > <li class="first"></li> <li class="second"></li> <div> <a href="javascript:void(0);"> <img src="/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-1.jpg" onerror="this.onerror=null;this.src='/fileDZKJTB/journal/article/dzkjtb/2026/1/tb20240293-1.jpg'"/> </a> </div> </ul>  <div class="chart" style="font-size:16px;"> <span class="articleFont icon-tuce"></span> <b class="show-tu mainColor"> 图(12)</b></div> </div> <div class="meterwrap visible-lg right-meterwrap">  <div class="met right-border "> <h5> <b>计量</b><span class="articleFont icon-jiliangdian pull-right"></span> </h5> <div class="line-img"></div> <ul> <li><b>文章访问数: </b><span id="visitArticleCount" class="mainColor"> 46</span></li> <li><b>PDF下载量: </b><span id="downloadArticleCount" class="mainColor"> 10</span></li> <li><b>被引次数: </b><span class="citedByCount mainColor">0</span></li> </ul> </div>  <div class="article-related right-border"> <h5><b>出版历程</b></h5> <div class="line-img"></div> <ul> <li><b>收稿日期: </b><span id="" class="mainColor"> 2024-06-03</span> </li> <li><b>录用日期: </b><span id="" class="mainColor"> 2024-07-26</span> </li> <li><b>修回日期: </b><span id="" class="mainColor"> 2024-07-25</span> </li> <li><b>网络出版日期: </b><span id="" class="mainColor"> 2025-12-18</span> </li> </ul> </div> </div>  <div id="navigation" > <div class="nav-nav"> <div class="last-page"> <span></span> </div> <div class="nav-wrapper"> <ul> </ul> </div> <div class="next-page"> <span></span> </div> </div> <div class="next-and-last"> <span class="lastLi"></span> <hr /> <span class="nextLi"></span> </div> <div class="toggle-btn"> <span class="nav-hide" title="隐藏/显示导航栏"> <i class="articleFont icon-navbar"></i></span>  </div> </div> <div class="article-btn"> <div class="_table"> <div class="_cell"> <span></span> <span></span> <span></span> </div> </div> </div> <div class="article-menu"> <h3>目录</h3> <div class="article-menu-bot"> <ul class="iphone-wrapper"></ul> </div> </div>  <div class="box box-tan"> <div class="box-tan-con"> <table class="box-content reference-tab"></table> </div> <div class="triangle"> <div class="triangle-bg"></div> <div class="triangle-content"></div> </div> <i class="close-box articleFont icon-cuo"></i> </div>  <div class="author-box"> <div class="author-content"> </div> <div class="triangle"> <div class="triangle-bg"></div> <div class="triangle-content"></div> </div> <i class="close-box articleFont icon-cuo"></i> </div> </div> </div> </div> </div> <script> $(function () { try{ //alert(123) //文章页右侧没有图时，走svg表 if($(".table_fig_div").attr("isShow") == 0){ nbsp($(".table_fig_div table")); //alert($(".table_fig_div table").html()); html2Img($(".table_fig_div table"),$(".table_fig_right")); } }catch(error){ } }) </script></div>     <div class="modal fade" id="exportCitationModal" tabindex="-1" role="dialog" aria-labelledby="myModalLabel" aria-hidden="true" style="display: none;"> <div class="modal-dialog"> <div class="modal-content"> <div class="modal-header"> <button type="button" class="close" data-dismiss="modal"> <span aria-hidden="true">×</span><span class="sr-only">Close</span> </button> <h2 class="modal-title" id="myModalLabel"> <b>导出文件</b> </h2> </div> <div class="modal-body"> <div class="panel panel-primary"> <div class="panel-heading"> <h4 class="panel-title">文件类别</h4> </div> <div class="panel-body"> <div class="radio"> <label> <input type="radio" value="ris" name="format" checked=""> RIS(可直接使用Endnote编辑器进行编辑) </label> </div> <div class="radio"> <label> <input type="radio" value="bib" name="format"> Bib(可直接使用Latex编辑器进行编辑) </label> </div> <div class="radio"> <label> <input type="radio" value="txt" name="format"> Txt </label> </div> </div> </div> <div class="panel panel-success"> <div class="panel-heading"> <h4 class="panel-title">引用内容</h4> </div> <div class="panel-body"> <div class="radio"> <label> <input type="radio" value="0" name="content" checked=""> 引文——仅导出文章的Citation信息 </label> </div> <div class="radio"> <label> <input type="radio" value="1" name="content"> 引文和摘要——导出文章的Citation信息和文章摘要信息 </label> </div> </div> </div> </div> <div class="modal-footer"> <button type="button" class="btn btn-primary" onclick="toExportCitation(this,'')" article_id="cd4df305-cbb0-47a7-9d97-39203b049dec" data-dismiss="modal">导出</button> <button type="button" class="btn btn-default" data-dismiss="modal">关闭</button> </div> </div> </div> </div>   <div id="imgShow">  <div id="originalImgs-wrapper"> <div class="originalImgs-wrapper"> <img id="originalImgs" src="" alt="" /> </div>  <div id="imgTitle" title="鼠标滚动"> <div> <p class="titleCn"></p> <p class="titleEn"></p> </div> </div>  <p id="imgsPageNum"> <span id="nowImgIndex" class="underHigh"></span>/<span id="allImgNum"></span> </p>  <div id="downloadImgs"> <img src="//dzkjtb.cug.edu.cn/style/web/images/public/download.png" />下载: <a id="originalImgDownload" class="underHigh" href="javascript:void(0);">全尺寸图片</a> <a id="originalPPTDownload" class="underHigh" href="javascript:void(0);" style="border-left: 1px solid #ccc; padding-left: 5px;">幻灯片</a> </div> </div>  <div id="miniImgs-wrapper"> <div id="imgPrev"> <a href="javascript:void(0);"><span class="imgShowIcon imgShowIcon-prev"></span> </a> </div> <div id="miniImgs"> <ul> </ul> </div> <div id="imgNext"> <a href="javascript:void(0);"><span class="imgShowIcon imgShowIcon-next"></span> </a> </div> </div>  <div id="imgBack"> <a href="javascript:void(0);"> 返回文章 <span class="triangle"></span> </a> </div> </div>  <ul class="shareBox"> <li class="shareBox-text"><span>分享</span> <i class="triangle"></i> <i class="triangle2"></i> </li> <li><a href="javascript:void(0);" onclick="shareTools('qzone');" title="分享到qq空间"> <span class="articleFont icon-qqkongjian"></span> </a> </li> <li><a href="javascript:void(0);" onclick="shareTools('sina');" title="分享到新浪微博"> <span class="articleFont icon-weibo"></span></a> </li> <li><a class="Wechat" href="javascript:void(0);" title="分享到朋友圈"> <span class="articleFont icon-weixin"></span></a> </li>  <div class="WeChat-box"> <div></div> <p>用微信扫码二维码</p> <p>分享至好友和朋友圈</p> </div> </ul>  <div class="show-table"> <div class="new-back"> <a href="javascript:;">返回<span class="triangle"></span></a> </div> <div class="picbox"> <ul class="piclist"> </ul> <div id="big_play_prev" class="home-picprev thePrev"></div> <div id="big_play_next" class="home-picnext theNext"></div> </div> <div class="picsmallbox"> <a href="javascript:;" id="play_prev" class="play_prev"> <span class="imgShowIcon imgShowIcon-prev"></span> </a> <div class="picboxpic"> <ul id="picsmall" class="picsmall clear"> </ul> </div> <a href="javascript:;" id="play_next" class="play_next"> <span class="imgShowIcon imgShowIcon-next"></span> </a> </div> </div>  <div id="common-bottom"> <input type="hidden" id="language" value="cn"> <input type="hidden" id="fileurls" value="/fileDZKJTB/"> <input type="hidden" id="isShowImg" value="0"> <input type="hidden" value="地质科技通报" id="journalTitleCn" /> <input type="hidden" value="Bulletin of Geological Science and Technology" id="journalTitleEn" /> <input type="hidden" value="dzkjtb" id="journalAbbr" /> <div class="bottom-fixed"></div> <div class="footer "> <div class="container text-center"> <p> <span class="bq">网站版权 © 2010《地质科技通报》编辑部 </span> <span><a target="_blank" href="https://xyt.xcc.cn/getpcInfo?sn=1589597230254239744&certType=8&url=*.cug.edu.cn&language=CN"><img src="https://program.xinchacha.com/xyt/xcc_small_ssl.png" style="width:18px;highet:18px"></a></span> </p> </div> <div class="btmb text-center"> <p class="Supported">本系统由 <a target="_blank" href="https://www.rhhz.net/">北京仁和汇智信息技术有限公司</a> 设计开发 <span class="btmb-span"> <a href="https://tongji.baidu.com/web/welcome/login" target="_blank"> <img class="statistics" src="/style/web/images/public/pic.gif" alt="百度统计"> </a> </span> </p> </div> </div> <script> var _hmt = _hmt || []; (function() { var hm = document.createElement("script"); hm.src = "https://hm.baidu.com/hm.js?4a7df6f920c4f482cf3dc1de9535e750"; var s = document.getElementsByTagName("script")[0]; s.parentNode.insertBefore(hm, s); })(); </script> <script src="//plugin.sowise.cn/sowise-plugin.js" custom-options="{'citedby':false,'suggest':false,'ipRecord':true,'journalId':88889064}"></script>  <div class="notice-window notice-fly" id="ad1" style="padding: 12px 20px 10px;border:solid 1px #333;background:#1c7391;left: 10px;width:500px;" > <div class="closex" > <span>x</span> <a class="close-session" title="本次浏览器访问不在显示。">关闭</a> <a class="close-local" title="只要不清除本地缓存，就不会显示。">永久关闭</a> </div> <div class="fixtxt"> <div class="fixcon" > <p style="text-indent: 2em; text-align: justify;"><span style="color: rgb(255, 255, 255);">温馨提示：近日，有不明身份人员冒充本刊编辑部或编委会给作者发送邮件，以论文质量核查等为由，要求作者添加微信。请作者提高警惕，认准编辑部官方邮箱、电话和QQ群，注意甄别虚假信息，谨防上当受骗。如有疑问，可及时联系编辑部核实。</span></p><p style="text-indent: 2em; text-align: right;"><span style="color: rgb(255, 255, 255);"> 《地质科技通报》编辑部</span></p> </div> </div> </div> </div>  </body> </html>
