微咸水膜下滴灌棉花根系时空分布规律及三维动态生长模拟

张茗惠; 张峻华; 盛统民; 任卫东; 朱棋; 陈文岭

doi:10.19509/j.cnki.dzkq.tb20240155

微咸水膜下滴灌棉花根系时空分布规律及三维动态生长模拟

doi: 10.19509/j.cnki.dzkq.tb20240155

张茗惠^1a,,
张峻华^1b,
盛统民²,
任卫东³,
朱棋^1a,
陈文岭^1a, ,

1a .
中国地质大学（武汉）：环境学院
1b .
中国地质大学（武汉）：计算机学院，武汉 430078
2 .
新疆水利水电科学研究院，乌鲁木齐 830049
3 .
塔里木河流域巴音郭楞管理局水利科研所，新疆库尔勒 841000

基金项目: 国家自然科学基金项目（42372290）；国家重点研发计划课题（2022YFC3703702）

详细信息

作者简介:
张茗惠：E-mail：mhzhang2021@cug.edu.cn

通讯作者:
E-mail：chenwenling@cug.edu.cn

计量
- 文章访问数: 12
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2024-04-09
- 录用日期: 2024-05-23
- 修回日期: 2024-05-22
- 网络出版日期: 2025-12-04

Spatial-temporal distribution patterns of cotton root system under brackish water mulched drip irrigation and three-dimensional dynamic growth simulation

1a .
School of Environmental Studies, China University of Geosciences (Wuhan)
1b .
School of Computer Science, China University of Geosciences (Wuhan), Wuhan 430078, China
2 .
Xinjiang Institute of Water Resources and Hydropower Research, Urumqi 830049, China
3 .
Institute of Water Conservancy, Bayingolin Administration, Tarim River Basin, Korla Xinjiang 841000, China

More Information

Author Bio:
E-mail：mhzhang2021@cug.edu.cn

Corresponding author: E-mail：chenwenling@cug.edu.cn

摘要

摘要:
新疆地处我国干旱−半干旱区，为节约水资源广泛使用微咸水膜下滴灌技术进行棉花种植，但微咸水利用不当易引起土壤盐渍化，棉花根系密度较大的区域强烈的吸水作用使土壤水分降低、盐分在区域内过量累积，引起棉花减产。为确保微咸水膜下滴灌棉田土壤生境及棉花产量，应充分考虑棉花根系分布对田间水盐运移的影响。本研究基于新疆巴州灌溉试验站棉田开展野外田间试验获取的棉花根系生长参数，构建微咸水膜下滴灌棉花根系生长模型，定量刻画棉花根系时空分布规律。研究结果表明：①根系的空间分布受土壤水分和盐分的影响，蕾期至花铃期根系更多地集中在滴灌带与宽行位置，盛铃期至吐絮期根系在深度50 cm以上有明显衰退，而在90～130 cm土壤中根系有所发育；②棉花根系三维生长模型的预测趋势与实际观测值保持一致，模拟值与实测值对比平均相对误差MRE在0.2486～0.5378之间，均方根误差RMSE在2.4127～4.8710 cm/cm²之间，符合指数d在0.7541～0.9529之间，模拟结果总体能够描述棉花根长密度RLD分布；③棉花根系的三维模拟考虑了大田种植环境的生长情况，模拟结果达到了三维动态生长的效果，模型能够较好地模拟根系生长发育进程的形态结构。基于微根管法原位动态监测，利用CPlantBox建模框架能够构建微咸水膜下滴灌棉花根系生长模型，研究成果为探究根系形态时空分布对田间土壤水分迁移及根区水盐分布的影响机制奠定基础，对提高新疆棉花高产稳产具有重要的理论和实践意义。
- 膜下滴灌 /
- 空间分布 /
- 棉花根系 /
- 根长密度 /
- 生长模拟 /
- 三维动态生长模型
Abstract: Objective
Xinjiang is located in the arid to semi-arid region of China. To conserve water resources, brackish water mulched drip irrigation technology is widely used for cotton cultivation. However, improper use of brackish water can lead to soil salinization. Regions with high cotton root density experience strong water absorption, resulting in soil moisture reduction and excessive salt accumulation, leading to decreased cotton yield. To ensure the soil habitat and cotton yield under brackish water mulched drip irrigation, the influence of cotton root distribution on field water and salt transport should be fully considered.
Methods
Based on the field experiments conducted at the cotton fields of the Bayingolin Irrigation Experiment Station in Xinjiang, this study obtains cotton root growth parameters to construct a growth model for cotton roots under brackish water mulched drip irrigation, quantitatively characterizing the spatiotemporal distribution patterns of cotton roots.
Results
The study results indicated that: ① The spatial distribution of roots is influenced by soil moisture and salinity. During the budding to flowering stage, roots are more concentrated in the drip irrigation belt and inter-row positions. From the peak flowering to boll-opening stage, roots show significant decline beyond a depth of 50 cm, but develop in the soil depths of 90-130 cm. ② The predicted trend of the three-dimensional growth model of cotton roots is consistent with the actual observations, with MRE (the mean relative error) ranging from 0.2486 to 0.5378, RMSE (the root mean square error) from 2.4127 to 4.8710 cm/cm², and d (the index of agreement) from 0.7541 to 0.9529. The simulation results overall describe the distribution of cotton root length density (RLD). ③ The three-dimensional simulation of cotton root system takes into account the growth conditions in the field planting environment, achieving a dynamic three-dimensional growth effect. The model can effectively simulate the morphological structure of root system growth and development processes.
Conclusion
Based on in-situ dynamic monitoring by minirhizotron technique, CPlantBox can be used to construct the cotton root growth model under brackish water film drip irrigation. The research results lay the foundation for exploring the impact mechanism of spatial-temporal distribution of root morphology on field soil water migration and root zone water and salt distribution. This has important theoretical and practical implications for improving high and stable cotton yield in Xinjiang.
- mulched drip irrigation /
- spatial distribution /
- cotton root system /
- root length density /
- growth simulation /
- three-dimensional dynamic growth model

HTML全文

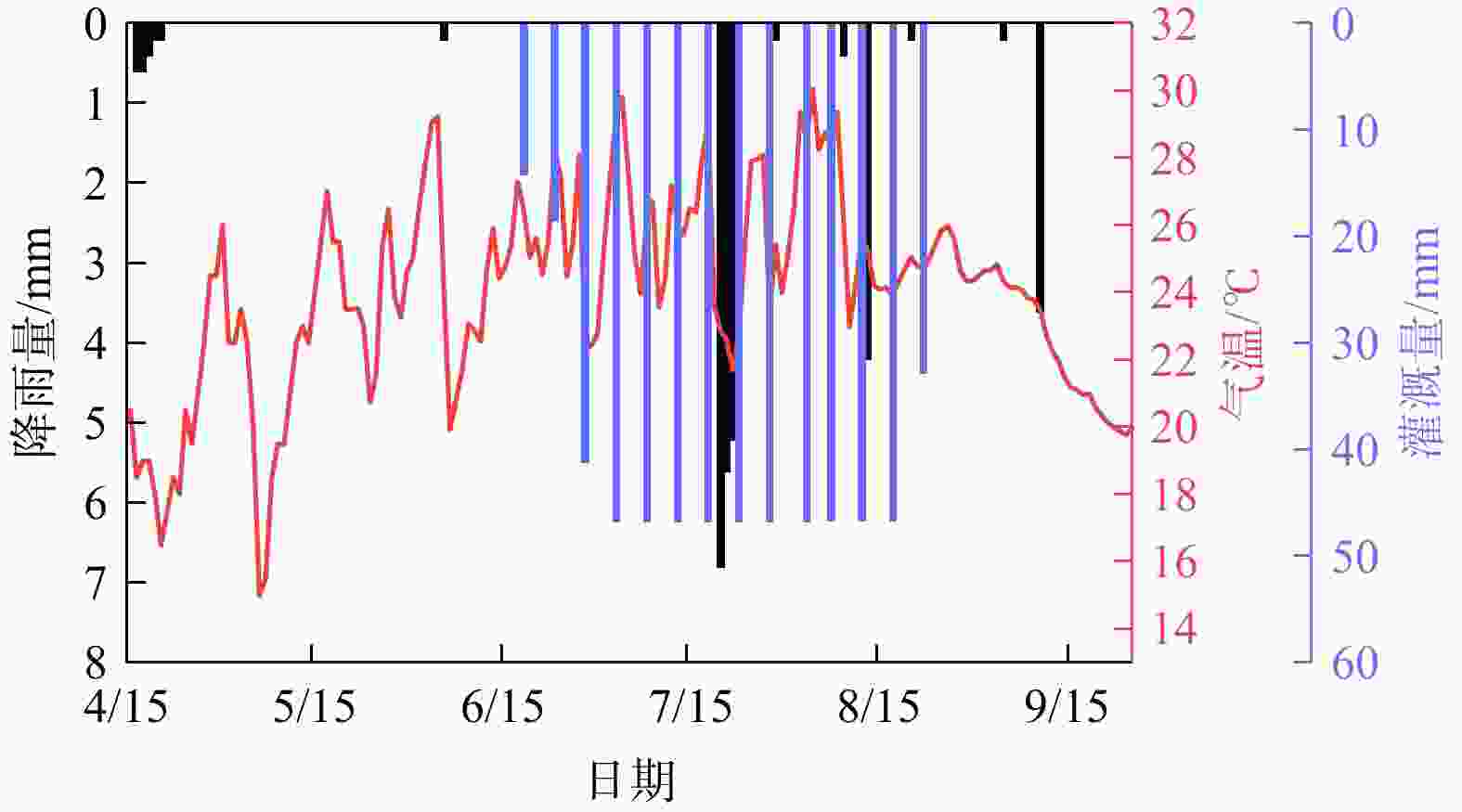

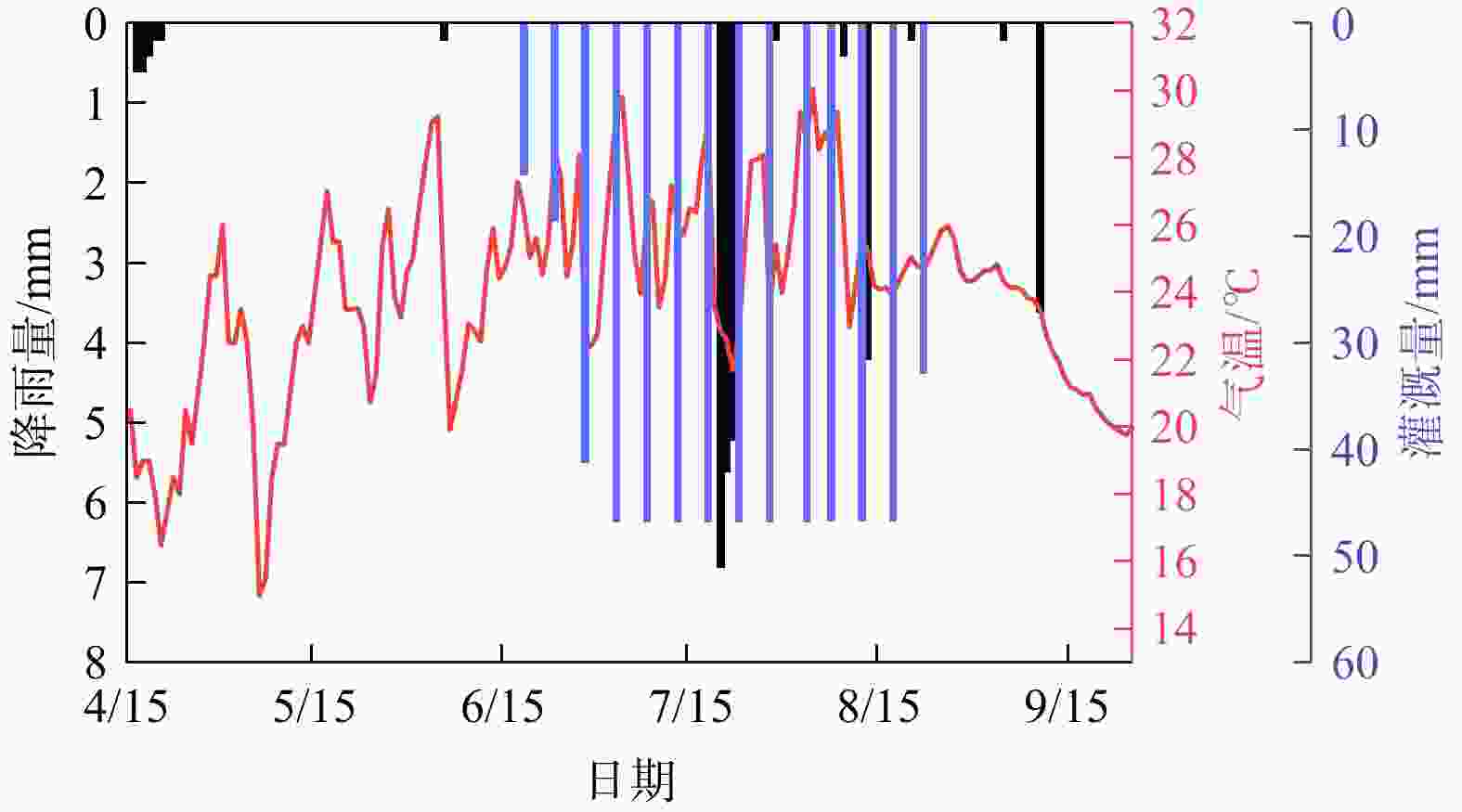

图 1 2020 年棉花生育期内降雨量、气温和灌溉量

Figure 1. Rainfall, temperature, and irrigation amount during the cotton growing season in 2020

下载: 全尺寸图片幻灯片

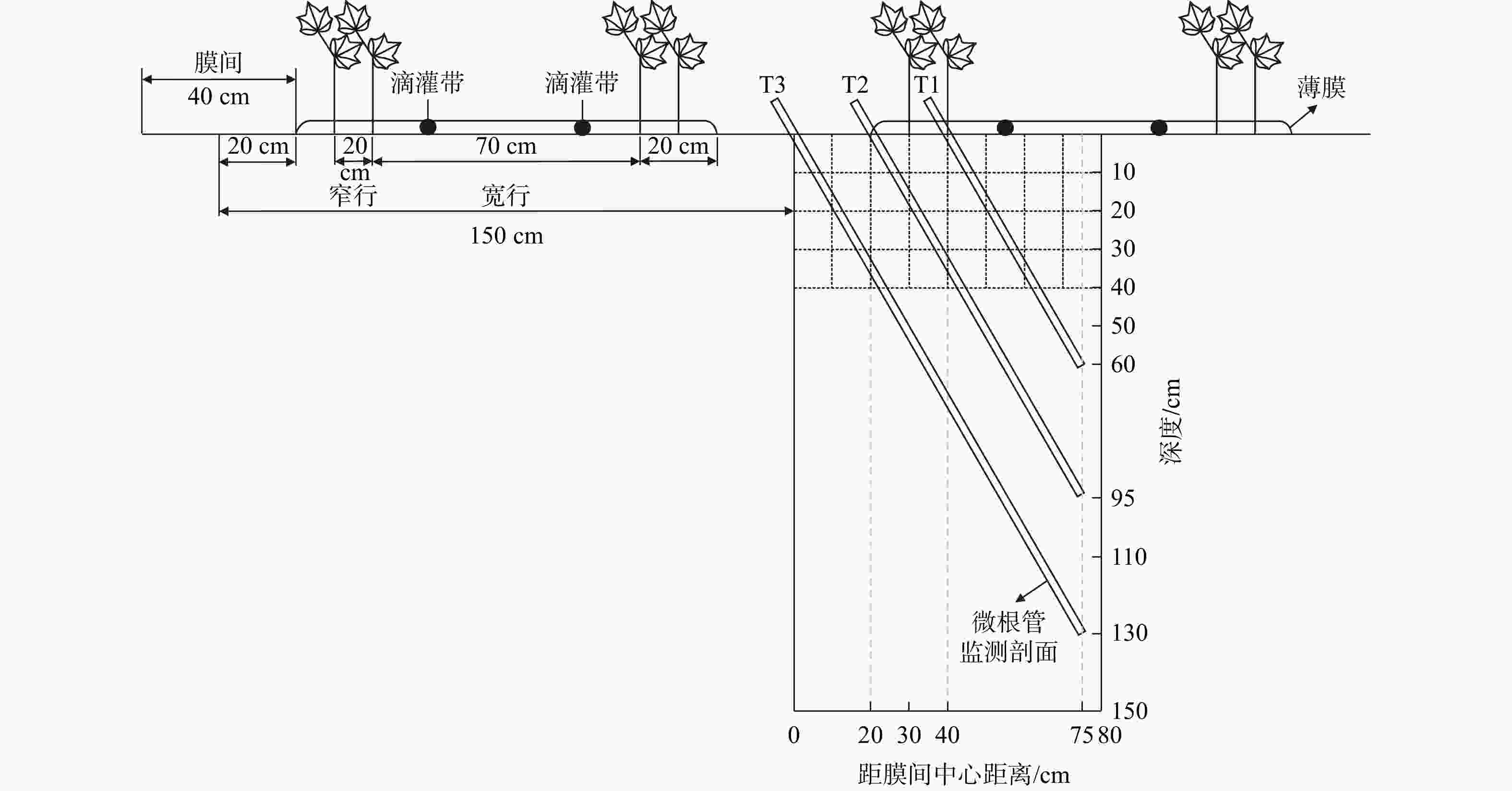

图 2 棉田种植模式及根系取样示意图

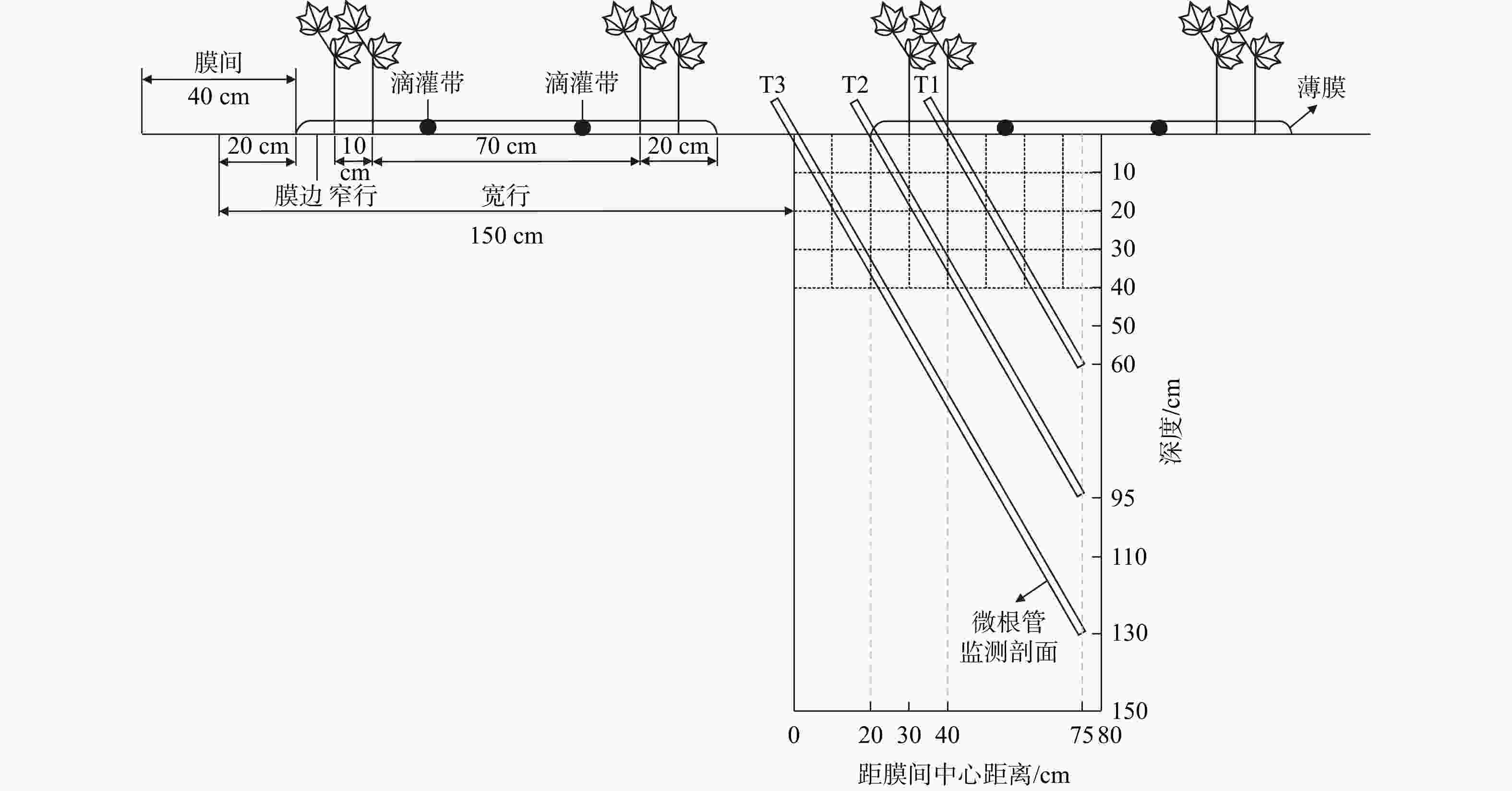

Figure 2. Cotton field planting pattern and schematic diagram of root sampling

下载: 全尺寸图片幻灯片

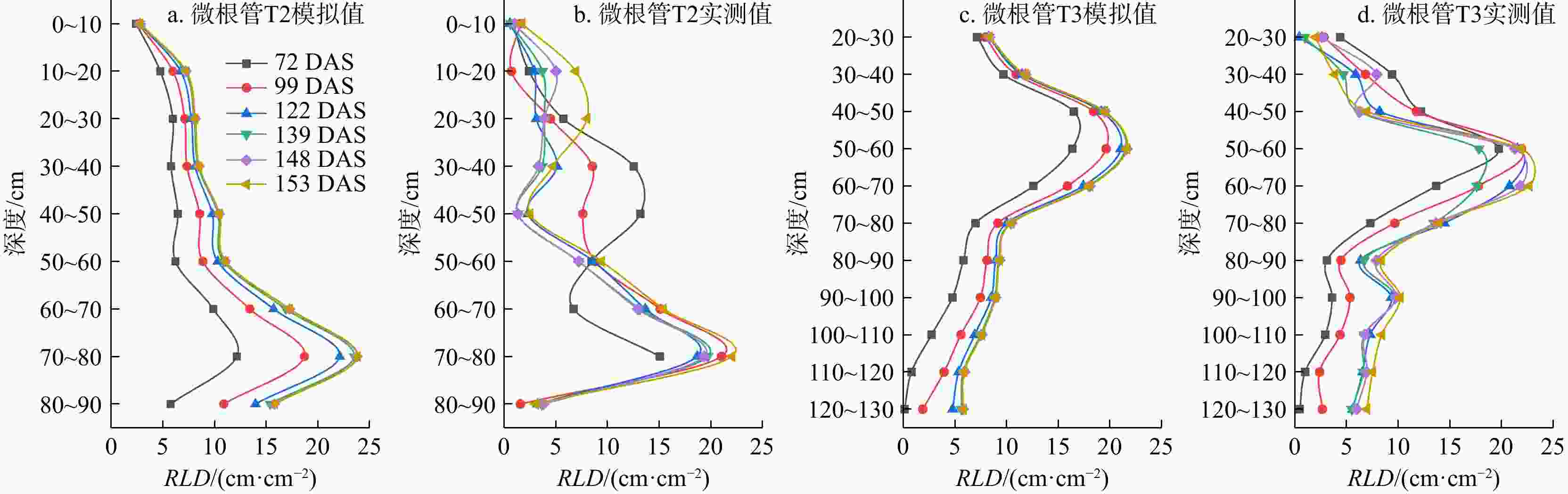

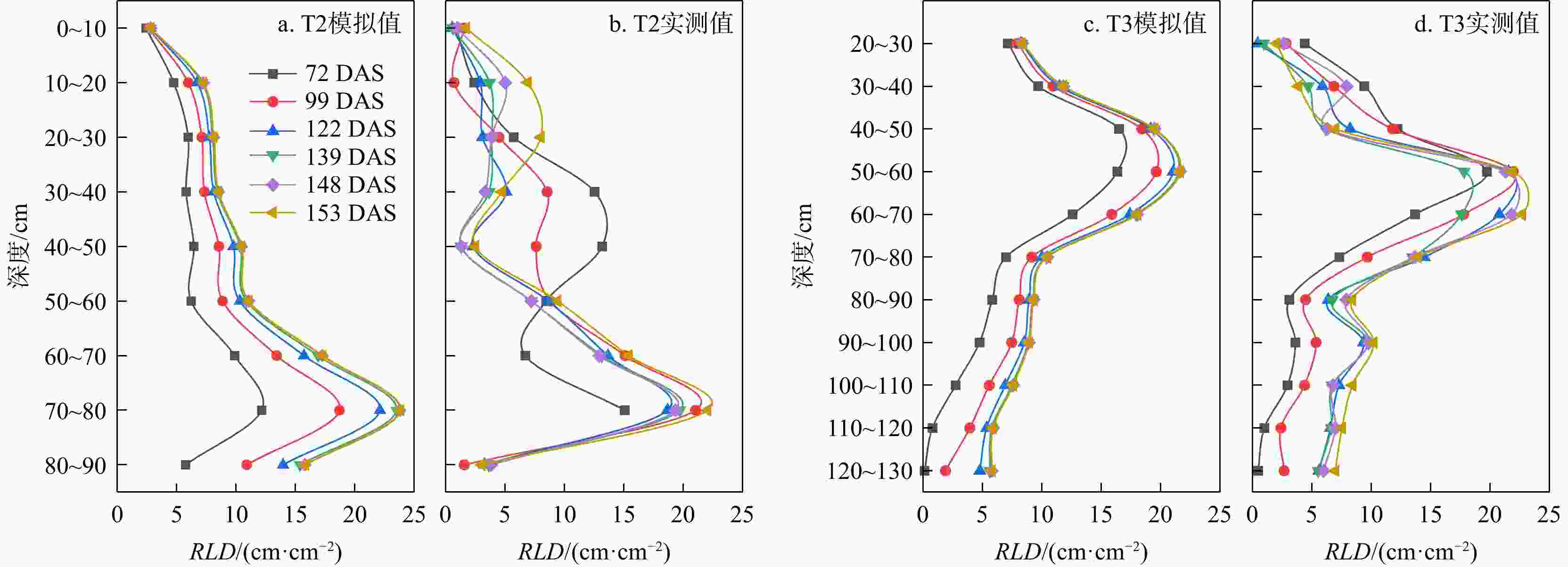

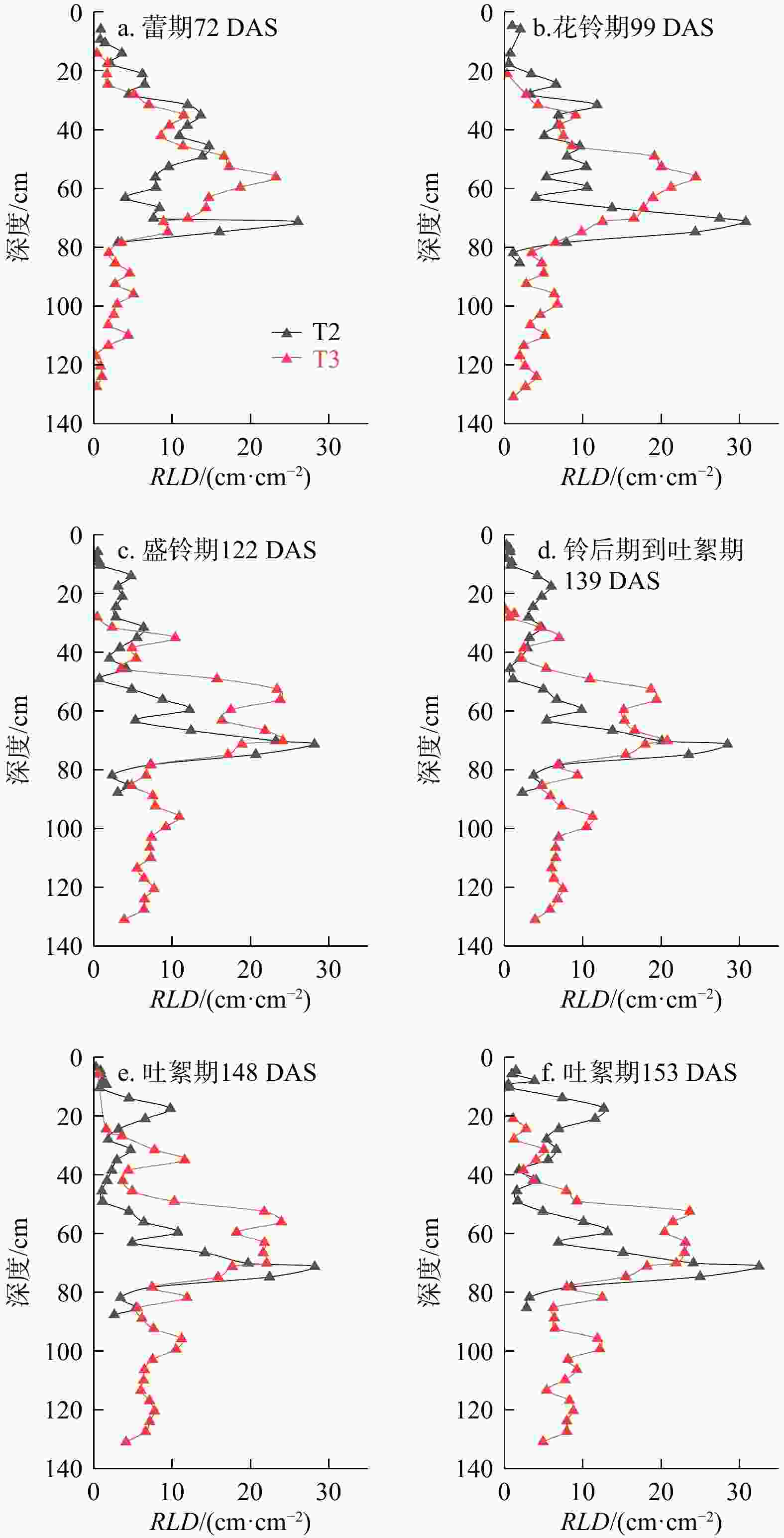

图 3 微根管 T2 与 T3 监测不同天数所得棉花根长密度（RLD）与位置深度关系图

Figure 3. Line graph illustrating the relationship between cotton root length density (RLD) and position depth obtained from monitoring different days for minirhizotron tubes T2 and T3

下载: 全尺寸图片幻灯片

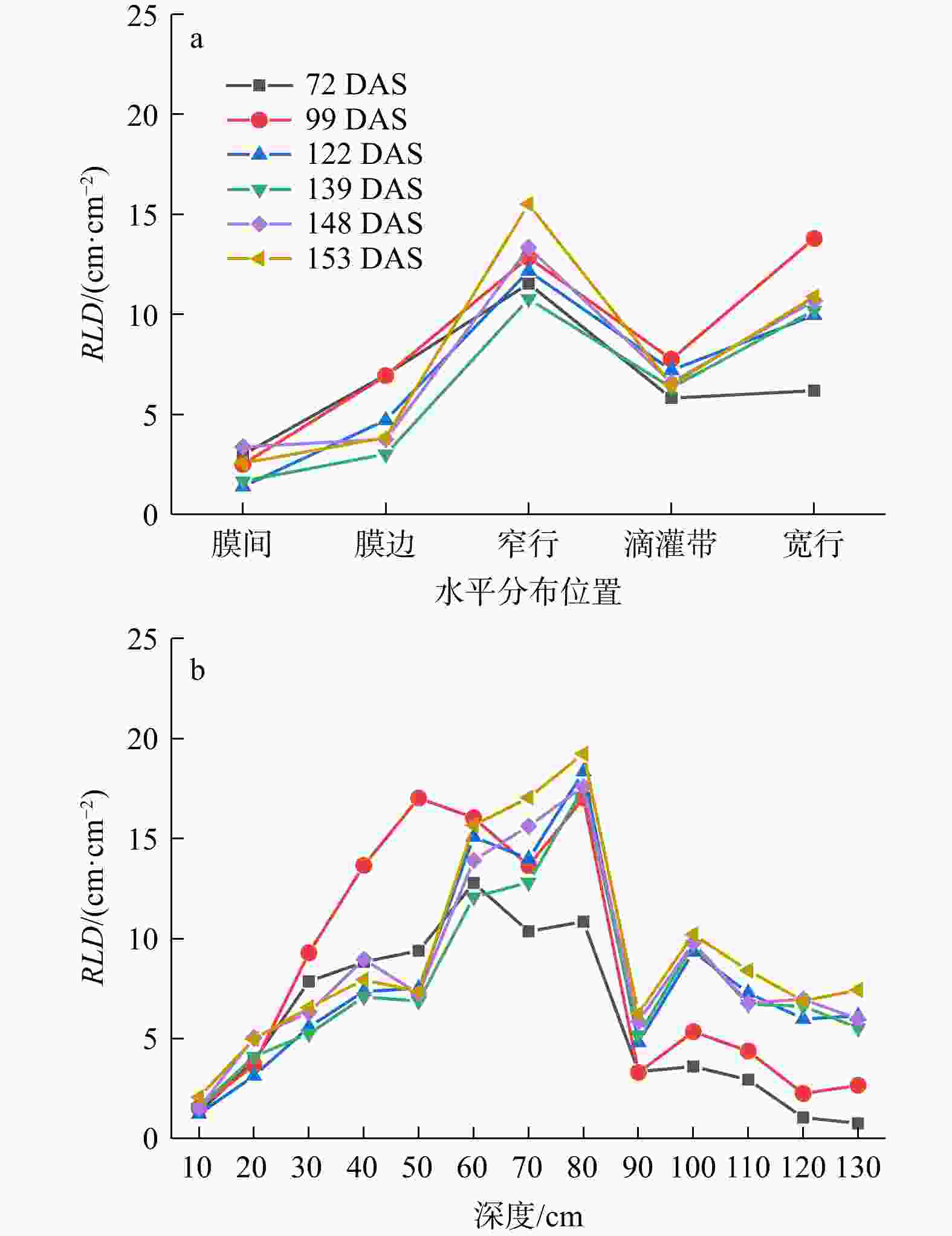

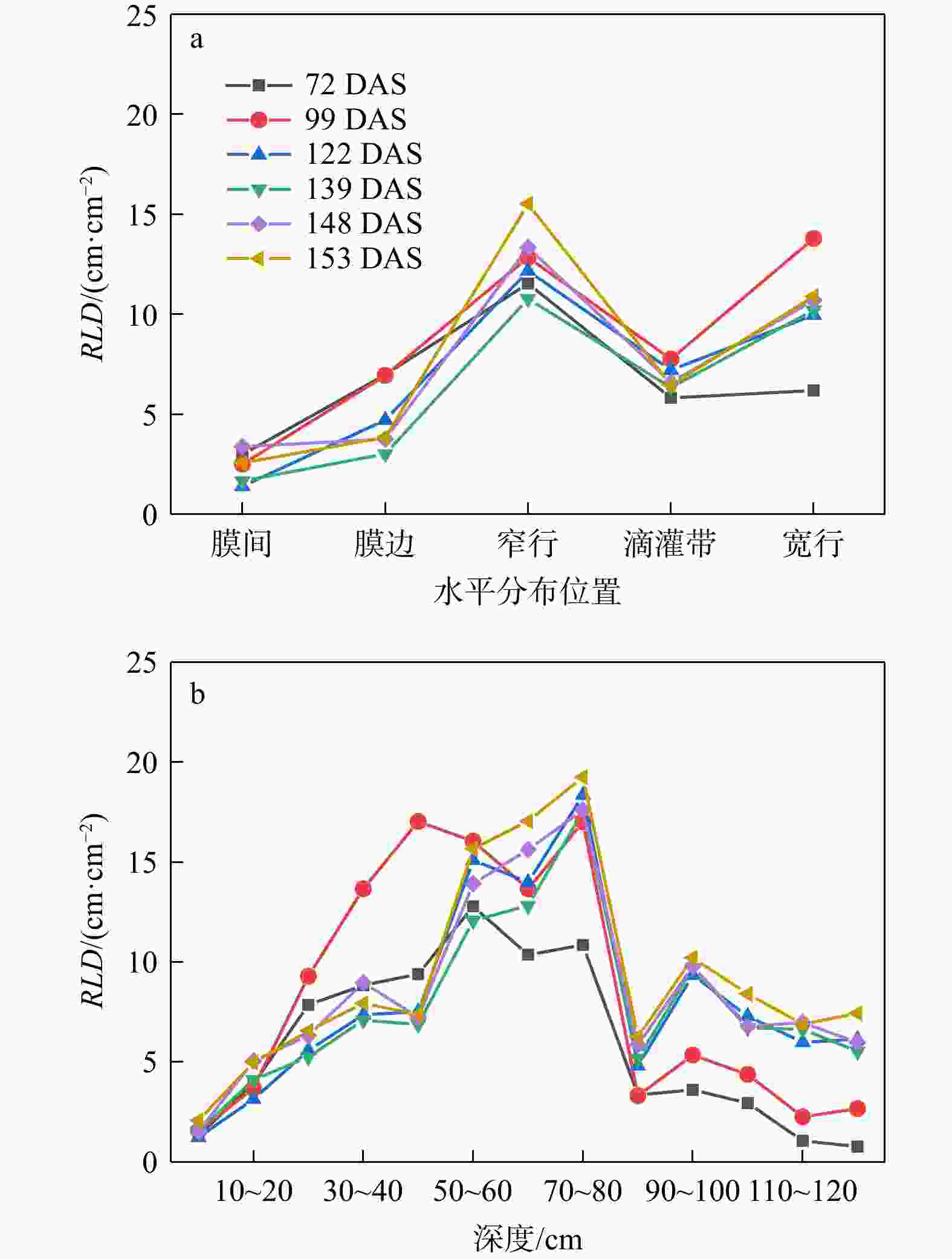

图 4 微根管监测不同天数棉花根长密度（RLD）水平（a）和垂直方向（b）分布

Figure 4. Monitoring cotton root length density (RLD) levels in horizontal (a) and vertical (b) directions using minirhizotron over different days

下载: 全尺寸图片幻灯片

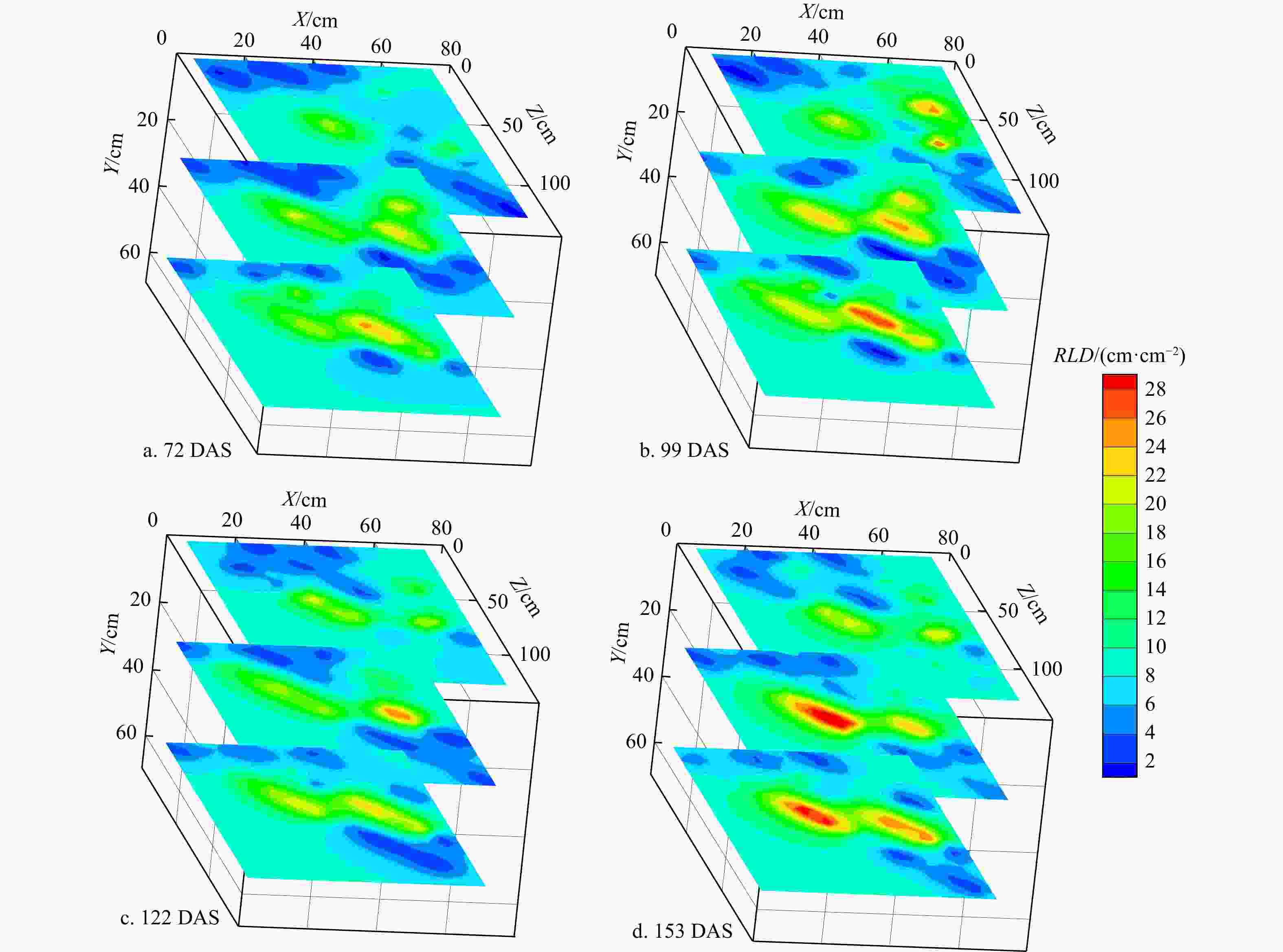

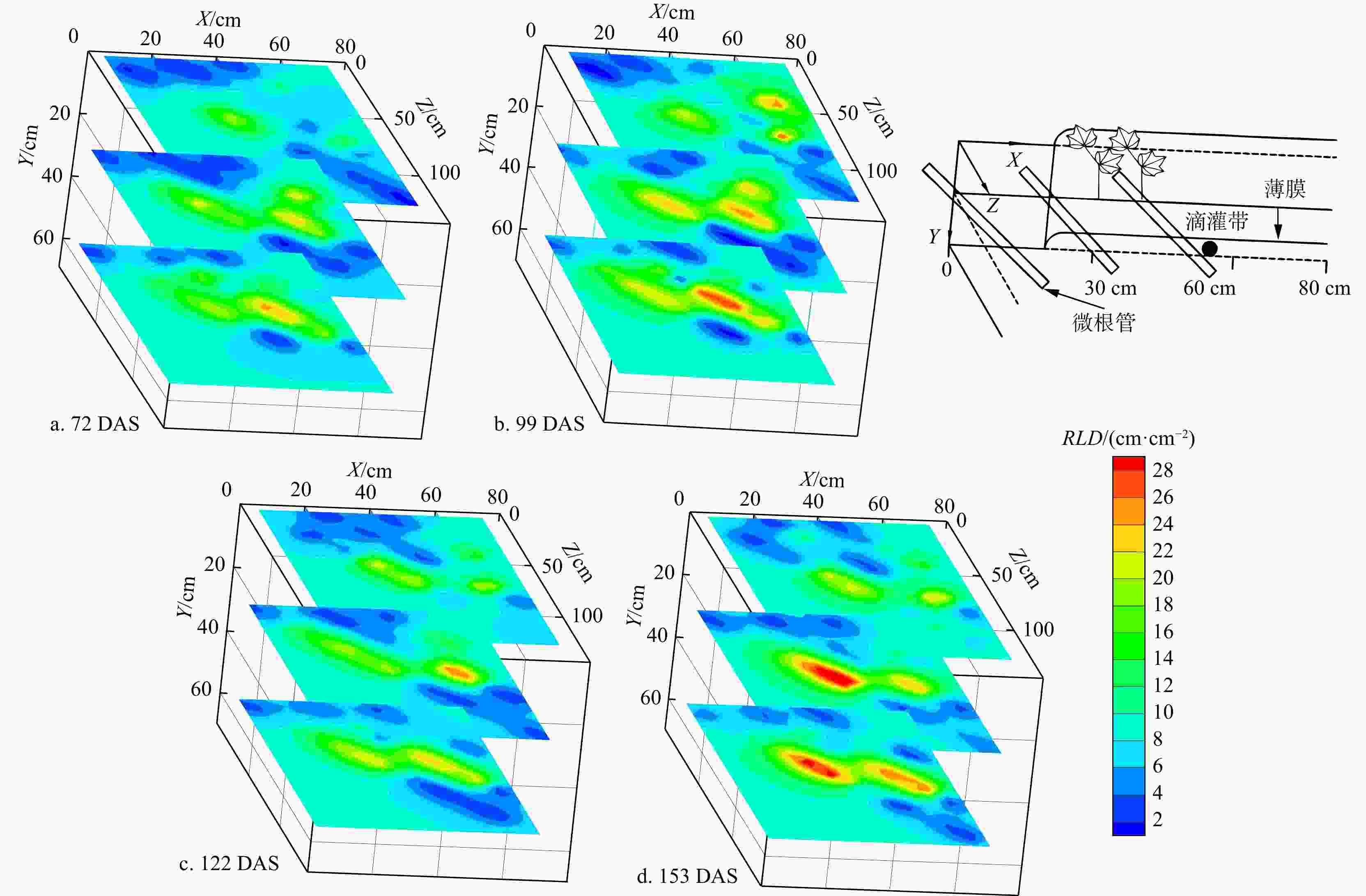

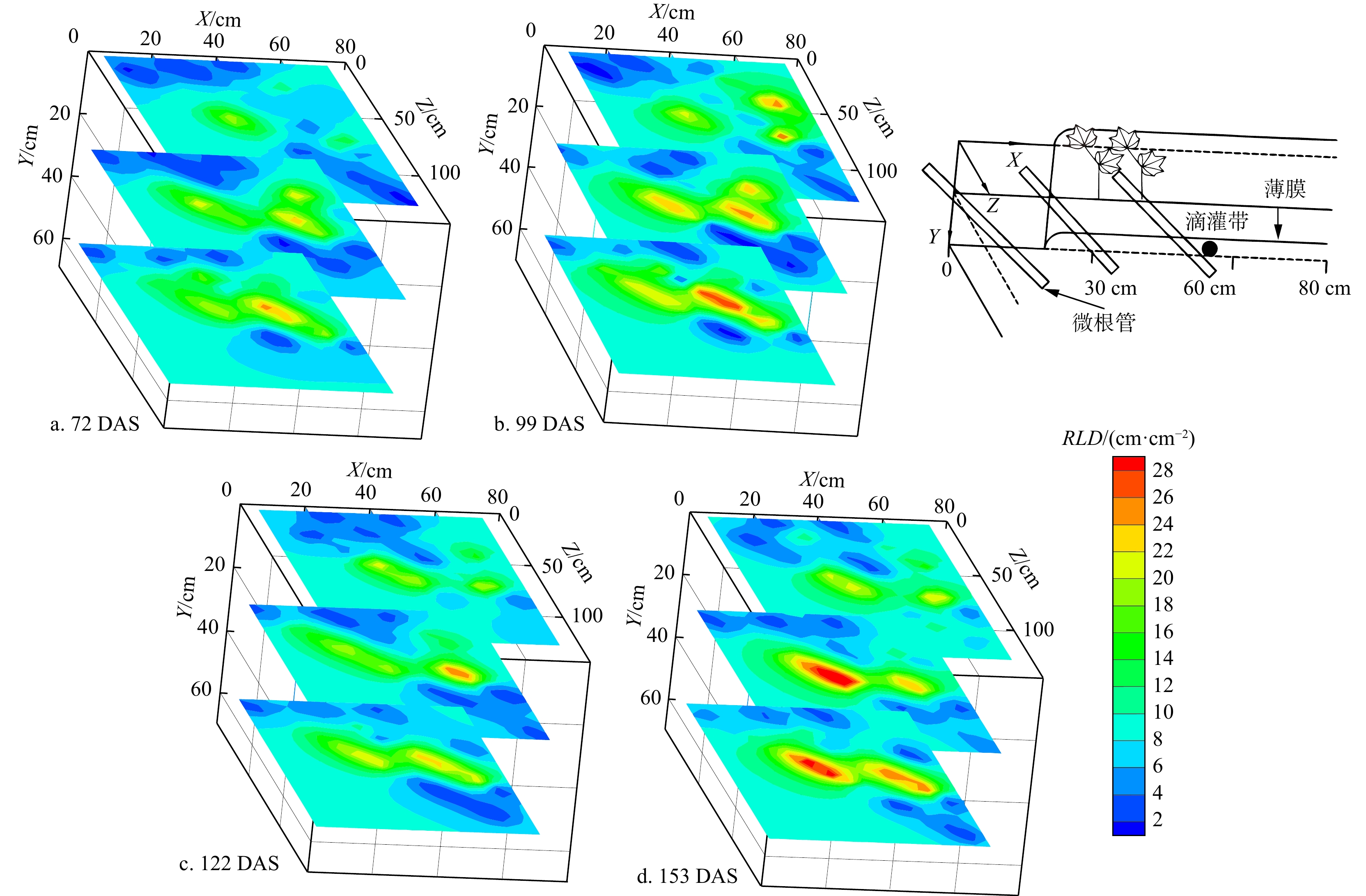

图 5 微根管监测不同天数棉花根长密度（RLD）的三维分布情况

Figure 5. Three-dimensional distribution of cotton root length density (RLD) monitored using minirhizotron at different days

下载: 全尺寸图片幻灯片

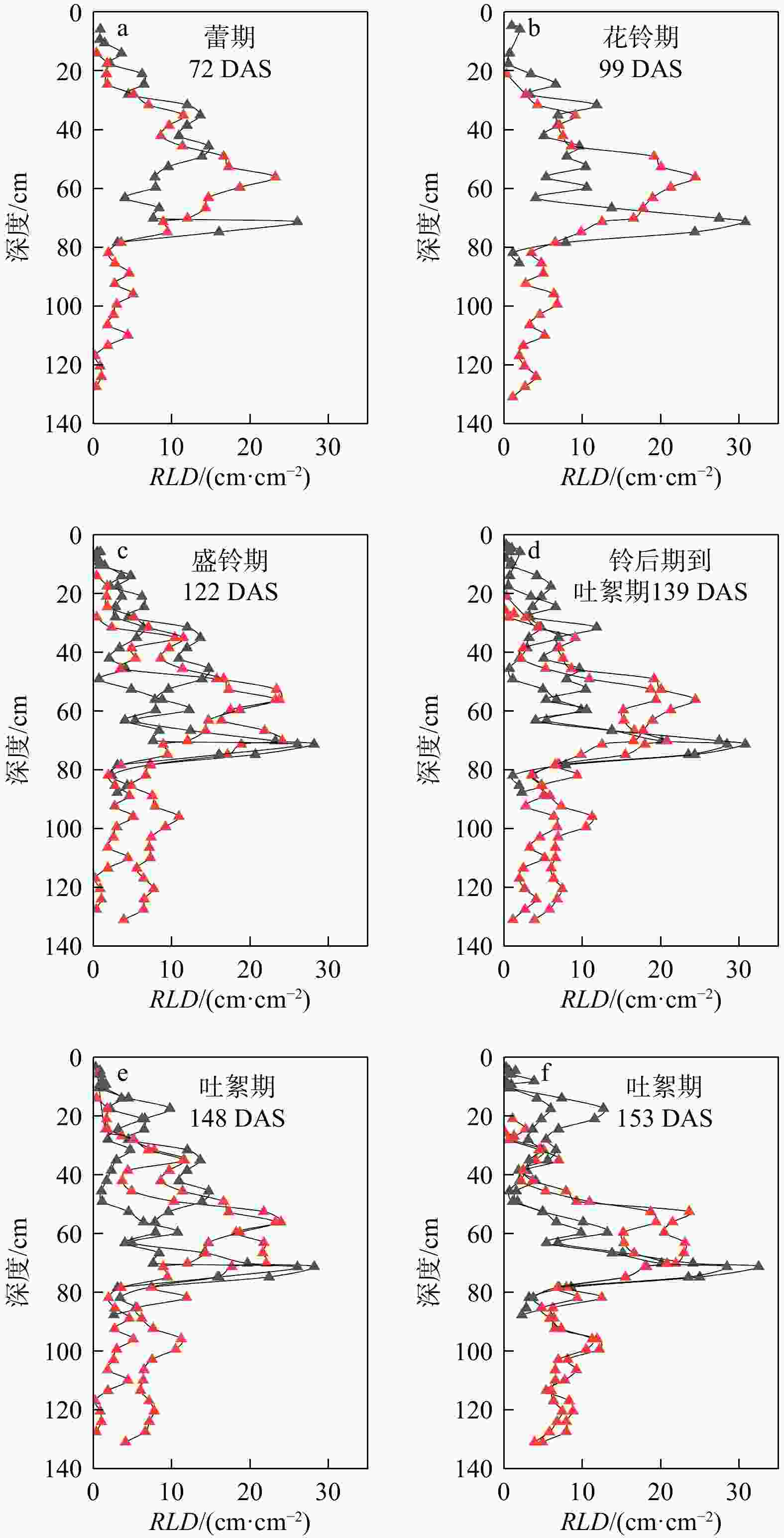

图 6 根系生长模型模拟不同天数根长密度（RLD）分布（a，c）与微根管实测根长密度（RLD）分布（b，d）

Figure 6. Simulation of root growth model depicting the distribution of root length density (RLD) over different days (a, c) compared to the measured root length density (RLD) distribution from minirhizotron observations (b, d)

下载: 全尺寸图片幻灯片

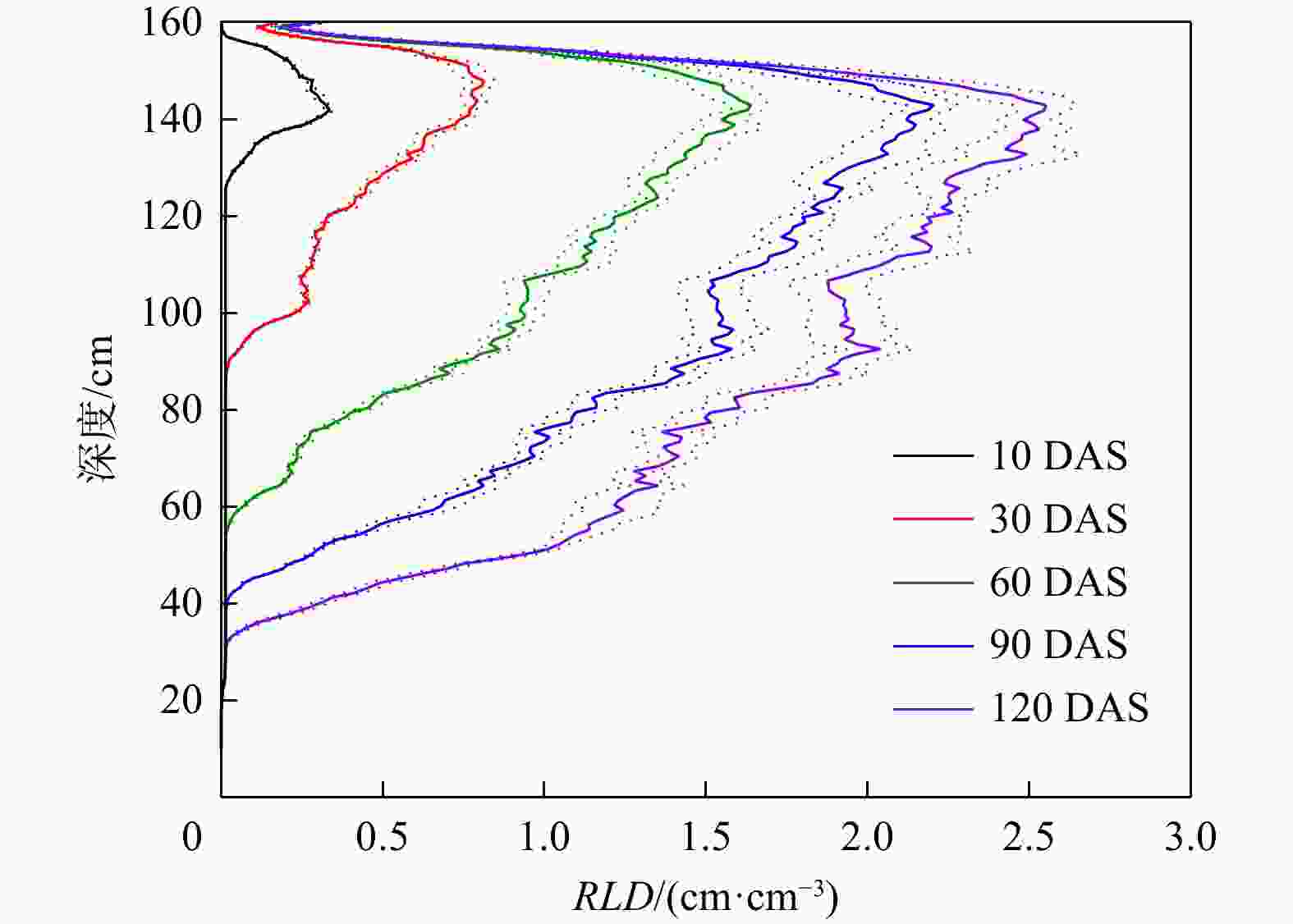

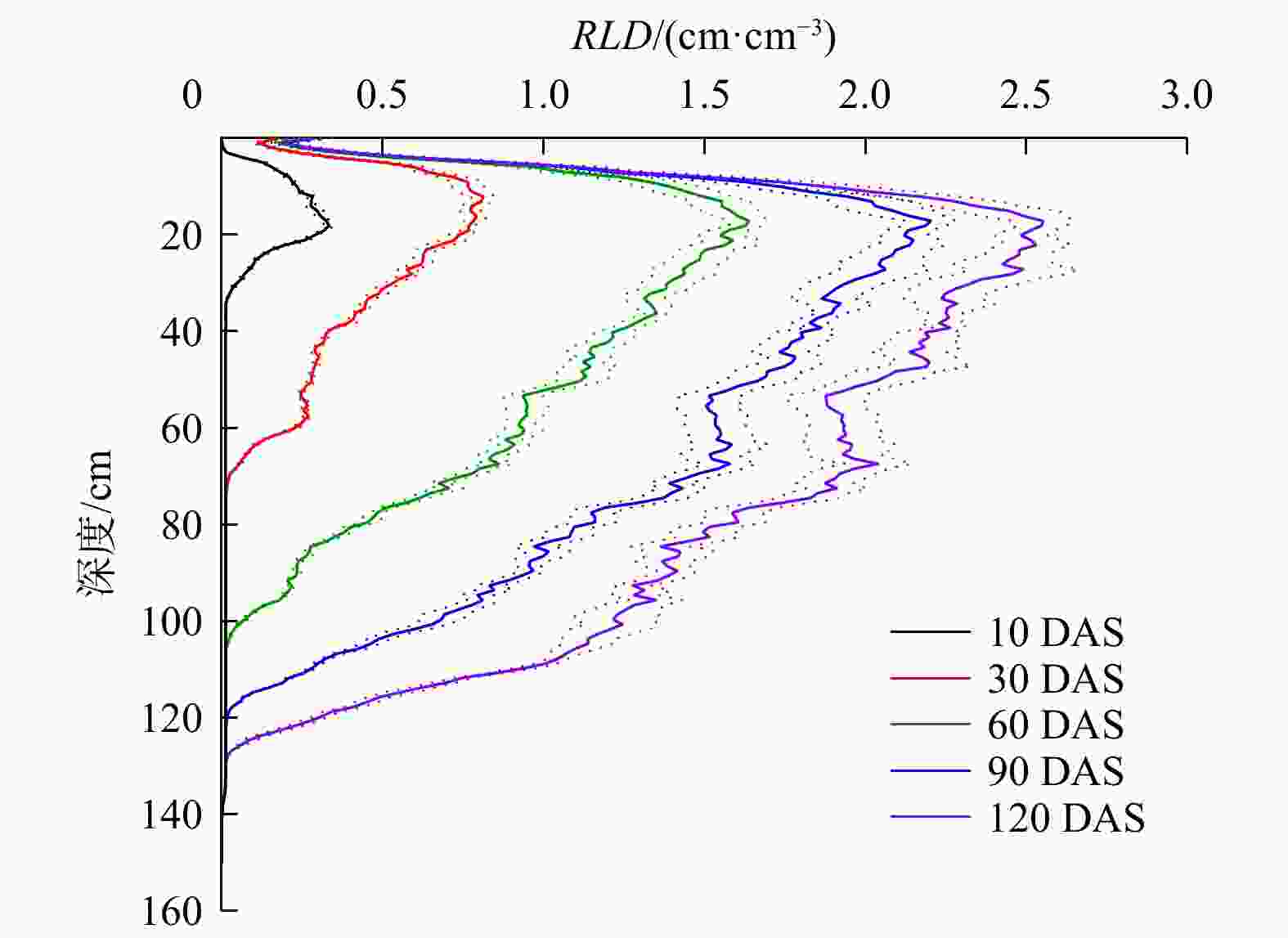

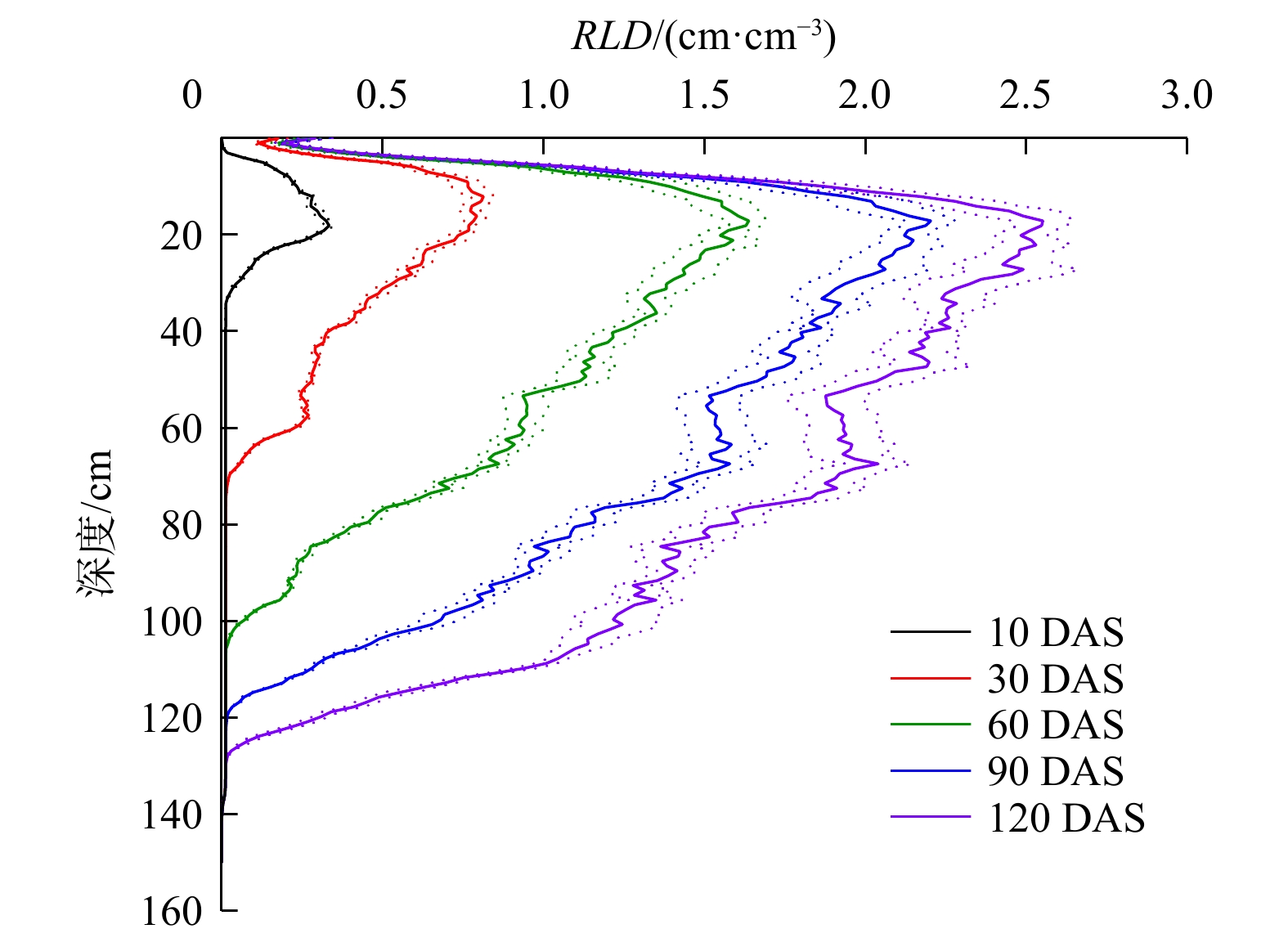

图 7 根系模型模拟 50 次 RLD 均值（实线）及标准误差（虚线）

Figure 7. Simulation of root system model: Mean of root length density (RLD) from 50 simulations (solid line) along with standard error (dashed line)

下载: 全尺寸图片幻灯片

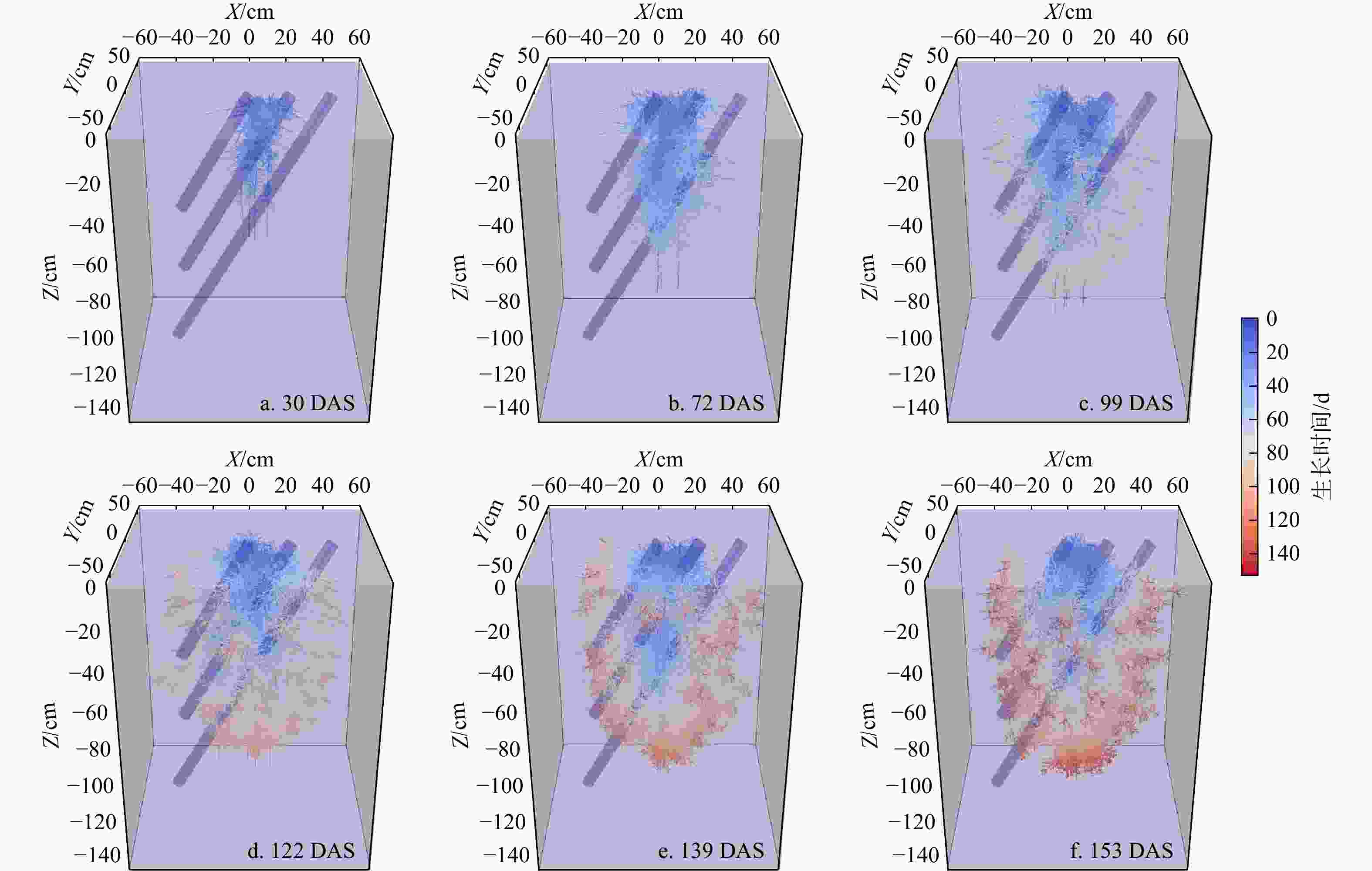

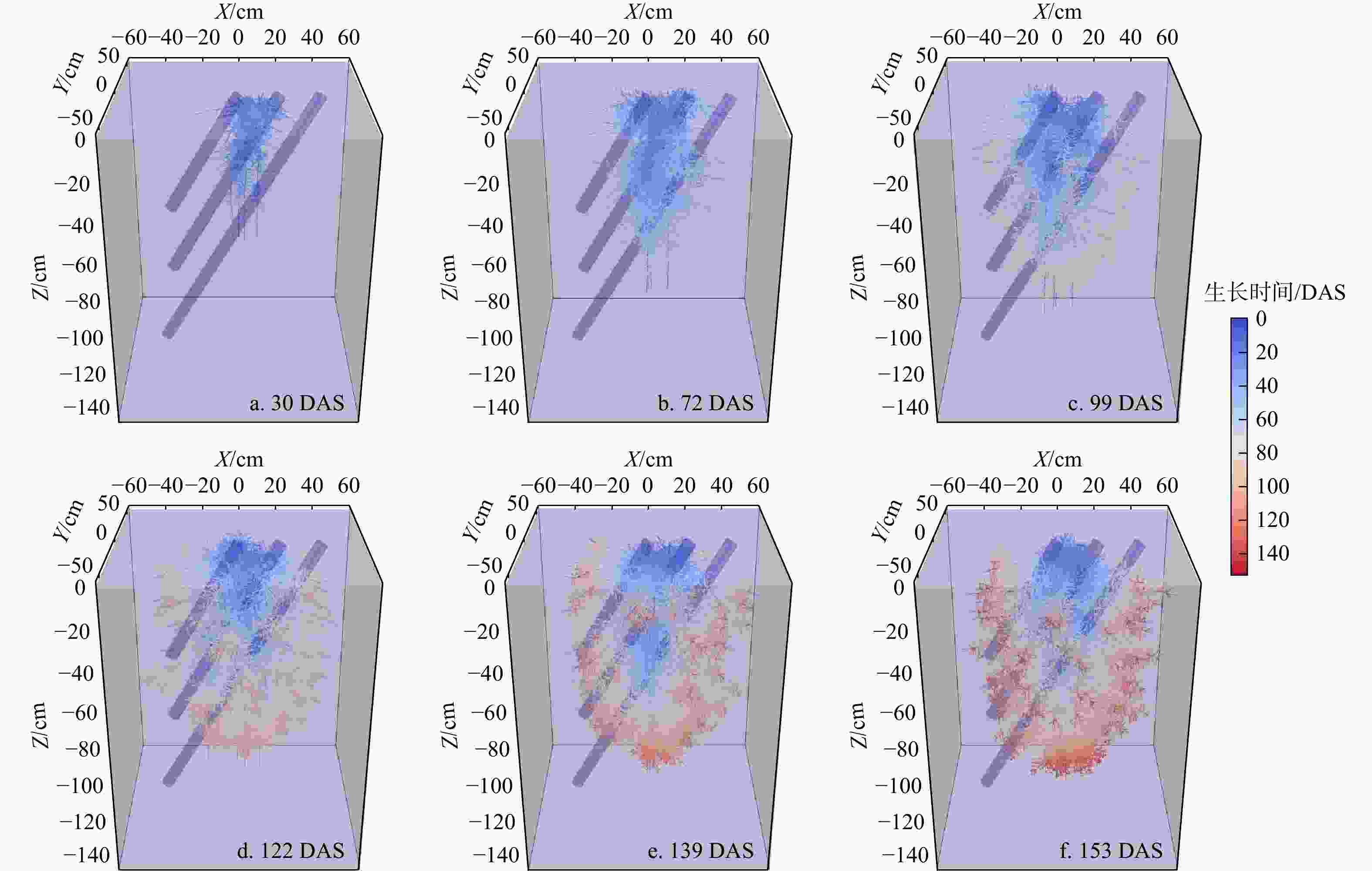

图 8 虚拟田间样地模拟棉花根系在 30～153 DAS的生长及微根管布设

Figure 8. Virtual field plot simulation of cotton root system growth and minirhizotron tubes deployment from 30 to 153 DAS

下载: 全尺寸图片幻灯片

表 1 2020年棉田试验灌水方案及生育期时间

Table 1. Irrigation scheme and growth stage timing for cotton field experiments in 2020

生育期	灌水次数	日期	DAS/d	灌水量/mm	生育期	灌水次数	日期	DAS /d	灌水量/mm
苗期	1	06-19	65	14.1	花铃期	8	07-24	100	46.7
苗期	2	06-24	70	18.5		9	07-29	105	46.7
蕾期	3	06-29	75	41.1		10	08-03	110	46.7
	4	07-04	80	46.7		11	08-08	115	46.6
	5	07-09	85	46.7	盛铃期	12	08-13	120	46.6
	6	07-14	90	46.7	盛铃期	13	08-18	125	46.6
	7	07-19	95	46.7	吐絮期	14	08-23	130	32.8

下载: 导出CSV

表 2 根系生长模型不同模拟天数根长密度（RLD）验证结果

Table 2. Validation results of root length density (RLD) for different simulation days using the root growth model

模拟时间/DAS	样本数/个	MRE	RMSE/(cm·cm⁻²)	d
72	150	0.5378	3.9098	0.7541
99	150	0.2746	2.4127	0.9529
122	150	0.4450	3.0403	0.9020
139	150	0.4933	4.2273	0.8787
148	150	0.4694	4.8710	0.8702
153	150	0.2486	3.3358	0.9353

下载: 导出CSV

表 3 用于棉花根系模拟的根构型关键参数

Table 3. Key parameters of root architecture for simulating cotton root system

序号	Code	参数名称/单位	根系级数	数值（标准偏差）
1	a0	根部半径/cm	0	0.672
2	lmax0	最大根长度/cm	0	140 (14)
3	ln0	横向距离/cm	0	1 (0.2)
4	r0	初始增长率/(cm·d⁻¹)	0	3
5	theta0	根与母根夹角/rad	0	0
6	a1	根部半径/cm	1	0.148 (0.042)
7	lmax1	最大根长度/cm	1	65 (6.5)
8	ln1	横向距离/cm	1	0.7 (0.1)
9	r1	初始增长率/(cm·d⁻¹)	1	0.5 (0.1)
10	theta1	根与母根夹角/rad	1	1.326 (0.087)
11	a2	根部半径/cm	2	0.08 (0.01)
12	lmax2	最大根长度/cm	2	10 (1)
13	ln2	横向距离/cm	2	0.4 (0.1)
14	r2	初始增长率/(cm·d⁻¹)	2	1 (0.2)
15	theta2	根与母根夹角/rad	2	1.221 (0.262)

下载: 导出CSV
