摘要:
膨胀土引发的工程地质问题成为了制约城市地质安全的关键。为了研究玄武岩纤维改良膨胀土的效果和机理，以湖北宜昌三峡机场弱膨胀土为研究对象，通过掺入质量分数为0.2%，0.4%和0.6%的玄武岩纤维改良土的三轴压缩试验和干湿循环试验，并结合数字图像处理技术，研究改良土的强度和干湿循环下的表面裂隙随纤维掺量的变化规律。结果表明：玄武岩纤维掺量对改良土的黏聚力影响明显，对内摩擦角影响不显著，玄武岩纤维掺量为0.4%时，改良土的黏聚力提高了57.1%；不同玄武岩纤维掺量的改良系数均大于1.0，掺量为0.4%时改良效果最佳；首次干湿循环后，改良土和素膨胀土没有出现裂隙，后续循环期次玄武岩纤维改良土裂隙面积率和分形维数均比原土小，裂隙面积率的最大差值由2.41%增至4.54%，分形维数的最大差值由0.058降至0.037，掺量为0.4%时，玄武岩纤维抑制土的裂隙效果最好。“嵌固”在土体中的纤维使裂隙尖端的应力集中程度降低，从而限制了裂隙的发展。研究结果可为区域性玄武岩纤维改良弱膨胀土的工程应用提供参考。
Abstract:The engineering geological problems caused by expansive soil have become a key factor restricting urban geological safety.

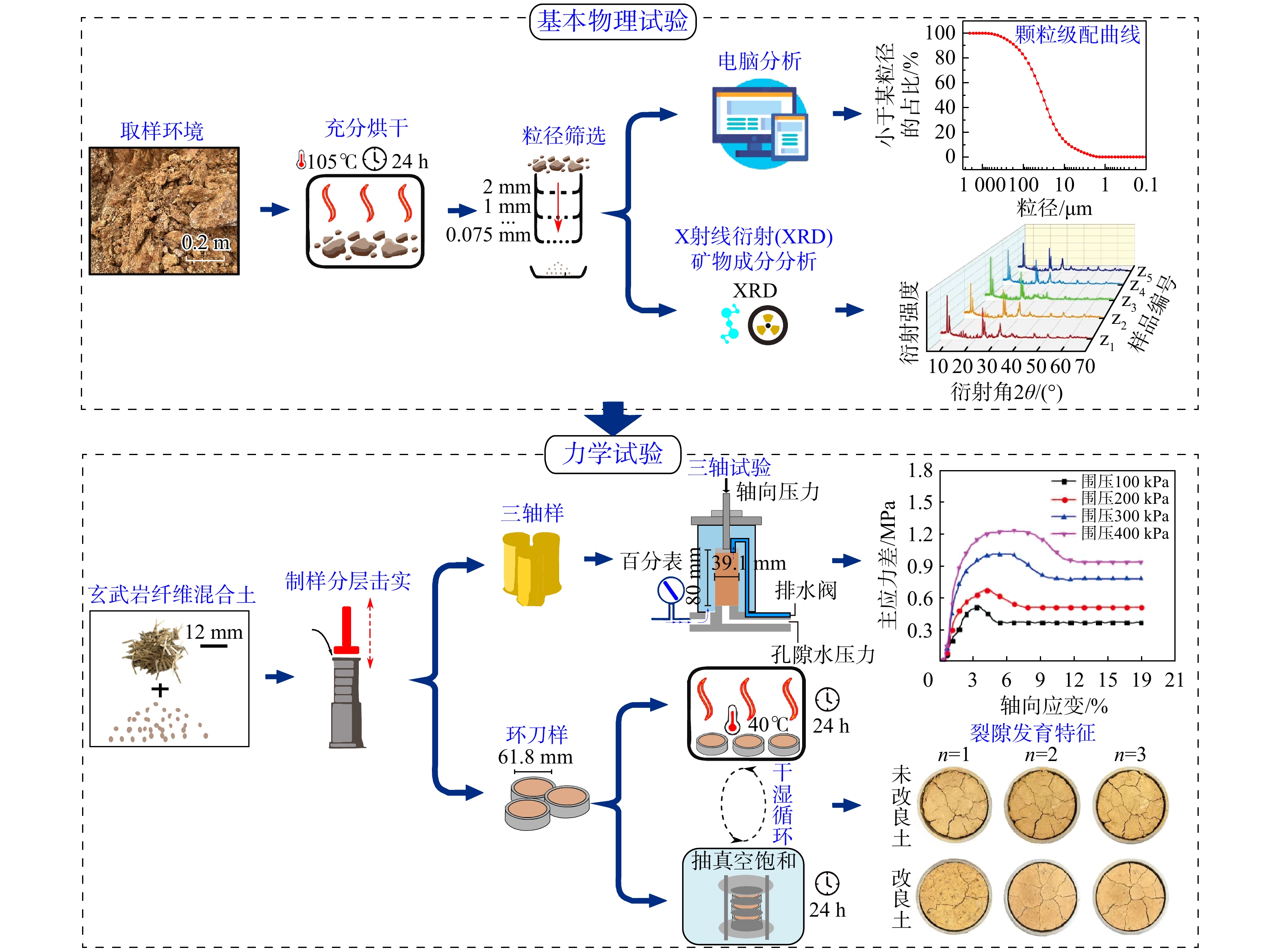

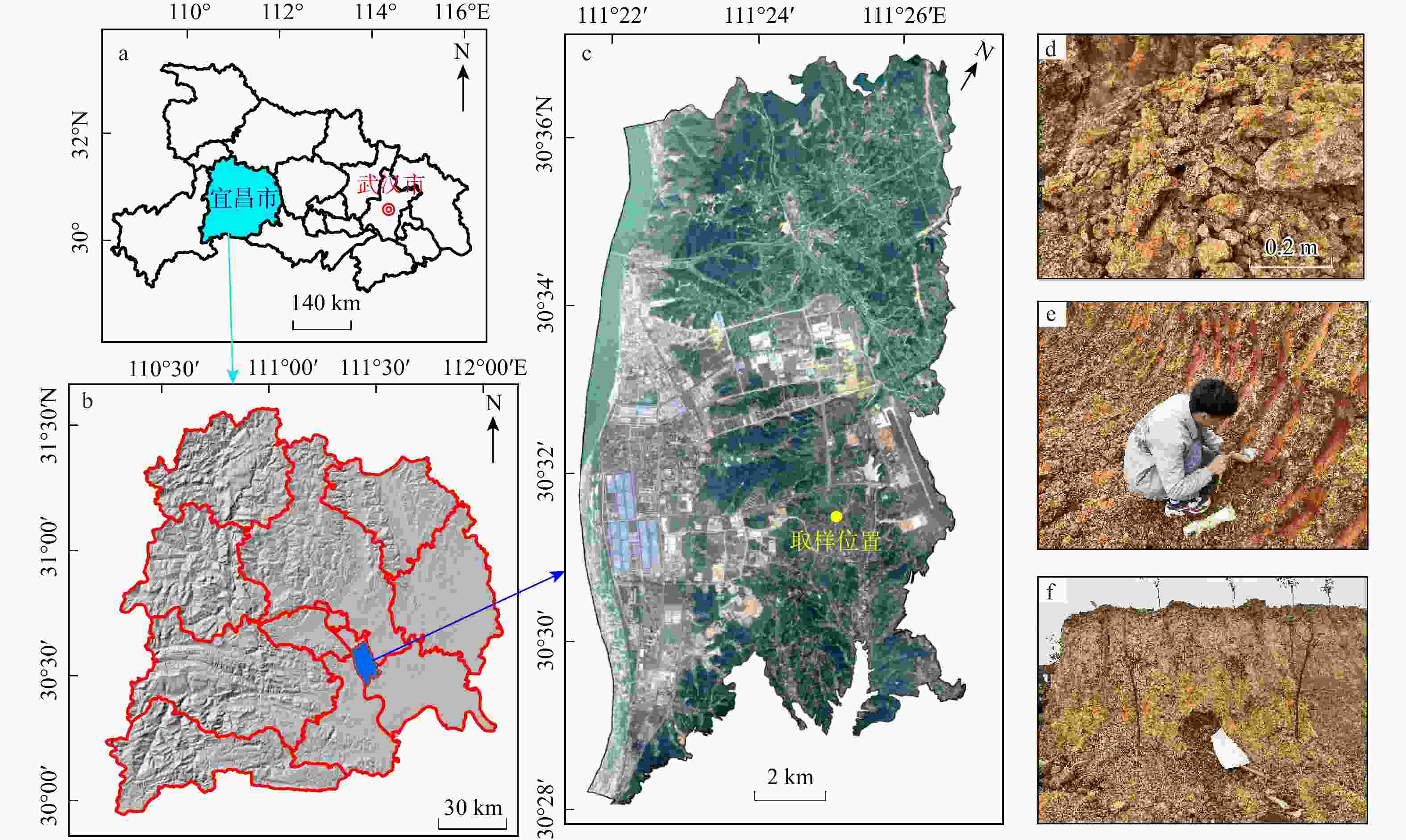

Objective and Methods In order to study the effect and mechanism of basalt fiber in improving expansive soil, weak expansive soil from Three Gorges Airport, Yichang, Hubei, was taken as the research object. By adding 0.2%, 0.4%, and 0.6% basalt fiber to the soil, triaxial compression test and dry-wet cycle test were conducted, combined with digital image processing technology, to investigate the strength of the improved soil and the variation of surface cracks under the dry-wet cycle with fiber content.
Results The results showed that the content of basalt fiber had a significant effect on the cohesion of the improved soil but had no significant effect on the internal friction angle. When the content of basalt fiber was 0.4%, the cohesion of the improved soil increased by 57.1%. The improvement coefficient for different basalt fiber contents was greater than 1.0, with the best improvement effect occurring at 0.4%. After the first dry-wet cycle, no cracks were observed in either the improved soil or the untreated expansive soil. The crack area ratio and fractal dimension of the basalt fiber-improved soil in subsequent cycles were smaller than those of the original soil. The maximum difference in the crack area ratio increased from 2.41% to 4.54%, and the maximum difference in the fractal dimension decreased from 0.058 to 0.037. When the content was 0.4%, the fiber had the best effect in inhibiting the cracking of the soil. The fiber embedded in the soil reduced the stress concentration at the crack tip, which limited the development of the crack.
Conclusion The research results can provide valuable references for the engineering application of basalt fiber-improved weak expansive soil at the regional scale.
-

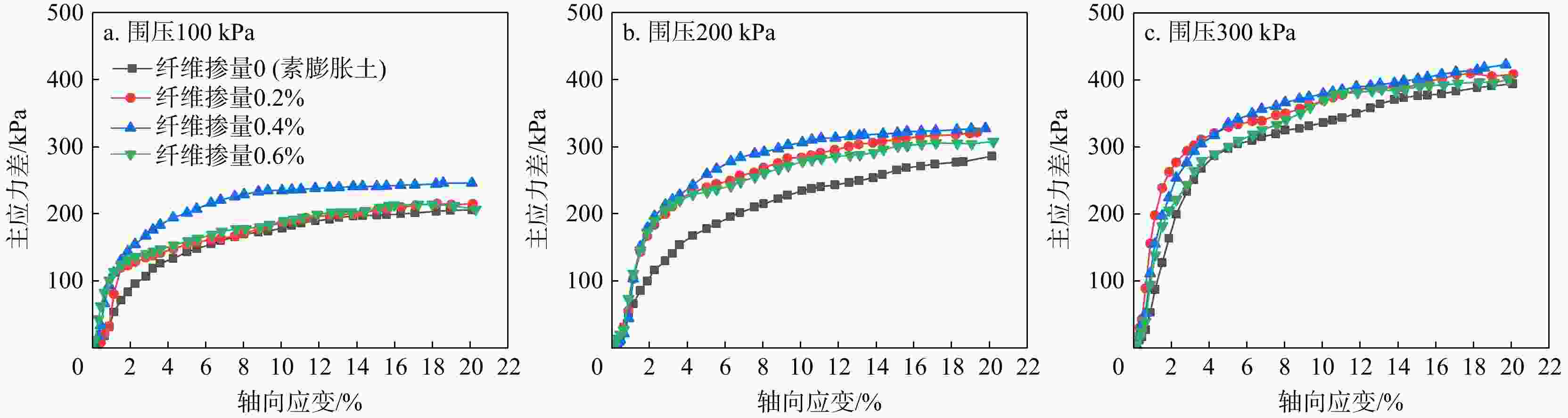

图 5 各围压下的主应力差−轴向应变曲线
Figure 5. Major principal stress difference-axial strain curves under different confining pressures

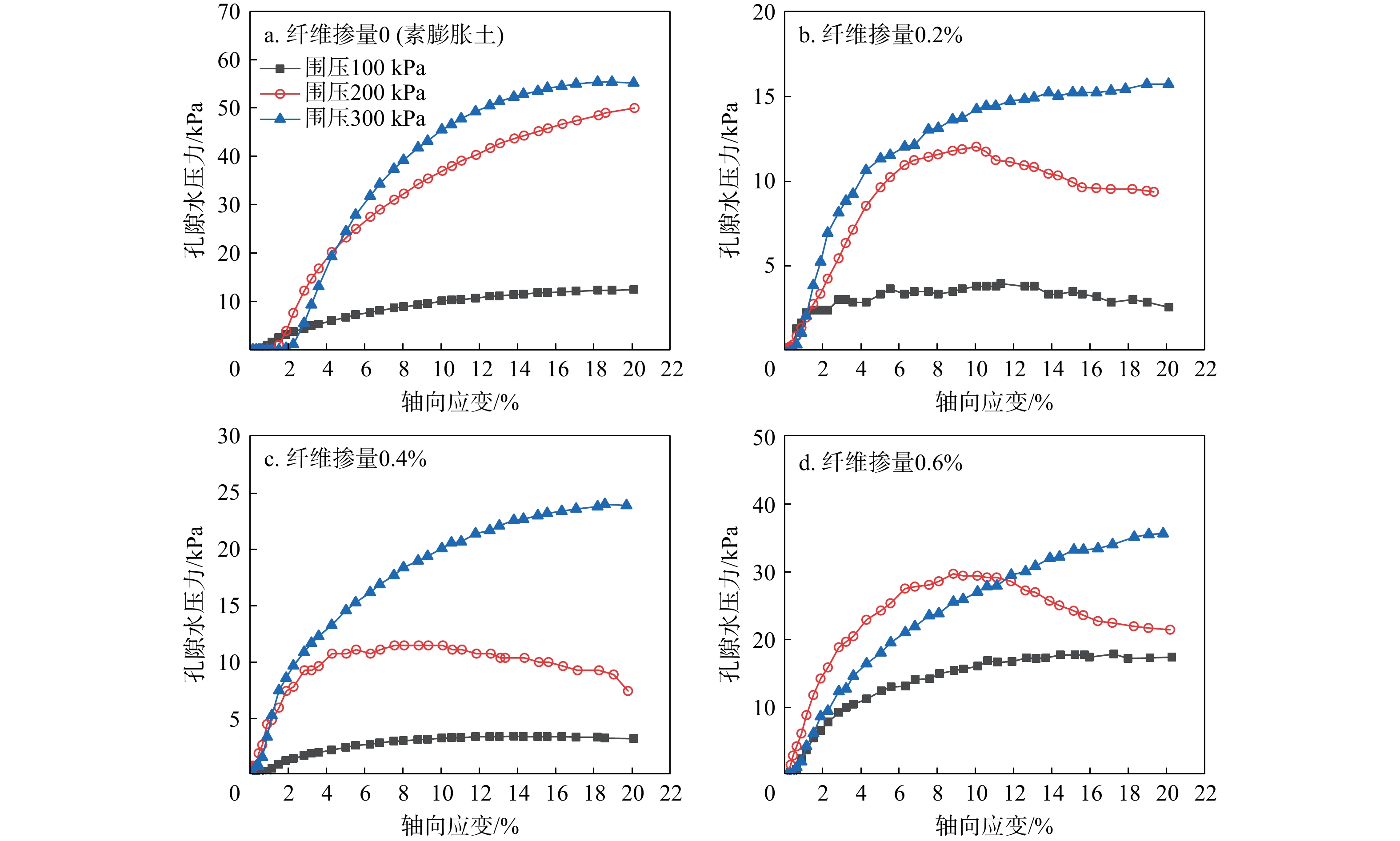

图 6 各纤维掺量下的孔隙水压力−轴向应变曲线
Figure 6. Pore water pressure-axial strain curves under different fiber contents

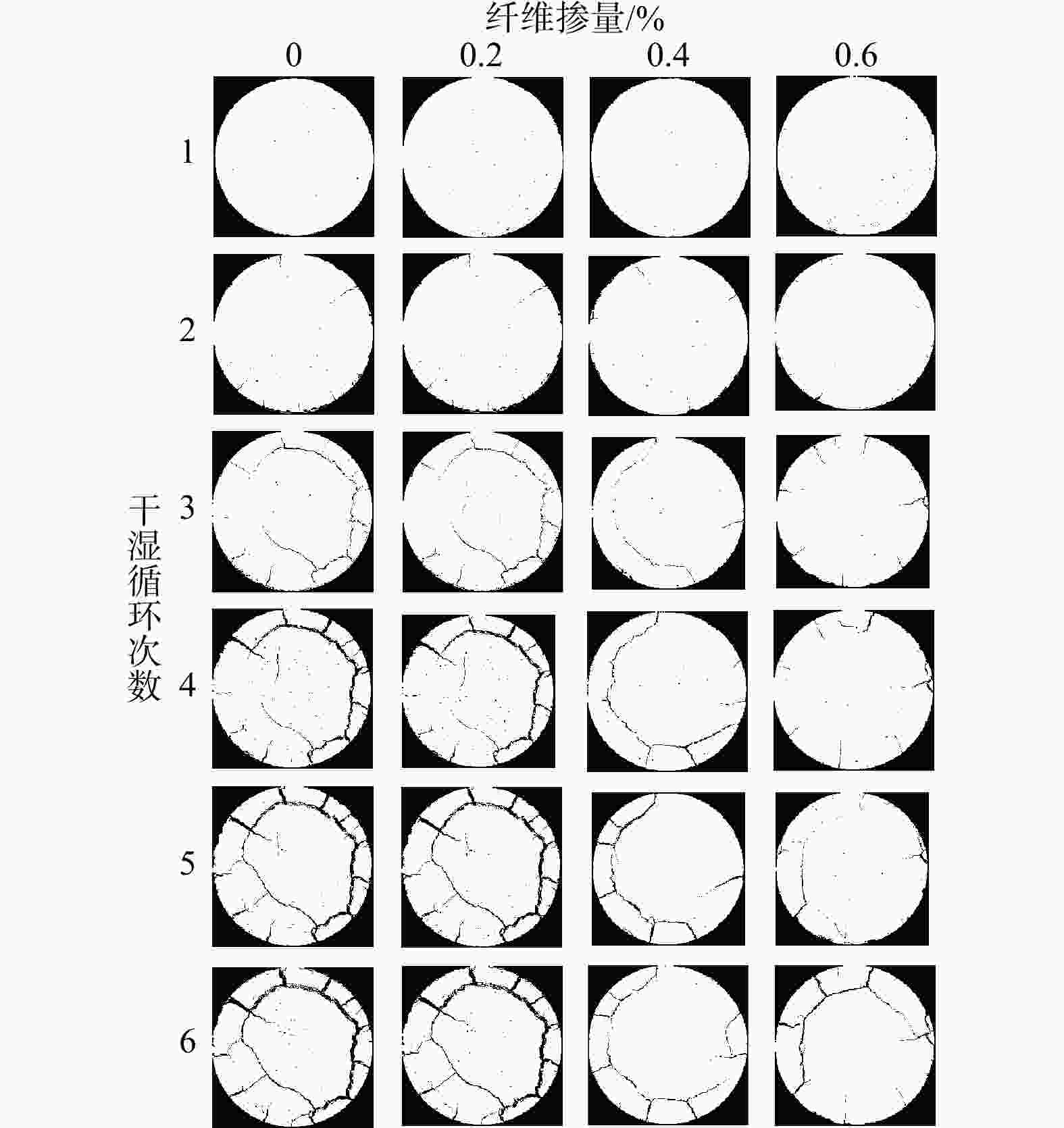

图 8 干湿循环过程中试样裂隙二值化图像
Figure 8. Binarized images of cracks in samples during dry-wet cycles

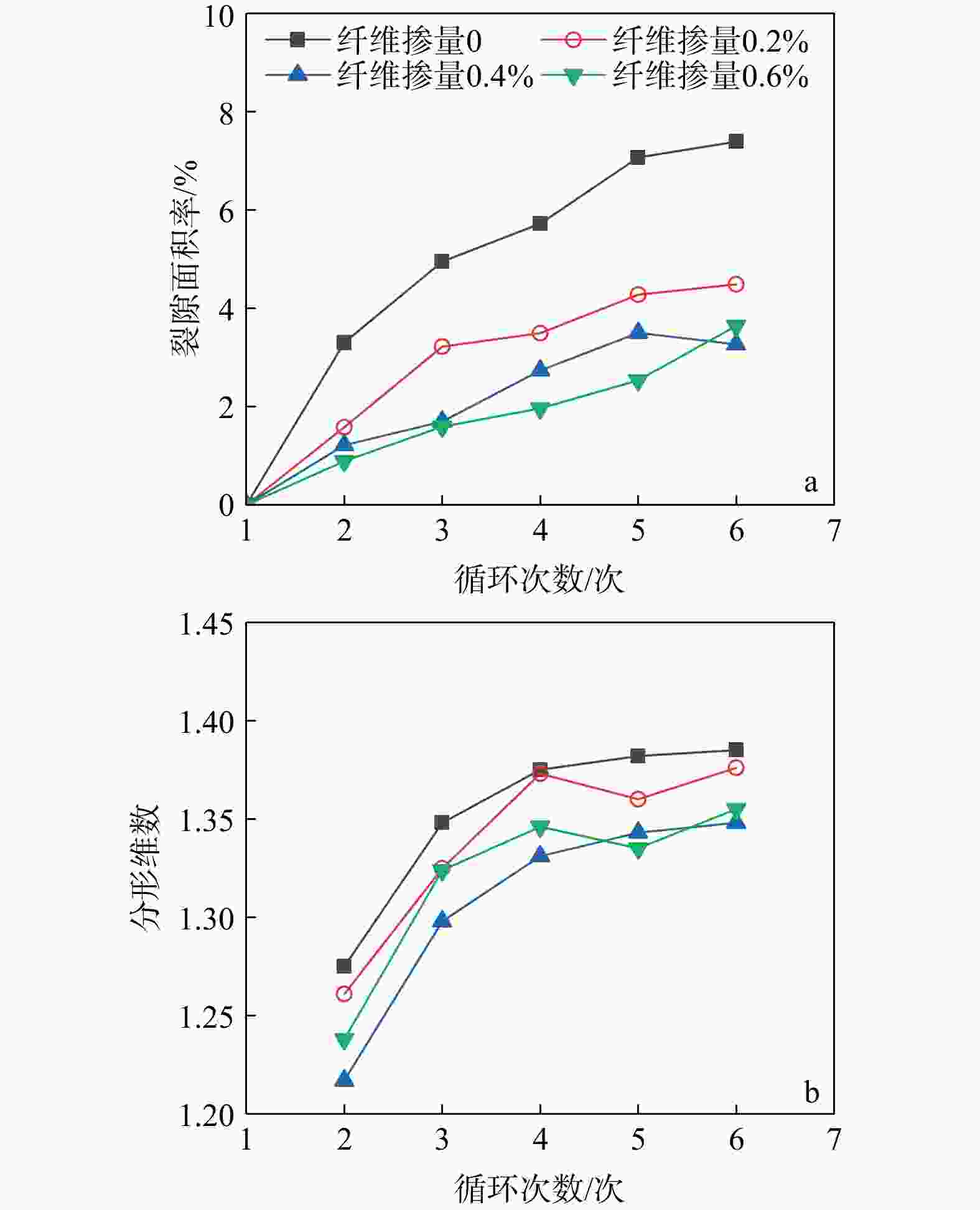

图 9 试样裂隙参数与循环次数的关系
Figure 9. Relationship between crack parameters and number of cycle in samples

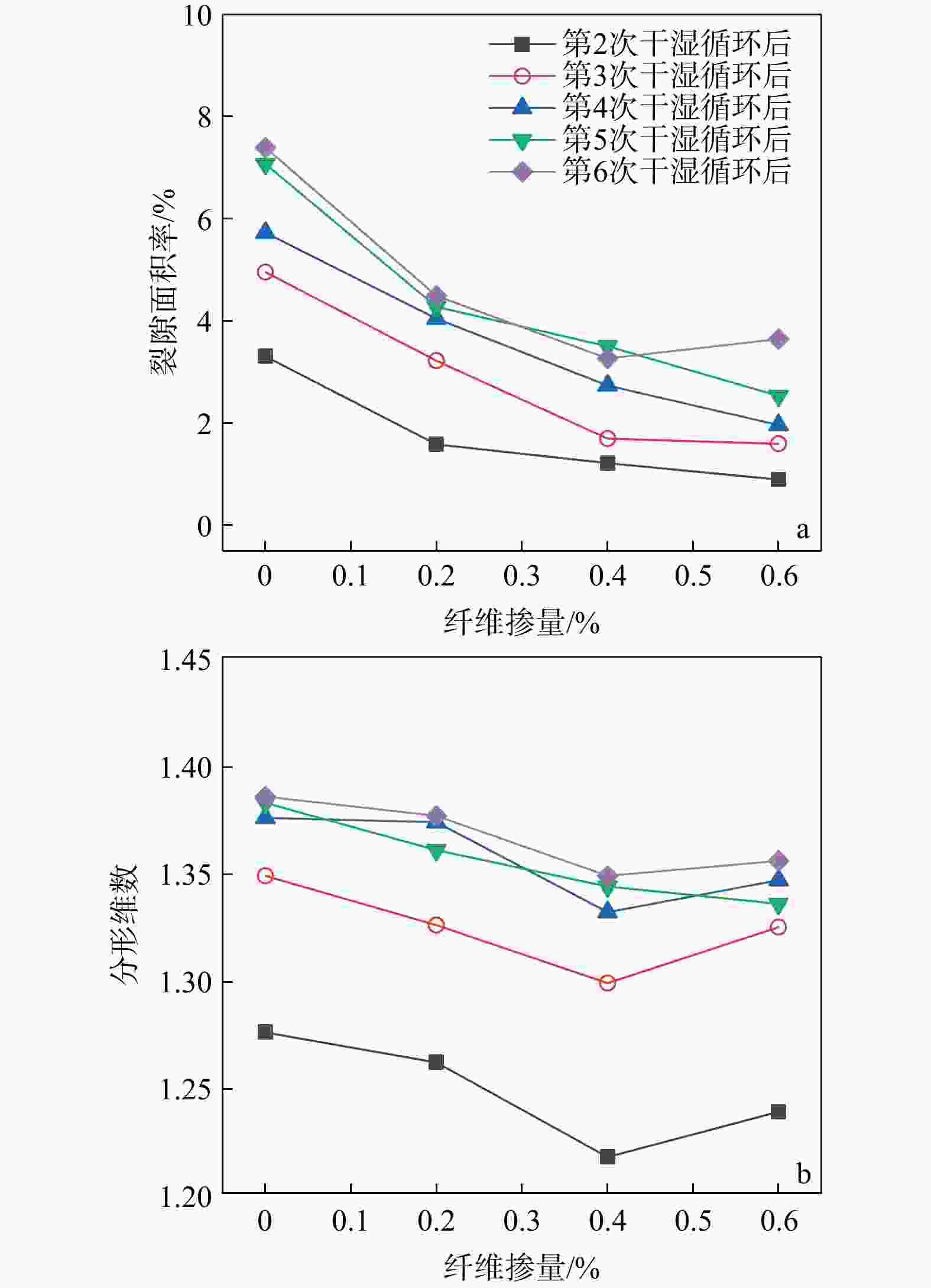

图 10 试样裂隙参数与纤维掺量的关系
Figure 10. Relationship between crack parameters and fiber content in samples

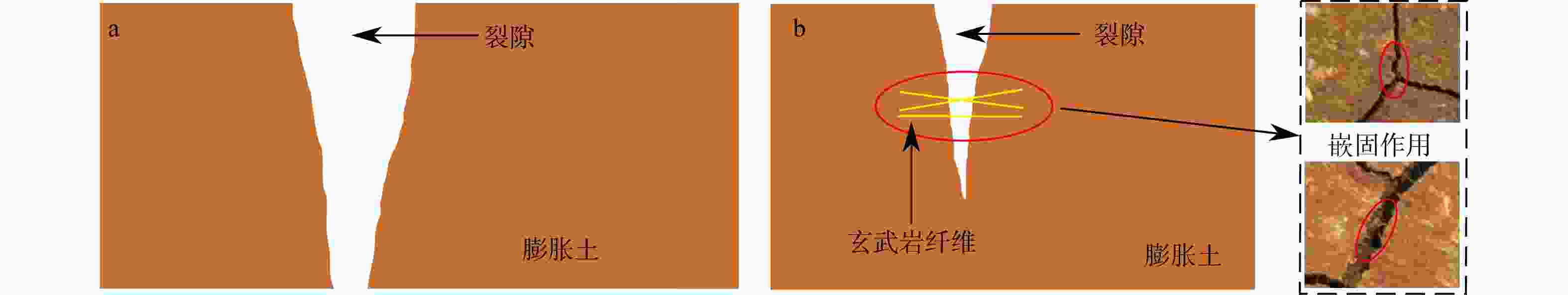

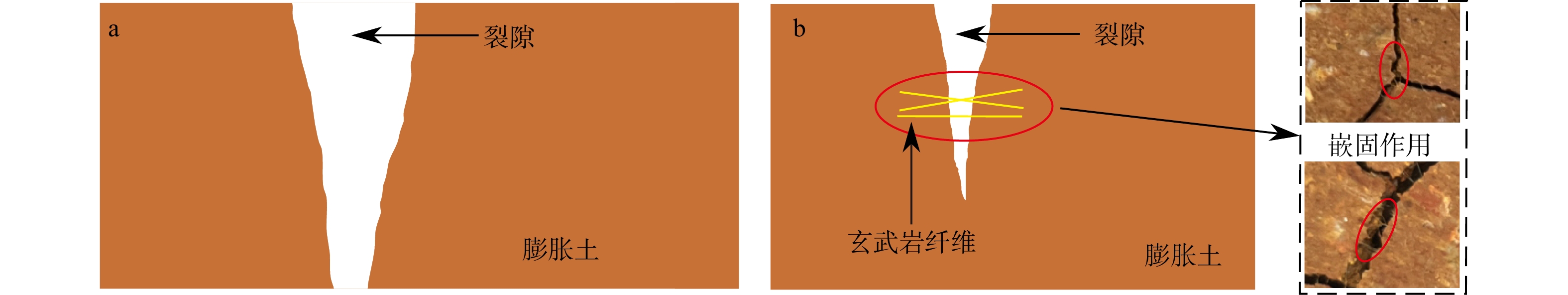

图 11 玄武岩纤维的“嵌固”作用示意图（a. 膨胀土；b. 纤维改良膨胀土）
Figure 11. Schematic diagram of "embedding" effect of basalt fiber

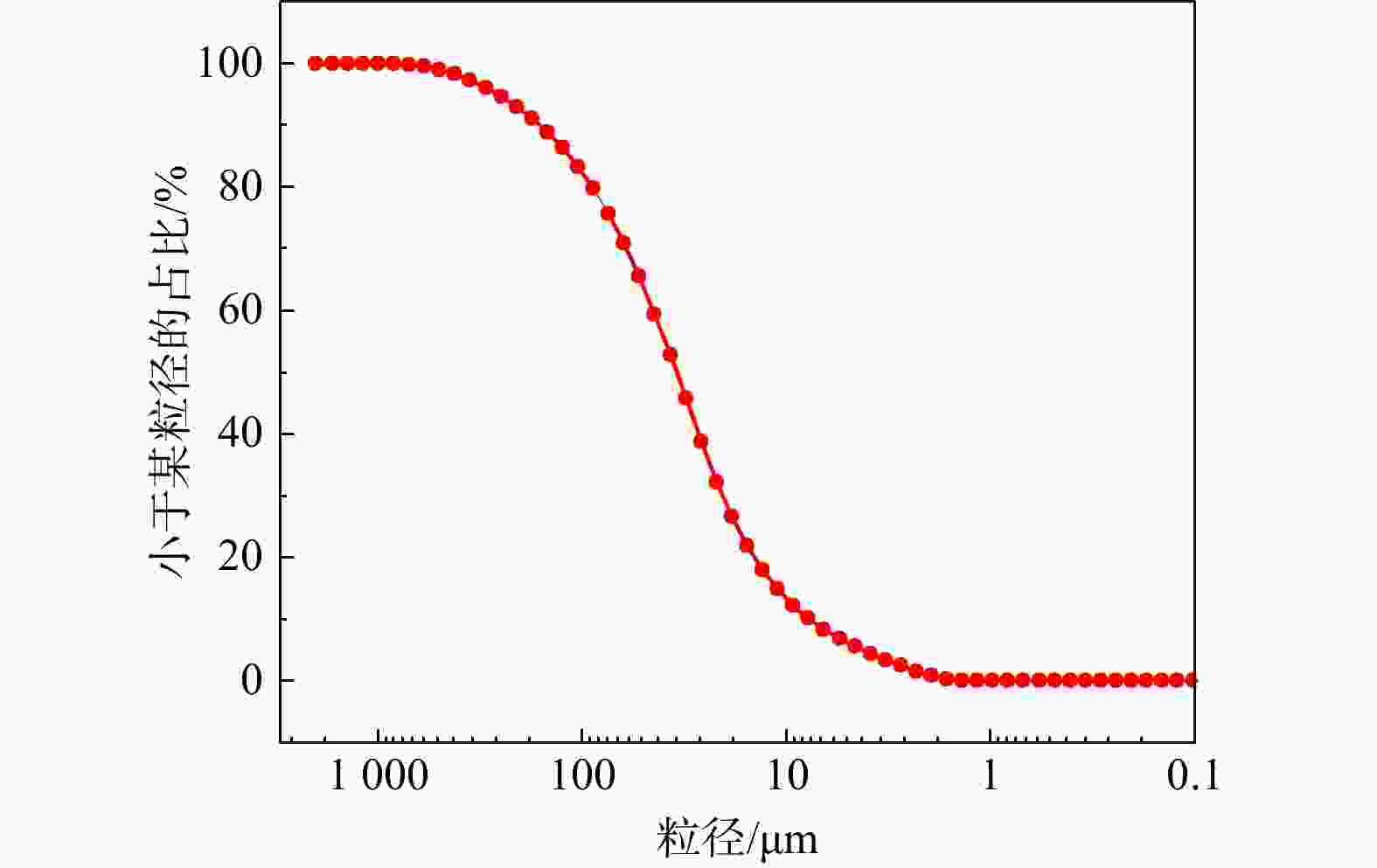

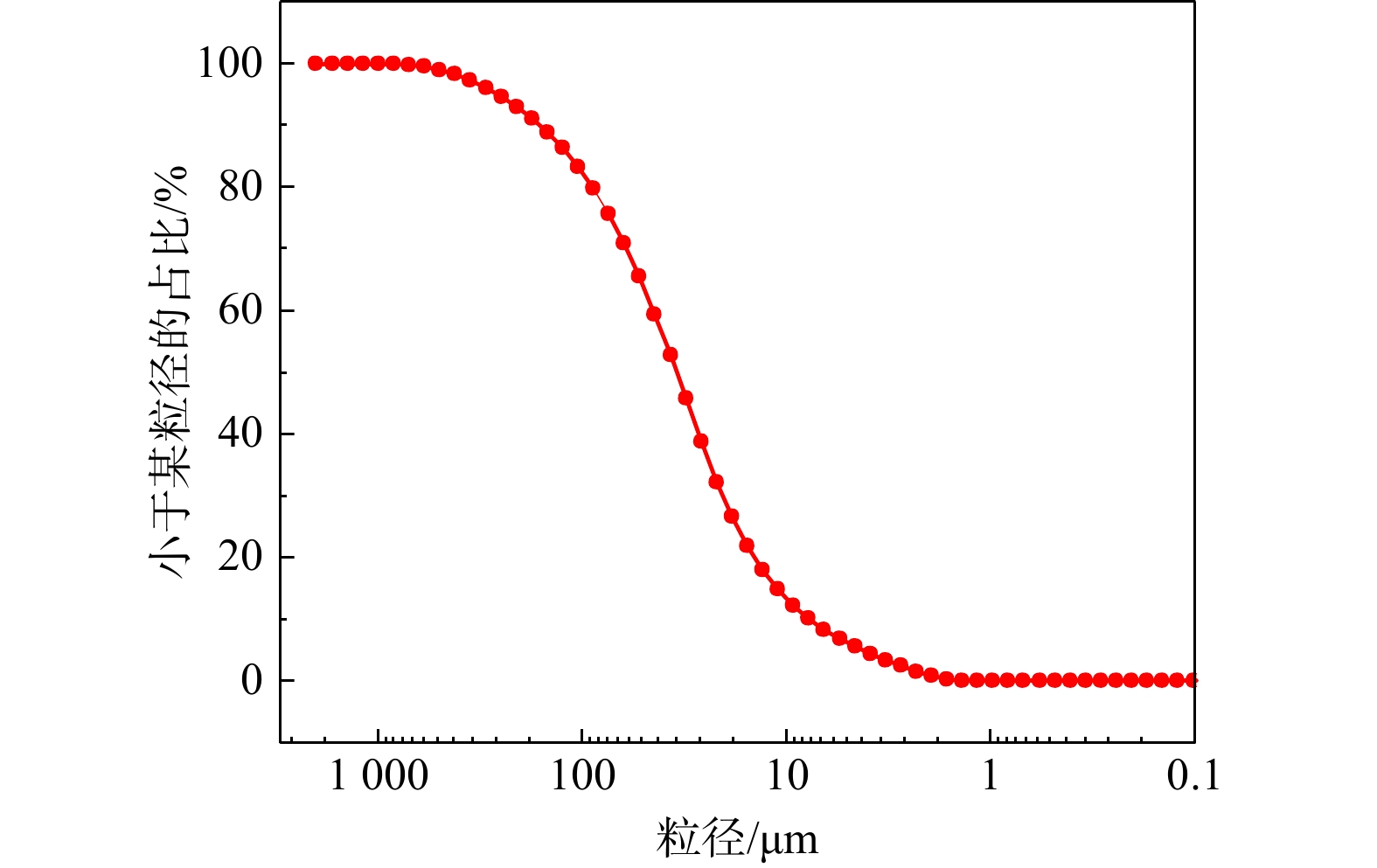

表 1 膨胀土基本物理指标
Table 1. Basic physical properties of expansive soil
液限
ωL/%塑限
ωP/%塑性
指数IP天然含
水率ω/%天然湿密
度/(g∙cm−3)最优含
水率ω/%最大干密
度/(g∙cm−3)自由膨胀
率FS/%55.01 16.18 38.83 20.94 2.02 18.25 1.73 48.00
下载: 导出CSV

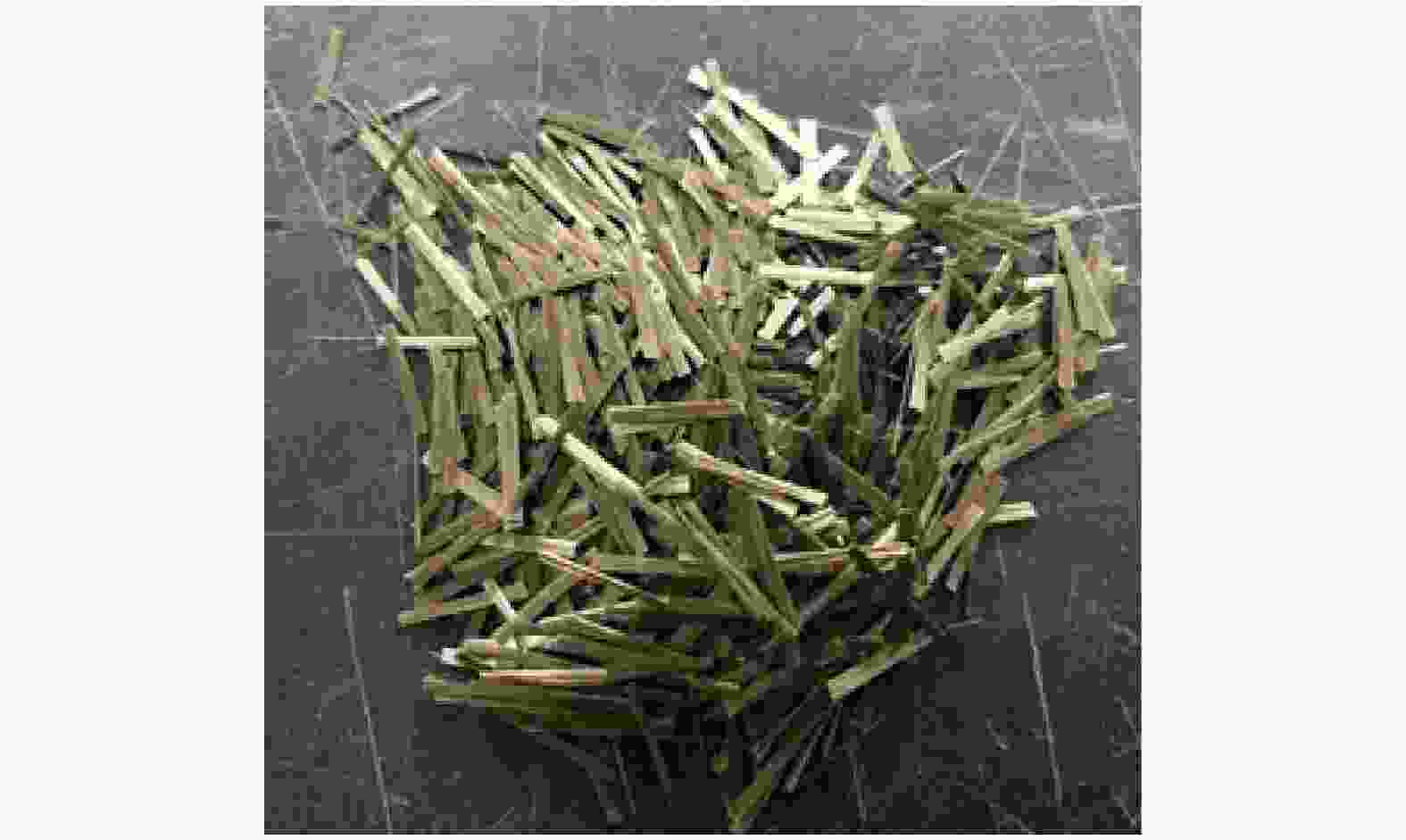

表 2 玄武岩纤维物理力学参数
Table 2. Physical and mechanical parameters of basalt fiber
抗拉强度/MPa 弹性模量/GPa 纤维密度/(g·cm−3) 断裂伸长率/% 熔点/℃ 2000 ～2200 85～90 2.699 2.8 1450
下载: 导出CSV
表 3 三轴压缩试验方案
Table 3. Triaxial compression test scheme
试验方法 围压/kPa 纤维掺量/% 含水率/% 剪切速率/（mm·min−1） 固结不
排水
（CU）100，200，
3000 18.25 0.8 0.2 18.25 0.8 0.4 18.25 0.8 0.6 18.25 0.8
下载: 导出CSV
表 4 各围压下不同纤维掺量改良土的最大主应力差
Table 4. Maximum major principal stress difference of improved soil with different fiber contents under different confining pressures
围压/kPa 纤维掺量0 纤维掺量0.2% 纤维掺量0.4% 纤维掺量0.6% 100 205.8 215.3 245.9 214.0 200 286.0 321.4 327.3 307.8 300 394.2 408.7 422.8 400.1
下载: 导出CSV
表 5 玄武岩纤维改良土强度指标
Table 5. Strength indices of basalt fiber-improved soil
纤维掺量/% $ C $/kPa $ \varphi $/(°) $ C' $/kPa $ \varphi ' $/(°) 0 36.4 18.7 35.0 18.0 0.2 44.4 19.0 42.9 18.6 0.4 56.5 17.9 55.0 17.8 0.6 43.2 18.5 42.2 17.4 注：C. 黏聚力；φ. 内摩擦角；C'. 有效黏聚力；φ'. 有效内摩擦角
下载: 导出CSV
表 6 强度改良系数
Table 6. Strength improvement coefficients
纤维掺量/% 围压/kPa 100 200 300 0 1 1 1 0.2 1.05 1.12 1.04 0.4 1.19 1.14 1.07 0.6 1.04 1.08 1.02
下载: 导出CSV
-
