Geological characteristics, paleolandforms, and their relationship with bauxite distribution in the Xiaoyuan bauxite mine, Qingzhen City, Guizhou Province
-
摘要:
古岩溶地貌控制着铝土矿体的形态和规模，对矿产勘查过程中工程布置意义重大。为了分析小院地区古地貌对铝土矿分布的影响，利用小院地区铝土矿区的钻探、测试资料，以及摆佐组+九架炉组（C1
b +jj ）厚度、摆佐组（C1b ）厚度恢复了九架炉组沉积前后的古地貌特征。结果表明：铝土矿体沿古地貌降低的方向间隔分布，单个矿体的形态受控于洼地、凹陷等具体形状；沿古地貌降低方向上，局部地形较低洼处是铝土矿体形成的有利区域；预测了茶园、十字2个铝土矿找矿远景区。研究成果为后续铝土矿资源勘查提供了参考。Abstract:Ancient karst landforms play a key role in controlling the shape and scale of bauxite deposits, which is of great significance for the planning of engineering layouts in mineral exploration.
Objective This study aims to analyze the impact of ancient landforms in Xiaoyuan area on the distribution of bauxite deposits.
Methods This paper utilizes drilling and testing data from Xiaoyuan bauxite mining area, and employs the thickness of the Paizuo Formation and Jiujialu Formation (C1
b +jj ) and the thickness of the Paizuo Formation (C1b ) to reconstruct the paleogeomorphic features of the Jiujialu Formation before and after sedimentation.Results The results show that the bauxite ore bodies are distributed intermittently along the direction of decreasing paleolandform elevation, and the morphology of individual ore bodies is controlled by specific geomorphic features such as depressions and sinkholes. Along the descending gradient of ancient landforms, locally low-lying areas are favorable sites for the formation of bauxite deposits. Two prospective bauxite mining target areas (Chayuan and Shizi) were predicted.
Conclusion The research results provide a reference for the exploration of bauxite resources.
-
Key words:
- Guizhou Province /
- Carboniferous period /
- bauxite /
- ancient landform /
- metallogenic regularity
-

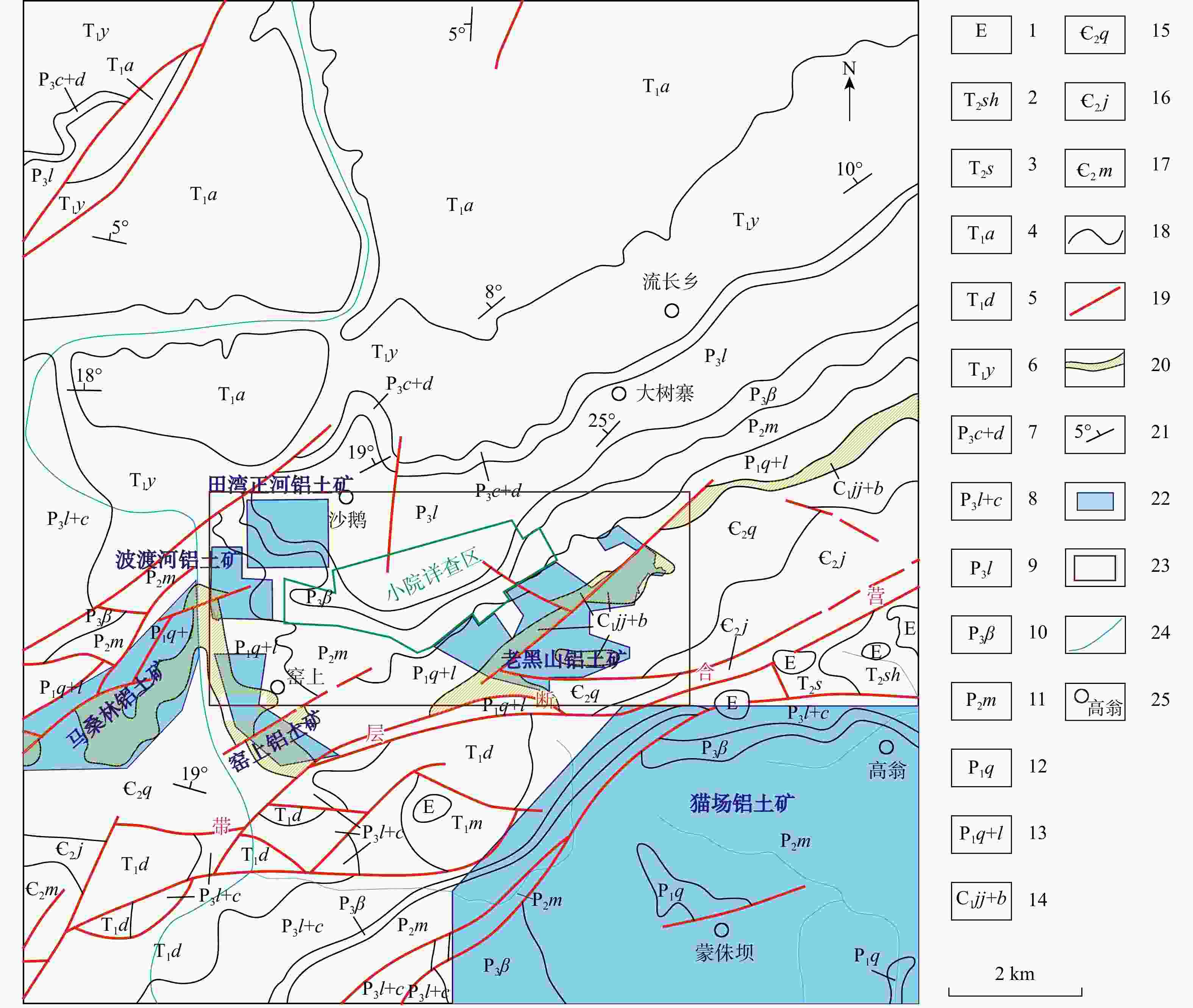

图 1 小院铝土矿区域地质及构造纲要图
1. 古近系；2. 中三叠统狮子山组；3. 中三叠统松子坎组；4. 下三叠统安顺组；5. 下三叠统大冶组；6. 下三叠统夜郎组；7. 上二叠统长兴组+大隆组；8. 上二叠统龙潭组+长兴组；9. 上二叠统龙潭组；10. 峨嵋山玄武岩；11. 中二叠统茅口组；12. 下二叠统栖霞组；13. 下二叠统栖霞组+梁山组；14. 下石炭统九架炉组+摆佐组；15. 中寒武统清虚洞组；16. 中寒武统金顶山组；17. 中寒武统明心寺组；18. 地层界线；19. 断层；20. 铝土矿系露头；21. 岩层产状；22. 铝土矿区范围；23. 研究区范围；24. 水系；25. 地名
Figure 1. Geological and structural map of Xiaoyuan bauxite mine area

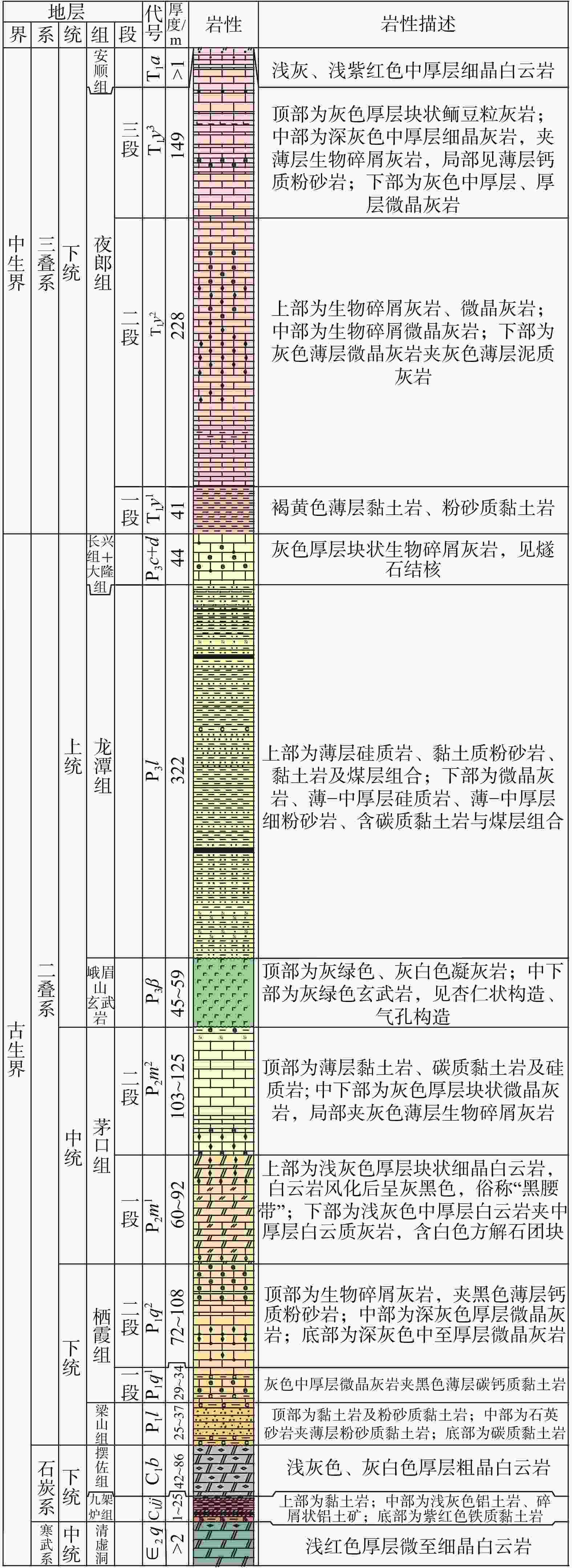

图 2 小院详查区及周边地层综合柱状图
Figure 2. Comprehensive chart of Xiaoyuan exploration area and surrounding strata

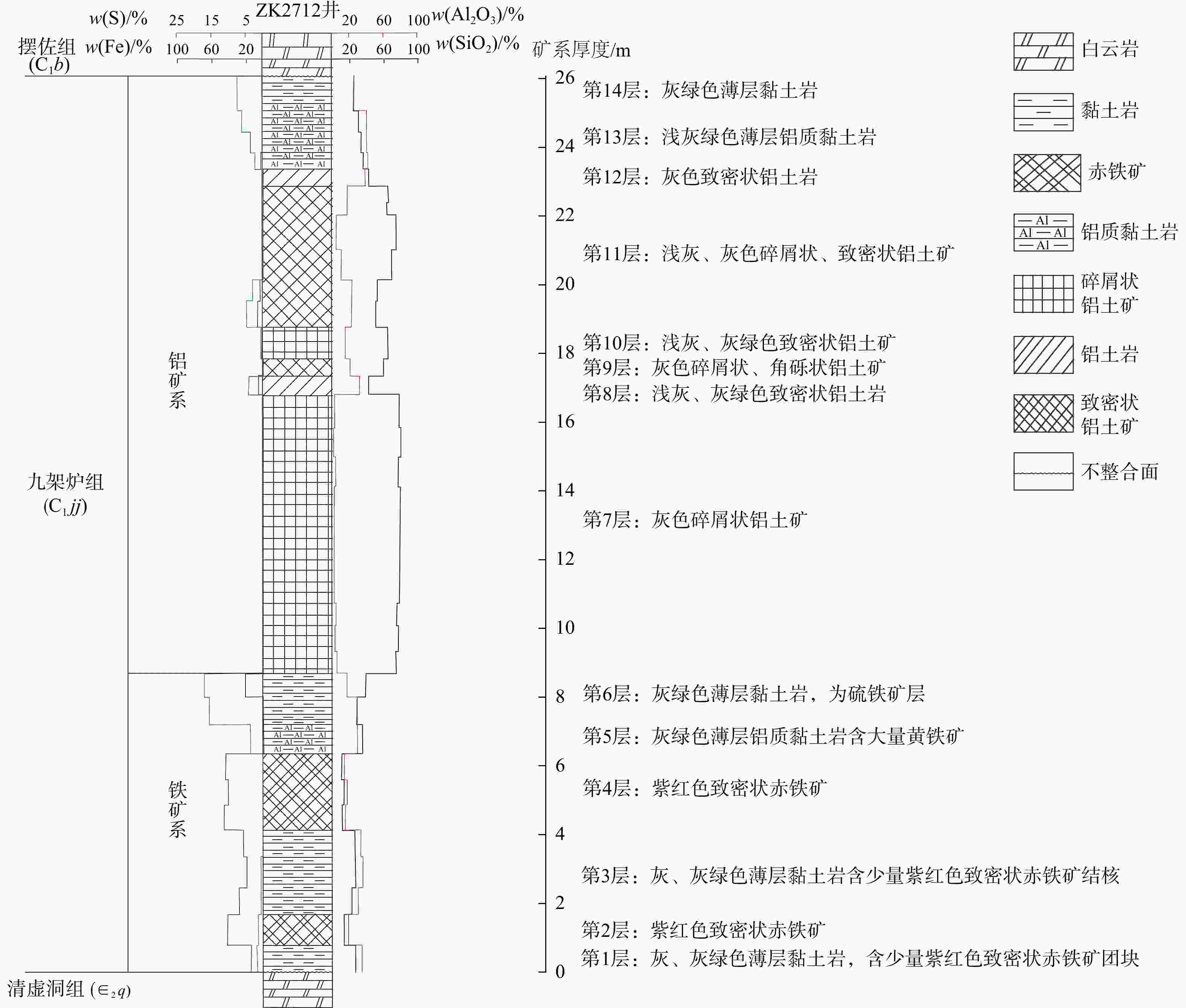

图 3 小院地区九架炉组（C1jj）典型岩性组合图
Figure 3. Typical lithological combination diagram of Jiujialu Formation (C1jj) in Xiaoyuan area
图 4 小院铝土矿的矿石结构
a. 碎屑状铝土矿；b. 致密状铝土矿；c. 半土状铝土矿；d. 铝质黏土岩；e. 铁质黏土岩；f. 黏土岩. Dsp. 硬水铝石；Ms. 白云母；Clay. 黏土；Tur. 电气石；Chl. 绿泥石；Py. 黄铁矿
Figure 4. Ore structure of Xiaoyuan bauxite mine

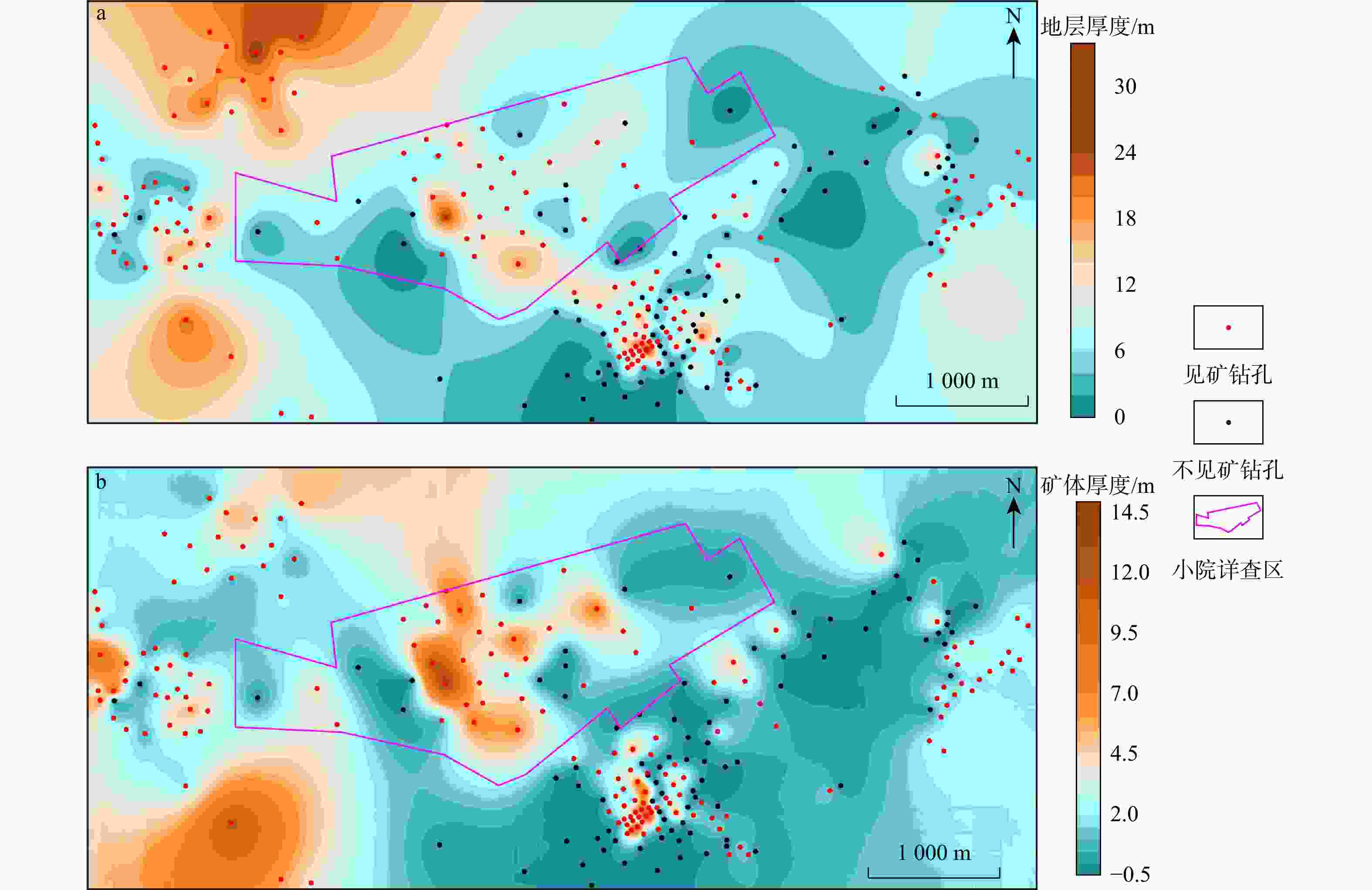

图 5 小院地区九架炉组地层厚度(a)和铝土矿矿体厚度(b)等值线图
Figure 5. Contour map of the thickness of Jiujialu Formation (C1jj) (a) and the thickness of the bauxite ore body in the Jiujialu Formation (C1jj) (b) in Xiaoyuan area

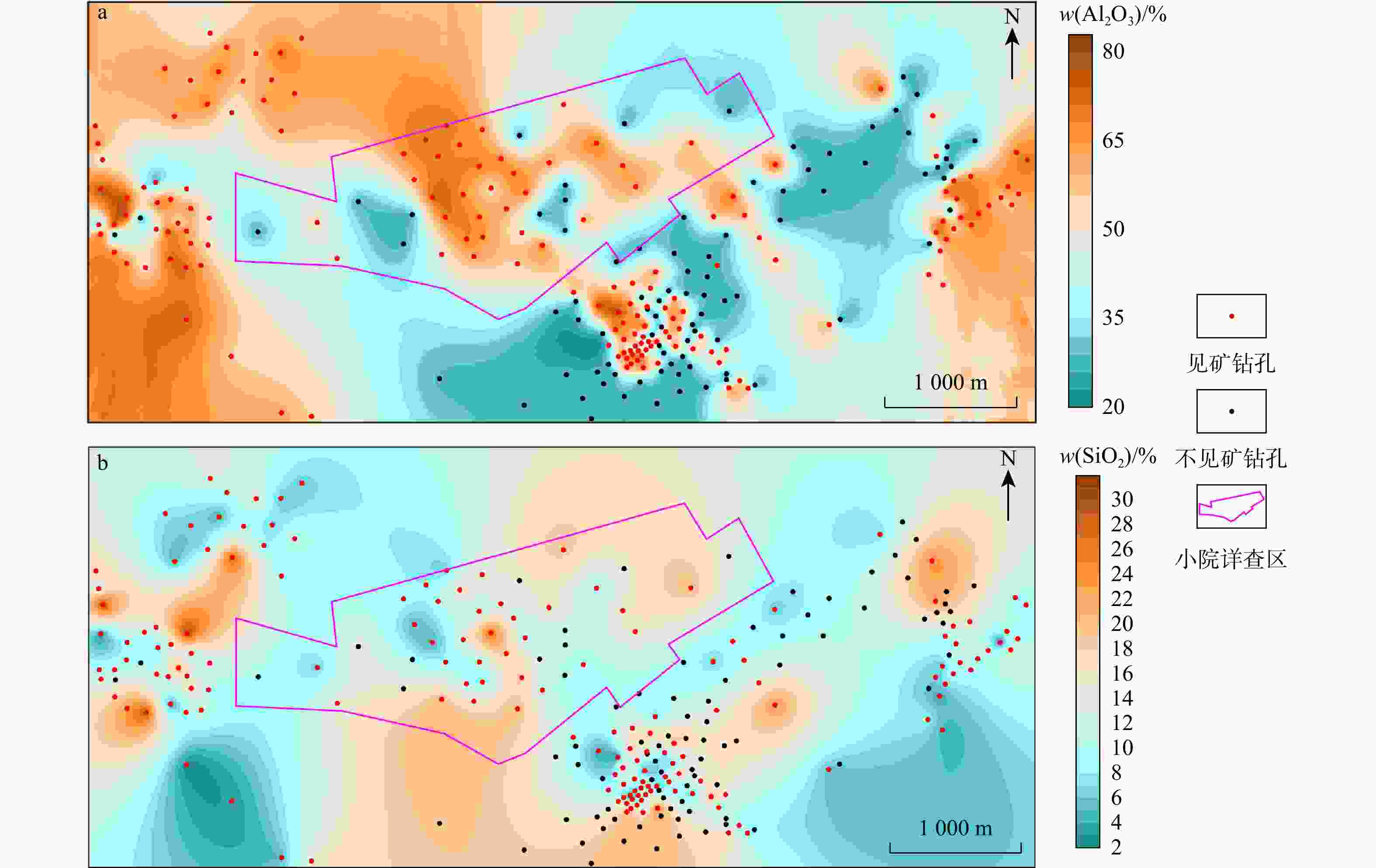

图 6 小院地区九架炉组铝土矿体Al2O3(a)和SiO2(b)质量分数等值线图
Figure 6. Contour map of Al2O3 content (a) and SiO2 content (b) in the ore body of Jiujialu Formation (C1jj) in Xiaoyuan area

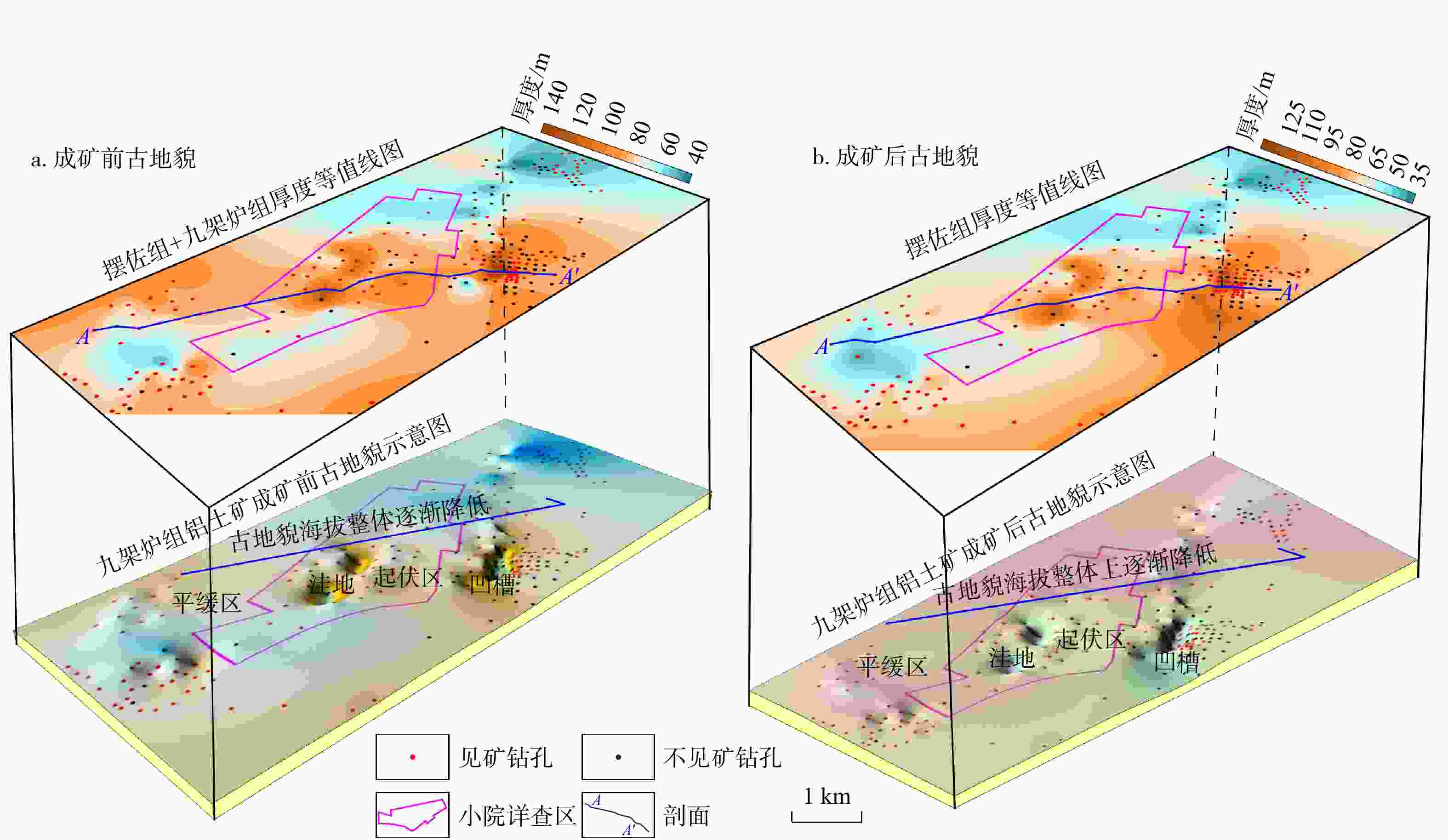

图 7 小院地区铝土矿成矿前后古地貌三维立体图
Figure 7. Three dimensional map of ancient landforms before and after bauxite mineralization in Xiaoyuan area

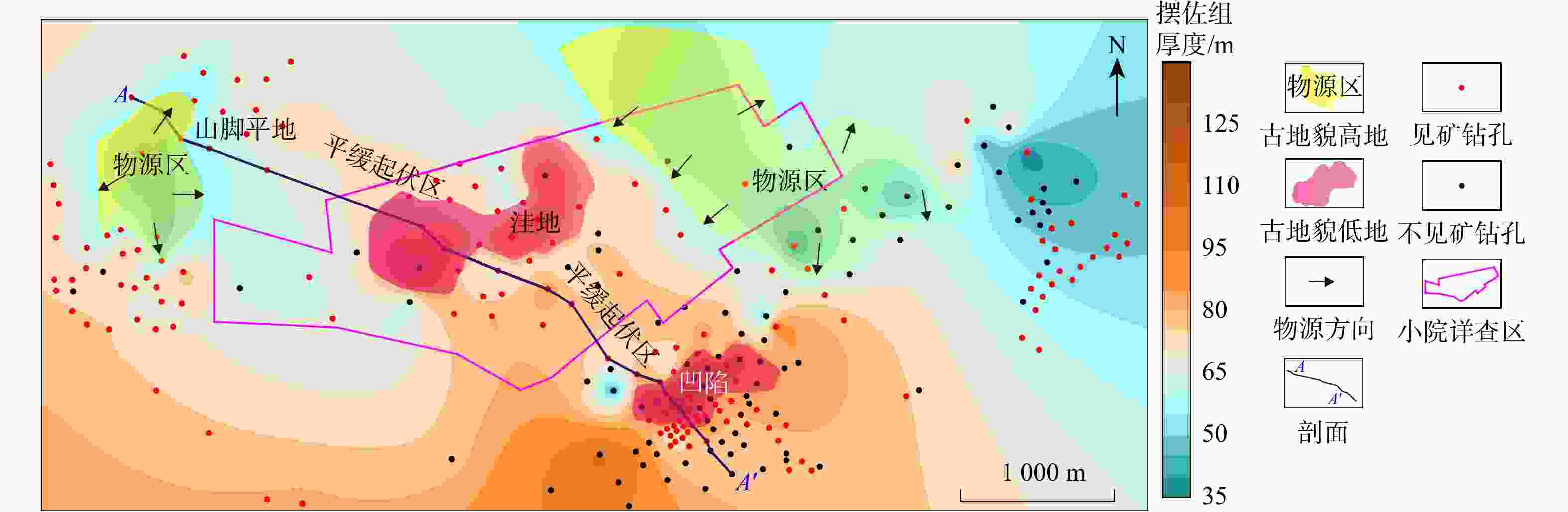

图 8 小院地区九架炉组铝土矿成矿后古地貌平面分布图
Figure 8. Distribution map of ancient landforms after bauxite mineralization in Jiujialu Formation in Xiaoyuan area

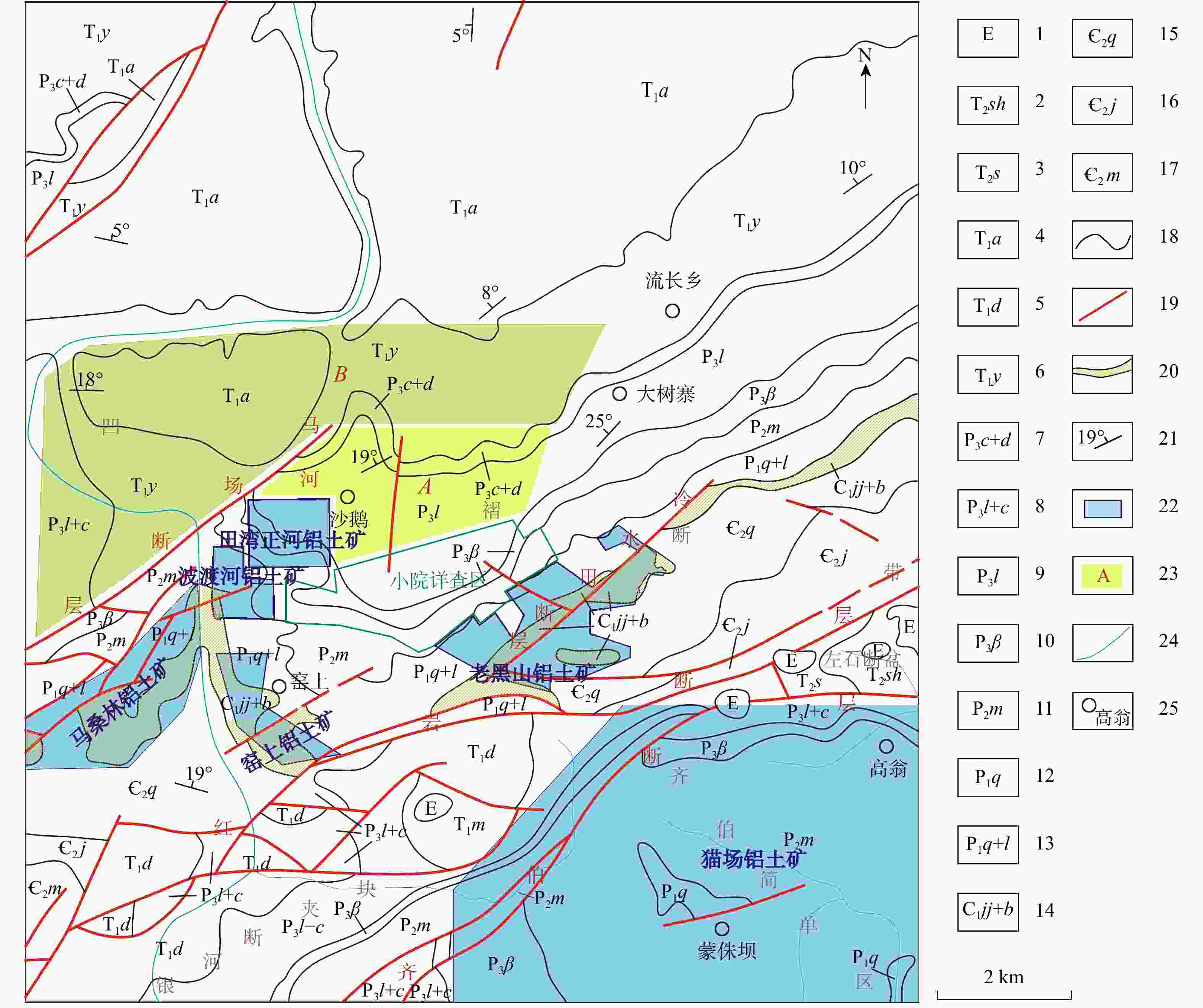

图 10 小院地区铝土矿找矿远景分析图
1. 古近系；2. 中三叠统狮子上组；3. 中三叠统松子坎组；4. 下三叠统安顺组；5. 下三叠统大冶组；6. 下三叠统夜郎组；7. 上二叠统长兴组+大隆组；8. 上二叠统龙潭组+长兴组；9. 上二叠统龙潭组；10. 峨嵋山玄武岩；11. 中二叠统茅口组；12. 下二叠统栖霞组；13. 下二叠统栖霞组+梁山组；14. 下石炭统九架炉组+摆佐组；15. 中寒武统清虚洞组；16. 中寒武统金顶山组；17. 中寒武统明心寺组；18. 地层界线；19. 断层；20. 铝土矿系露头；21. 岩层产状；22. 矿区范围；23. 预测区；24. 水系；25. 地名
Figure 10. Prospecting prospects map for bauxite deposits in Xiaoyuan area
-
[1] 王京, 李静, 张金良. 全球视角下的中国铝资源供需形势分析[J]. 中国矿业, 2024, 33(12): 54-62.WANG J, LI J, ZHANG J L. Analysis of aluminum resource supply and demand situation in China from a global perspective[J]. China Mining Magazine, 2024, 33(12): 54-62. (in Chinese with English abstract [2] 翁申富, 陈群, 韩忠华, 等. 中国矿产地质志: 贵州卷, 铝土矿[M]. 北京: 地质出版社, 2019.WENG S F, CHEN Q, HAN Z H, et al. Geology of mineral resources in China: Guizhou volume, bauxite[M]. Beijing: Geological Publishing House, 2019. (in Chinese) [3] 朱尤青, 罗朝坤, 杨晓飞, 等. 黔中地区蔡家坝铝土矿床富锂铝土岩地球化学特征及沉积环境研究[J]. 地质与勘探, 2024, 60(4): 735-746.ZHU Y Q, LUO C K, YANG X F, et al. Geochemical characteristics and sedimentary environment of Li-rich bauxite in the Caijiaba bauxite deposit, central Guizhou Province[J]. Geology and Exploration, 2024, 60(4): 735-746. (in Chinese with English abstract [4] 苏永虎, 杜蔺, 金中国, 等. 贵州务−正−道地区铝土矿含铝岩系中稀土元素富集规律及赋存形式[J]. 矿物学报, 2024, 44(1): 84-96.SU Y H, DU L, JIN Z G, et al. Enrichment regularities and occurrence forms of rare earth elements in bauxite ore-bearing rocks in the Wuchuan-Zheng'an-Daozhen area, Guizhou Province[J]. Acta Mineralogica Sinica, 2024, 44(1): 84-96. (in Chinese with English abstract [5] 刘幼平, 程国繁, 周文龙, 等. 贵州铝土矿成矿区(带)划分[J]. 地质科技情报, 2016, 35(3): 128-132.LIU Y P, CHENG G F, ZHOU W L, et al. Division of bauxite mineralization area(belt) in Guizhou Province[J]. Geological Science and Technology Information, 2016, 35(3): 128-132. (in Chinese with English abstract [6] 曾韬, 季少聪, 夏文谦, 等. 川北元坝地区茅口组顶面古地貌恢复与岩溶发育特征[J]. 中国岩溶, 2022, 41(6): 860-868.ZENG T, JI S C, XIA W Q, et al. Reconstruction of karst paleo-geomorphology and paleo-water system on the top of Maokou Formation in Yuanba area, northern Sichuan Basin[J]. Carsologica Sinica, 2022, 41(6): 860-868. (in Chinese with English abstract [7] 张海坤, 胡鹏, 姜军胜, 等. 铝土矿分布特点、主要类型与勘查开发现状[J]. 中国地质, 2021, 48(1): 68-81.ZHANG H K, HU P, JIANG J S, et al. Distribution, genetic types and current situation of exploration and development of bauxite resources[J]. Geology in China, 2021, 48(1): 68-81. (in Chinese with English abstract [8] 余文超, 杜远生, 周锦涛, 等. 中国铝土矿成矿作用的物质来源与深时环境因素: 进展与讨论[J]. 地质学报, 2023, 97(9): 3056-3074.YU W C, DU Y S, ZHOU J T, et al. Provenance and deep-time environmental factors for bauxitization in China: Progress and discussion[J]. Acta Geologica Sinica, 2023, 97(9): 3056-3074. (in Chinese with English abstract [9] 徐林刚, 孙莉, 孙凯. 中国铝土矿的成矿规律、关键科学问题与研究方法[J]. 矿床地质, 2023, 42(1): 22-40.XU L G, SUN L, SUN K. Metallogenic regularity, key scientific problems and research methods of bauxite in China[J]. Mineral Deposits, 2023, 42(1): 22-40. (in Chinese with English abstract [10] 王庆飞, 刘学飞, 杨淑娟, 等. 喀斯特型铝土矿是如何形成的?[J]. 地球科学, 2022, 47(10): 3880-3881.WANG Q F, LIU X F, YANG S J, et al. How is karst bauxite formed?[J]. Earth Science, 2022, 47(10): 3880-3881. (in Chinese with English abstract [11] 孙莉, 肖克炎, 娄德波. 中国铝土矿资源潜力预测评价[J]. 地学前缘, 2018, 25(3): 82-94.SUN L, XIAO K Y, LOU D B. Mineral prospectivity of bauxite resources in China[J]. Earth Science Frontiers, 2018, 25(3): 82-94. (in Chinese with English abstract [12] 刘长龄. 中国石炭纪铝土矿的地质特征与成因[J]. 沉积学报, 1988, 6(3): 1-10.LIU C L. Geological features and genesis of Carboniferous bauxite in China[J]. Acta Sedimentologica Sinica, 1988, 6(3): 1-10. (in Chinese with English abstract [13] 廖士范, 梁同荣, 张月恒. 论我国铝土矿床类型及其红土化风化壳形成机制问题[J]. 沉积学报, 1989, 7(1): 1-10.LIAO S F, LIANG T R, ZHANG Y H. Disscussion on the problems of bauxite deposits and their lateritic residuum as mechanism for the minerogenete of bauxite in China[J]. Acta Sedimentologica Sinica, 1989, 7(1): 1-10. (in Chinese with English abstract [14] 杜远生, 周琦, 张连昌, 等. 重大地质事件与大规模沉积成矿作用(代序言)[J]. 古地理学报, 2020, 22(5): 807-811.DU Y S, ZHOU Q, ZHANG L C, et al. Major geological events and large-scale sedimentary mineralization (generation of the preface)[J]. Journal of Palaeogeography (Chinese Edition), 2020, 22(5): 807-811. (in Chinese with English abstract [15] 杜远生, 余文超. 沉积型铝土矿的陆表淋滤成矿作用: 兼论铝土矿床的成因分类[J]. 古地理学报, 2020, 22(5): 812-826.DU Y S, YU W C. Subaerial leaching process of sedimentary bauxite and the discussion on classifications of bauxite deposits[J]. Journal of Palaeogeography (Chinese Edition), 2020, 22(5): 812-826. (in Chinese with English abstract [16] 邓旭升, 杜远生, 余文超, 等. “黔中隆起”和贵州晚古生代古地理演化及其对铝土矿的控矿作用[J]. 古地理学报, 2020, 22(5): 872-892.DENG X S, DU Y S, YU W C, et al. "Qianzhong Uplift" and evolution of the Late Paleozoic palaeogeography and its control on formation of bauxite in Guizhou Province[J]. Journal of Palaeogeography (Chinese Edition), 2020, 22(5): 872-892. (in Chinese with English abstract [17] YANG S J, WANG Q F, LIU X F, et al. Global spatio-temporal variations and metallogenic diversity of karst bauxites and their tectonic, paleogeographic and paleoclimatic relationship with the Tethyan realm evolution[J]. Earth-Science Reviews, 2022, 233: 104184. doi: 10.1016/j.earscirev.2022.104184 [18] LING K Y, WEN H J, ZHANG Q Z, et al. Super-enrichment of lithium and niobium in the Upper Permian Heshan Formation in Pingguo, Guangxi, China[J]. Science China (Earth Sciences), 2021, 64(5): 753-772. doi: 10.1007/s11430-020-9752-6 [19] ECONOMOU-ELIOPOULOS M, KANELLOPOULOS C. Abundance and genetic significance of lithium in karst-type bauxite deposits: A comparative review[J]. Minerals, 2023, 13(7): 962. doi: 10.3390/min13070962 [20] 周文龙, 刘幼平. 贵州铝土矿基底地层特征及与成矿的关系[J]. 地质与勘探, 2016, 52(3): 462-471.ZHOU W L, LIU Y P. Characteristics of basement strata in bauxite deposits of Guizhou Province and their relationships to regional mineralization[J]. Geology and Exploration, 2016, 52(3): 462-471. (in Chinese with English abstract [21] 张信伦, 柴大博, 王兵, 等. 贵州清镇老黑山铝土矿床成矿物质来源及矿床成因[J]. 桂林理工大学学报, 2018, 38(3): 384-391.ZHANG X L, CHAI D B, WANG B, et al. Source and genetic analysis of mineral deposits of Laoheishan bauxite deposit in Qingzhen, Guizhou Province[J]. Journal of Guilin University of Technology, 2018, 38(3): 384-391. (in Chinese with English abstract [22] 杨瑞东, 高军波, 赵奎, 等. 贵州清镇林歹铝土矿顶、底板特征及其对铝土矿成矿的影响[J]. 地质学报, 2018, 92(10): 2155-2165.YANG R D, GAO J B, ZHAO K, et al. Roof and floor characteristics of bauxite in Qingzhen, Guizhou, and their implications for bauxite mineralization[J]. Acta Geologica Sinica, 2018, 92(10): 2155-2165. (in Chinese with English abstract [23] 刘平, 韩忠华, 聂坤. 黔中−渝南岩溶型铝土矿含矿岩系特征、控制条件及生成发展模式[J]. 地质论评, 2022, 68(6): 2147-2174.LIU P, HAN Z H, NIE K. Characteristics of ore-bearing rock series, control conditions and generative development model of karst bauxite deposit in central Guizhou-southern Chongqing[J]. Geological Review, 2022, 68(6): 2147-2174. (in Chinese with English abstract [24] 陈群, 赵刚, 麻杰磊, 等. 贵州省清镇市小院铝土矿普查报告[R]. 贵阳: 贵州省地质矿产勘查开发局一一五地质大队, 2022.CHEN Q, ZHAO G, MA J L, et al. Survey report on Xiaoyuan bauxite mine in Qingzhen City, Guizhou Province[R]. Guiyang: 115th Geological Brigade, Guizhou Provincial Geological and Mineral Exploration and Development Bureau, 2022. (in Chinese) [25] 陶平, 陈建书, 陈启飞, 等. 关于贵州省成矿区带的划分方案[J]. 贵州地质, 2018, 35(3): 171-180.TAO P, CHEN J S, CHEN Q F, et al. Division scheme about the metallogenic zones of Guizhou Province[J]. Guizhou Geology, 2018, 35(3): 171-180. (in Chinese with English abstract [26] 贵州省地质矿产局. 中华人民共和国区域地质调查报告(1: 50000 猫场幅G-48-57-A、清镇幅G-48-57-B)[M]. 武汉: 中国地质大学出版社, 1990: 131-138.Guizhou Provincial Bureau of Geology and Mineral Resources. Regional geological survey report of the People's Republic of China (1: 50000 Maochang G-48-57-A and Qingzhen G-48-57-B)[M]. Wuhan: China University of Geosciences Press, 1990: 131-138. (in Chinese) [27] 周汝贤, 杨瑞东, 陈圣光. 贵州织金岔河铝土矿含矿岩系特征及成矿因素探讨[J]. 科学技术与工程, 2020, 20(7): 2554-2563.ZHOU R X, YANG R D, CHEN S G. Characteristics of ore-bearing rock series and metallogenic factors in Zhijin Chahe bauxite deposit, Guizhou Province[J]. Science Technology and Engineering, 2020, 20(7): 2554-2563. (in Chinese with English abstract [28] 刘平, 廖友常, 张雅静. 黔中−渝南石炭纪铝土矿含矿岩系中的海相沉积特征[J]. 中国地质, 2015, 42(2): 641-654.LIU P, LIAO Y C, ZHANG Y J. Characteristics of marine deposits of the Carboniferous bauxite-bearing rock series in central Guizhou-southern Chongqing area[J]. Geology in China, 2015, 42(2): 641-654. (in Chinese with English abstract [29] 焦赞超, 梁会娟, 刘传权, 等. 河南新安县郁山铝土矿床地质特征、成矿规律及成矿物质来源[J]. 西北地质, 2014, 47(1): 221-233.JIAO Z C, LIANG H J, LIU C Q, et al. Geological characteristics, metallogenic regularity, sources of ore-forming material of the bauxite district, Yushan, Xin'an, Henan Province[J]. Northwestern Geology, 2014, 47(1): 221-233. (in Chinese with English abstract [30] 杜远生, 周琦, 金中国, 等. 黔北务正道地区早二叠世铝土矿成矿模式[J]. 古地理学报, 2014, 16(1): 1-8.DU Y S, ZHOU Q, JIN Z G, et al. Mineralization model for the Early Permian bauxite deposits in Wuchuan-Zheng'an-Daozhen area, northern Guizhou Province[J]. Journal of Palaeogeography, 2014, 16(1): 1-8. (in Chinese with English abstract [31] 吴波, 邓克勇, 刘应忠, 等. 贵州龙里地区早石炭世杜内期铝土矿微地貌及其对铝土矿的控制作用[J]. 古地理学报, 2020, 22(5): 977-988.WU B, DENG K Y, LIU Y Z, et al. Microgeomorphology and its control on the Early Carboniferous Tournaisian bauxite deposits in Longli area of Guizhou Province[J]. Journal of Palaeogeography (Chinese Edition), 2020, 22(5): 977-988. (in Chinese with English abstract [32] 吕留彦, 陈仁, 于宁, 等. 黔中开阳地区早石炭世大塘期岩相古地理对铝土矿成矿的制约[J]. 矿物学报, 2021, 41(增刊1): 509-519.LYU L Y, CHEN R, YU N, et al. Constraints of the Early Carboniferous Datangian lithofacies paleogeography on the bauxite mineralization in the Kaiyang area, central Guizhou, China[J]. Acta Mineralogica Sinica, 2021, 41(S1): 509-519. (in Chinese with English abstract [33] ZHAO L H, LIU X F, WANG Q F, et al. Genetic mechanism of super-large karst bauxite in the northern North China Craton: Constrained by diaspore in-situ compositional analysis and pyrite sulfur isotopic compositions[J]. Chemical Geology, 2023, 622: 121388. doi: 10.1016/j.chemgeo.2023.121388 [34] SCOTESE C R, SONG H J, MILLS B J W, et al. Phanerozoic paleotemperatures: The earth's changing climate during the last 540 million years[J]. Earth-Science Reviews, 2021, 215: 103503. doi: 10.1016/j.earscirev.2021.103503 [35] LIU X F, WANG Q F, ZHANG Q Z, et al. Genesis of the Permian karstic Pingguo bauxite deposit, western Guangxi, China[J]. Mineralium Deposita, 2017, 52(7): 1031-1048. doi: 10.1007/s00126-017-0723-y [36] 张曰静, 张奎华, 隋风贵, 等. 准噶尔盆地车排子凸起白垩系层序−古地貌耦合控砂机制与砂体预测[J]. 东北石油大学学报, 2020, 44(6): 1-11.ZHANG Y J, ZHANG K H, SUI F G, et al. Coupling mechanism for sand control and sand body prediction of Cretaceous sequence and paleogeomorphology in the Chepaizi Uplift, Junggar Basin[J]. Journal of Northeast Petroleum University, 2020, 44(6): 1-11. (in Chinese with English abstract [37] 叶蕾, 朱筱敏, 谢爽慧, 等. 沉积古地貌基本恢复方法及实例研究: 以饶阳凹陷沙一段为例[J]. 古地理学报, 2023, 25(5): 1139-1155.YE L, ZHU X M, XIE S H, et al. Restoration methods of sedimentary palaeogeomorphology and applications: A case study of the First Member of Paleogene Shahejie Formation in Raoyang Sag[J]. Journal of Palaeogeography (Chinese Edition), 2023, 25(5): 1139-1155. (in Chinese with English abstract [38] 姜海健, 李春堂, 倪春华, 等. 鄂尔多斯盆地东北部马家沟组三段古地貌、古环境及控烃作用[J]. 东北石油大学学报, 2023, 47(6): 1-12.JIANG H J, LI C T, NI C H, et al. Paleogeomorphology, paleoenvironment and hydrocarbon control of the Third Member of Majiagou Formation in northeastern Ordos Basin[J]. Journal of Northeast Petroleum University, 2023, 47(6): 1-12. (in Chinese with English abstract [39] 曹振民, 李兵, 张文涛. 基于断层期次划分构造异常校正方法在古地貌恢复中的应用: 以现河地区沙四上纯下段为例[J]. 山东石油化工学院学报, 2023, 37(4): 11-16.CAO Z M, LI B, ZHANG W T. Applications of structural anomaly correction method based on fault period division in paleogeomorphic restoration: Taking restoration of ancient landforms of Es4cx in Xianhe area as an example[J]. Journal of Shandong Institute of Petroleum and Chemical Technology, 2023, 37(4): 11-16. (in Chinese with English abstract [40] 杨哲翰, 刘江艳, 吕奇奇, 等. 古地貌恢复及其对重力流沉积砂体的控制作用: 以鄂尔多斯盆地三叠系延长组长73亚段为例[J]. 地质科技通报, 2023, 42(2): 146-158.YANG Z H, LIU J Y, LYU Q Q, et al. Paleogeomorphological restoration and its control on gravity flow sand bodies: A case study of the Chang 73 submember of the Triassic Yanchang Formation in the Ordos Basin[J]. Bulletin of Geological Science and Technology, 2023, 42(2): 146-158. (in Chinese with English abstract -
